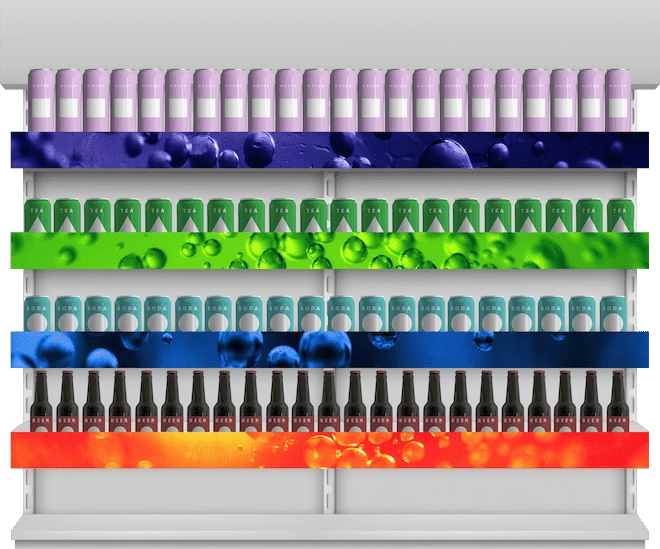

The PLASMA is well suited for both small and large stores. This fine pixel pitch LED shelf is the perfect way to promote your best-selling products, advertise discounts, and more. Easy to integrate and very resilient, the PLASMA is an investment that will endure over the years and perform outstandingly.
Application
Indoor
PIXEL PITCH
P1.2
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP65 ( front)
IP41 (rear)
Display Area (W X H)
300 X 60 MM
BRIGHTNESS
≤600 NITS @5 Volts
WEIGHT
0.35 KG / cabinet
MATERIAL
ALUMINUM
The PLASMA is recognized automatically by your computer when plugged in. This allows it to be installed quickly and efficiently.

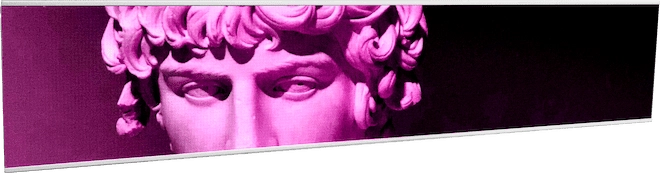

The quick and seamless assembly of PLASMA cabinets offers a continuous and precise image quality. With a 1.25mm pixel pitch, the PLASMA is highly performant visually speaking. The PLASMA's visual potential is also due to its high contrast ratio, which allows sharp image resolution.
The PLASMA is ideal for any situation that requires a continued and prolonged LED display, such as trading floors, airports, shops and many more. Its integration and maintenance are fast and easy processes that can be operated by one technician.

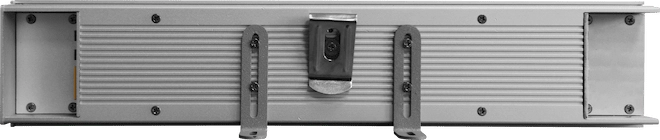

The PLASMA offers excellent heat dissipation and low light decay. The IP65 screen protection is entirely waterproof, dustproof, and shockproof. Even with intensive and prolonged use, the PLASMA will perform and stay true to its original condition.
INDOORFront MaintenanceSolutionMarketsFine PitchHigh ResolutionRobustPlug & Play
| INDOOR | ||
| Product Parameters | Unit | 1.2 |
| Pixel Pitch | mm | 1,25 |
| LED | COB 1R1G1B | |
| Application | Retail promotion stripes | |
| Ingress Protection | IP | IP65 (front) / IP41 (rear) |
| Brightness | cd/sqm | ≤ 600 NITS @5volts |
| Color Temperature after calib (adjustable) | deg. K | 3200 - 9300 |
| Viewing Angle (50% brightness) | deg. | 170 H / 170 V |
| Device size (WxHxD) | mm | 300 x 60 x 41 |
| Display area (WxH) | mm | 300 x 60 |
| Cabinet size (WxHxD) | mm | 300 x 60 x 23 |
| Module size (WxHxD) | mm | No module |
| Device pixel matrix (WxH) | px | 240 x 48 |
| Cabinet pixel matrix (WxH) | px | 240 x 48 |
| Module pixel matrix (WxH) | px | - |
| Pixel Density | px/sqm | 640000 |
| Weight | kg | 0.35 |
| Cabinet Material | Aluminum | |
| Maintenance Mode | Front Maintenance | |
| Mask specification | No Mask | |
| Contrast Ratio | ≥ 10000:1 | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 1920 Hz |
| Operation Power | V | DC 24V |
| Max. Power Consumption | W/sqm | 300 |
| Average Power Consumption | W/sqm | 100 |
| Control Mode | Asynchronization & Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | USB memory / WIFI / 4G / Lan / RJ45 | |
| 3D ready (optional) | No | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10% ~ 95% | |
| Operating Temperature Range | -20°C ~ +80°C | |
| Screen Uniformity Correction | - | |
| Certification | CE / ETL / CCC | |
| Available options | No | |
| Compatibility | No |
