Titanite Access indoor LED display, Ultra HD in 16:9
The Titanite Access indoor LED display is a 16:9 cabinet fitted with Full Black Face SMD LEDs. It comes in pixel pitches from P1.2 to P1.8. The cabinets are simple to install and run, for projects that need a very fine picture.
Titanite Access
Features
Full Black Face SMD
The Titanite Access indoor LED display uses SMD1010, SMD1212 and SMD1515 Full Black Face LEDs across its different pixel-pitch configurations. The black resin surrounding the LED components improves the visual definition of the display and contributes to a high-contrast image surface, supporting detailed content reproduction in demanding indoor environments.
Unlike more heavily encapsulated technologies such as GOB or COB, the SMD architecture also makes it easier to access and repair individual LEDs, providing a practical advantage when localized servicing is required. This combination of image quality and component-level repairability makes Full Black Face SMD technology particularly well suited to professional Ultra HD LED installations where performance and straightforward maintenance must remain balanced.

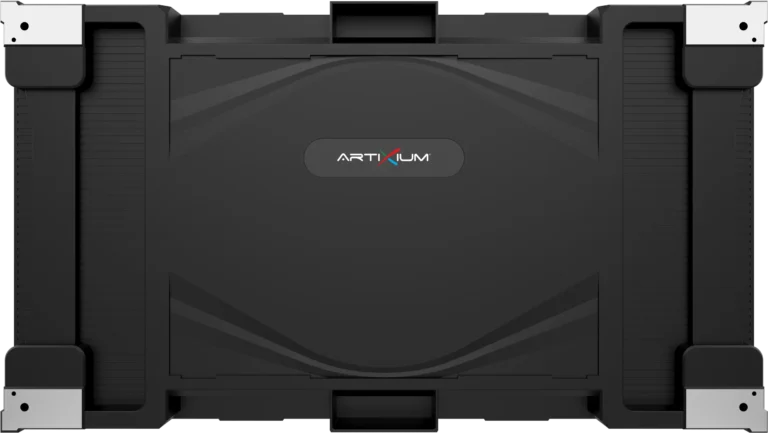

Native 16:9 Format
The Titanite Access indoor LED display has a native 16:9 cabinet ratio, matching the aspect ratio used by most contemporary professional video formats. This geometry simplifies the construction of LED video walls intended for Full HD, 4K and 8K content, allowing standard-format media to be displayed without cropping or additional software adjustments.
The native proportions also help maintain accurate visual composition across presentations, broadcast content and immersive media. By aligning the physical cabinet format with standard video resolutions, the Titanite Access provides a straightforward foundation for corporate video walls, broadcast environments, control rooms and premium architectural displays requiring correctly proportioned content.

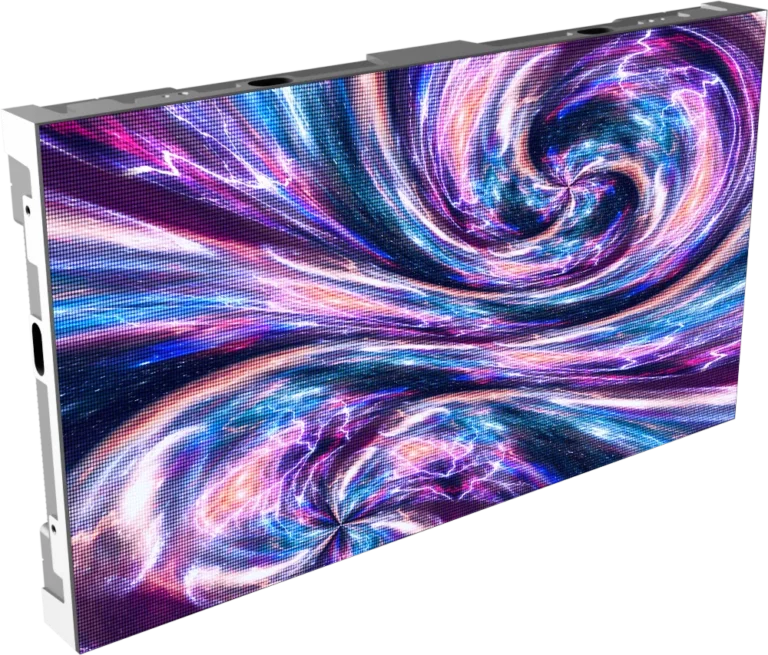

Ultra HD Resolution
With pixel pitches from P1.2 to P1.8, the Titanite Access provides the pixel density required to create high-resolution indoor LED walls while maintaining a controlled overall display size. Depending on the selected pitch, Full HD can be achieved with 16, 25 or 36 cabinets, while the same modular architecture can scale to 4K and 8K resolutions for larger installations.
The P1.2 configuration provides the highest density within the range, enabling a 1920 × 1080 display with 16 cabinets arranged across a 2400 × 1350 mm screen area. This scalability allows the resolution and physical dimensions of the LED wall to be adapted to the viewing distance and available installation space.

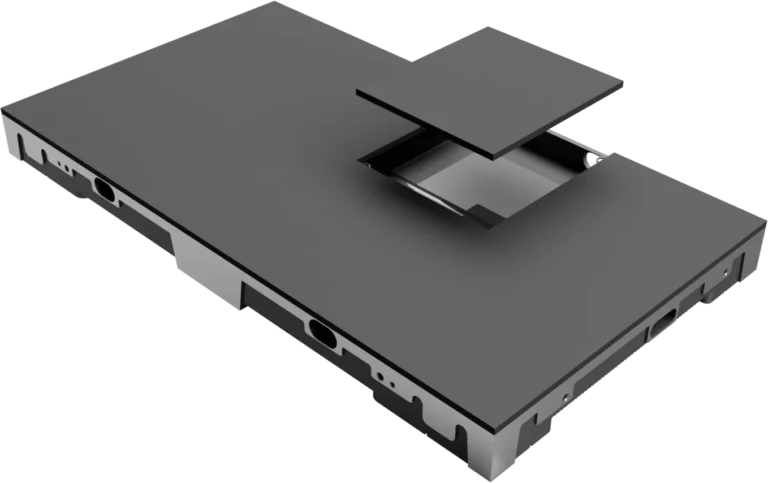

Front Maintenance
The Titanite Access indoor LED display is engineered for complete front module maintenance, allowing servicing to be carried out without dismantling the surrounding LED structure. Each LED module is magnetically attached to the cabinet and can be removed from the visible side using a vacuum-based suction tool applied directly to the display surface.
This approach allows technicians to extract and replace an individual module safely and precisely while leaving adjacent components in position. Front access is especially valuable for wall-mounted and space-constrained installations, where eliminating the need for a rear maintenance corridor can simplify integration and reduce the overall space required behind the LED display.
