Mica flexible LED display for custom shapes
The Mica flexible LED display follows curves and custom shapes indoors. Its rubber-based modules come in pixel pitches from P1.5 to P5 and reach 1,200 nits. They attach magnetically to their frame and can be serviced from the front or the rear, for architectural or artistic projects.
Mica
Immersive, High-Resolution Displays
Its modular format makes it easy to create balanced 16:9 screens and achieve 2K or 4K resolutions. Combined with a fine pixel pitch, the Mica delivers detailed visual content for both decorative and immersive applications.
Features

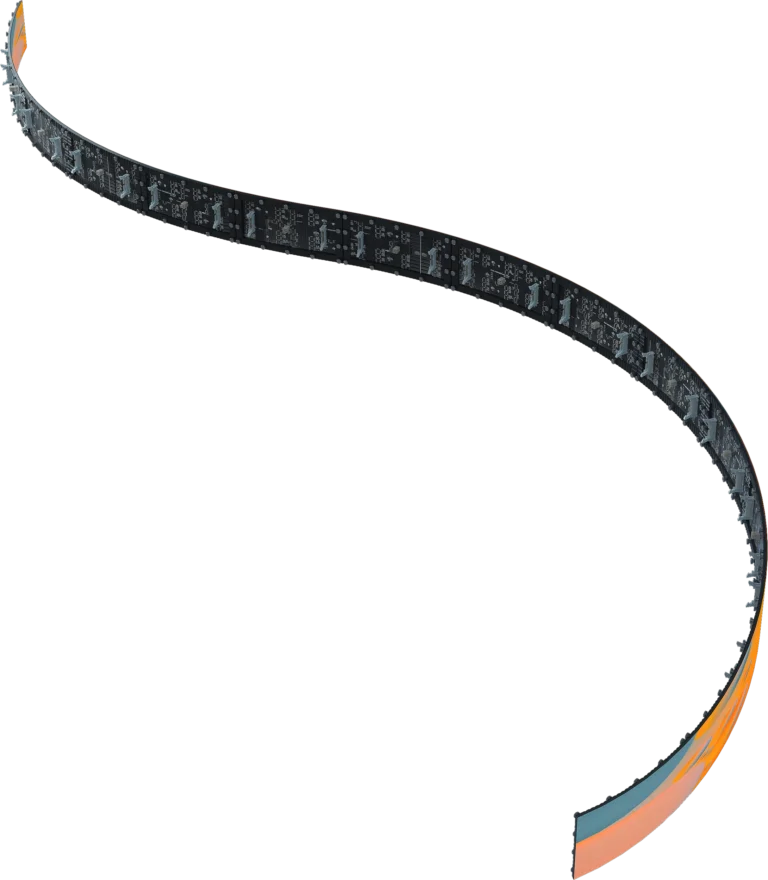

Curved Integration
The Mica flexible LED display is designed for creative indoor LED installations involving complex curves and unconventional shapes. Its flexible modules can be attached to tailored steel structures, allowing the display surface to follow the specific geometry required by the project. This adaptability makes the system suitable for integration into interior architecture as well as for independent artistic LED displays. By adjusting the supporting structure, designers can create a wide variety of forms without being restricted to the flat surfaces associated with conventional rigid LED cabinets.

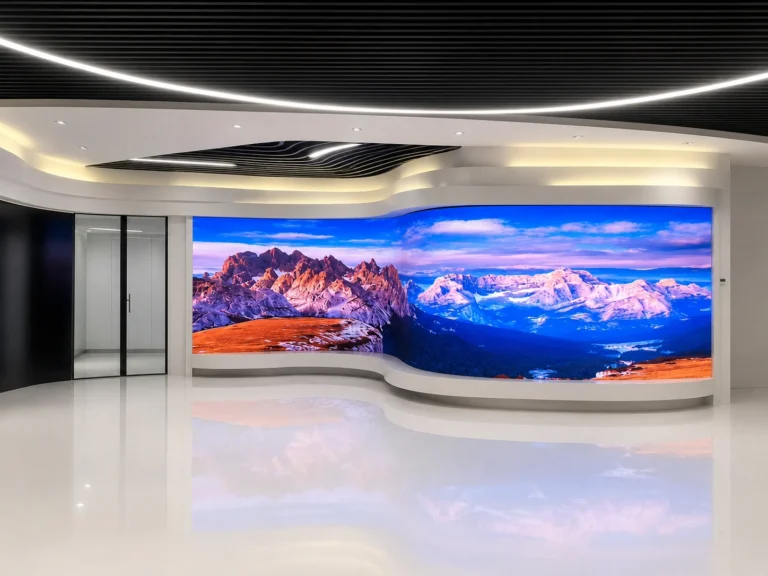

Fine Pixel Pitch
The Mica flexible LED display is available with a fine pixel pitch ranging from P1.5 to P5, supporting detailed image reproduction for indoor installations. These configurations are particularly relevant for creative displays viewed at relatively short distances, where pixel density directly affects the clarity of visual content. The available pitch range allows the display specification to be adapted to the required resolution and viewing conditions while retaining the flexible construction needed for curved and custom-shaped LED surfaces.

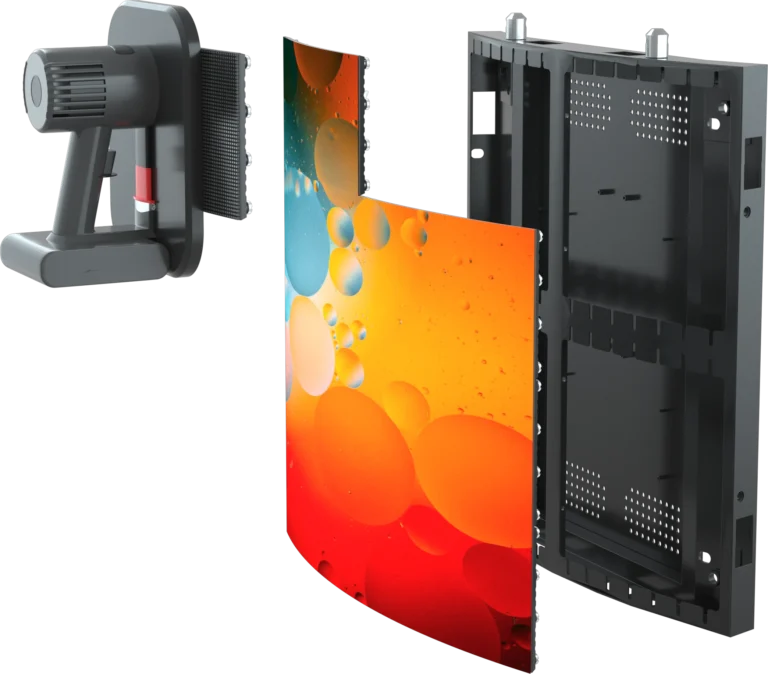

Magnetic Maintenance
Each Mica module is magnetically attached to its supporting metal structure, making individual units easy to remove and replace. Maintenance can be performed from both the front and the rear of the display, allowing technicians to select the most accessible intervention side according to the installation environment. This magnetic mounting system keeps servicing manageable even when the LED display uses a complex curved layout, as a defective module can be accessed without dismantling the complete structure.
IP43 Protection
The Mica flexible LED display provides IP43 protection for indoor LED display applications. Its predominantly rubber construction gives the modules a high level of resilience against physical impacts, while the quality of the integrated components provides resistance to water projections and dust. This combination of shock resilience and ingress protection helps preserve the modules in indoor environments where the display may be exposed to accidental contact or limited environmental contaminants.
