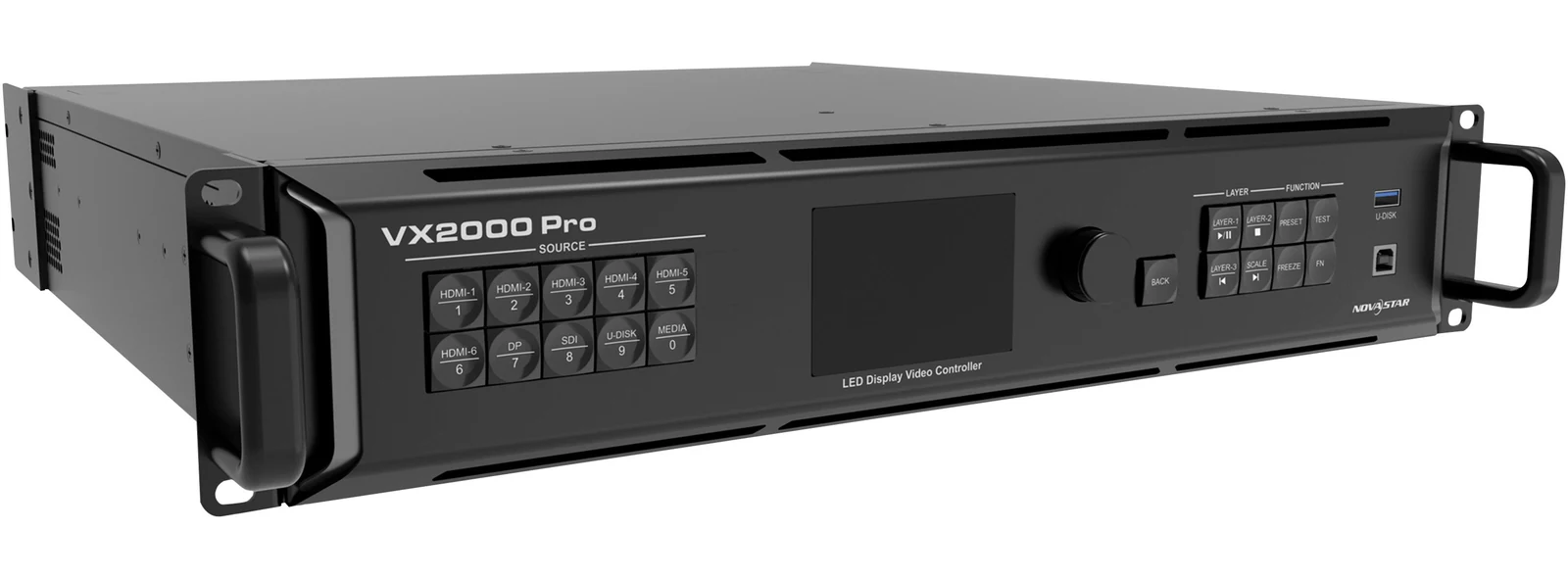

NovaStar VX2000 Pro

The NovaStar VX2000 Pro is an all-in-one controller that combines video processing and LED screen control in a single unit. It drives up to 13 million pixels over 20 Gigabit Ethernet ports and provides 10G fiber ports, with three working modes: video controller, fiber converter and ByPass.

It handles multiple layers with stepless scaling and can be operated from the front panel, NovaLCT, the Unico web page or the VICP app. NovaStar targets medium and high-end rental, stage control systems and fine-pitch LED screens.

Free quote — reply within 24h Download the datasheet

Technical specifications

Type: All-in-one controller (video processing + sending)
Loading capacity: 13,000,000 pixels (650,000 pixels per port, 8-bit)
Max width / height: 16,384 px / 8,192 px

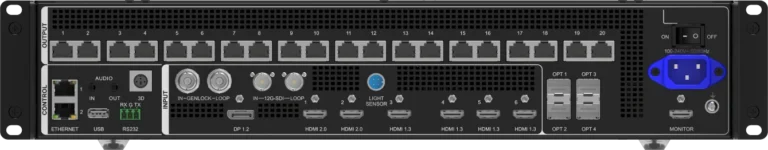

Ethernet outputs: 20 × Gigabit Ethernet
Fiber ports: 4 × 10G OPT (OPT 1/2 input or output, OPT 3/4 output)
Video inputs: 1 × DP 1.2, 2 × HDMI 2.0 (4096×2160@60Hz), 4 × HDMI 1.3, 1 × 12G-SDI (with loop), 2 × 10G OPT, 1 × USB 3.0 (media playback)
Layers: 12 layers (12 × 2K×1K resources)
Latency: 1–2 frames (video controller, low latency), 0 frames in low-latency ByPass and fiber converter modes
Control: Front-panel knob, NovaLCT, Unico web page, VICP app, RS232, Genlock
Power consumption: 82 W (rated)
Dimensions (W × D × H): 482.6 × 409.0 × 94.6 mm
Weight: 7 kg (net)
