Hybrid rental LED cabinet

Manganite rental LED screen, Ultra HD for creative projects

The Manganite rental LED screen is a hybrid cabinet for creative projects, indoors or outdoors. It comes in pixel pitches from P1.2 to P3.8, with Micro X LEDs protected by X-GOB. It can be serviced from the front or the rear, curves with a built-in system and takes a wide range of accessories to go beyond a standard wall.

Manganite

Application
Indoor / Outdoor
Pixel pitch
P1.2 – P1.5 – P1.9 – P2.5 – P2.9 – P3.8
Maintenance
Back & front
Ingress protection (IP)
IP40 / IP65 / IP20 / IP54
Brightness
3,500 nits

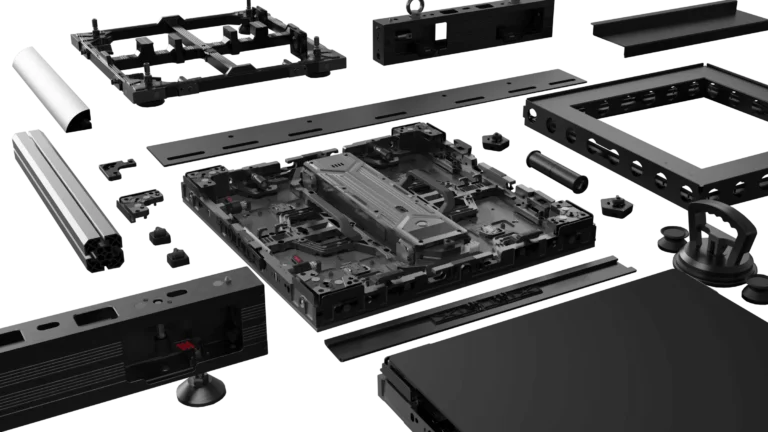

Manganite rental LED screen in use
In use

Creative Installation Ecosystem

Manganite rental LED screen with its accessories: the same modular cabinet builds walls, floors or custom structures.

In detail

Features

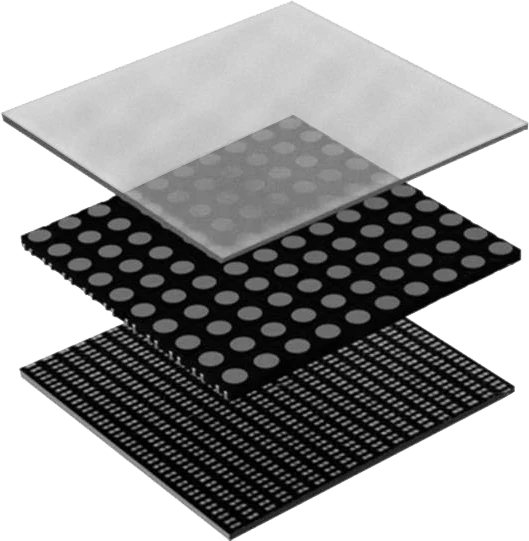

Micro X & X-GOB Technology

The Manganite rental LED screen combines Micro X LED technology with X-GOB module protection for high resolution and better durability, indoors and outdoors. Micro X LEDs provide fine Ultra HD pixel pitches, high brightness, a wide color range, strong contrast and anti-reflection performance, supporting detailed visual reproduction even in demanding professional environments.

The modules are further reinforced with X-GOB technology, which protects the LED surface against impacts, dust, water, temperature variations and static electricity while also contributing to improved contrast and visual comfort. Together, these technologies give the Manganite excellent image quality, suited to close viewing and repeated handling.

Manganite rental LED screen with its accessories

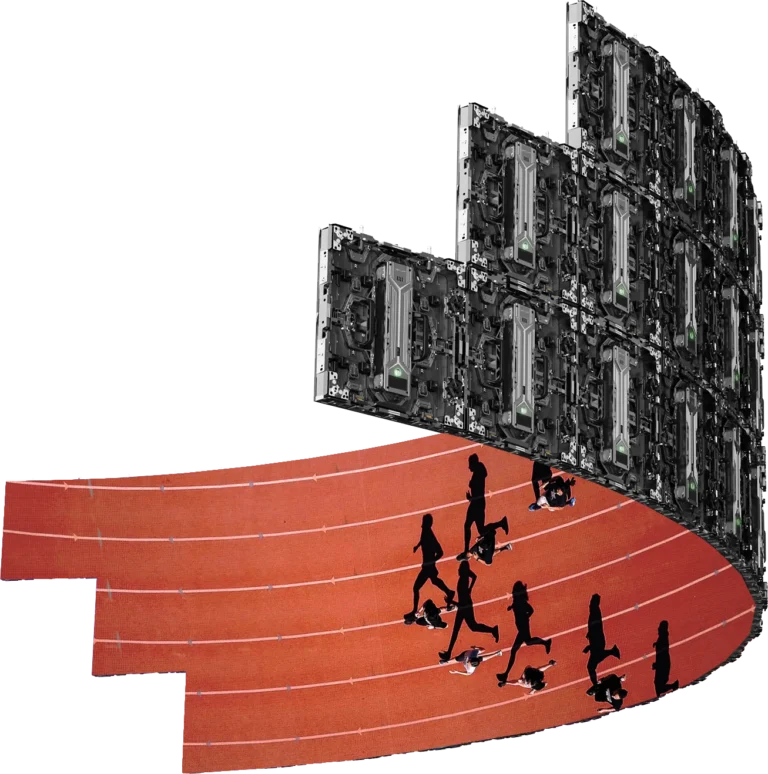

The Manganite rental LED screen incorporates a toolless curving system directly into the cabinet architecture, allowing the LED wall to form both inward and outward curves. Technicians can adjust the geometry of the installation without relying on a separate tool-based curving process, making it easier to adapt the same cabinets to different scenographic concepts.

This integrated mechanism expands the possibilities beyond conventional flat LED walls and supports customized curved surfaces for events, exhibitions and immersive installations. Adjustable geometry and a locking system built for rental: the Manganite gives lots of creative freedom and still installs quickly.

Manganite — Courbure intégrée

Both the LED modules and the power box can be accessed from either the front or the rear of the Manganite cabinet. This dual-access architecture allows the maintenance strategy to be adapted to the physical constraints of each installation rather than requiring permanent technical access behind the display.

When module replacement is required, the intervention is designed to remain quick and straightforward for a qualified technician, with servicing possible within a few minutes. This flexibility is especially useful for creative LED structures, exhibition installations and other configurations where conventional rear access may become restricted once the display has been integrated.

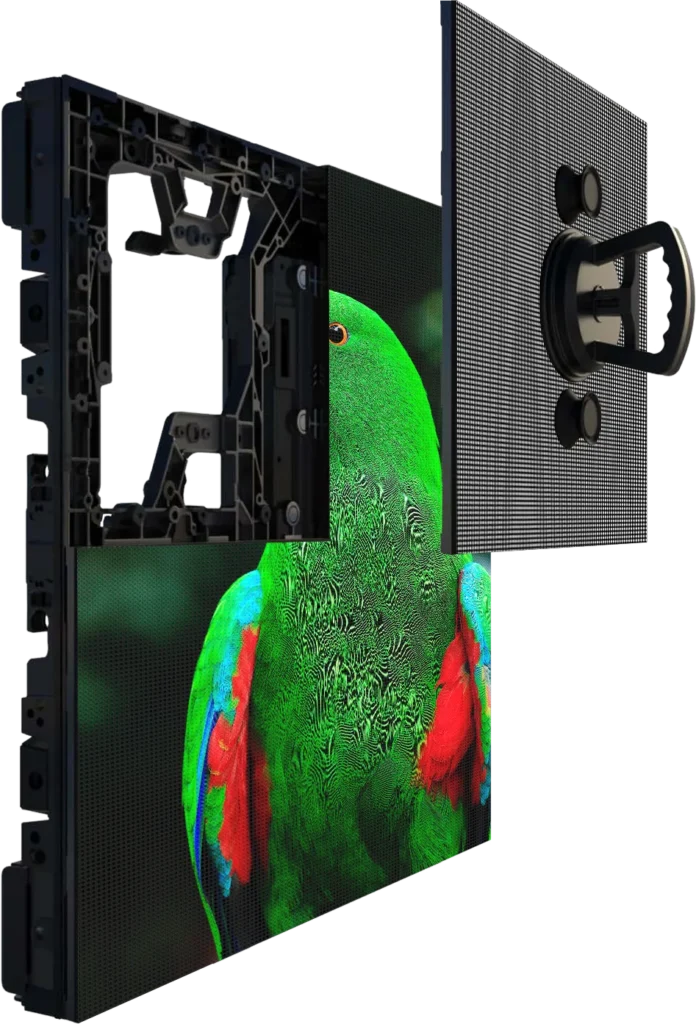

Manganite cabinet with an LED module opened for front or rear maintenance

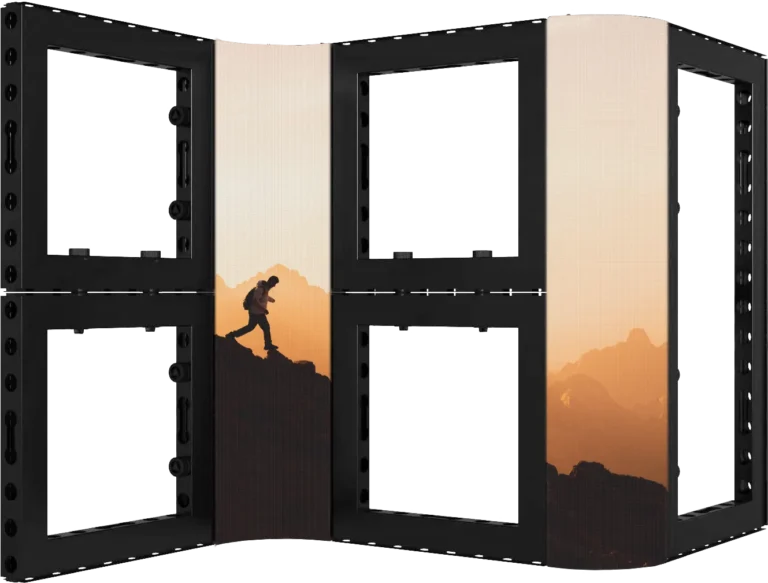

Dedicated Manganite cabinets create 90° LED angles with no break, inward or outward. Unlike a system limited to a single corner direction, these specialized cabinets give designers greater freedom to construct multidirectional LED surfaces that turn either into or away from the viewing space. The configuration is particularly suitable for exhibition stands, immersive environments and architectural installations where visual content must continue around a right-angle transition. With dedicated corner cabinets in the same range, the Manganite builds complex geometric displays with no visual break across the installation.

Manganite — Caissons 90°

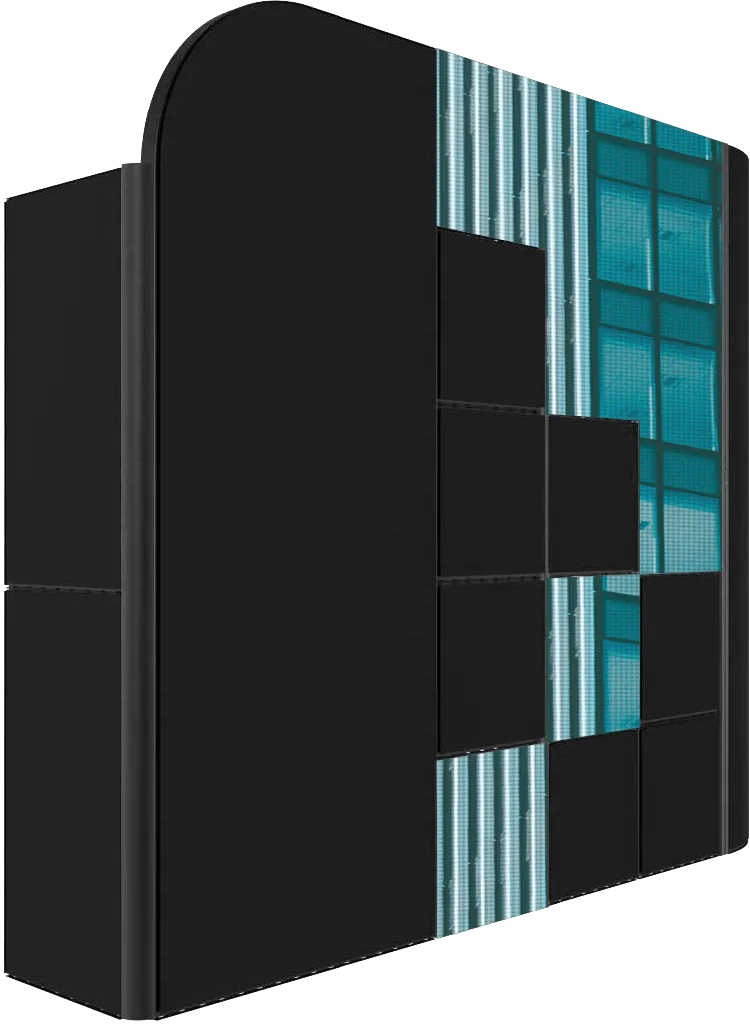

The Manganite incorporates an adjustable cabinet depth ranging from 55 mm to 66 mm. This adjustment lets you fine-tune the cabinet’s position to the surrounding structure and the needs of the project. Even relatively small variations in depth can be important when an LED surface must align precisely with exhibition frames, architectural elements or adjoining technical components. By allowing this dimension to be modified directly at cabinet level, the Manganite provides integrators with an additional degree of control for achieving precise alignment and cleaner physical integration within customized LED structures.

Manganite — Profondeur réglable

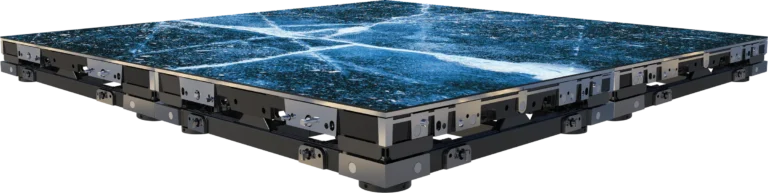

The Manganite can be configured as an LED floor using a dedicated supporting frame and adjustable feet. The frame provides the structural foundation required for horizontal installation, while its height adjustment allows the floor surface to be positioned according to the requirements of the surrounding environment.

For more elaborate applications, LED strips can also be integrated beneath the LED floor, expanding the visual possibilities of the installation beyond the primary display surface. With this floor setup, the same Manganite range goes beyond upright screens and becomes part of immersive events, exhibitions or set designs.

Manganite — Sol LED

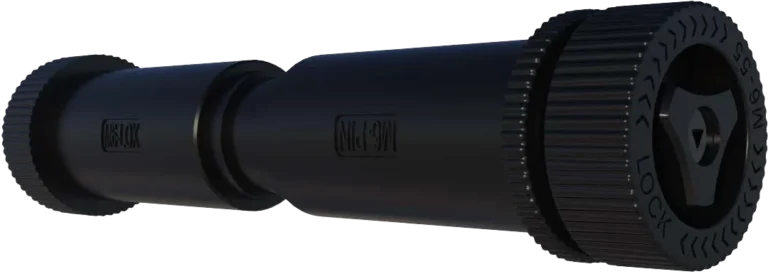

Dedicated frame connectors let designers leave deliberate openings in a Manganite LED wall while keeping the surrounding cabinets linked. The display no longer has to be a solid rectangle: parts of the structure can stay open for custom set or exhibition layouts. The cabinets positioned around the opening remain mechanically connected, allowing the LED installation to incorporate negative space as part of its design. This feature considerably expands the creative possibilities of the system for projects requiring non-conventional screen shapes and open structural compositions.

Manganite — Connecteurs de structure

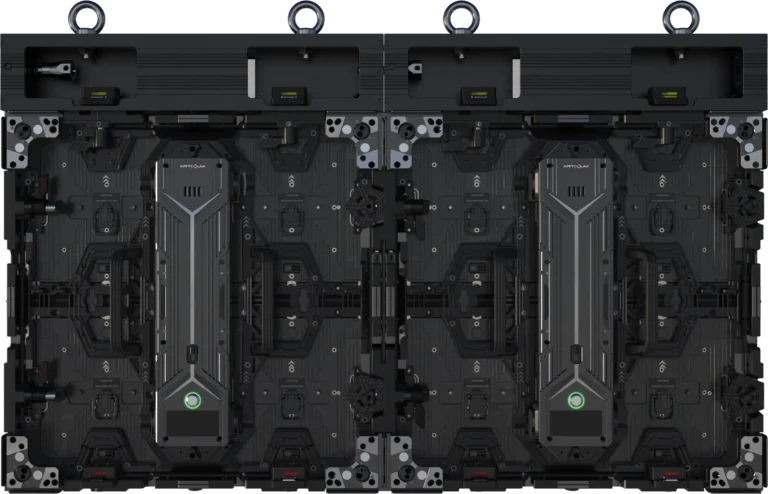

The Manganite rental LED screen uses multi-purpose hanging bars that can also operate as floor-stacking accessories. A single structural accessory can therefore support suspended LED installations as well as ground-supported configurations, reducing the need for entirely separate rigging components for each mounting method. This dual use makes the Manganite range more versatile: the same equipment adapts to different venues and projects. For event and rental operators, the ability to reuse the hanging hardware for floor stacking provides a more flexible approach to configuring LED screens across different installations.

Manganite — Barres de suspension

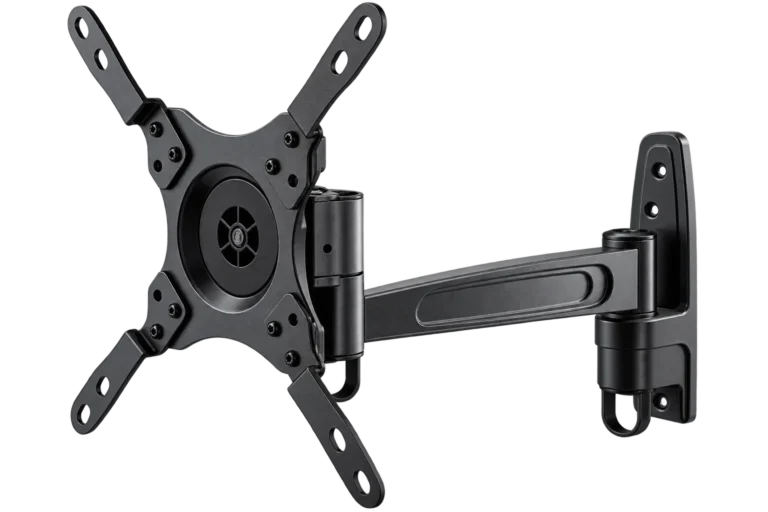

An optional articulated arm connects individual Manganite cabinets to an existing structure at less common angles. Multiple cabinets can be positioned independently to create tree-like or branching LED compositions, moving beyond the continuous grid typically associated with modular LED walls. The articulated connection provides the structural link required to position each cabinet as part of a more sculptural installation. This accessory is particularly relevant for exhibition, scenographic and creative event applications where the LED cabinets themselves become individual visual elements within a larger three-dimensional composition.

Manganite — Bras articulé
Expert advice

Need advice?

We are here to answer all your questions!

Technical specifications

Pixel pitch
Pixel pitchApplicationDisplay area (mm)TypeResolution (px)LED typeBrightness (nits)Refresh rate (Hz)Weight (kg)Power avg/max (W)IP rating
P1.2Indoor / Outdoor496 × 496Standard384 × 384SMD10108003,840959 / 148IP40 / IP20
P1.5Indoor / Outdoor496 × 496Standard320 × 320Micro X3,5003,840959 / 148IP65 / IP54
P1.5Indoor / Outdoor496 × 496Standard320 × 320SMD10108003,840959 / 148IP40 / IP20
P1.9Indoor / Outdoor496 × 496Standard256 × 256Micro X3,5003,840959 / 148IP65 / IP54
P1.9Indoor / Outdoor496 × 496Standard256 × 256SMD10108003,840959 / 148IP40 / IP20
P2.5Indoor / Outdoor496 × 496Standard192 × 192Micro X3,5003,840959 / 148IP65 / IP54
P2.5Indoor / Outdoor496 × 496Standard192 × 192SMD10108003,840959 / 148IP40 / IP20
P2.9Indoor / Outdoor496 × 496Standard168 × 168Micro X3,5003,840979 / 197IP65 / IP54
P3.8Indoor / Outdoor496 × 496Standard128 × 128SMD19213,5003,840979 / 197IP65 / IP54
Series common specifications
Contrast : HighGrey scale : 16 bitLifetime : 50,000 hTemperature : -20°C to 50°CHumidity : 10-95%Material : Die-casting aluminum
Certifications
CEETLEMC_CLASS_BCCC
