Topaz rental LED screen, high precision for live shows
The Topaz rental LED screen is an indoor cabinet for studios, broadcast sets and high-end events. It uses MiniLED 4-in-1 technology, comes in pixel pitches from P1.5 to P2.6 and reaches 1,500 nits, with a 7,680 Hz refresh rate. The cabinet curves and is serviced from the rear without tools.
Topaz
Features
Fine Pixel Pitch
The Topaz P1.5 features an ultra-fine 1.56 mm pixel pitch, delivering the high pixel density required for applications where image precision is critical. The reduced distance between pixels produces smooth, highly detailed visuals at close viewing distances, without a visible pixel grid or loss of sharpness. This level of definition makes the display particularly suitable for studios, broadcast sets, corporate environments and premium installations, where audiences or cameras may be positioned close to the LED surface. The fine-pitch architecture gives the Topaz P1.5 the precision required for immersive content and highly realistic visual rendering.

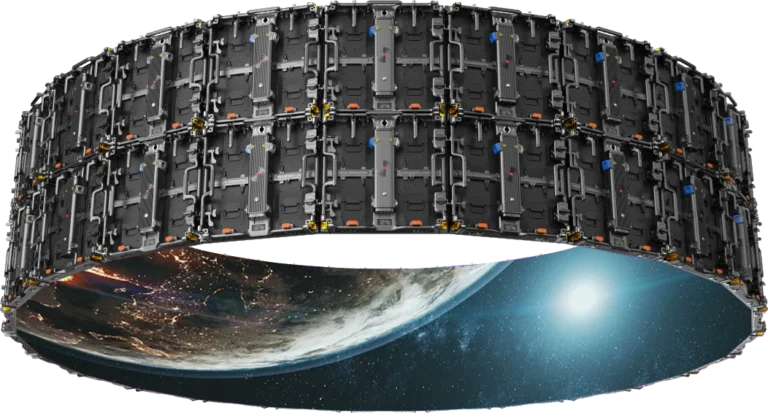

Incurvation
The Topaz rental LED screen incorporates an integrated curving system that allows cabinets to be assembled in both concave and convex configurations. This flexibility enables the creation of cylindrical displays, arched LED walls and wrap-around structures for immersive event and scenographic applications.
The mechanical precision of the cabinet connections maintains a smooth and continuous curvature between adjacent cabinets, helping preserve visual continuity across the complete LED surface without introducing visible gaps or image distortion. This adaptable geometry makes the Topaz particularly suitable for panoramic stage designs, creative installations and architectural LED displays where a conventional flat screen would restrict the visual concept.

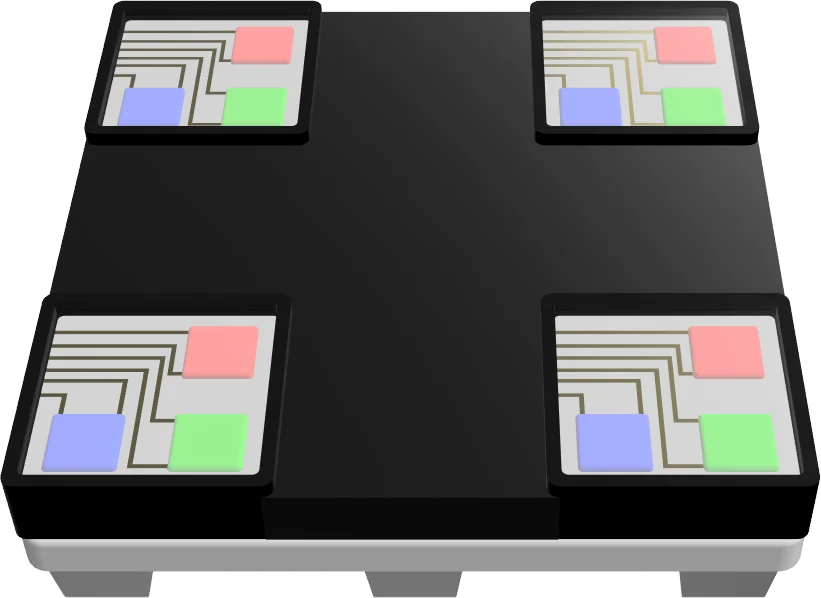

MiniLED 4-in-1
The Topaz P1.5 integrates MiniLED 4-in-1 technology to strengthen the visual consistency and physical robustness of the display. This technology combines deep contrast with uniform brightness, helping the LED surface maintain consistent image quality across the complete screen.
The MiniLED architecture also provides increased mechanical resistance, an important characteristic for an indoor rental cabinet that may be repeatedly handled, transported and installed. By combining visual uniformity with enhanced durability, the Topaz delivers a display surface designed to maintain reliable performance throughout demanding professional applications. MiniLED 4-in-1 is also used elsewhere in Artixium’s professional event range as a key technology for fine-pitch rental displays.

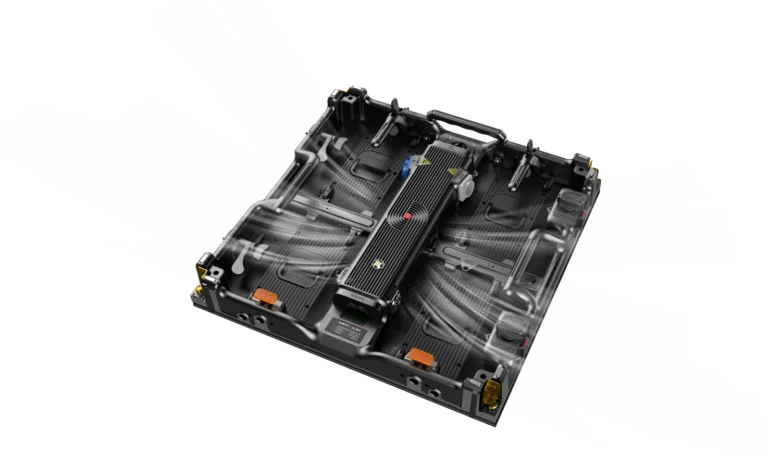

Heat Dissipation
The Topaz rental LED screen uses a die-cast magnesium power block with an electronic and mechanical design optimized for heat dissipation. Efficiently removing heat generated during operation helps control the internal temperature of the cabinet and supports more stable long-term performance. The thermal architecture also contributes to lower energy consumption while reducing the thermal stress placed on the display’s electronic components. By improving the management of operating heat, the power-block design contributes directly to extending the system’s overall lifespan, an important advantage for professional rental equipment intended for frequent and prolonged use.

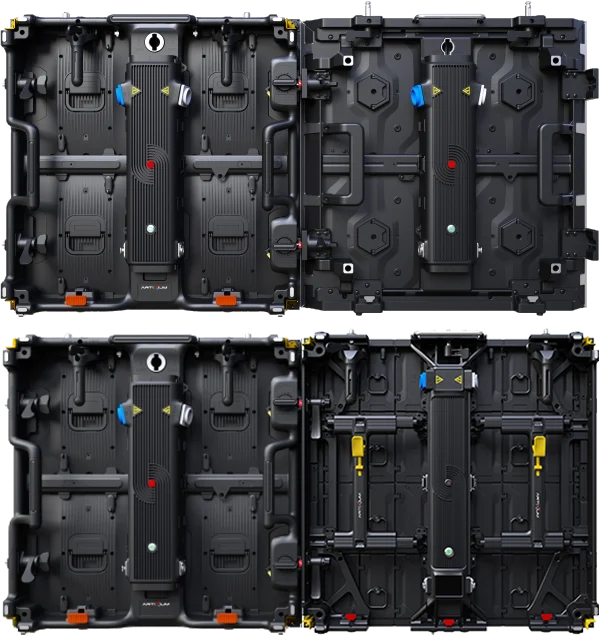

Cross-Compatibility
The Topaz rental LED screen provides lateral cross-compatibility with the Helium 2, Boron 2 and Beryl corner cabinet series, allowing different Artixium event products to be integrated within mixed LED configurations. The compatible cabinets share the same quick-locking system, connector interface and harmonized mechanical dimensions, creating consistent mechanical and technical connections between product families. This interoperability simplifies the expansion of existing rental inventories and supports more flexible configurations without requiring completely independent equipment ecosystems. For rental operators, cross-compatibility also helps streamline logistics, maintenance and inventory management while maintaining aesthetic and technical continuity across large-scale installations.

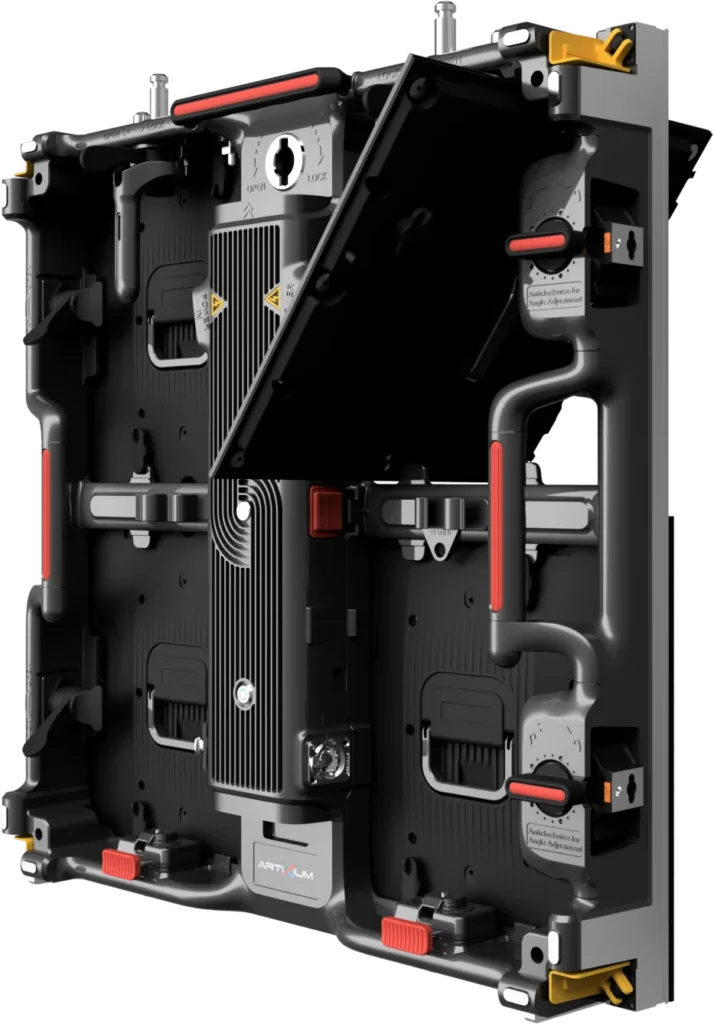

Toolless Maintenance
The Topaz features a fully toolless rear-maintenance architecture designed to simplify technical interventions during professional events and rental operations. The LED modules, power supply and receiving card can all be accessed directly from the rear of the cabinet, eliminating the need to dismantle the complete LED structure.
Its modular chassis also allows individual components to be removed and replaced independently, helping technicians target only the element requiring service. This approach reduces downtime while preserving the integrity of the front LED surface, providing a fast and practical maintenance workflow for installations where reliability and rapid servicing are essential.

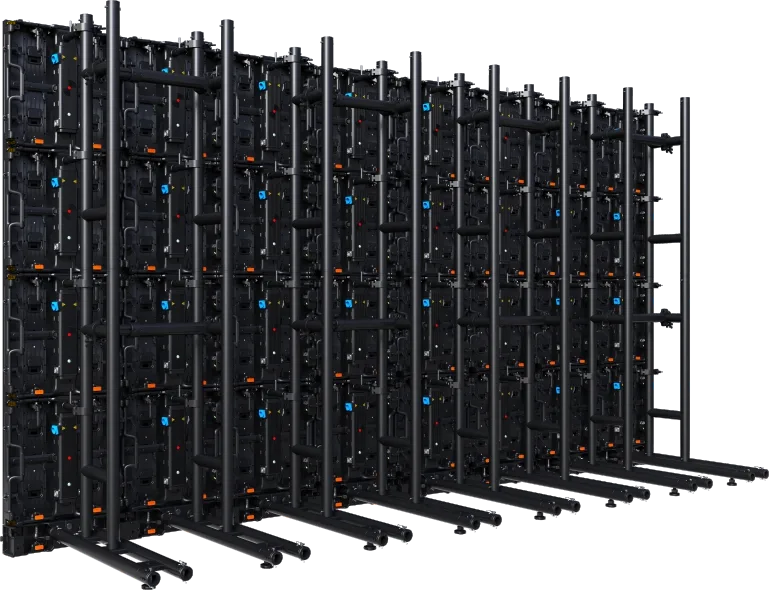

Toolless Stacking & Hanging
The Topaz combines an integrated toolless cabinet locking system with compatibility across Artixium’s dedicated rigging accessories, including hanging bars and stacking configurations. The quick-locking architecture simplifies cabinet-to-cabinet assembly and supports repeated installation and dismantling without relying on conventional fastening operations for every connection.
This makes the system particularly suitable for rental environments where the same LED equipment may need to be suspended, ground-stacked or reconfigured between productions. By combining stacking readiness, hanging compatibility and toolless cabinet connections within the same platform, the Topaz supports faster deployment and more flexible installation workflows for concerts, broadcast sets, trade shows and premium live events.
