Overview

The HYDROGEN is our industry-standard and most accessible cabinet. It’s a highly customizable product, able to fit all kinds of LED applications in many environments. Most of the HYDROGEN’s components are changeable or customizable, from the structure to the electronics. The many options available make this LED cabinet one of the most adaptable products in our range.

  • Application
    INDOOR OUTDOOR

  • PIXEL PITCH
    P3 P4 P5 P6 P6.6 P8 P10

  • MAINTENANCE
    Back & Front Maintenance

  • INGRESS PROTECTION
    IP41 (Indoor)
    IP65 front & IP54 Rear (Outdoor)

  • Display Area (W X H)
    960 x 960 mm (Standard) customizable

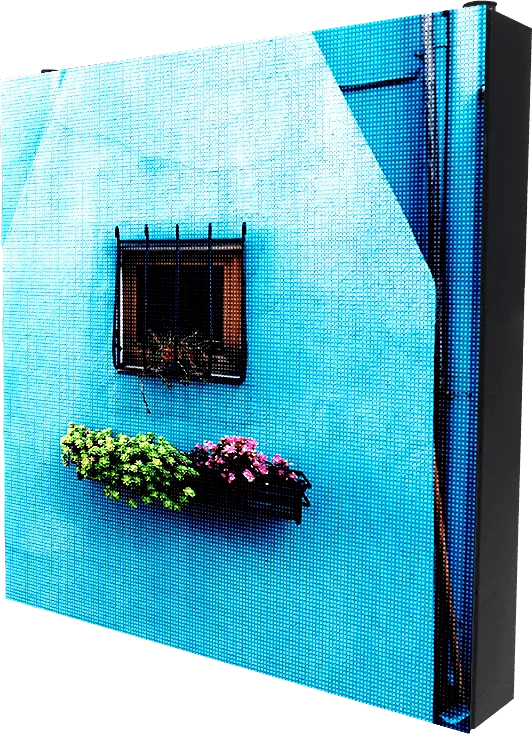

  • BRIGHTNESS
    ≤6000 NITS @5 Volts

  • WEIGHT
    40 - 50 KG/SQM (Depending on cabinet size)

  • MATERIAL
    STEEL (CNC ALUMINUM OPTIONAL)

FEATURES

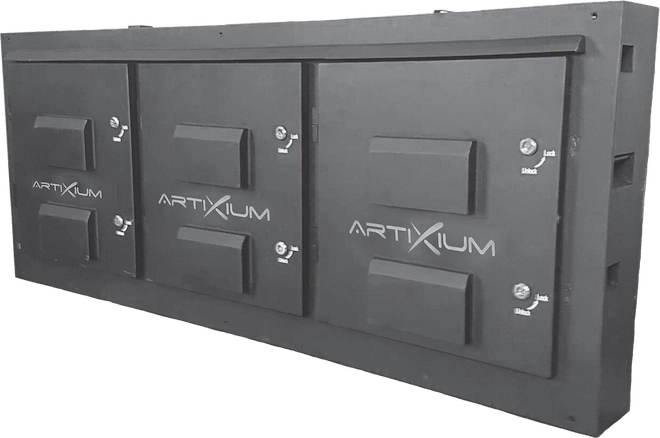

CUSTOM CABINETS

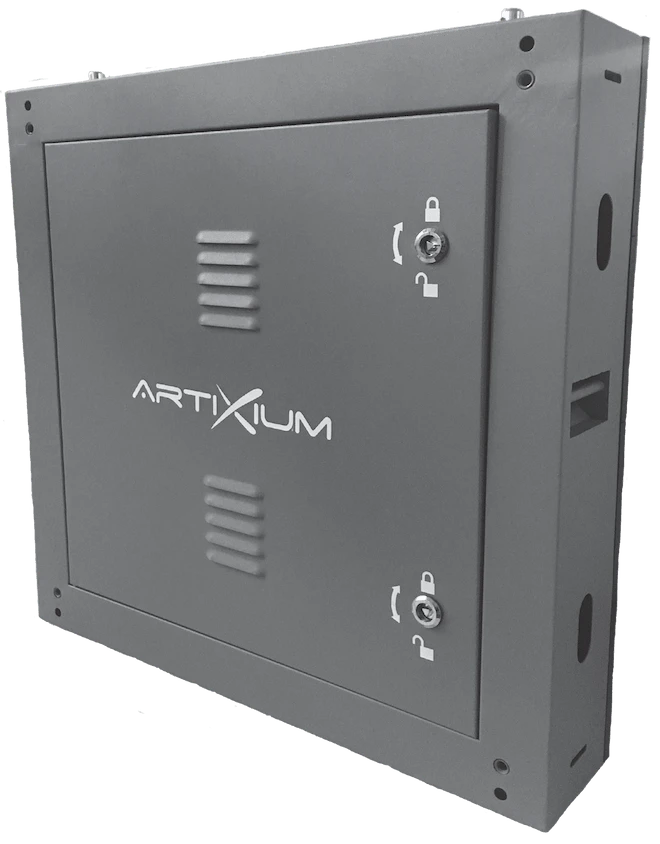

The HYDROGEN can be made of steel or CNC aluminum depending on the project. Steel cabinets, mostly dedicated to fixed LED applications, are heavy but robust, with a long lifespan. However, some projects require a lighter product, which is why we also sell CNC aluminum cabinets that weigh up to 20% less than steel cabinets.

WATERPROOFING

Upon request, we can implement additional waterproof protections on the power and data connectors, locking system, and wiring, ensuring a dry and flawless cabinet no matter the environment. Using car sealing protection for the back doors of the HYDROGEN insure 100% waterproof protection.

MODULES

The HYDROGEN modules come in various dimensions to better fit any requirement. With a wide range of pixel pitches using SMD or DIP LEDs, the modules are optimized with protection masks (optional for indoor versions) for better resilience and better contrast.

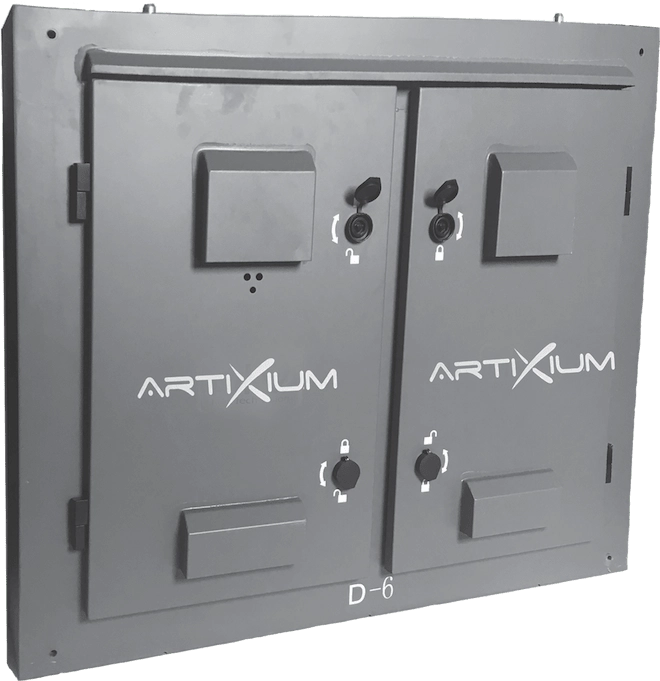

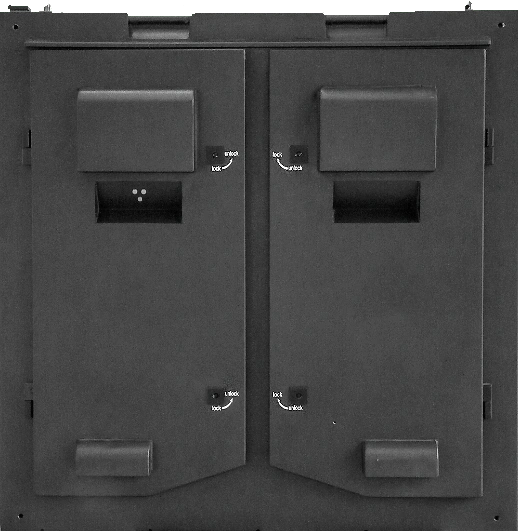

MAINTENANCE

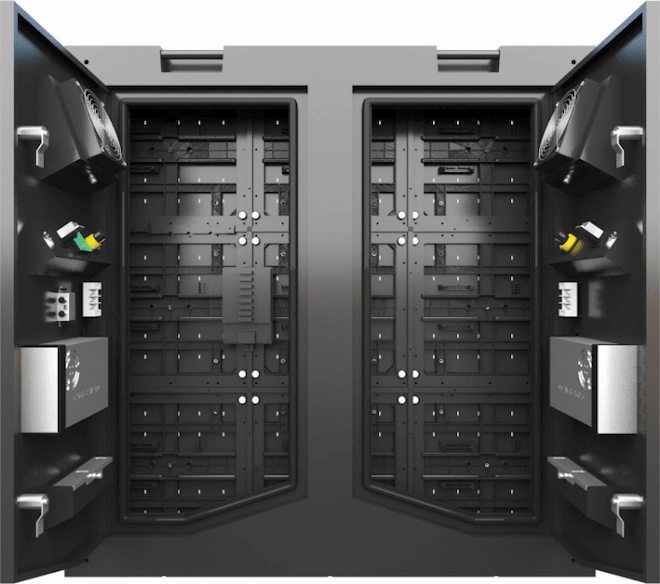

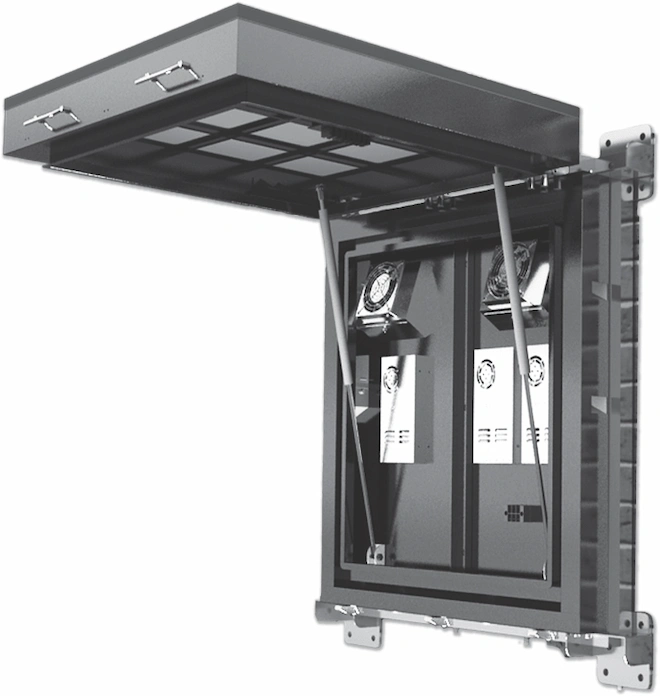

Most of the HYDROGEN cabinets can be maintained from the front or from the back. The outdoor versions come with a hydraulic system that gives access to the power box from the front, and the P5 to P16 outdoor versions come with magnetic modules.

ELECTRONICS

The HYDROGEN is fully EMC compliant, with cable management following the AWG (American Wire Gauge) guidelines. Line filters protect the power supply from power surges with safety earthing. Other optional electronic features are also available, such as monitoring boards, light sensors for power efficiency, and a 3G control system.

INTEGRATION

The integration of the HYDROGEN can be done in many different ways. Because of the cabinet's weight, this process requires several technicians, yet it offers multiple possibilities such as wall integration, hanging, stacking, and more else. Once integrated, the HYDROGEN LED display makes for a sturdy and durable installation.

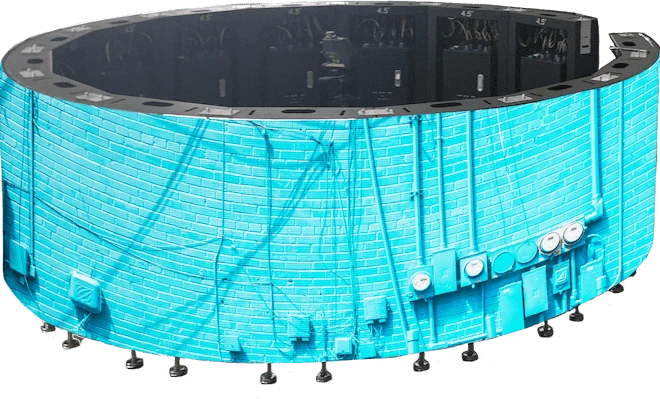

CURVE AND 90° OPTIONS

Upon request, we can provide HYDROGEN cabinets designed to allow +/-10° curves or 90° angles. This adds yet more possibilities to fit your custom LED display project.

Certifications

BACK MAINTENANCEIndoorOutdoorFront Maintenance90 DegreesCurveHydrogen FasciaFacadeLarge Scale LED DisplayArchitectureFasciaMediaHigh BrightnessWall ApplicationMedia Outdoor FacadeHydraulic SystemWaterproof

Technical Specifications

Download Specifications (excel)

Compatible accessories

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT320
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case
Request a quotation
*
*
*
*

RELATED REFERENCES

Lyon, France

LYON-SAINT-EXUPERY AIRPORT

  • 26 November 2020

Saint-Fons, France

CENTRAL AUTOS | VOLKSWAGEN

  • 27 November 2020

Moscow, Russia

SHEREMETYEVO INTERNATIONAL AIRPORT

  • 01 December 2020

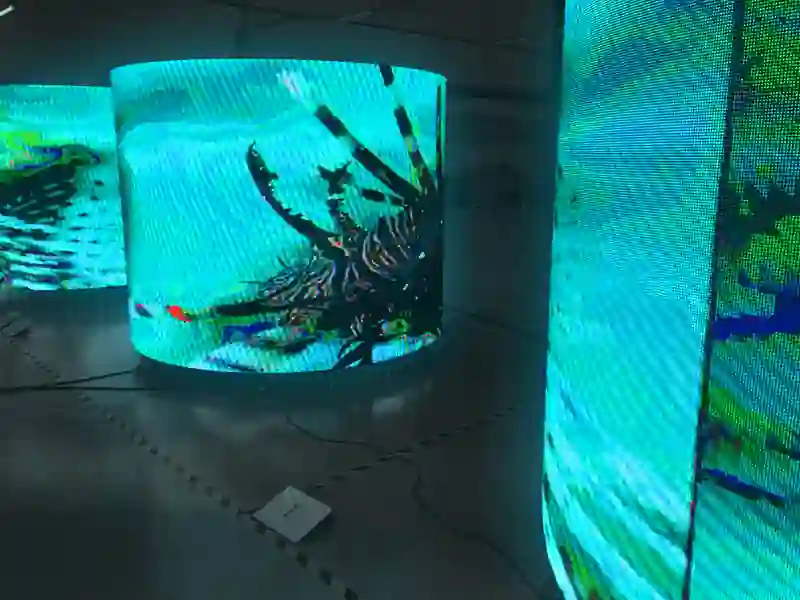

Paris, France
