  1. products
  2. media
  3. Thorite 3.0
  • Application

    OUTDOOR

  • PIXEL PITCH

    P3.9 P4.8

  • OPTION
    C
    90

Overview

The THORITE 3.0 represents the new generation of modular outdoor LED displays. Featuring SMD1935 technology, it delivers exceptional contrast and optimal readability, even in direct sunlight.

Designed for façades, shopping centers, storefronts, and DOOH installations, it combines high brightness, durability, and advanced modularity to meet the demands of the most ambitious projects.

  • Application
    OUTDOOR

  • PIXEL PITCH
    P3.9 P4.8

  • MAINTENANCE
    Back & Front Maintenance

  • INGRESS PROTECTION
    IP66

  • Display Area (W X H)
    1000 x 500 x 81.5 / 1000 x 750 x 81.5 / 1000 x 1000 x 81.5 / 1500 x 500 x 81.5 / 1500 x 750 x 81.5 / 1500 x 1000 x 81.5

  • BRIGHTNESS
    ≤ 8000 NITS (SMD LED)

  • WEIGHT
    27 kg/m²

  • MATERIAL
    Die-casting aluminum

Features

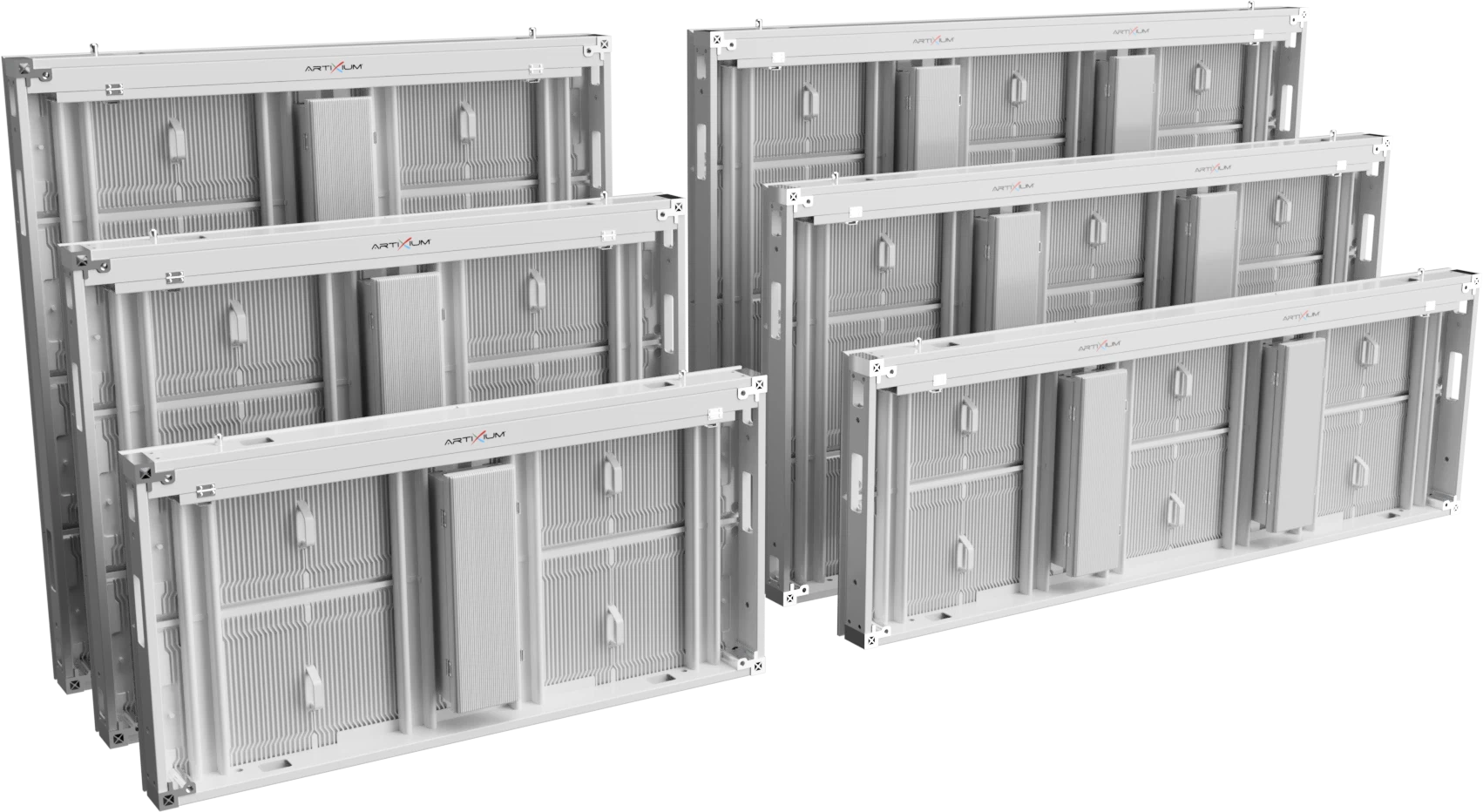

HIGHLY MODULAR

The THORITE 3.0 is available in multiple cabinet formats, all fully compatible with one another, allowing seamless adaptation to any type of structure. Its modular design enables easy custom integration, whether for flat surfaces, angles, or complex structures, while ensuring perfect visual continuity.

90° CORNER CABINETS

The THORITE 3.0 adapts to all architectural constraints thanks to its compatibility with curved, concave, or convex configurations. Dedicated corner cabinets enable seamless 90° installations without visual breaks, offering complete freedom in the design of creative and immersive projects.

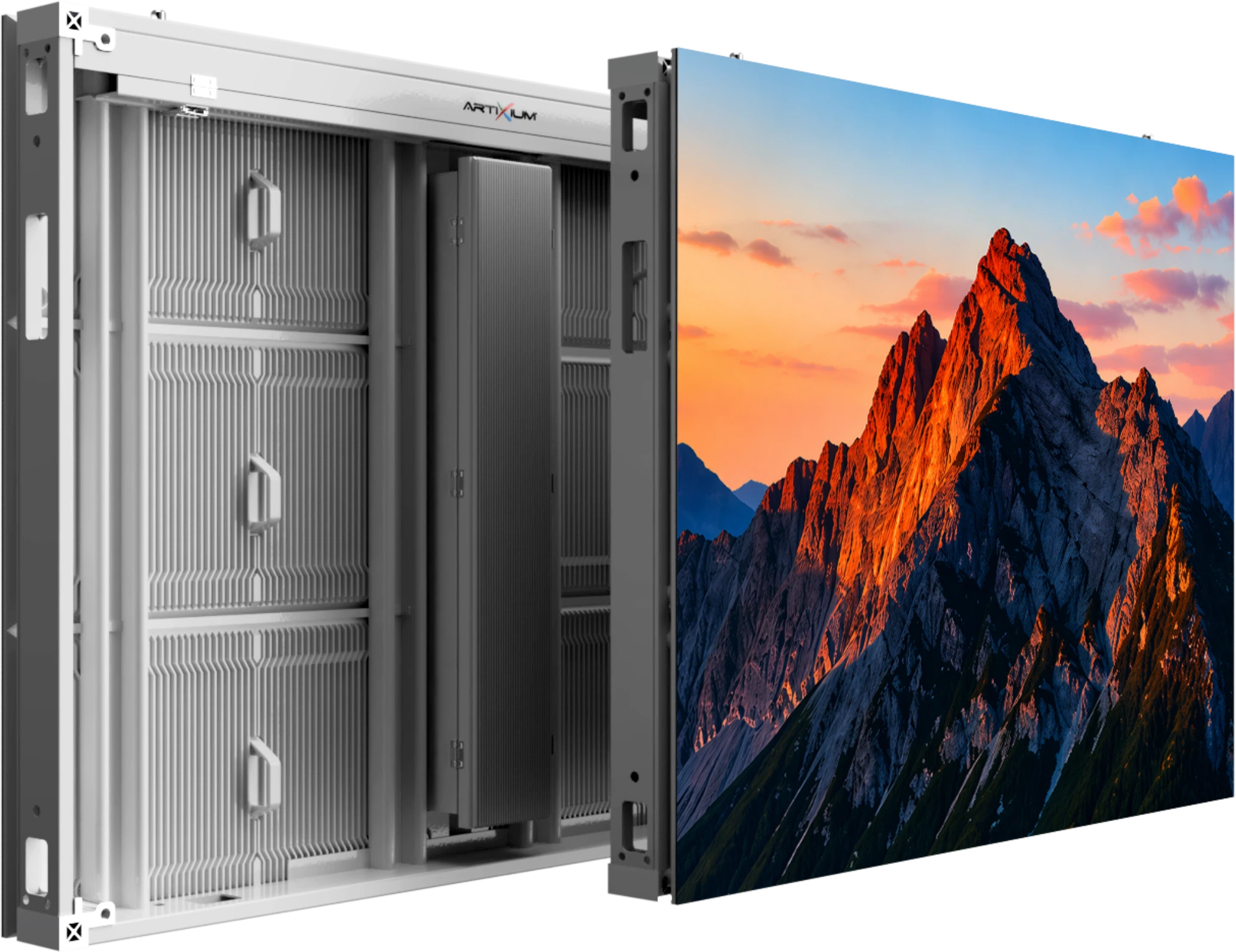

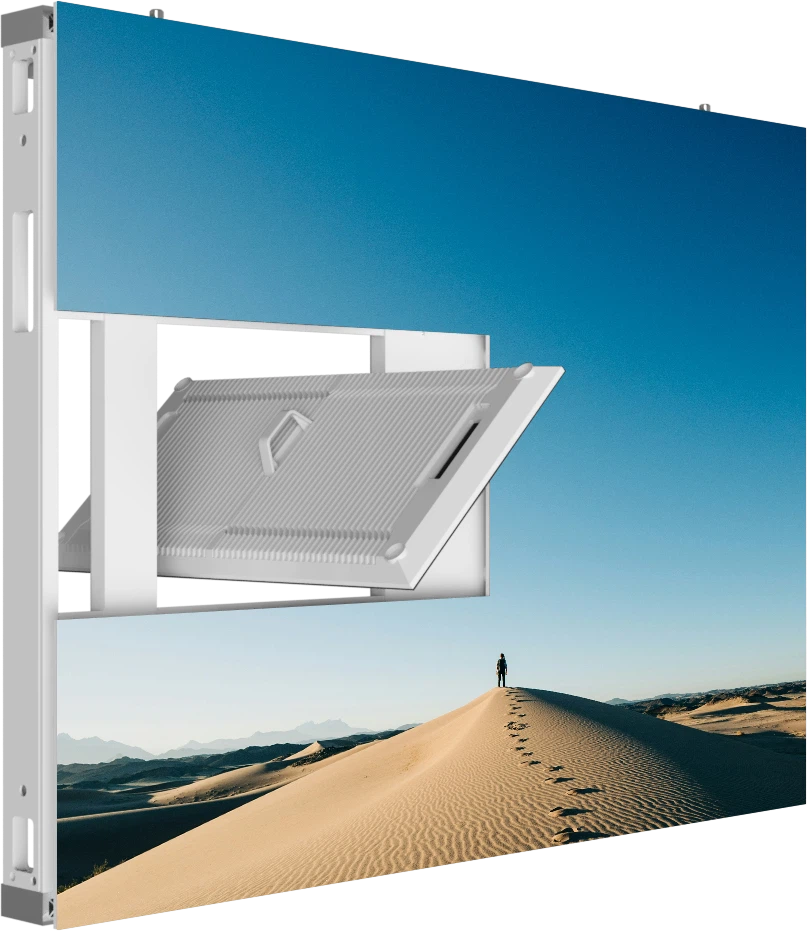

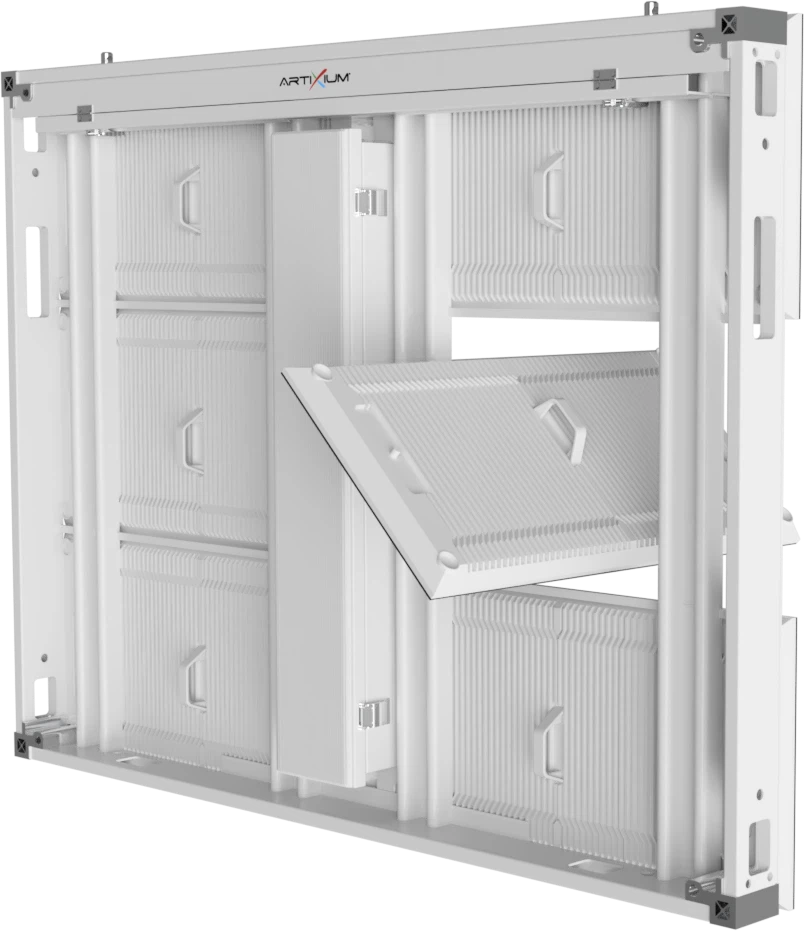

SMART MAINTENANCE

Designed to simplify maintenance operations, the THORITE 3.0 provides full front and rear access. Modules can be quickly removed thanks to an optimized system, ensuring fast and efficient servicing, regardless of the installation type.

SMD1935

Thanks to SMD1935 technology, the THORITE 3.0 delivers significantly higher contrast than traditional solutions. The reduced emitting surface of the LEDs enhances black depth and greatly improves the perception of details and colors. Result : - Sharper images - Richer colors - Perfect readability, even in direct sunlight With brightness reaching up to 8000 nits and a contrast ratio of up to 13,000:1, the THORITE 3.0 ensures maximum visual impact in outdoor environments.

ENERGY EFFICIENCY

The THORITE 3.0 integrates advanced energy management technology, significantly reducing power consumption. Thanks to optimized LED driving, it can achieve up to 50% energy savings compared to conventional solutions.

HIGH-PERFORMANCE MASKS

The new masks of the THORITE 3.0 are designed to reduce light reflections and enhance black depth. Combined with SMD1935 technology, they deliver increased contrast and improved readability, even in direct sunlight.

BACK MAINTENANCEFront Maintenance90 DegreesCurveLarge Scale LED DisplayArchitectureMediaModulable LED DisplayOutdoorFacade

Technical Specifications

    OUTDOOR
Product Parameters Unit 3.9 4.8
Pixel Pitch mm 3,91 4,81
LED   SMD1935
Application   Outdoor LED cabinet
Ingress Protection IP IP66
Brightness cd/m² ≤ 6000 Nits @5volts ≤ 8000 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 160H / 90 V
Cabinet Size (WxHxD) mm 1000 x 500 x 81.5 / 1000 x 750 x 81.5 / 1000 x 1000 x 81.5 / 1500 x 500 x 81.5 / 1500 x 750 x 81.5 / 1500 x 1000 x 81.5
Display area (WxH) mm 1000 x 500 / 1000 x 750 / 1000 x 1000 / 1500 x 500 / 1500 x 750 / 1500 x 1000
Module Size (WxHxD) mm 500 x 250 x 20
Pixel Matrix Per Cabinet (WxH) px 256 x 128 / 256 x 192 / 256 x 256 / 384 x 128 / 384 x 192 / 384 x 256 208 x 104 / 208 x 156 / 208 x 208 / 312 x 104 / 312 x 156 / 312 x 208
Pixel Matrix Per Module (WxH) px 128 x 64 104 x 52
Pixel Density px/m² 65536 43264
Weight kg/m² 27
Cabinet Material   Die-casting aluminum
Maintenance Mode   Back & front (tool required for front)
Mask specification   95% Plastic + 5% Fiber / SS screws / Shaders
Contrast Ratio   13.000:1
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 trillions
Display Refresh Rate Hz 3840 - 7680
Operation Power V AC100-240V
Max. Power Consumption W/m² 650
Average Power Consumption W/m² 195
Control Mode   Synchronous / Asynchronous
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
Support Backup (signal & power)   Yes
Calibration   Yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-95%
Operating Temperature Range   -20°C / +60°C
Screen Uniformity Correction   -
Certification   CE / CB / FCC / ETL
Available options   Angle cabinet, Gold wire, 500x500 / 500x750 / 500x1000 Cabinets
Compatibilité   All cabinet dimensions are compatible with each other

COMPATIBLE ACCESSORIES

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT320
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case
Request a quotation
*
*
*
*
