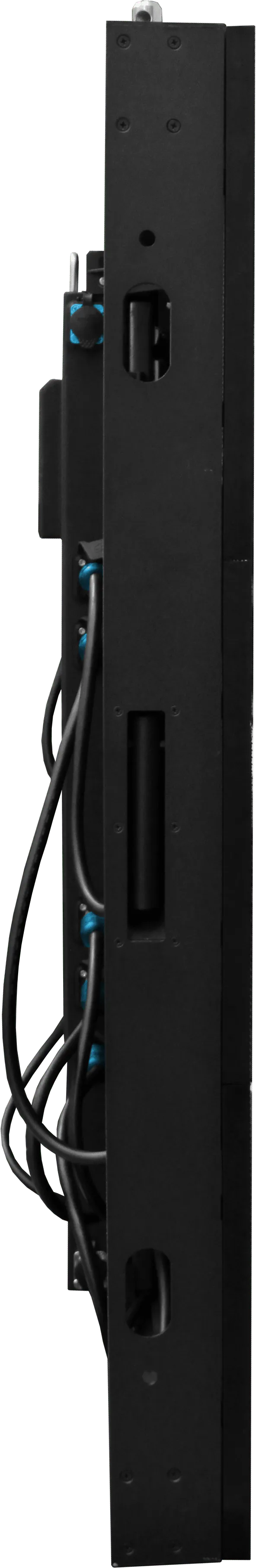

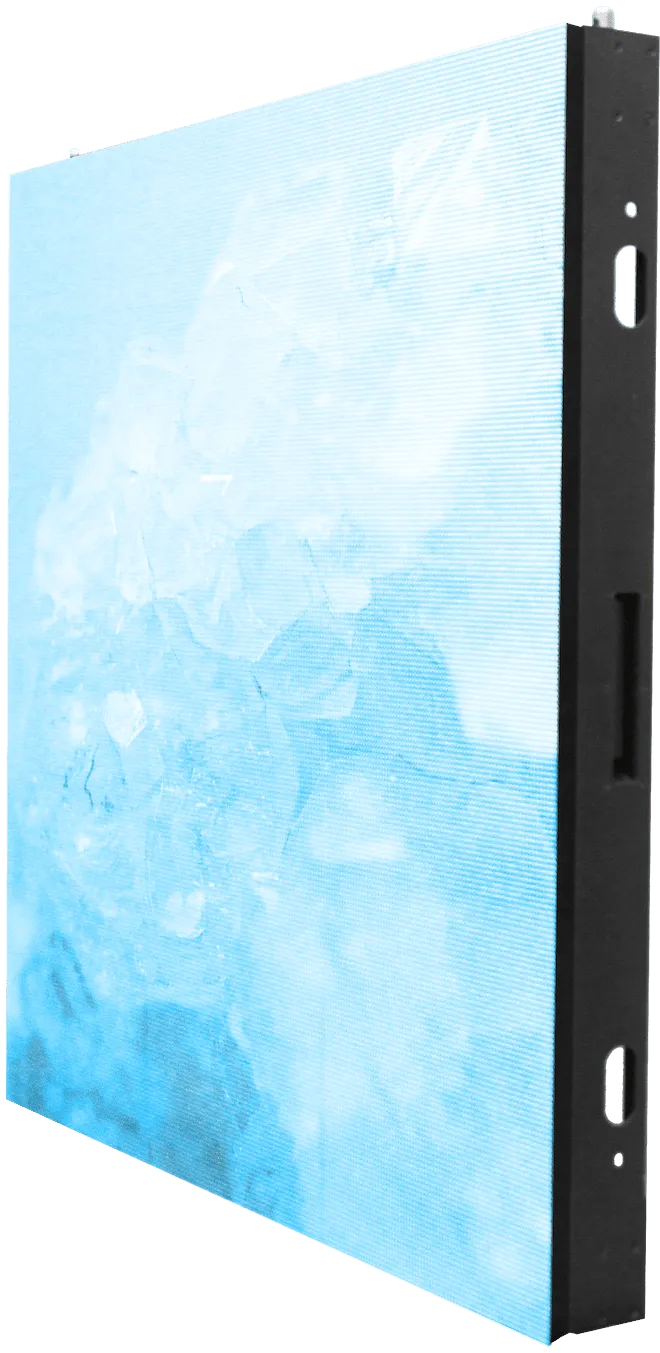

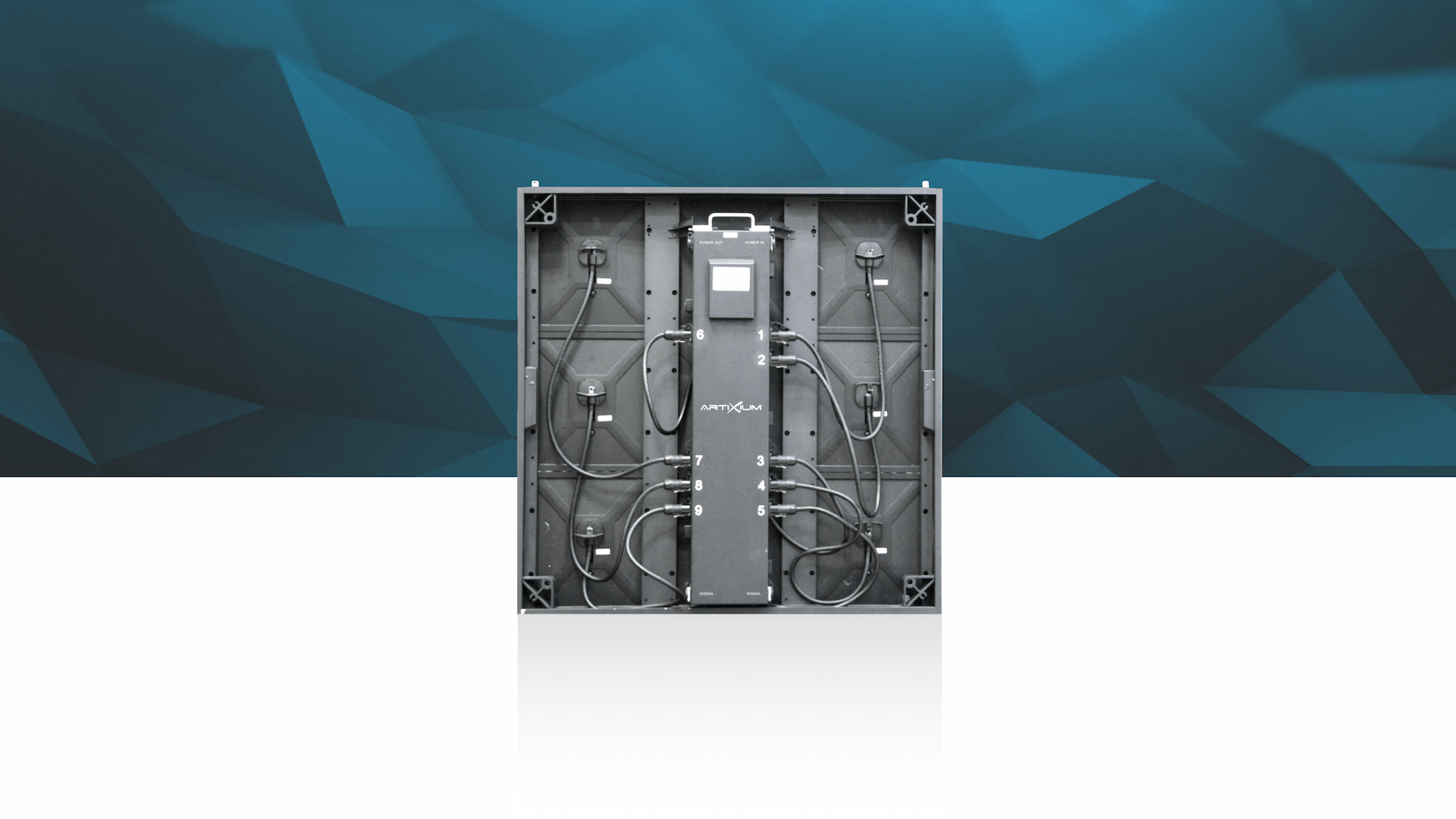

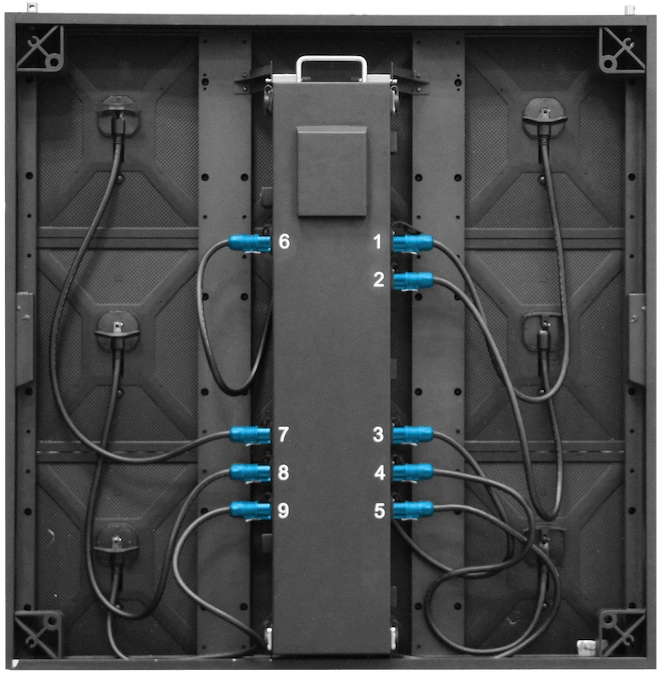

The DIAMOND is designed as a cost-effective fixed outdoor LED display. Its user-friendly features allow for easy maintenance and a quick integration process. Integrated cabling and independent modules and power box make the installation of the DIAMOND trouble-free.
Application
OUTDOOR
PIXEL PITCH
P4.2 P5 P6.4 P8 P10
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65 (FRONT) /IP54 (BACK) with fans
IP65 without fans
Display Area (W X H)
960 x 960 mm
BRIGHTNESS
≤6500 Nits @5 Volts
WEIGHT
26.5 KG/CABINET
MATERIAL
ANODIZED ALUMINUM
The DIAMOND is available from P5 to P10, we developed this product to offer an affordable cabinet as well as an extremely fast and easy to integrate solution for your fixed outdoor LED application.

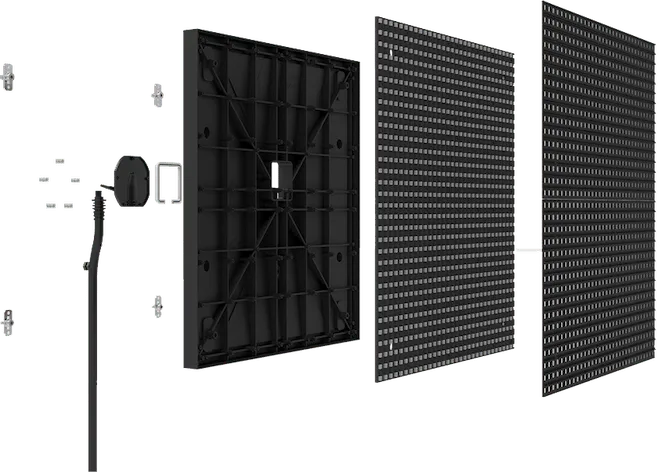

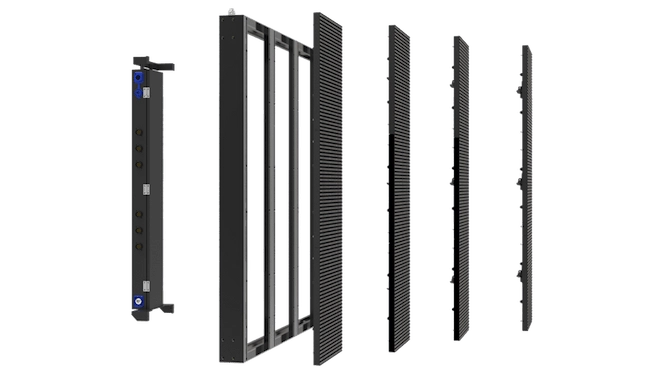

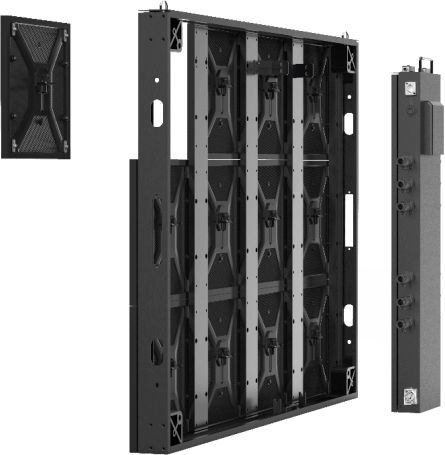

The DIAMOND is a perfect fit for a wall application because of its front maintenance system. With the help of a T-shaped tool, you can remove the modules from the front to replace them easily. This process is a one-man job.
The DIAMOND is highly resistant to humidity, extreme temperatures, and particle ingress. It's a reliable product that will perform normally and stay true to its original condition even in a harsh environment.

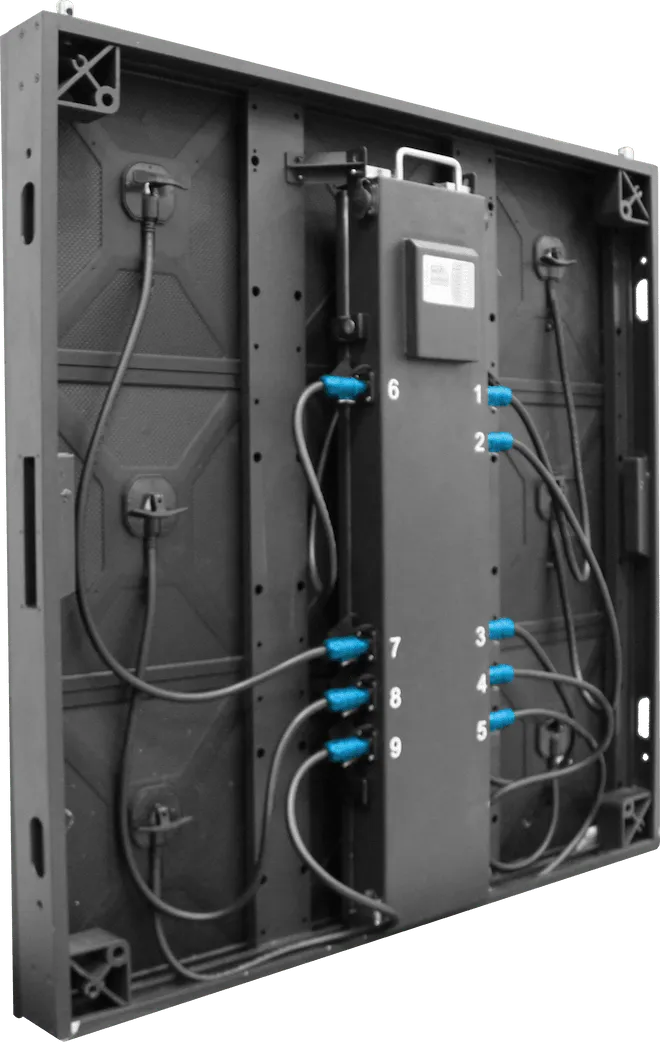

Even though the DIAMOND is in itself a reliable and durable LED display, you can further prolong its lifespan by choosing to add a fan to the power box. This option allows the power box to operate efficiently while remaining cooler, putting less stress on the internal components of your LED display. It also serves as additional protection against heat if your project is to integrate a LED display somewhere permanently exposed to sunlight.
BACK MAINTENANCEOutdoorFront MaintenanceFacadeLarge Scale LED DisplayArchitectureHeat DissipationDiamondFixed LED Display
| OUTDOOR | ||||||
| Product Parameters | Unit | 4,2 | 5 | 6 | 8 | 10 |
| Pixel Pitch | mm | 4,21 | 5,00 | 6,4 | 8 | 10 |
| LED | SMD2727 3in1 (Black Face) | SMD3535 3in1 (Black Face) | ||||
| Application | Fixed installation + affordable front access | |||||
| Ingress Protection | IP | IP65 (front) IP 54 (back) (with fans) / IP65 (front and back without fans) | ||||
| Brightness | cd/sqm | ≤ 5500 Nits @5volts | ≤ 6500 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||||
| Cabinet Size (WxHxD) | mm | 960 x 960 x 140 (with fans) 960 x 960 x 120 (without fans) | ||||
| Display area (WxH) | mm | 960 x 960 | ||||
| Module Size (WxHxD) | mm | 320 x 320 x 20 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 228 x 228 | 192 x 192 | 150 x 150 | 120 x 120 | 96 x 96 |
| Pixel Matrix Per Module (WxH) | px | 76 x 76 | 64 x 64 | 50 x 50 | 40 x 40 | 32 x 32 |
| Pixel Density | px/sqm | 56406 | 40000 | 24414 | 15625 | 10000 |
| Weight of cabinet | kg | 26.5 | ||||
| Cabinet Material | Anodized Aluminum | |||||
| Maintenance Mode | Front and Back | |||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders / Backshell in Aluminum + PC | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 16 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 3840 | ||||
| Operation Power | V | AC85-230V | ||||
| Max. Power Consumption | W/sqm | 600 | ||||
| Average Power Consumption | W/sqm | 250 | ||||
| Control Mode | Synchronization | |||||
| Video Frame Rate | Hz | 50/60Hz | ||||
| Input Types Supported | DVI / SDI / HDMI | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 50000 | ||||
| Operating Humidity Range | 10-95% | |||||
| Operating Temperature Range | -20°C / +60°C | |||||
| Screen Uniformity Correction | Below 0.0001 (Out of Control point) | |||||
| Certification | CE / ETL / CCC | |||||
| Available options | Neutrik outdoor connectors / Aluminum / Size can be customized | |||||
| Compatibility | - | |||||
