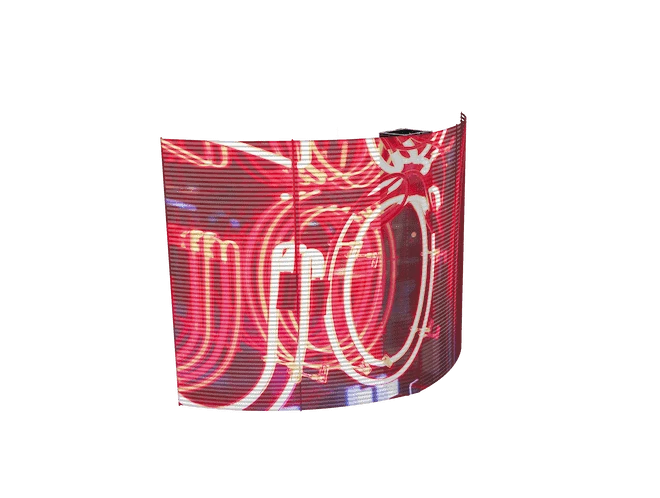

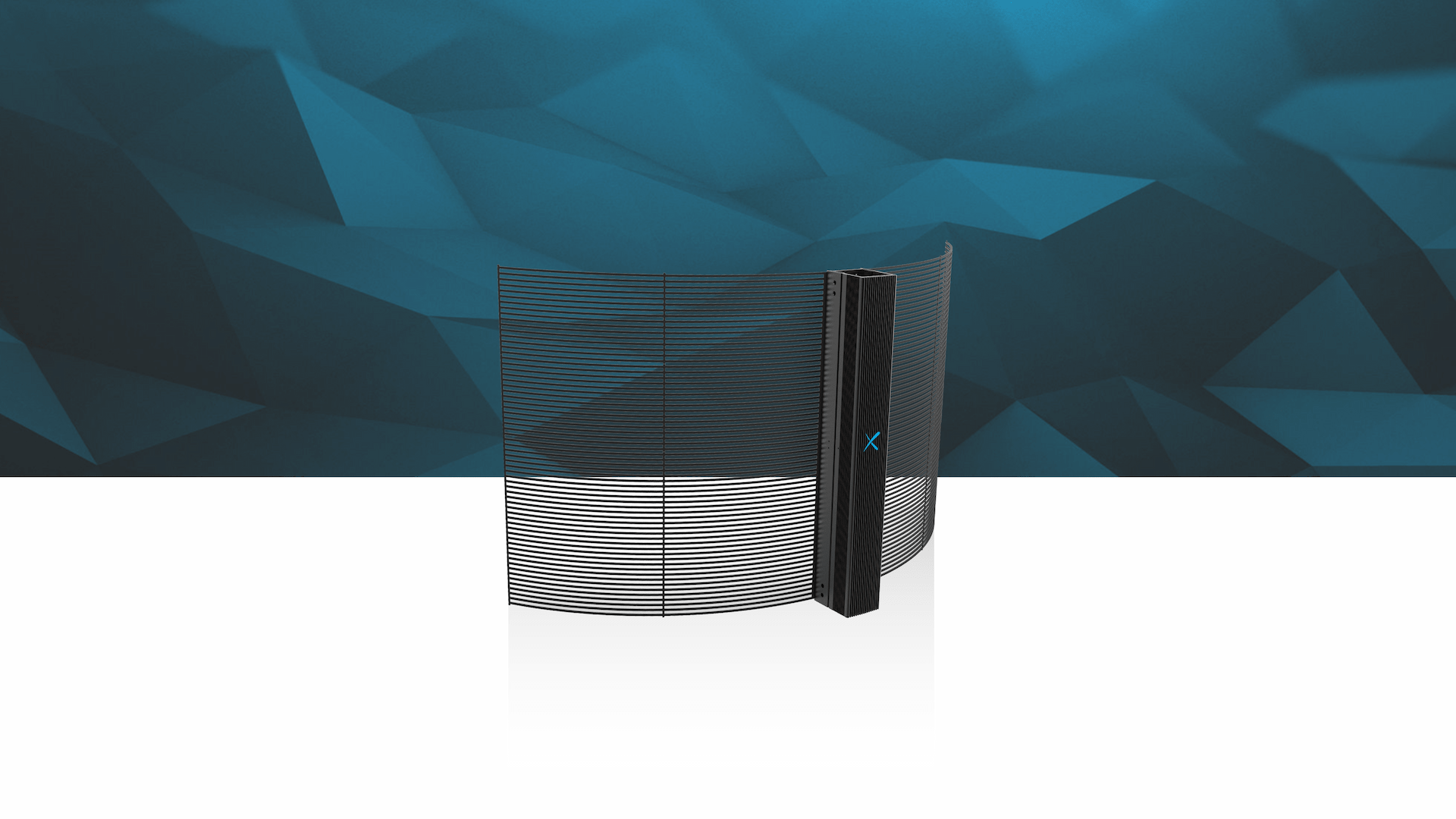

Highly customizable and sharing the same transparency properties as the NEON, the NEON CURVE is the perfect solution for a LED application behind a glass structure that isn’t just rectangular and flat or for any application that you want to be able to see through. The frameless cabinets can be curved inwards or outwards, or even angled to perfectly fit the structure you want to enhance with a LED display. Whether it’s on or off, people will be able to see through the NEON CURVE, allowing for an aesthetic blend of your display and the inside of your business. Its brightness lets people see clearly what is displayed on the NEON curve from the outside of your building.
Application
Indoor
PIXEL PITCH
P2.8a5.6 P3.9a7.8 P5.2a10.4 P7.8 P10.4
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP22
Display Area (W X H)
1000 x 500 mm
BRIGHTNESS
≤ 5500 Nits @5 Volts
WEIGHT
5kg/cabinet
MATERIAL
Aluminum CNC cutted frame
The NEON CURVE comes with a 2 in 1 cable (data and power) that facilitates the integration. It allows for user-friendly wireless content management, which makes the management of your LED application easier. This comes particularly handy when you have to update your visual content regularly (sales, new fashion season, etc.).

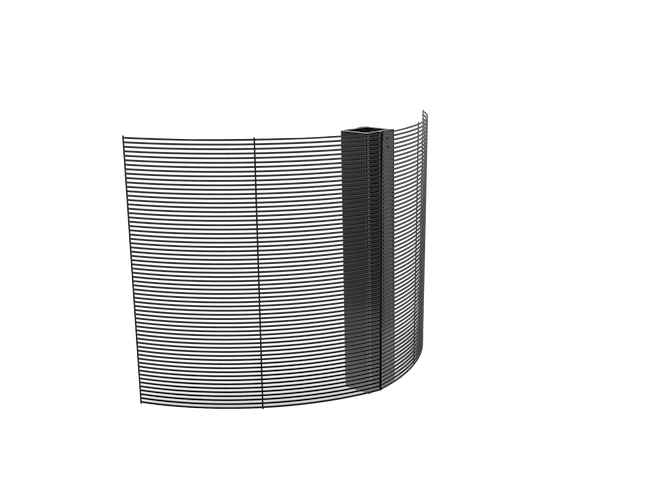

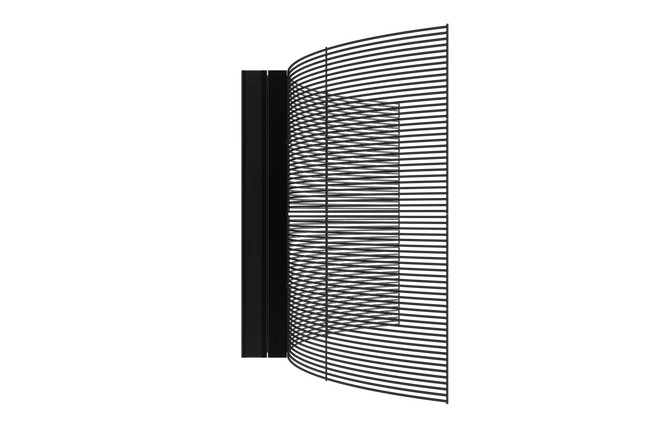

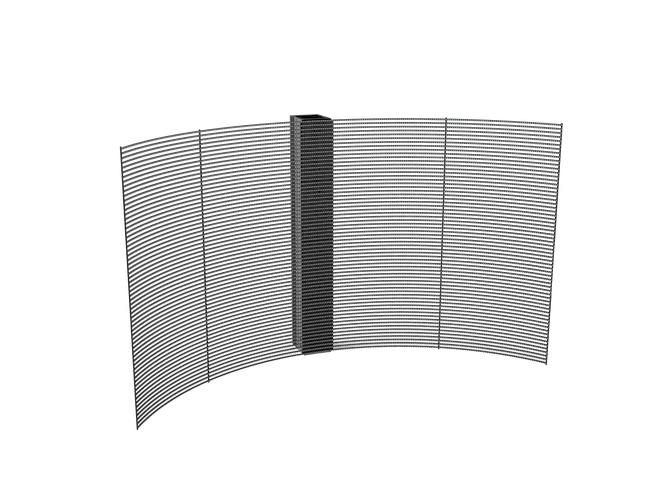

Being both flexible and resistant, the NEON CURVE cabinet can be shaped to your needs. It can be curved inward or outward to the degree angle required by your structure (maximum bending angle is 180 degrees concave and convex) The possibilities are numerous, which is why the NEON CURVE is an excellent choice for your custom projects.

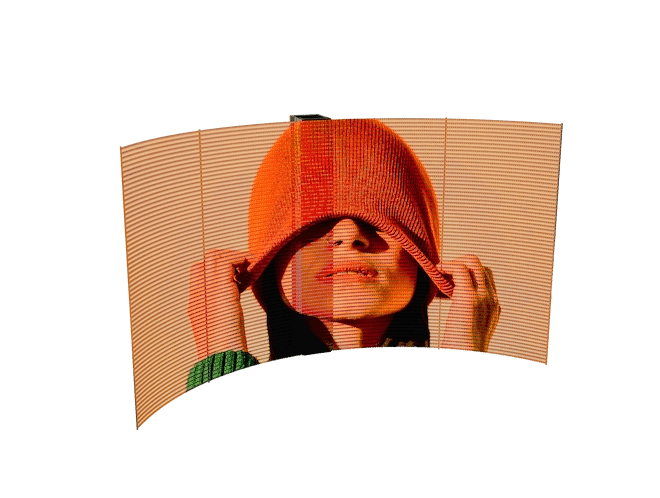

Thank's to the vertical P7.8 pixel pitch used on the NEON CURVE LED display, you can easily see through it when it's on. This allows you to display whatether you want and still be able to let everyone see inside your business. When it's turned off, the NEON CURVE is barely noticeable.
BACK MAINTENANCEIndoorTransparentCurveArchitectureMediaRetailFixed LED DisplayHigh TransparencySemi-indoorNeon Curve
| INDOOR | ||||||
| Product Parameters | Unit | 2.8a5.6 | 3.9a7.8 | 5.2a10.4 | 7.8 | 10.4 |
| Pixel Pitch | mm | 2,84 x 5,68 | 3,91 x 7,81 | 5,21 x 10,42 | 7,81 | 10,42 |
| LED | SMD 1921 | |||||
| Application | Indoor transparent LED cabinet | |||||
| Ingress Protection | IP | IP22 | ||||
| Brightness | cd/sqm | ≤ 5500 Nits @5volts | ||||
| Color Temperature after calib (adjustable) | deg. K | 3500-9300 Adjustable | ||||
| Viewing Angle (50% brightness) | deg. | 160H / 160V | ||||
| Cabinet Size (WxHxD) | mm | 1000 x 500 x 84 | ||||
| Display area (WxH) | mm | 1000 x 500 | ||||
| Module Size (WxHxD) | mm | 500 x 500 x 1.6 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 352 x 88 | 256 x 64 | 192 x 48 | 128 x 64 | 96 x 48 |
| Pixel Matrix Per Module (WxH) | px | 176 x 88 | 128 x 64 | 96 x 48 | 64 x 64 | 48 x 48 |
| Pixel Density | px/sqm | 61992 | 32747 | 18420 | 16384 | 9216 |
| Weight of cabinet | kg | 5 | ||||
| Cabinet Material | CNC aluminum | |||||
| Maintenance Mode | Back | |||||
| Mask specification | No mask | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 16 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 1920 | ||||
| Operation Power | V | AC220V | ||||
| Max. Power Consumption | W/sqm | 800 | ||||
| Average Power Consumption | W/sqm | 180 | ||||
| Control Mode | Synchronization | |||||
| Video Frame Rate | Hz | 50Hz | ||||
| Input Types Supported | DVI / SDI / HDMI | |||||
| 3D ready (optional) | - | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 100000 | ||||
| Operating Humidity Range | 10 / 80% | |||||
| Operating Temperature Range | -10°C / +45°C | |||||
| Screen Uniformity Correction | - | |||||
| Certification | FCC / CE / ETL / CCC / CB | |||||
| Available options | - | |||||
| Compatibility | No | |||||
