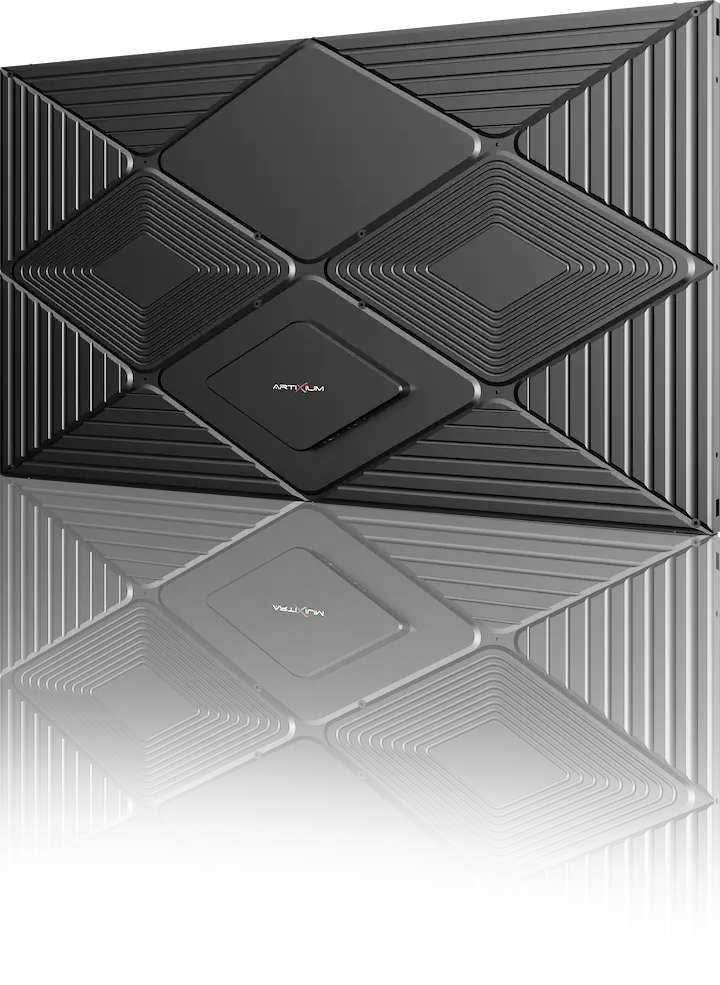

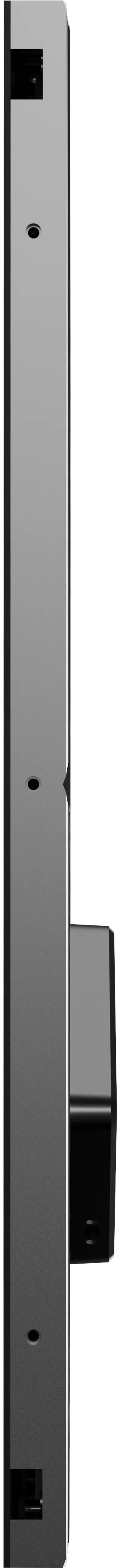

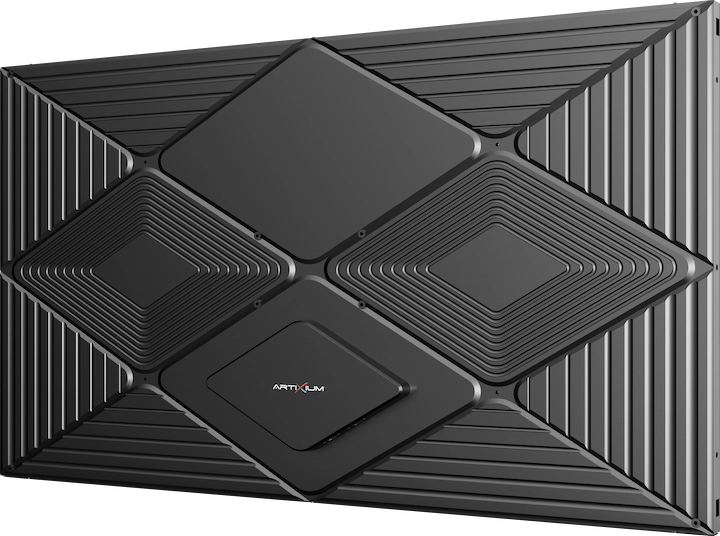

The CADMIUM represents the most recent addition to Artixium’s product line of Ultra HD LED cabinets. Characterized by its slim profile, native 16:9 cabinet ratio, fine 1.06 mm to 1.26 mm pixel pitch, and cutting-edge QCOB technology, this product stands as the pinnacle of indoor LED display technology. Notably, it boasts full HDMI cabinet connection capabilities, streamlining the wiring and configuration processes for giant Ultra HD LED displays.
Application
Indoor
PIXEL PITCH
P1 P1.2
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP30
Display Area (W X H)
46
55
BRIGHTNESS
≤ 1000 NITS @5volts
WEIGHT
15.5 - 18.5 kg/cabinet
MATERIAL
Die-casting aluminum

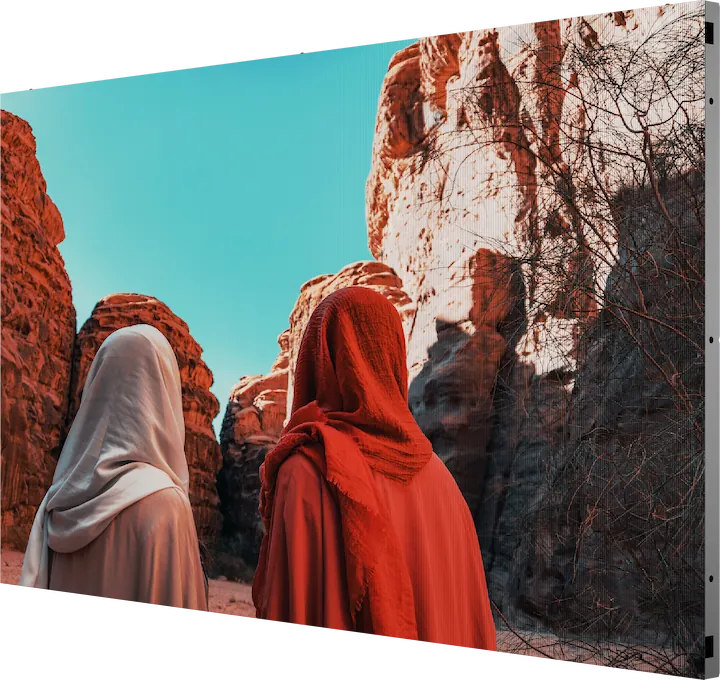

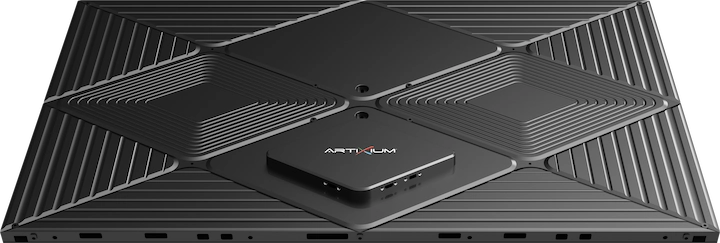

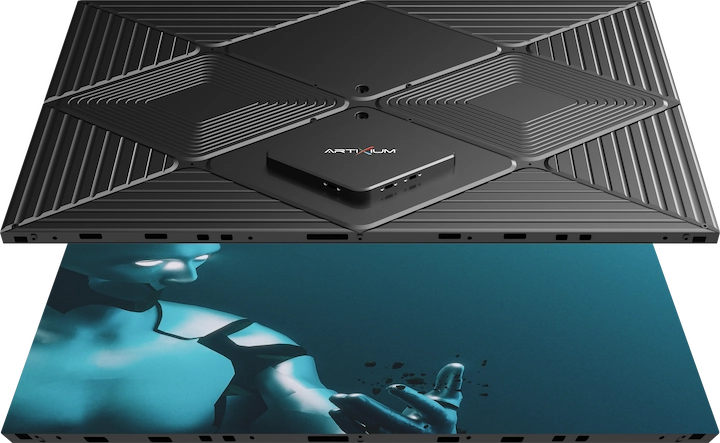

The CADMIUM features a native 16:9 ratio with a resolution of 960 x 540 pixels per cabinet. This implies that achieving Full HD resolution (1920 x 1080 pixels) requires only four cabinets. Consequently, this exceptional LED cabinet allows for effortless attainment of high definitions, reaching up to 4K and beyond.

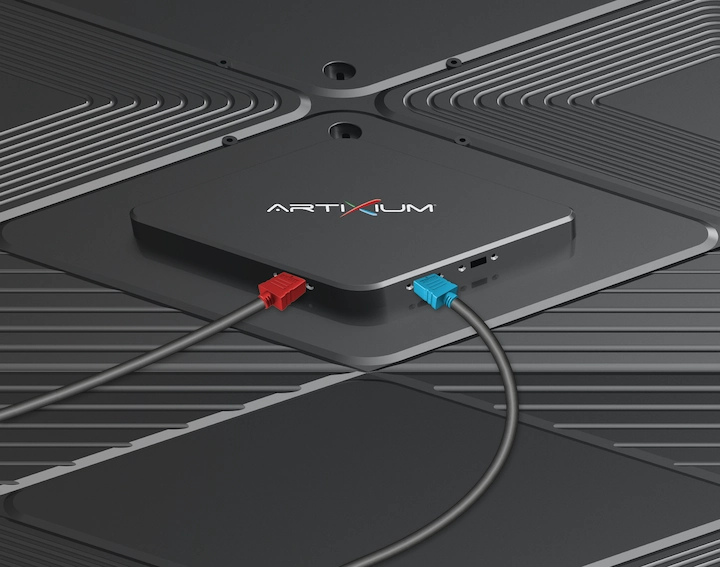

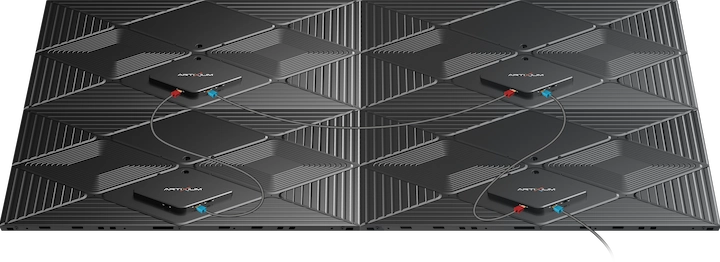

The CADMIUM was specifically designed to facilitate full HDMI signal connection among cabinets. This long-awaited feature in the LED display industry enables the connection of four CADMIUM cabinets in series to a single signal output. For each group of four cabinets, an additional signal output on your media server is required. This configuration allows one output to handle up to 2,073,600 pixels.

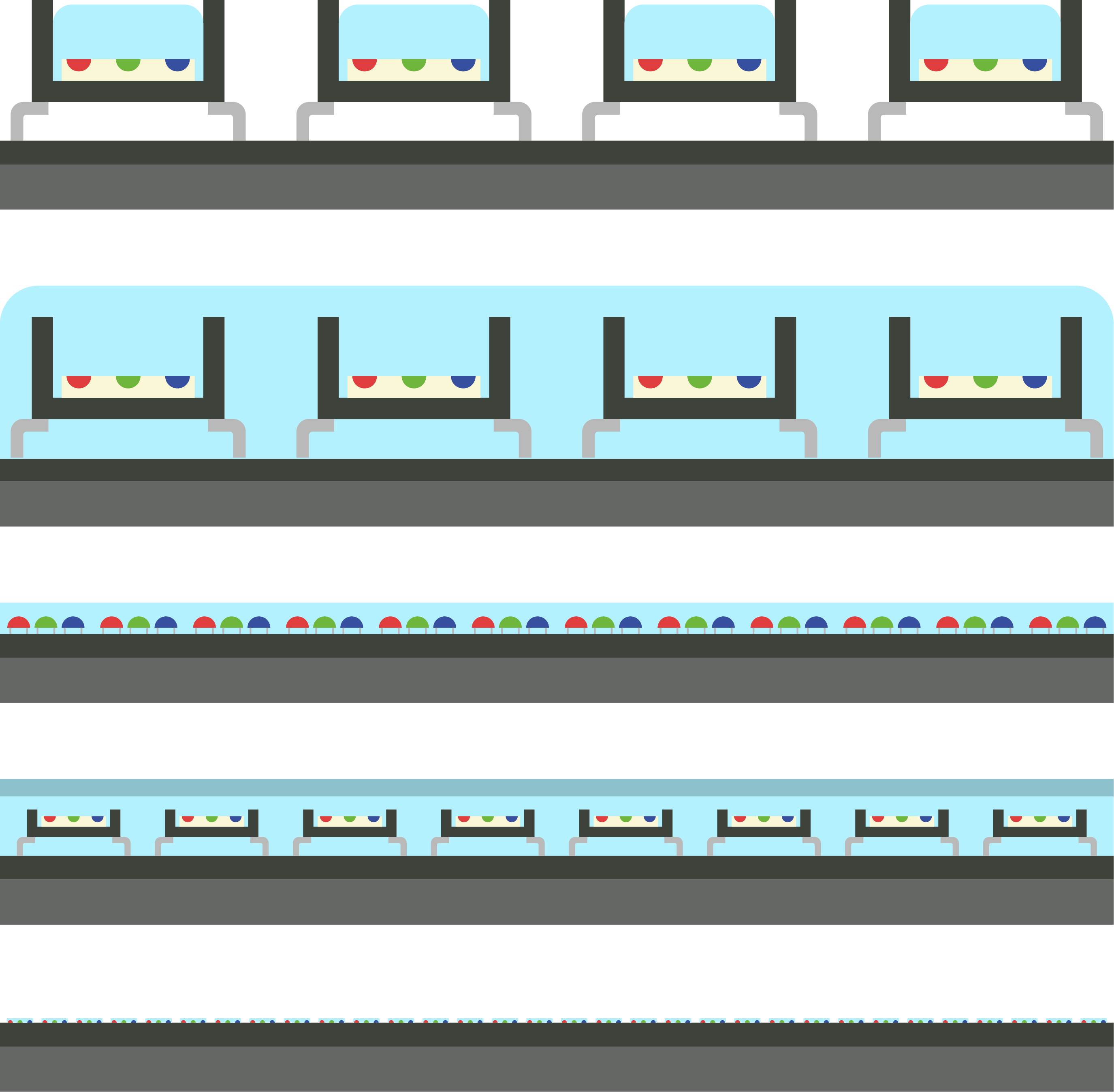

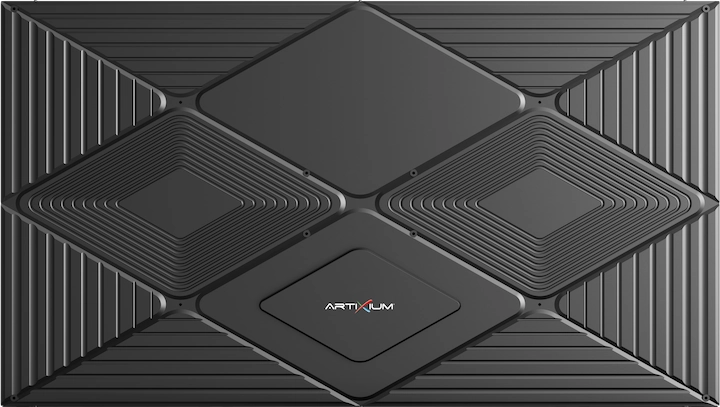

The QCOB module technology combines the LED configuration of the GME with the epoxy setting of the COB. Through a mass transfer process following the epoxy application, we guarantee the impeccable flatness of each module, ensuring a seamless appearance upon installation. The LED configuration not only keeps the screen cost-effective but also facilitates easier repairs. To enhance brightness, contrast, and resistance, we apply an additional layer of patented epoxy.

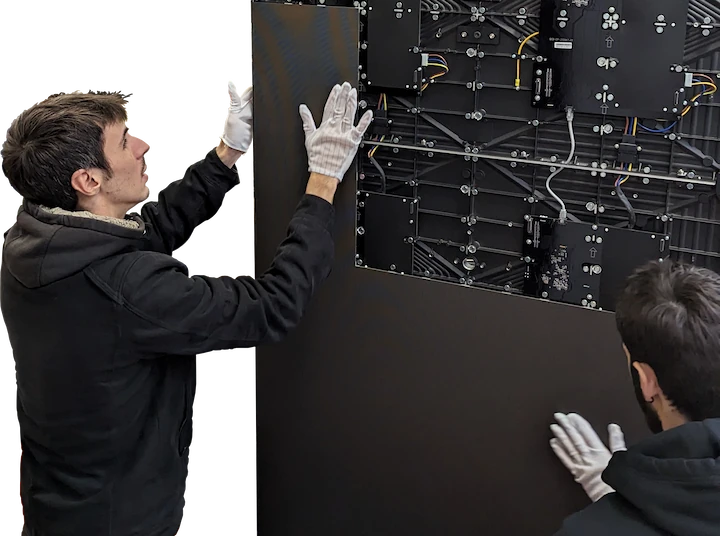

The CADMIUM cabinets offer full and convenient serviceability from the front, facilitated by their magnetic modules. Utilizing a suction cup tool, each module can be effortlessly removed and replaced instantly, without any risk of damage, courtesy of the QCOB technology. To gauge the ease of this process, we conducted tests involving unqualified personnel, and the results were smooth and swift. This implies that your qualified technicians should encounter no issues when undertaking this task.
| INDOOR | ||||
| Product Parameters | Unit | 1.0 | 1.2 | |
| Pixel Pitch | mm | 1,06 | 1,26 | |
| LED | SMD1010 (QCOB modules) | |||
| Application | Ultra HD 16:9 LED cabinet | |||
| Ingress Protection | IP | IP30 | ||
| Brightness | cd/m² | ≤ 1000 Nits @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 10000 | ||
| Viewing Angle (50% brightness) | deg. | 160H / 160 V | ||
| Cabinet Size (WxHxD) | mm | 1020 x 573.76 x 28.8 | 1209.6 x 680.4 x 28.4 | |
| Display area (WxH) | mm | 1020 x 573.76 (16:9 - 46") | 1209.6 x 680.4 (16:9 - 55") | |
| Module Size (WxHxD) | mm | 127.5 x 191.26 | 602.4 x 170.1 | |
| Pixel Matrix Per Cabinet (WxH) | px | 960 x 540 | 960 x 540 | |
| Pixel Matrix Per Module (WxH) | px | 120 x 180 | 240 x 135 | |
| Pixel Density | px/m² | 885813 | 629882 | |
| Weight of cabinet | kg | 15.5 | 18.5 | |
| Cabinet Material | Die-casting aluminum | |||
| Maintenance Mode | Front | |||
| Mask specification | QCOB | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | AC100-240V | ||
| Max. Power Consumption | W/m² | 500 | ||
| Average Power Consumption | W/m² | 120 | ||
| Control Mode | Synchronization | |||
| Video Frame Rate | FPS | 30-120 | ||
| Input Types Supported | HDMI 2K | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10-90% | |||
| Operating Temperature Range | -10°C / +45°C | |||
| Screen Uniformity Correction | Yes | |||
| Certification | CE / ETL / CCC | |||
| Available options | - | |||
| Compatibility | No | |||
