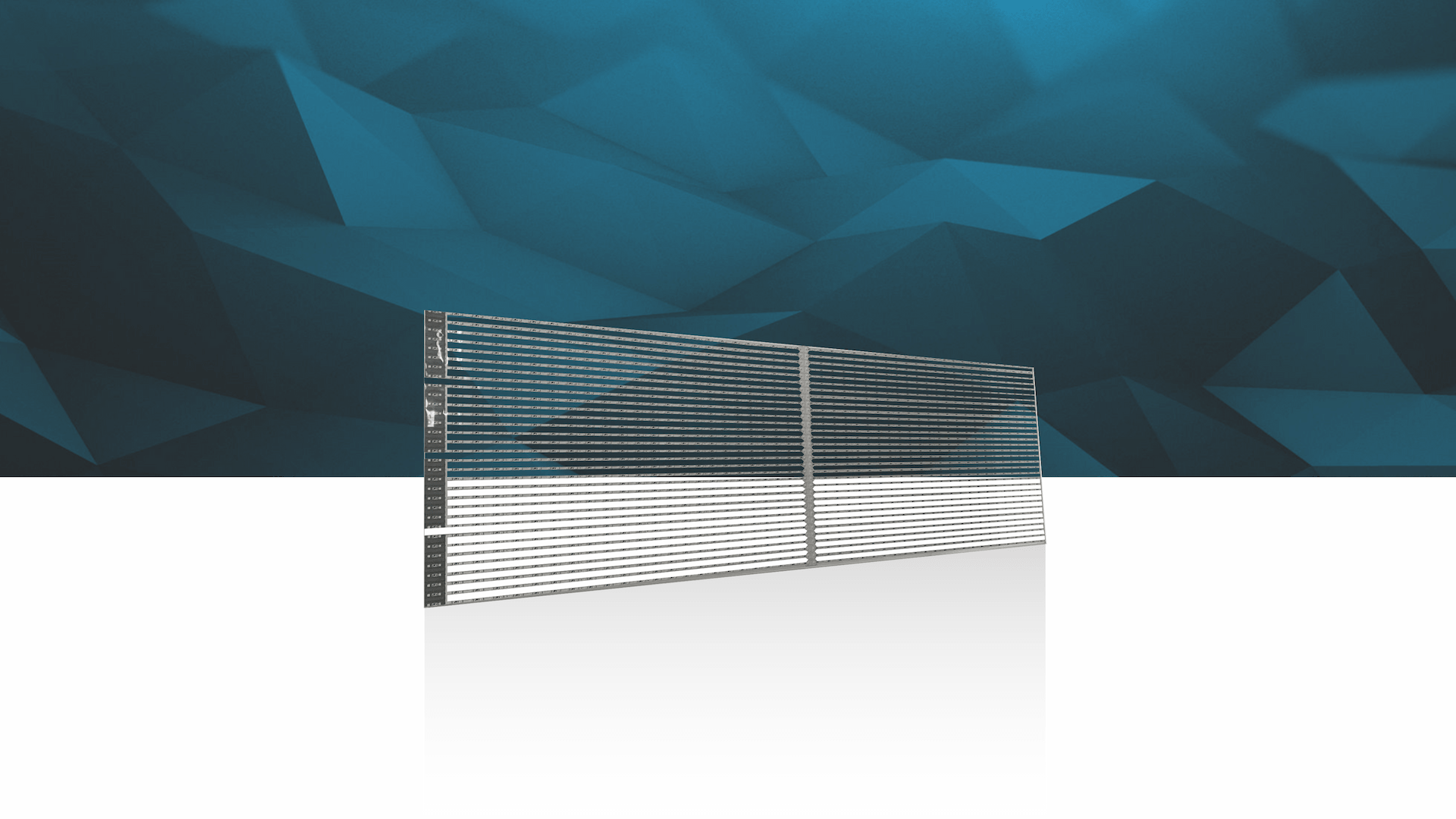

The KHALX transparent LED film is a revolution in display technology. It’s made of self-adhesive material which can be stuck to an existing glass surface. Depending on the pixel pitch of your choice, its transparency can go up to 95%. Once turned on, the glass surface or window to which it is attached will become full of vivid colors.
Application
Indoor
PIXEL PITCH
P6.5 P10
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP41 (front)
IP40 (rear)
Display Area (W X H)
480 x 208 mm
480 x 320 mm
BRIGHTNESS
≤5000 NITS @5 Volts
WEIGHT
0.42 - 1kg/module
MATERIAL
Adhesive Film
Extremely light and thin, the KHALX can be integrated on any glass surface for countless indoor applications. Being adhesive, its integration is one of the easiest of all LED applications. These features make this process both cost effective and quick.

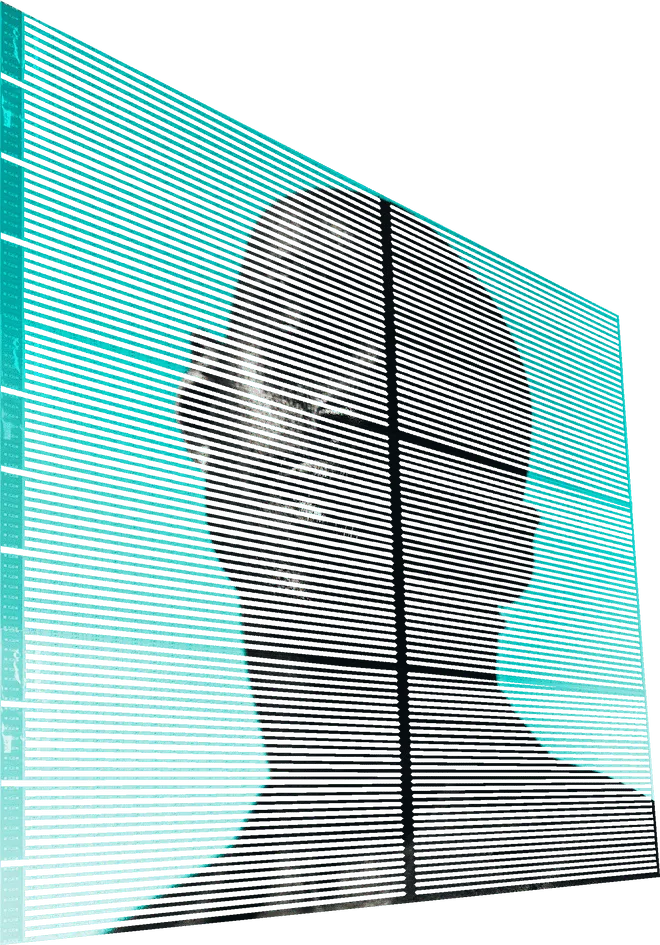

Even though the KHALX displays vivid colors, it is very transparent. When turned off, it is barely noticeable and you can clearly see through the glass surface it's placed on. Here are the different transparency rates of the KHALX when it's on :
p6.5 = 52%
P10 = 68%
p16 = 80%
P20 = 83%
P20x40 = 92%
p40 = 95%

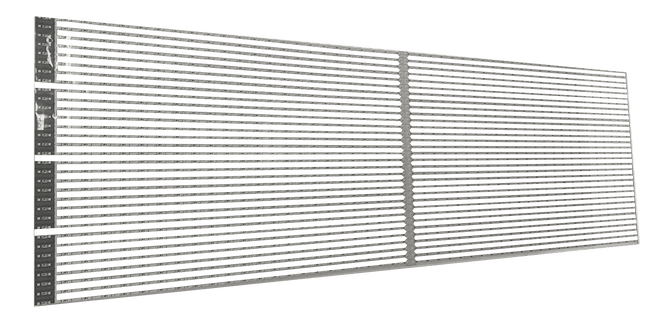

The size and layout of the KHALX is modulable and completly customizable depending on your glass surface. It can be expanded or shortened by adding or trimming the LED film in a vertical or horizontal direction.
BACK MAINTENANCEIndoorTransparentCurveLarge Scale LED DisplayArchitectureMediaCreativeModulable LED DisplayFlexibleKhalxAdhesive LED FilmHigh Transparency
| INDOOR | |||
| Product Parameters | Unit | P6.5 | P10 |
| Pixel Pitch | mm | 6,50 | 10,00 |
| LED | SMD1010 | SMD1010 | |
| Application | Transparent adhesive LED display | ||
| Ingress Protection | IP | IP41 (front) / IP40 (arrière) | |
| Brightness | cd/sqm | ≤ 5000 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 2000 - 15000 Adjustable | |
| Viewing Angle (50% brightness) | deg. | 160 H / 160 V | |
| Cabinet Size (WxHxD) | mm | 481 x 208 x 3 | 480 x 320 x 3 |
| Display area (WxH) | mm | 481 x 208 | 480 x 320 |
| Module Size (WxHxD) | mm | 481 x 208 x 3 | 480 x 320 x 3 |
| Pixel Matrix Per Cabinet (WxH) | px | 74 x 32 | 48 x 32 |
| Pixel Matrix Per Module (WxH) | px | 74 x 32 | 48 x 32 |
| Pixel Density | px/sqm | 23669 | 10000 |
| Weight of cabinet | kg | 1 | 0,52 |
| Cabinet Material | Adhesive film | ||
| Maintenance Mode | Back | ||
| Mask specification | No mask | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 3840 | |
| Operation Power | V | DC4.2 - 5V | |
| Max. Power Consumption | W/sqm | 750 | |
| Average Power Consumption | W/sqm | 250 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50/60Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | No | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 100000 | |
| Operating Humidity Range | 10-90% | ||
| Operating Temperature Range | -20°C / +55°C | ||
| Certification | FCC / CE / ETL / CCC / CB | ||
| Available options | - | ||
| Compatibility | No | ||
