  3. Qwartz 2.0 Swift
  • Application

    Indoor

  • PIXEL PITCH

    P1.5 P1.9 P2.6 P2.9 P3.9

  • OPTION
    90

Overview

Meet the QWARTZ 2.0 SWIFT, our dedi-cated solution to the growing demand for versatile indoor LED cabinets capable of handling both front and rear maintenance. Developed as part of the QWARTZ product family, the SWIFT combines cutting-edge engineering with practical servicing flexibility, making it ideal for a wide range of installations — from corporate environments and retail spaces to control rooms and event venues. While it shares the visual performance and mechanical reliability of the QWARTZ 2.0, the SWIFT stands out with its dual-maintenance capability, a feature too often neglected by competing LED solutions.

  • Application
    Indoor

  • PIXEL PITCH
    P1.5 P1.9 P2.6 P2.9 P3.9

  • MAINTENANCE
    Back & Front Maintenance

  • INGRESS PROTECTION
    IP30

  • Display Area (W X H)
    500 x 500 x 47

  • BRIGHTNESS
    ≤ 800 NITS (Standard) ≤ 3000 NITS (High-Brightness)

  • WEIGHT
    5.5 kg/cabinet

  • MATERIAL
    Die-casting aluminum

Features

Fine Pixel Pitch & high brightness option

The QWARTZ 2.0 SWIFT is built to meet the highest standards of indoor visual performance, offering the same pixel pitch configurations as our QWARTZ 2.0 to deliver exceptional image precision and seamless viewing experiences. In addition, it provides a high-brightness option available in P2.9 and P3.9, specifically designed for installations where screens face natural light exposure — such as storefronts or spaces requiring clear visibility through windows. This adaptability ensures consistent image quality and optimal brightness levels regardless of the lighting environment.

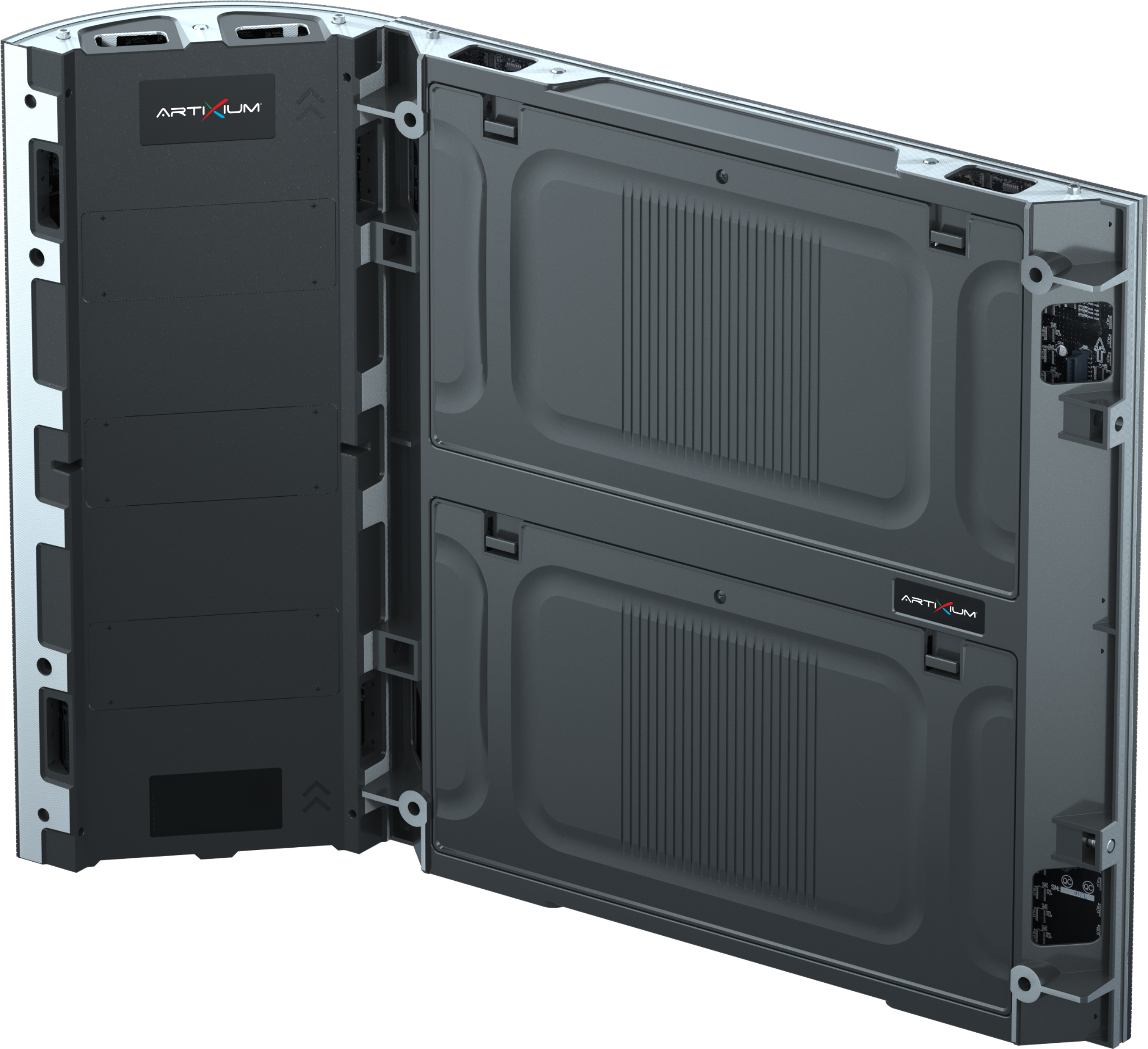

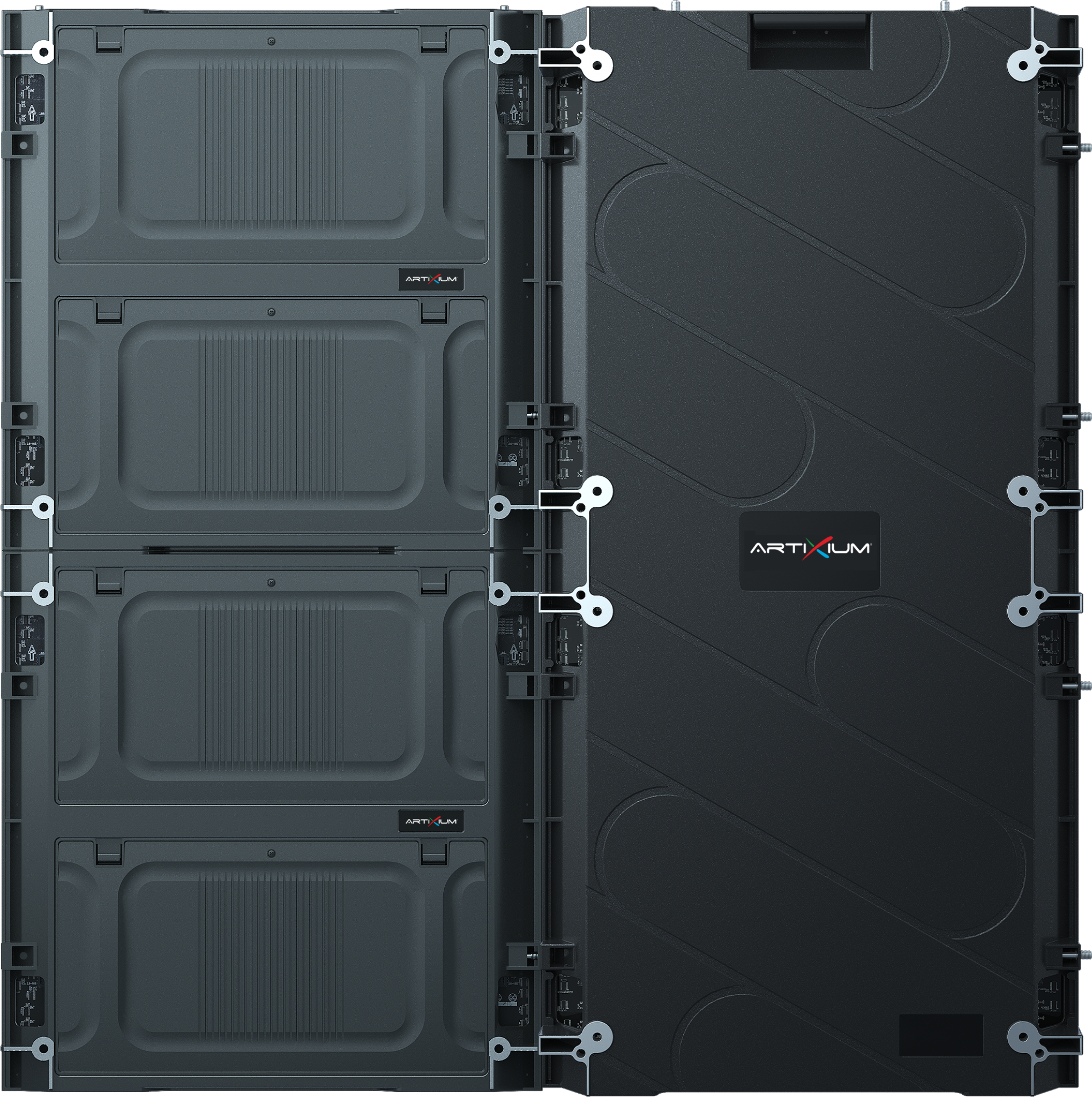

Cross compatible

The QWARTZ 2.0 SWIFT was conceived as an extension of our QWARTZ product range, ensuring seamless compatibility with existing systems. It integrates perfectly with the QWARTZ 2.0 cabinets, the QWARTZ 2.0 corner cabinets, as well as the QWARTZ 2.0 CURVE, making it an ideal addition to your existing inventory. This design philosophy allows you to expand your installation capabilities without replacing your current equipment, helping you optimize your investment while maintaining visual consistency across mixed setups. Whether you are upgrading, expanding, or creating new configurations, the QWARTZ 2.0 SWIFT ensures total interoperability within the QWARTZ ecosystem.

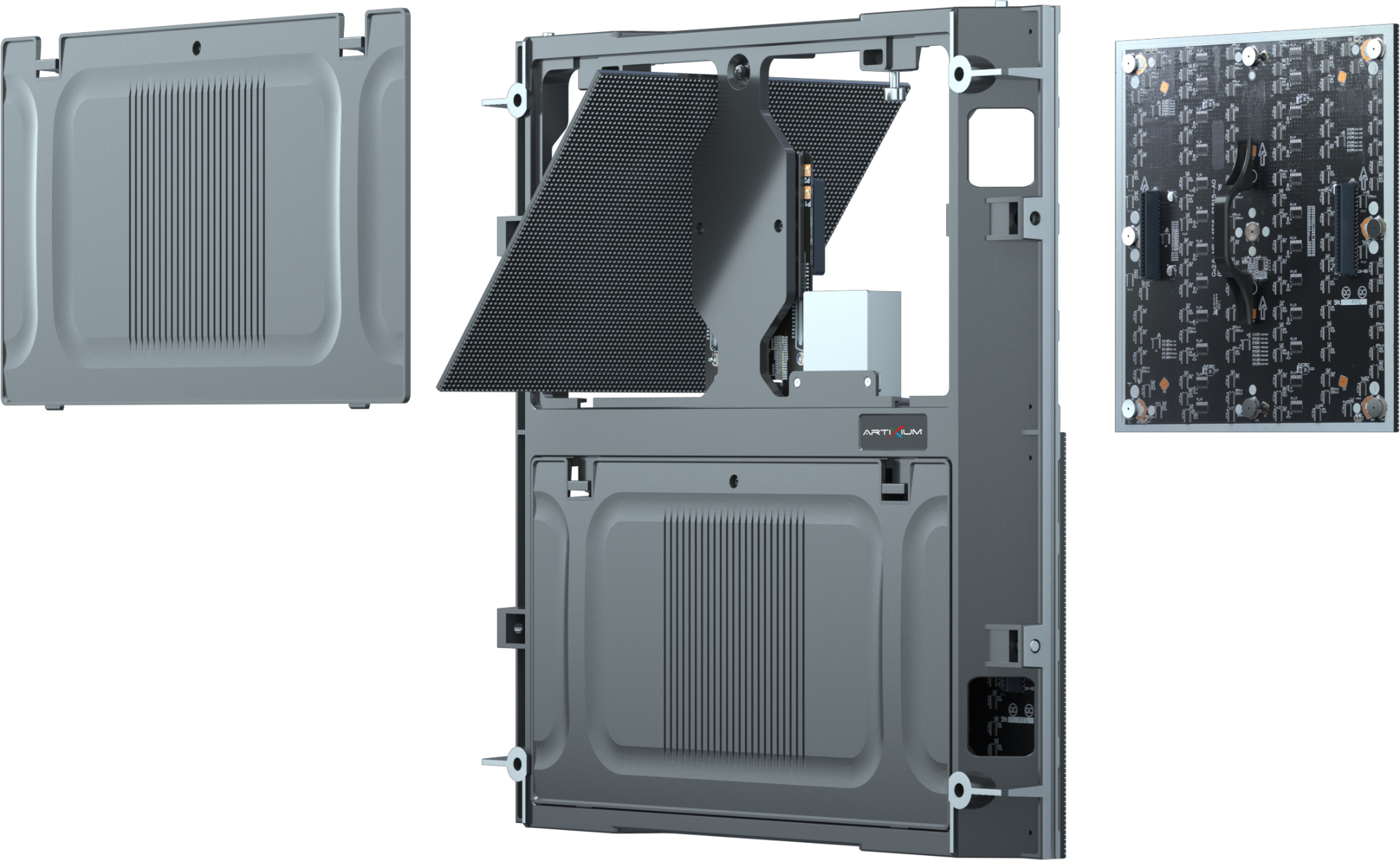

Back & Front Maintenance

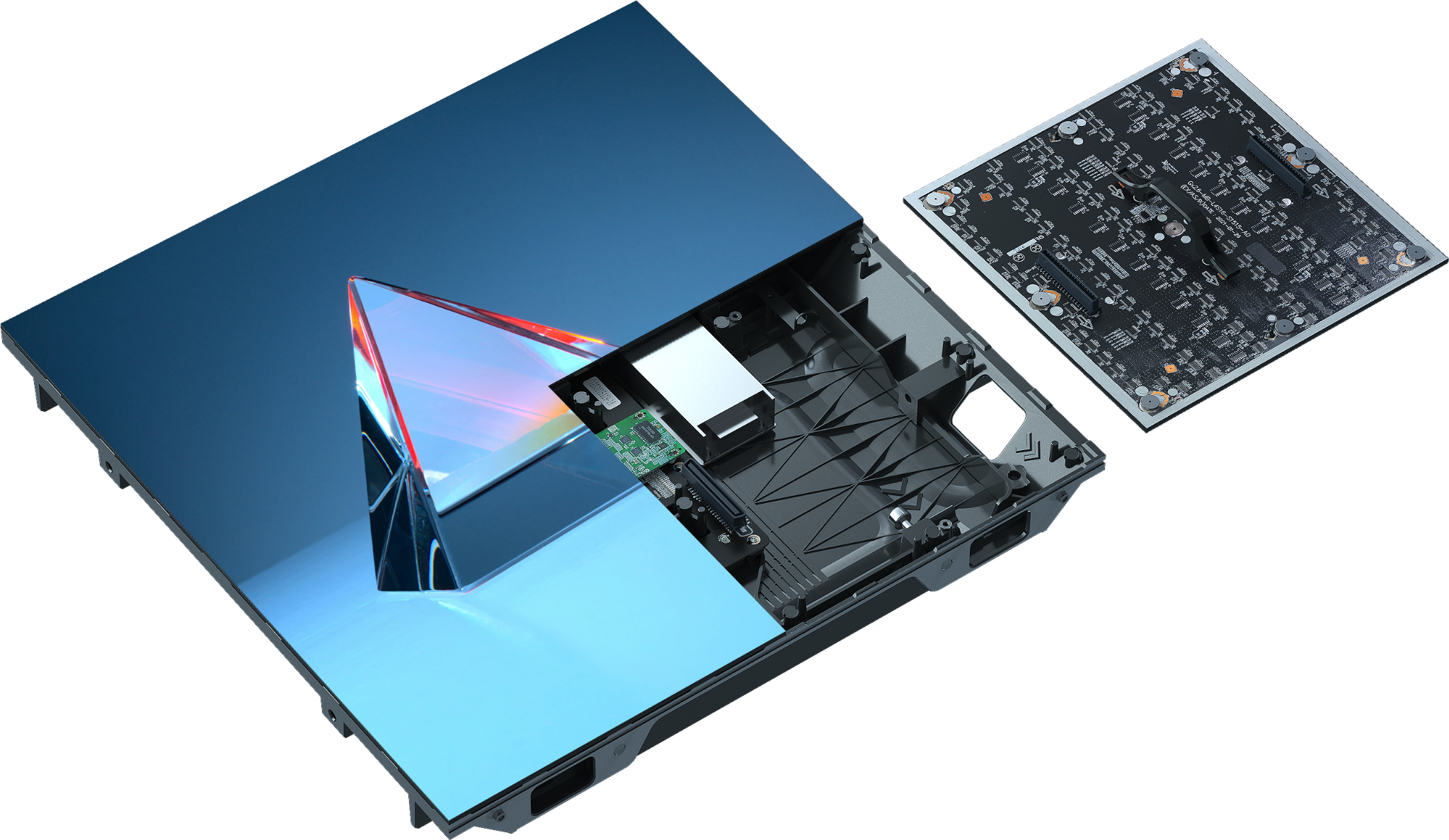

The QWARTZ 2.0 SWIFT has been engineered to support both front and rear maintenance, providing maximum flexibility during installation and servicing. Whether your setup requires easy access from the front for wall-mounted applications or from the back for open-space configurations, the QWARTZ 2.0 SWIFT ensures fast, safe, and efficient maintenance operations. This process is completely toolless, thanks to magnetic LED modules and quick-release clips that allow for effortless removal of the backshell, helping to reduce downtime and optimize workflow.

BACK MAINTENANCEIndoorFront MaintenanceUltra HDQwartzLightweightHigh Brightness

Technical Specifications

    INDOOR
Product Parameters Unit 1.5 1.9 2.6 2.9 3.1 3.9
Pixel Pitch mm 1,56 1,95 2,60 2,98 3,13 3,91
LED   SMD1212 3in1  FBF SMD1515 3in1 FBF (opt. SMD2020 FBF or SMD1516 High Brightness) SMD1921 3in1 FBF (opt.SMD1921 High Brightness) SMD2020 3in1 FBF SMD2020 3in1 FBF (opt.SMD1921 High Brightness)
Application   Media (retail)
Ingress Protection IP IP30
Brightness cd/m² ≤ 800 Nits @5volts ≤ 800 Nits @5volts (≤ 3000 Nits opt.) ≤ 800 Nits @5volts ≤ 800 Nits @5volts (≤ 3000 Nits opt.)
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 140 H / 140 V
Cabinet Size (WxHxD) mm 500 x 500 x 47
Display area (WxH) mm 500 x 500
Module Size (WxHxD) mm 250 x 250
Pixel Matrix Per Cabinet (WxH) px 320 x 320 256 x 256 192 x 192 168 x 168 160 x 160 128 x 128
Pixel Matrix Per Module (WxH) px 160 x 160 128 x 128 96 x 96 84 x 84 80 x 80 64 x 64
Pixel Density px/m² 409600 262144 147456 112896 102400 65536
Weight of cabinet kg 5.5
Cabinet Material   Die-casting aluminum
Maintenance Mode   Back & Front
Mask specification   95% Plastic + 5% Fiber / Clips (no screws) / No shaders
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Display Refresh Rate Hz 3840 7680
Operation Power V AC85-230V
Max. Power Consumption W/m² 410
Average Power Consumption W/m² 136
Control Mode   Synchronous / Asynchronous
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
3D ready (optional)   Yes
Calibration   Yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-90%
Operating Temperature Range   0°C / +40°C
Screen Uniformity Correction   Yes
Certification   CE / FCC / ETL
Available options   -
Compatibility    -

COMPATIBLE ACCESSORIES

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT320
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case
Request a quotation
*
*
*
*
