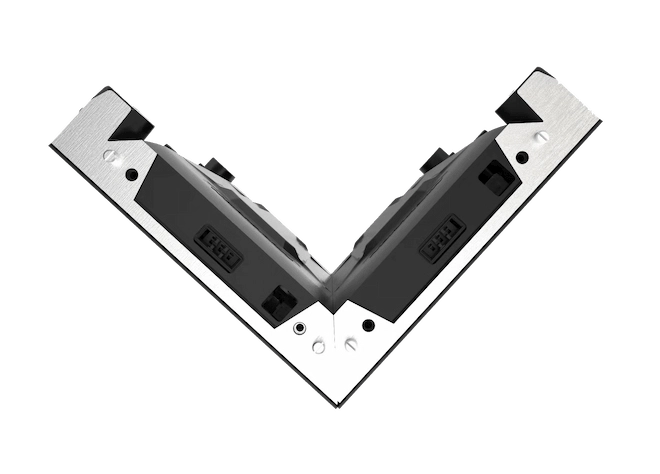

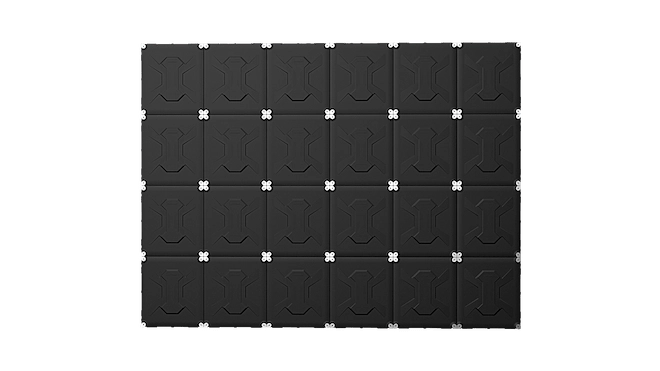

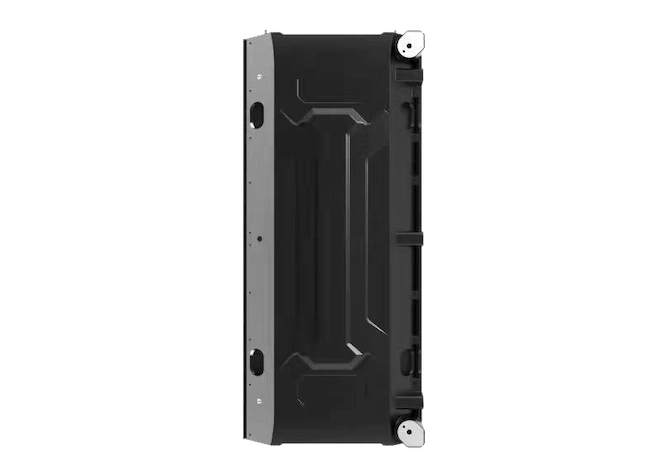

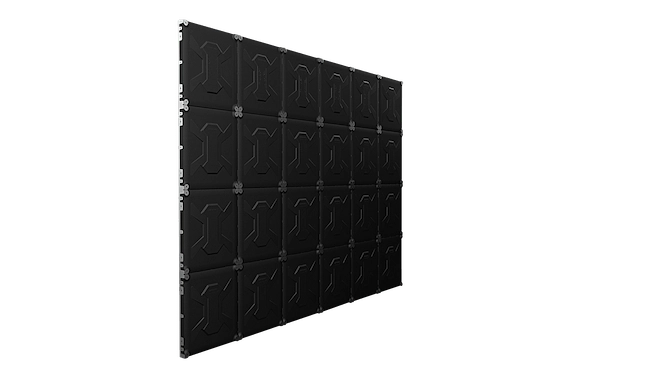

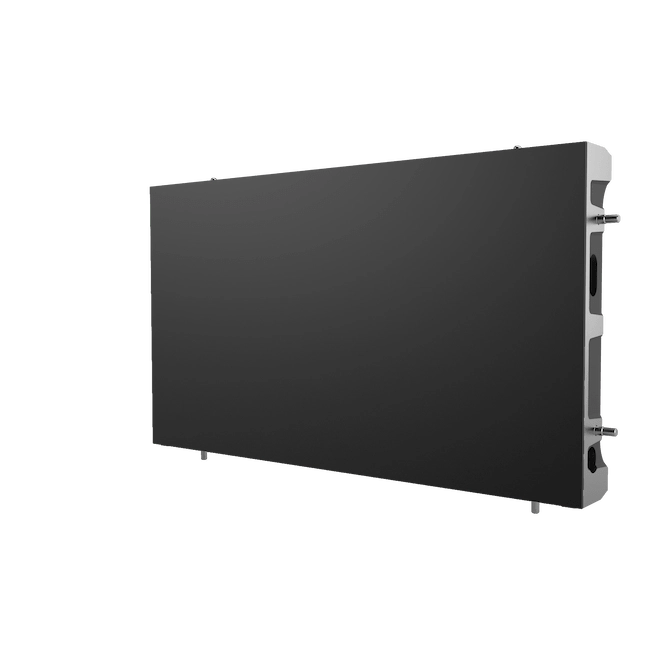

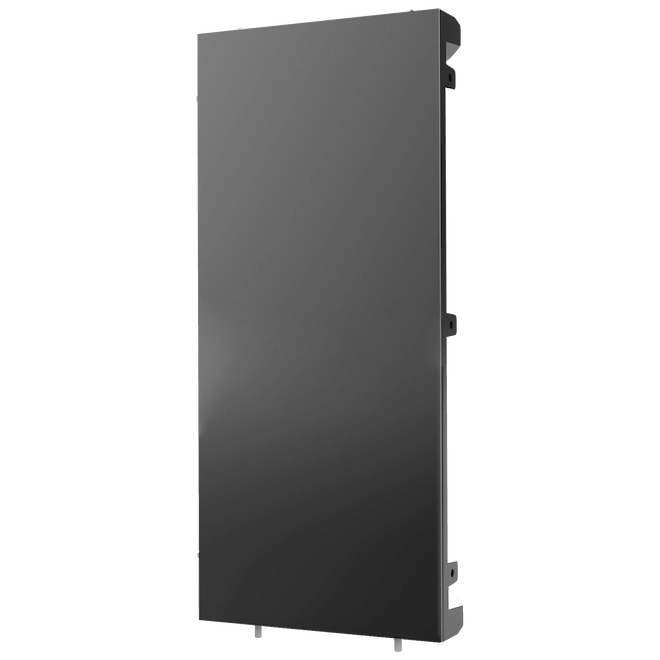

The Citrine is a classic product in its composition, allowing the assembly of multiple cabinets in order to create a custom LED display against a wall, but it stands out with its performance and quality. It is thin, very light, and offers a sensational quality display while being extremely low demanding in energy. Thanks to its thin pixel pitch, you can easily obtain a 2k to 4k resolution at 16:9. It comes in three sizes which also allows 90° angles as well as adjusting the height or width of your led display to better fit your needs.
Application
Indoor
PIXEL PITCH
P1.2 P1.5 P1.8 P2 P2.5
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP30
Display Area (W X H)
480 X 540 MM
240 X 540 MM
480 X 270 MM
BRIGHTNESS
≤800 Nits @5volts
WEIGHT
4 - 7 KG/CABINET
MATERIAL

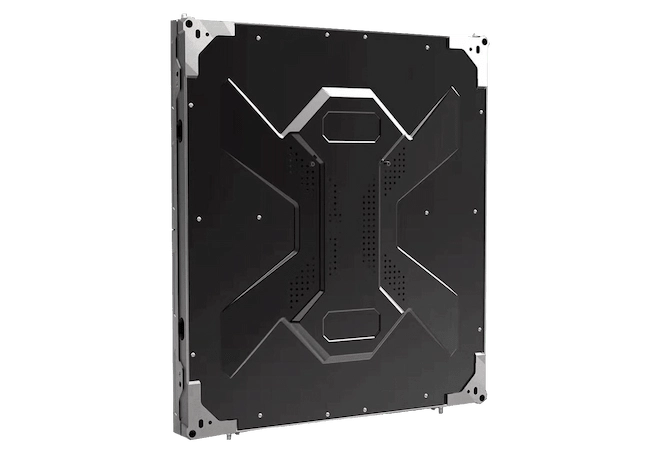

ALUMINUM DIE CASTING
Designed for the middle and high-end market, the Citrine offers a range of fine pixel pitches from P1.2 to P2.5 that allows for a high-resolution display. By using the standard 16:9 golden ratio cabinet, you can even offer your customers the amazing visual experience of a 2k or 4k display that will make your business stand out.

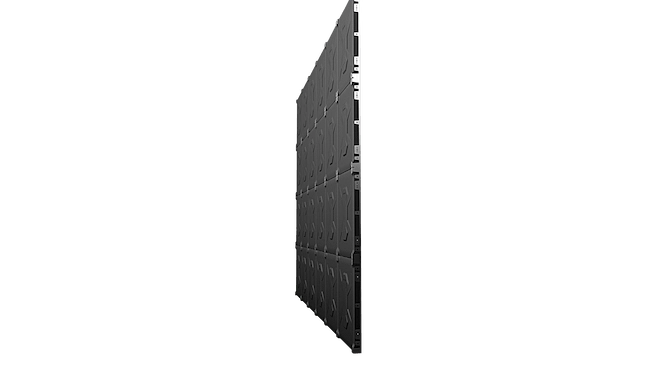

Both thin and light for a product of this category, the Citrine is an ideal solution for wall-led displays thanks to its front maintenance with a vacuum sucker tool. The replacement of the different modules of the Citrine is a one-man job, reducing the labor cost for maintaining it.
The Citrine is amazingly cost-effective when it comes to power consumption, when active, it only consumes around 55W/module. It is about half the power consumption of other products from our product range with a similar cabinet size.
INDOORFront Maintenance90 DegreesArchitectureFixed LED DisplayWall ApplicationModulable LED Display
Download Specifications (excel)
| INDOOR | ||||||
| Product Parameters | Unité | 1.2 | 1.5 | 1.8 | 2.0 | 2.5 |
| Pixel Pitch | mm | 1,25 | 1,50 | 1,88 | 2,00 | 2,50 |
| LED | SMD1010 3in1 | SMD1212 3in1 | SMD1515 3in1 | SMD2121 3in1 | ||
| Application | Media UHD | |||||
| Ingress Protection | IP | IP30 | ||||
| Brightness | cd/m² | ≤ 800 Nits @5volts | ||||
| Color Temperature after calib (adjustable) | deg. K | 3200-9300 Adjustable | ||||
| Viewing Angle (50% brightness) | deg. | 160 H / 160 V | ||||
| Cabinet Size (WxHxD) | mm | 480 x 540 x 54 / 240 x 540 x 54 / 480 x 270 x 54 | ||||
| Display area (WxH) | mm | 480 x 540 / 240 x 540 / 480 x 270 | ||||
| Module Size (WxHxD) | mm | 240 x 270 x 15 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 384 x 432 192 x 432 384 x 216 |
320 x 360 160 x 360 320 x 180 |
256 x 288 128 x 288 256 x 144 |
240 x 270 120 x 270 240 x 135 |
192 x 216 96 x 216 192 x 108 |
| Pixel Matrix Per Module (WxH) | px | 192 x 216 | 160 x 180 | 128 x 144 | 120 x 135 | 96 x 108 |
| Pixel Density | px/m² | 640000 | 444444 | 284444 | 250000 | 160000 |
| Weight of cabinet | kg | 7 / 4 / 4 | ||||
| Cabinet Material | Die-casting aluminum | |||||
| Maintenance Mode | Front | |||||
| Mask specification | QCOB | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 14-18 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 18 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 1920-3840 | ||||
| Operation Power | V | AC100-240V | ||||
| Max. Power Consumption | W/m² | 650 | ||||
| Average Power Consumption | W/m² | 150 | ||||
| Control Mode | Synchronization | |||||
| Video Frame Rate | Hz | 30/120 | ||||
| Input Types Supported | DVI/SDI/HDMI | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 100000 | ||||
| Operating Humidity Range | 10-80% | |||||
| Operating Temperature Range | -10°C / +40°C | |||||
| Certification | FCC / CE / ETL / CCC / CB | |||||
| Available options | 90° angle | |||||
| Compatibility | Yes | |||||
