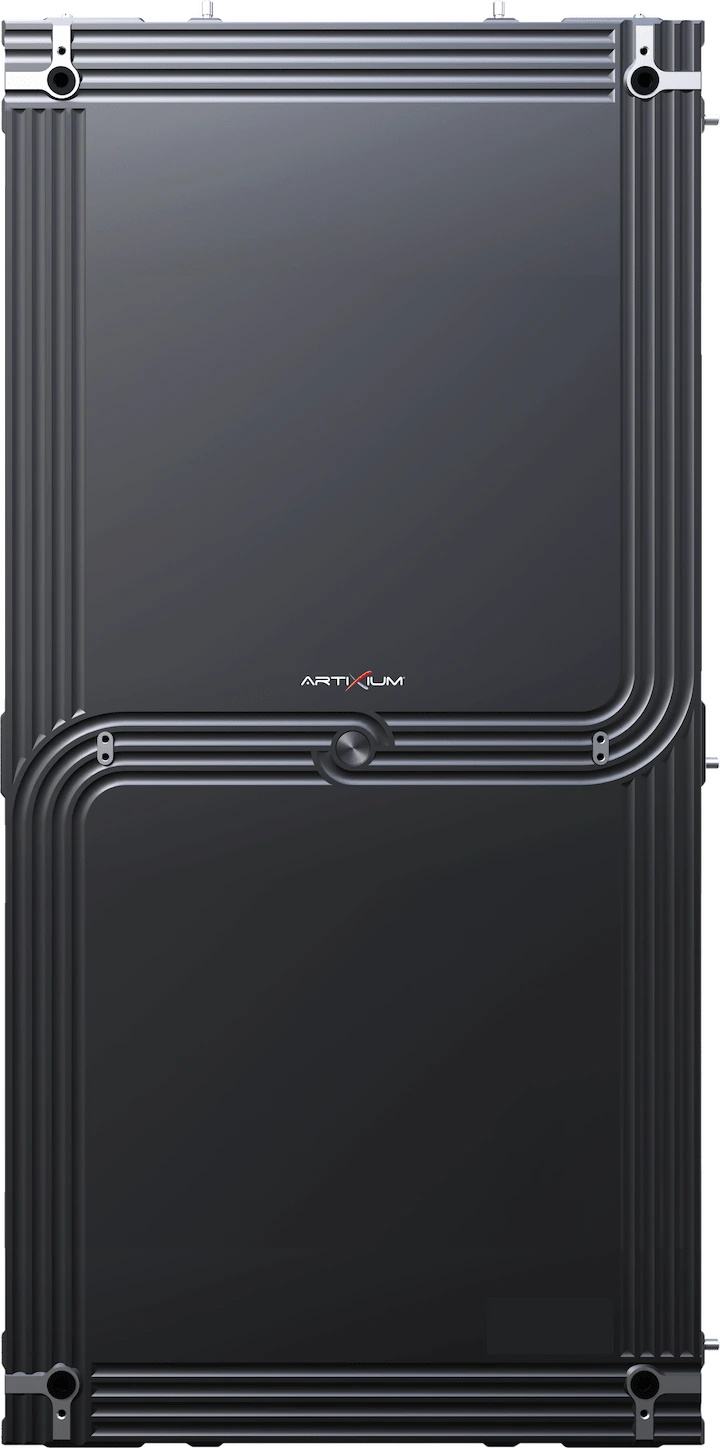

This LED cabinet is the latest addition to our QWARTZ ULTRA SLIM range. The QWARTZ ULTRA SLIM 3.0 works on a 250 x 250 mm modular basis, making it ideal for many indoor LED application projects. Although similar to the QWARTZ ULTRA SLIM 2.0 regarding its design, it differs from it with its dimensions, thought to maximize modularity and adaptability rather than seeking a 16:9 ratio. The QWARTZ ULTRA SLIM 3.0 is available in 5 different sizes, all of them compatible with one another.
Application
Indoor
PIXEL PITCH
P1.9 P2.5 P2.6
MAINTENANCE

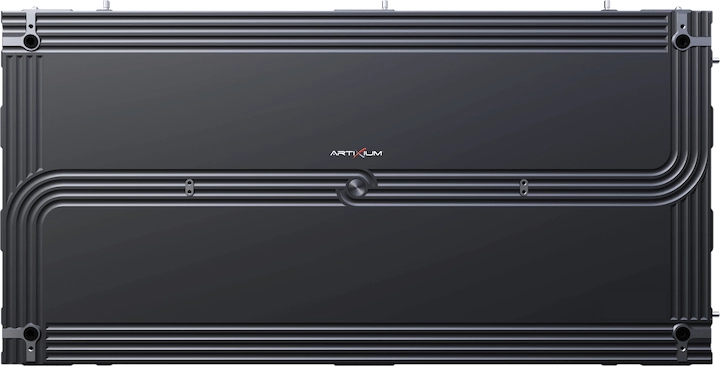

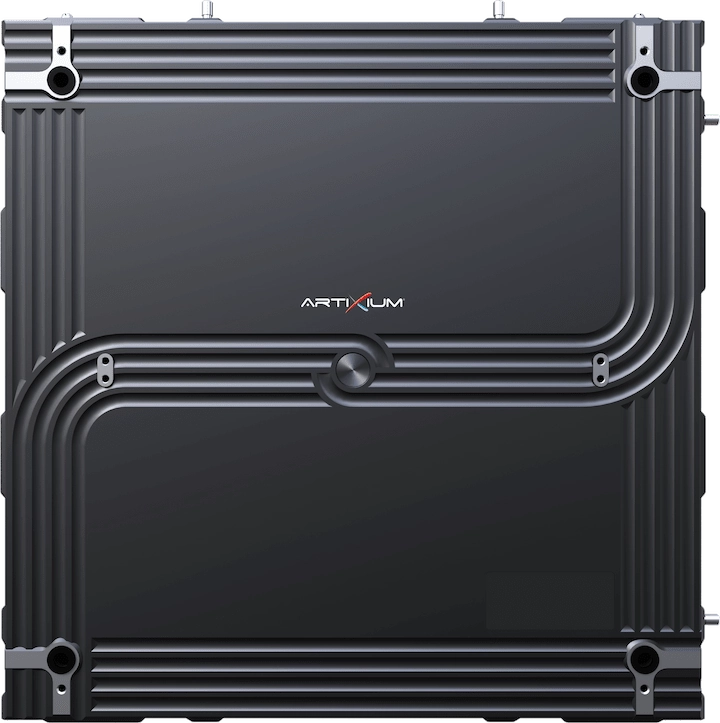

Front Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)
500 x 1000 mm
1000 x 500 mm
750 x 500 mm
500 x 500 mm
250 x 500 mm
BRIGHTNESS
≤ 1000 Nits @5volts
≤ 3000 Nits @5volts (opt.)
WEIGHT
18.5 - 18 kg/m²

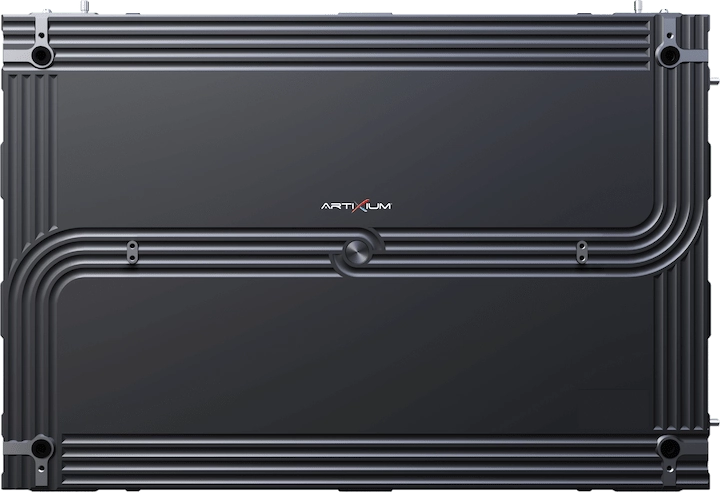

MATERIAL
die-casting aluminum

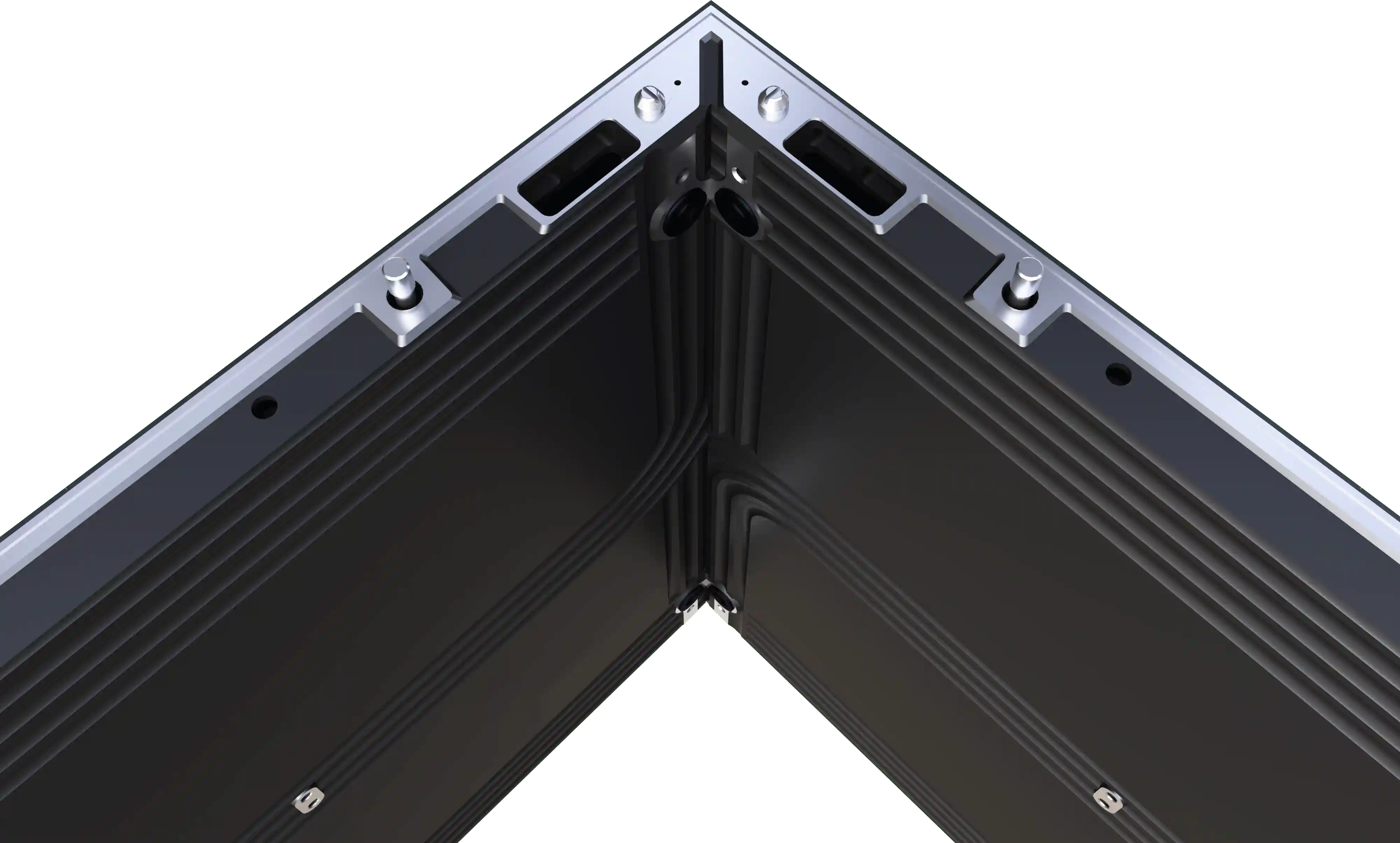

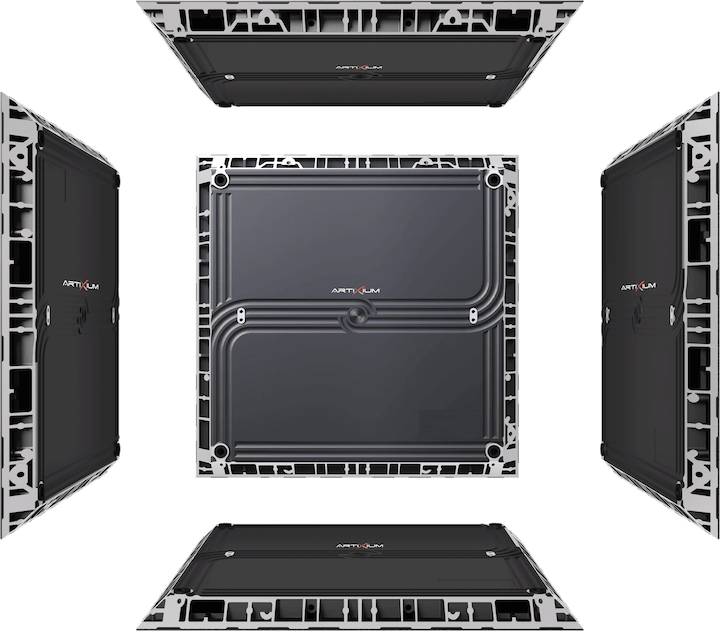

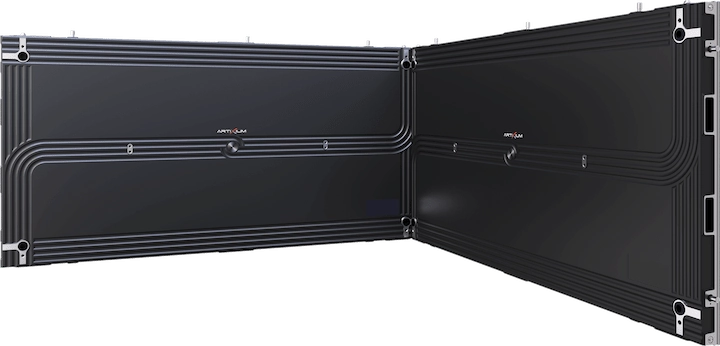

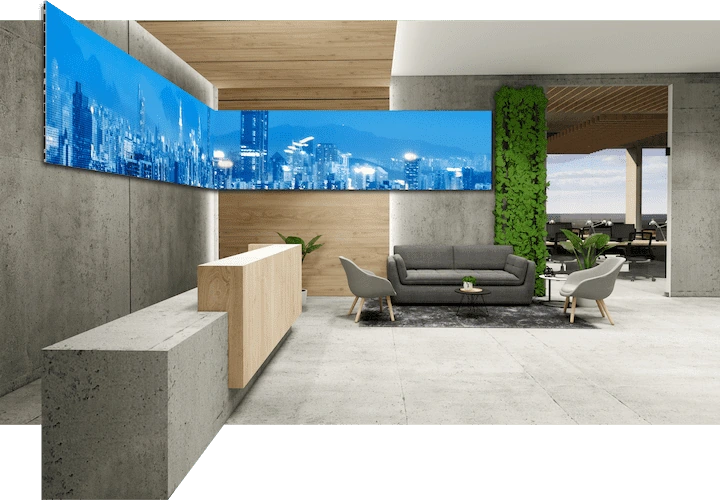

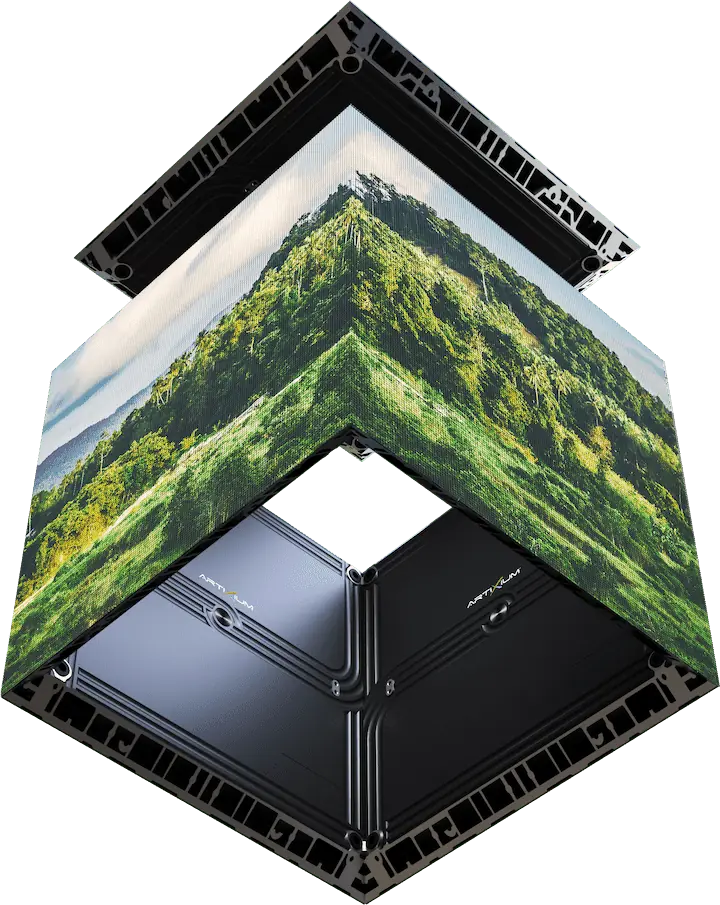

The QWARTZ ULTRA SLIM cabinets can be bevelled at a 45° angle on the edges to allow 90° applications. You can even obtain seamless LED cubes with cabinets bevelled on all edges. This feature allows high creativity to your giant LED screen projects.

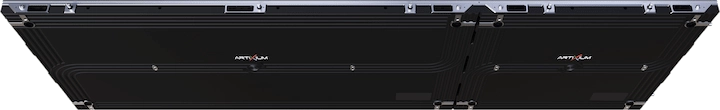

With a fine P1.9 to P2.6 pixel pitch, and SMD Full Black Face LEDs, the QWARTZ ULTRA SLIM 3.0 is slightly above what we consider to be ultra HD LED cabinets, pitch-wise. This product is capable of displaying very high-quality content, even allowing a 1920 x 1080 pixels resolution with a limited number of cabinets. No matter the number and layout of your LED cabinets, you’ll get an astonishing render on your giant indoor screen.

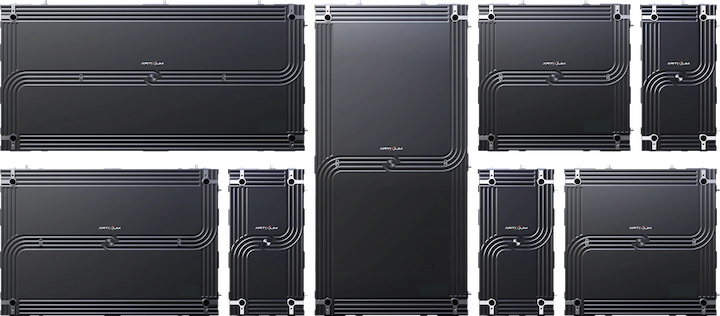

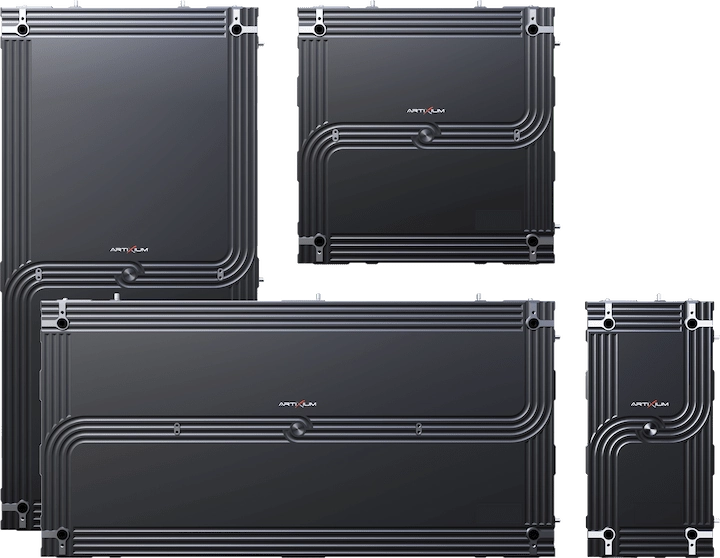

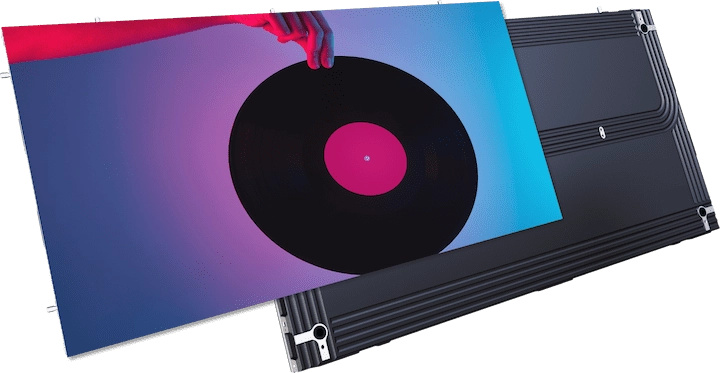

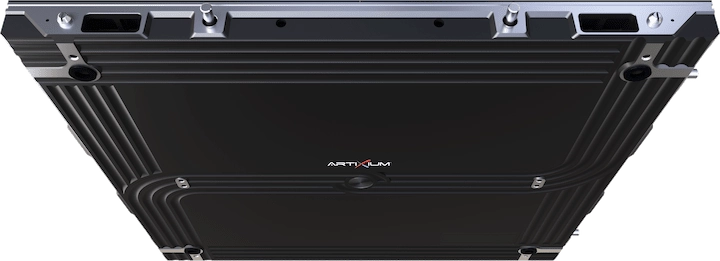

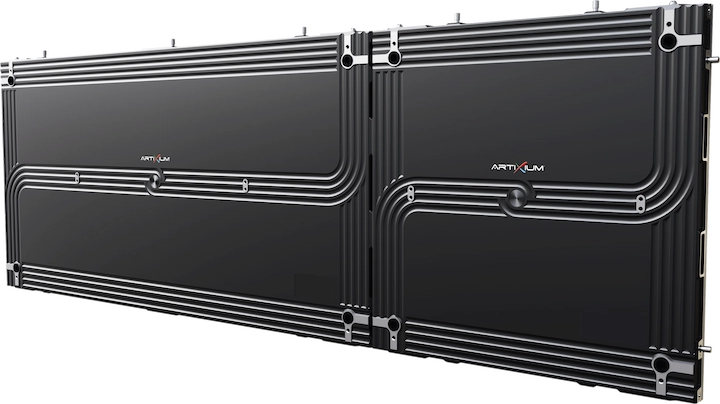

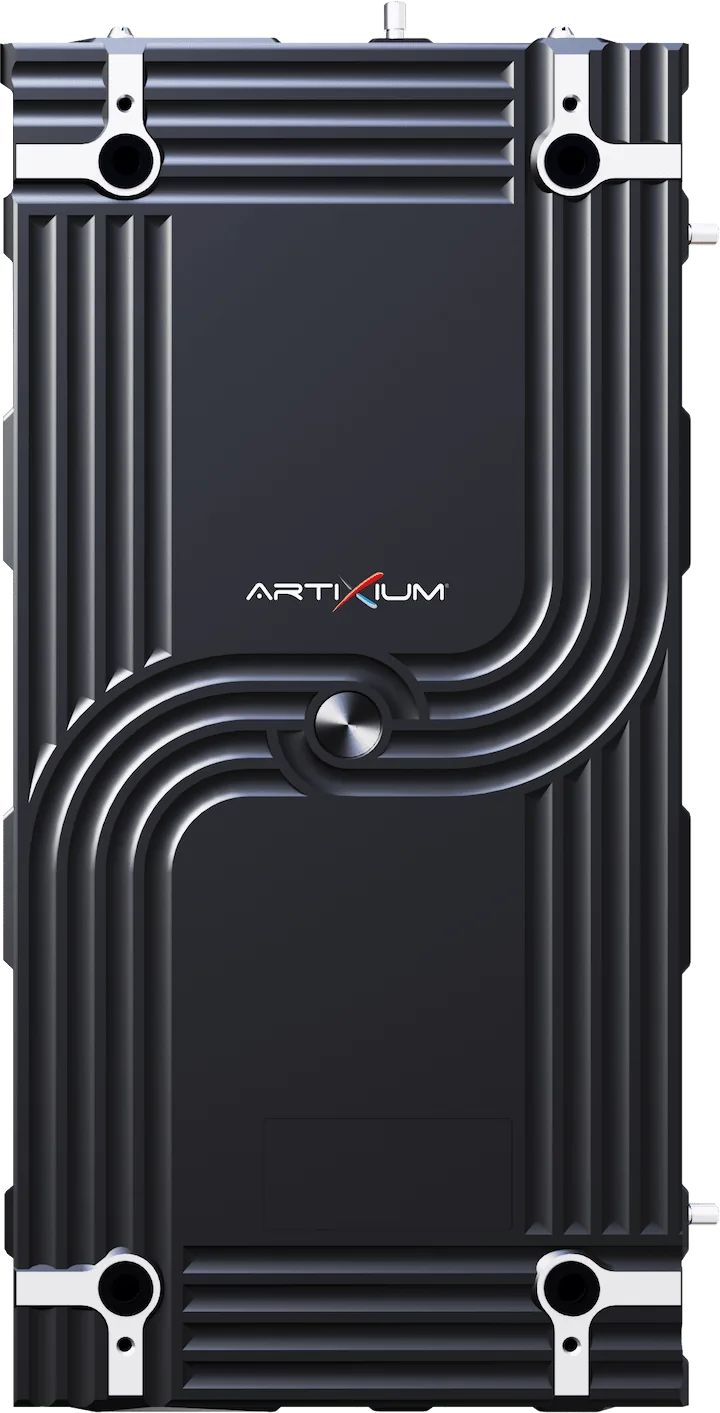

With its 5 different compatible cabinet sizes, the QWARTZ ULTRA SLIM 3.0 allows you to create tailored giant LED screens while optimizing the number of receiving cards, making your application as cost-effective as possible.

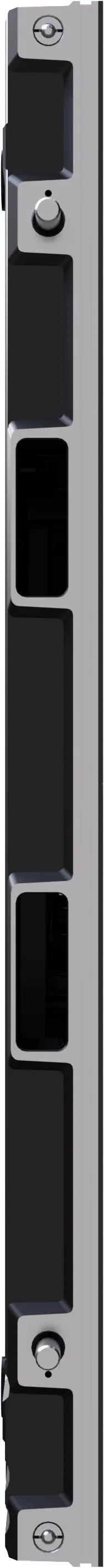

| INDOOR | |||||
| Product Parameters | Unit | 1.9 | 2.5 | 2.6 | 2.6 - HB |
| Pixel Pitch | mm | 1,95 | 2,50 | 2,60 | 2,60 |
| LED | SMD1212 3in1 (Full Black Face) | SMD1515 3in1 (Full Black Face) | SMD1515 3in1 (Black Face) | ||
| Application | Indoor modulable LED screen | ||||
| Ingress Protection | IP | IP20 | |||
| Brightness | cd/m² | ≤ 800 Nits @5volts | ≤ 1000 Nits @5volts | ≤ 3000 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 160 H / 160 V | |||
| Cabinet Size (WxHxD) | mm | 500 x 1000 x 34.9 / 1000 x 500 x 34.9 / 750 x 500 x 34.9 / 500 x 500 x 34.9 / 250 x 500 x 34.9 | |||
| Display area (WxH) | mm | 500 x 1000 / 1000 x 500 / 750 x 500 / 500 x 500 / 250 x 500 | |||
| Module Size (WxHxD) | mm | 250 x 250 x 3 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 256 x 512 / 512 x 256 / 384 x 256 / 256 x 256 / 128 x 256 |
200 x 400 / 400 x 200 / 300 x 200 / 200 x 200 / 100 x 200 |
192 x 384 / 384 x 192 / 288 x 192 / 192 x 192 / 96 x 192 |
192 x 384 / 384 x 192 / 288 x 192 / 192 x 192 / 96 x 192 |
| Pixel Matrix Per Module (WxH) | px | 128 x 128 | 100 x 100 | 96 x 96 | 96 x 96 |
| Pixel Density | px/m² | 262144 | 160000 | 147456 | 147456 |
| Weight of cabinet | kg | 18.5 | 18 | 18 | |
| Cabinet Material | Die-casting aluminum | ||||
| Maintenance Mode | Front | ||||
| Mask specification | 95% Plastic + 5% Fiber / Clips (no screws) / No shaders | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC85-230V | |||
| Max. Power Consumption | W/m² | 420 | |||
| Average Power Consumption | W/m² | 160 | |||
| Control Mode | Synchronous / Asynchronous | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | -30°C / +60°C | ||||
| Screen Uniformity Correction | Yes | ||||
| Certification | CE / EMC / LVD / FCC / ETL | ||||
| Available options | 90° angles - High Brightness (P2.6) | ||||
| Compatibility | All cabinet sizes are compatible with one another / A cabinet can be installed vertically or horizontally | ||||
