The SILICIUM is the latest addition to our Outdoor Ultra HD LED cabinet range. Dedicated to outdoor applications, this high-quality product offers a fine pixel pitch as well as a high resistance to harsh weather conditions. Its bright display makes this LED cabinet ideal for advertisement purposes, as it offers clear visibility in all weather conditions, both day and night.
Application
OUTDOOR
PIXEL PITCH
P1.9 P2.9
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
500 x 500 mm
BRIGHTNESS
≤5300 NITS @5 Volts
WEIGHT
36kg/m²
MATERIAL
Die-casting Aluminum

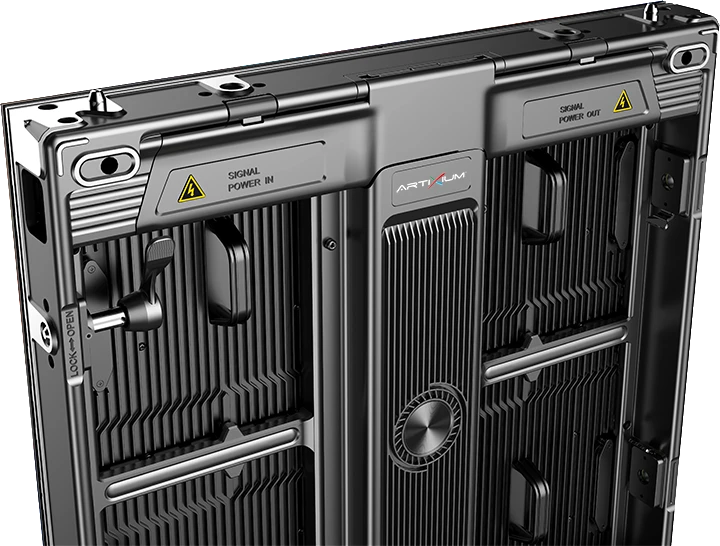

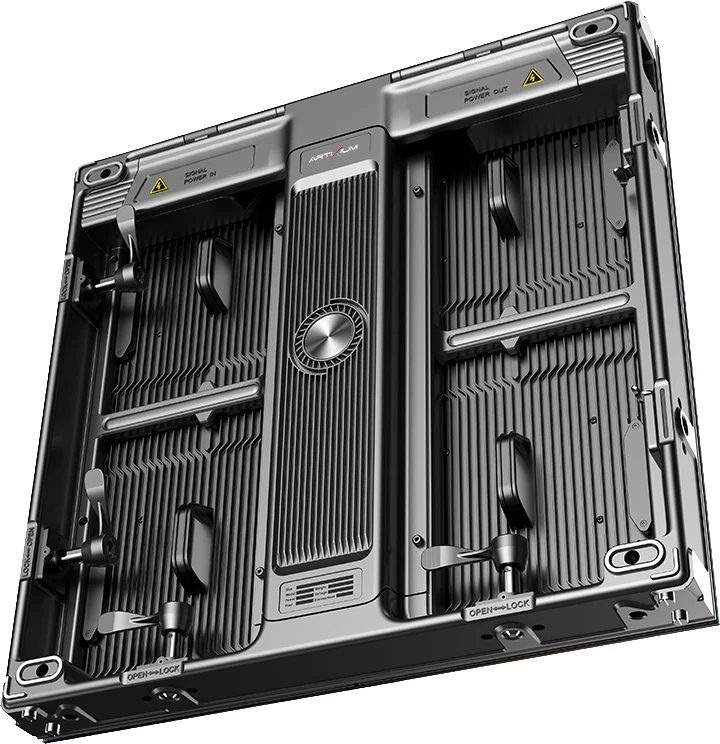

The SILICIUM cabinets are accessible both from the back and the front. This feature makes this product highly adaptable and guarantees a quick and simple maintenance process. Furthermore, this maintenance can be operated by one technician, allowing you to save money on manpower.

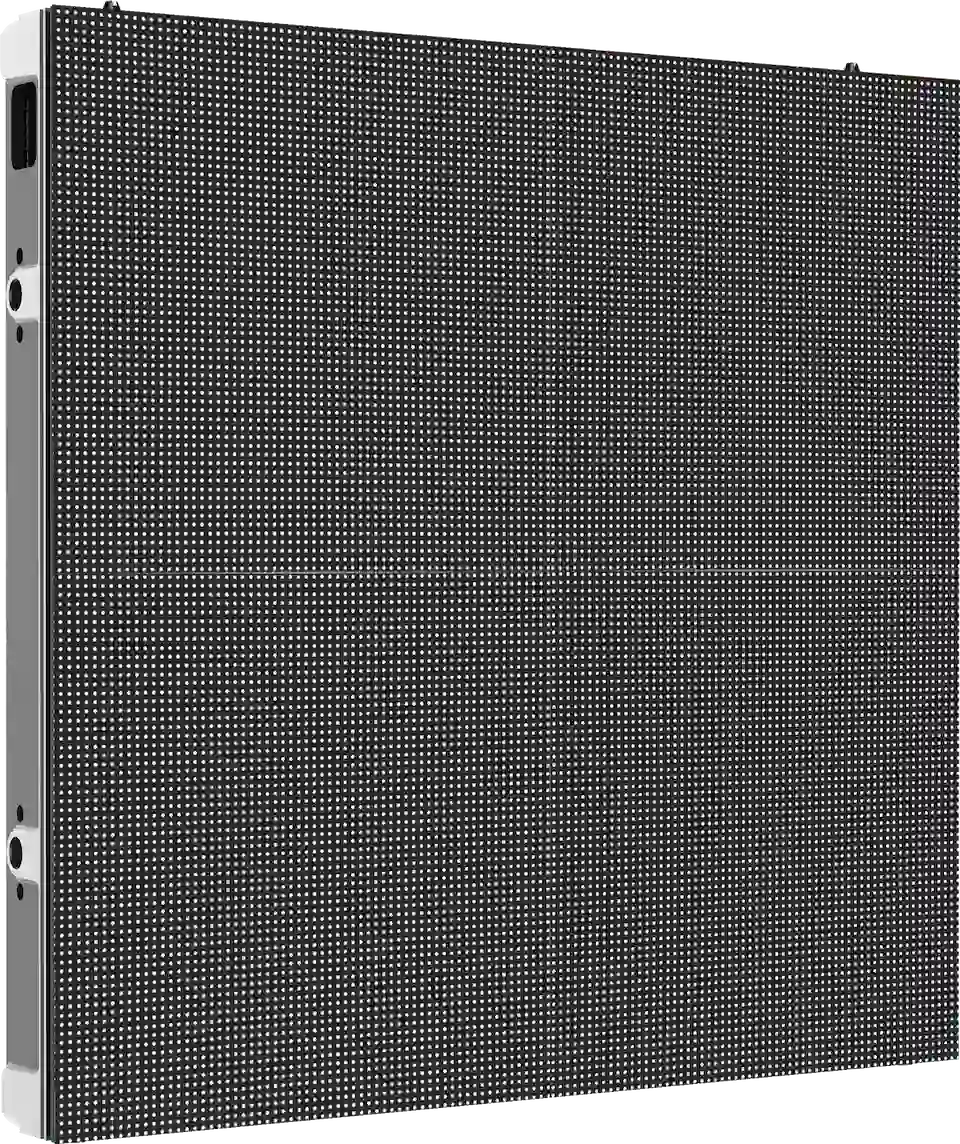

The SILICIUM offers a fine pixel pitch of 1.9mm or 2.9mm, which are amongst the finest available on the outdoor LED display market. Therefore, for a reasonable price, you can offer your audience high-quality visual content on bright and contrasted giant LED screens.
The ingress protection rating of IP65 guarantees the resistance and durability of your giant LED screen. It indicates a total resilience to particle ingress as well as water projections. Hence, you can rest assured that your screen won't get damaged by weather conditions, as harsh as they might be.
BACK MAINTENANCEOutdoorFront MaintenanceFine PitchMediaHigh ResistanceWall Application
| OUTDOOR | |||
| Product Parameters | Unit | 1.9 | 2.9 |
| Pixel Pitch | mm | 1,95 | 2,98 |
| LED | SMD1212 | SMD1515 | |
| Application | Fine pitch outdoor LED cabinet | ||
| Ingress Protection | IP | IP65 | |
| Brightness | cd/sqm | ≤ 4000 Nits @5volts | ≤ 5300 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |
| Viewing Angle (50% brightness) | deg. | 160H / 160 V | |
| Cabinet Size (WxHxD) | mm | 500 x 512.5 x 64.85 | |
| Display area (WxH) | mm | 500 x 500 | |
| Module Size (WxHxD) | mm | 250 x 250 x 15 | 250 x 250 x 21 |
| Pixel Matrix Per Cabinet (WxH) | px | 256 x 256 | 168 x 168 |
| Pixel Matrix Per Module (WxH) | px | 128 x 128 | 84 x 84 |
| Pixel Density | px/sqm | 262144 | 112896 |
| Weight | kg/m² | 34 | 36 |

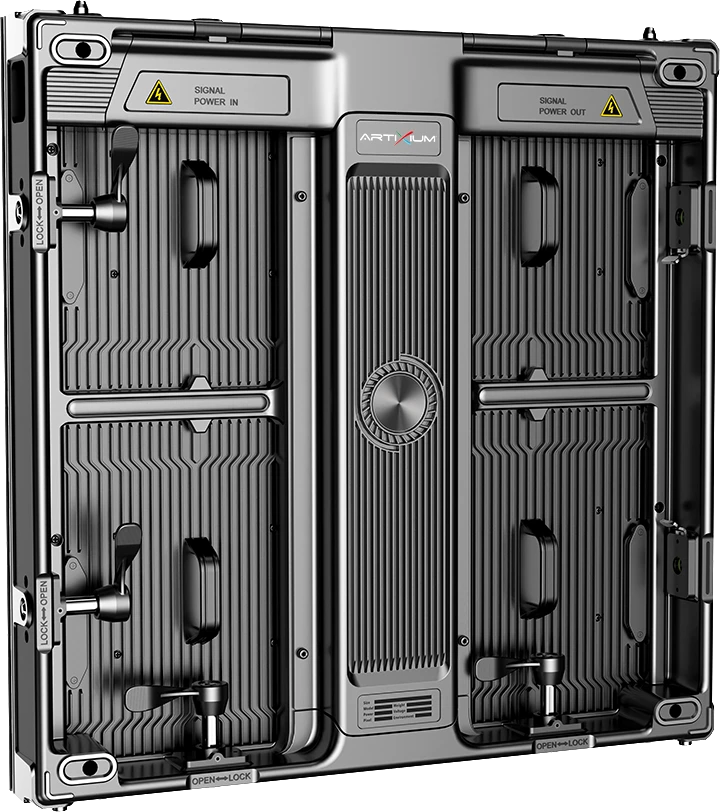

| Cabinet Material | Die-casting aluminum | ||
| Maintenance Mode | Front & back | ||
| Mask specification | 95% Plastic + 5% Fiber / SS screws / Shaders | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 14 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 3840 | |
| Operation Power | V | AC100-240V | |
| Max. Power Consumption | W/sqm | 560 | |
| Average Power Consumption | W/sqm | 168 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50/60Hz | |
| Input Types Supported | DVI / SDI / HDMI / S-video / VGA | ||
| 3D ready (optional) | Yes | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 100000 | |
| Operating Humidity Range | 10-95% | ||
| Operating Temperature Range | -30°C / +50°C | ||
| Screen Uniformity Correction | Yes | ||
| Certification | CE / ETL / CCC | ||
| Available options | - | ||
| Compatibility | No | ||
