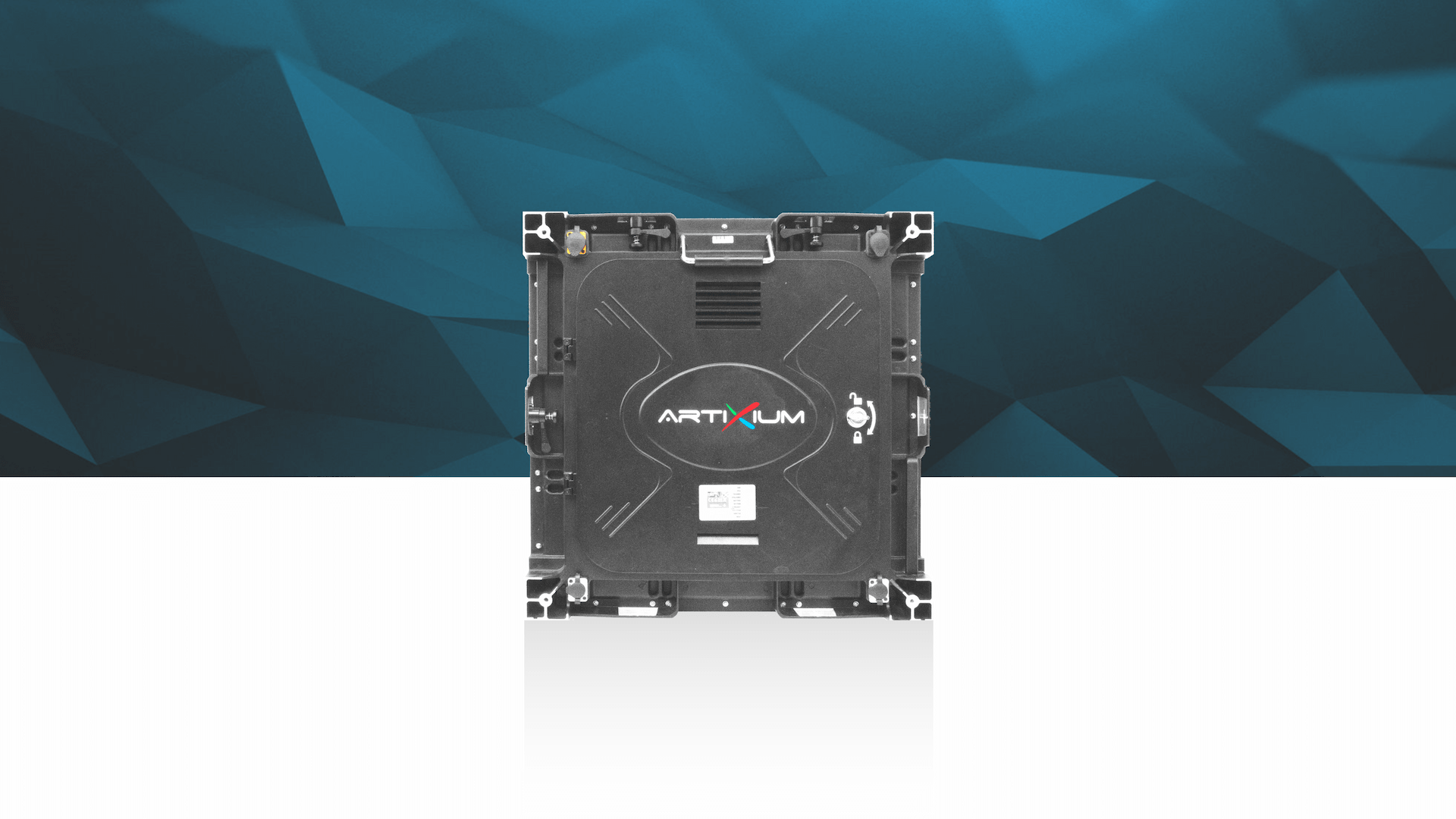

The PHOTON is our newborn solution for cost-effective fixed LED displays. This product is the perfect balance between straightforward engineering and optimized components. Measuring 576 x 576 x 85 mm and weighing 7 kg, the PHOTON is ideal for fast and easy fixed LED integration projects.
Application
INDOOR OUTDOOR
PIXEL PITCH
P3 P4 P6
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP41 (indoor)
IP65 (outdoor)
Display Area (W X H)
576 x 576 mm
BRIGHTNESS
≤6000 NITS @5 Volts
WEIGHT
7kg / Cabinet
MATERIAL

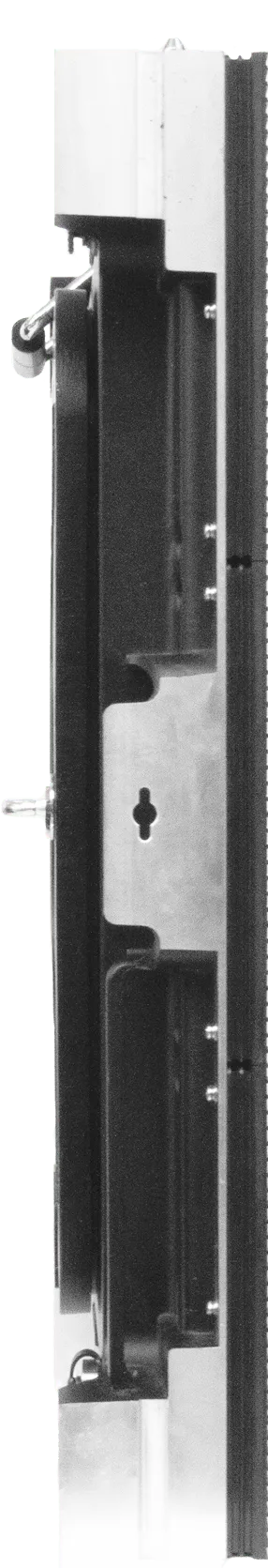

Die-casting Aluminum

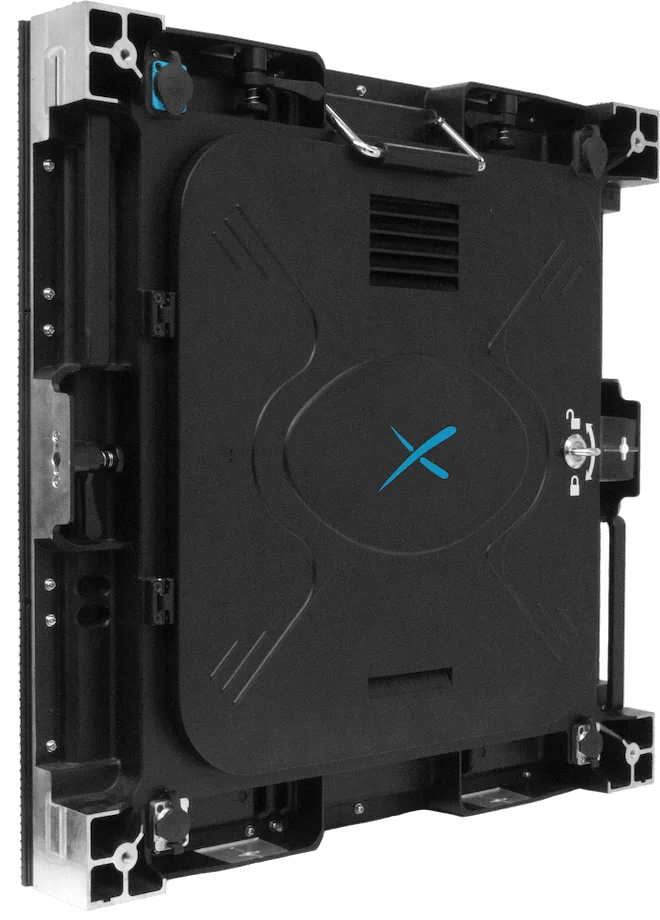

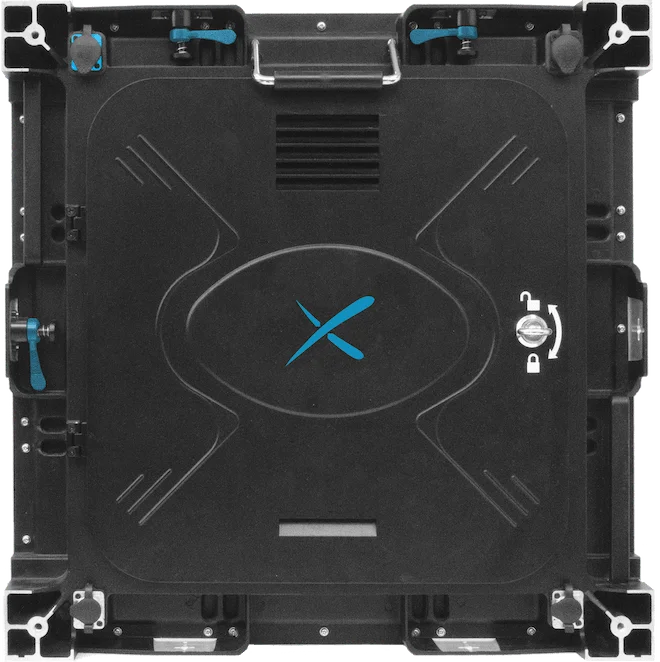

The different features of the PHOTON are designed to be user-friendly, with toolless locking systems, transportation handles, easy back access, and a 7 kg lightweight per cabinet. These properties make the PHOTON easy and quick to integrate and maintain.
The PHOTON is first and foremost adapted to fixed LED applications, however, its added value is its suitability for rental installations. This is made possible by its numerous user-friendly features and lightweight that make the PHOTON easy to integrate as well as to disassemble.
Although the PHOTON doesn't come with the finest pixel pitches on the market, it has a high contrast ratio and a high brightness. These features make the PHOTON's display resolution both sharp and visible from afar. Once again, the PHOTON shows a good balance between cost-effectiveness and good performance.
BACK MAINTENANCEIndoorOutdoorLarge Scale LED DisplayMediaRetailMedia Outdoor Facade
| INDOOR | OUTDOOR | |||
| Product Parameters | Unit | 3 | 4 | 6 |
| Pixel Pitch | mm | 3,00 | 4,00 | 6,00 |
| LED | SMD2020 3in1 (Black Face) | SMD2727 3in1 (Black Face) | ||
| Application | Media | |||
| Ingress Protection | IP | IP41 | IP65 | |
| Brightness | cd/sqm | ≤ 2000 Nits @5volts | ≤ 6000 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||
| Cabinet Size (WxHxD) | mm | 576 x 576 x 85 | ||
| Display area (WxH) | mm | 576 x 576 | ||
| Module Size (WxHxD) | mm | 288 x 288 x 15 | ||
| Pixel Matrix Per Cabinet (WxH) | px | 192 x 192 | 144 x 144 | 96 x 96 |
| Pixel Matrix Per Module (WxH) | px | 96 x 96 | 72 x 72 | 48 x 48 |
| Pixel Density | px/sqm | 111111 | 62500 | 27778 |
| Weight of cabinet | kg | 7 | ||
| Cabinet Material | Die-casting aluminum | |||
| Maintenance Mode | Back | |||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | AC85-230V | ||
| Max. Power Consumption | W/sqm | 300 | 560 | |
| Average Power Consumption | W/sqm | 120 | 240 | |
| Control Mode | Synchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | DVI / SDI / HDMI | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10-95% | |||
| Operating Temperature Range | -20°C / +60°C | |||
| Screen Uniformity Correction | ||||
| Certification | CE / ETL / CCC | |||
| Available options | Hanging bars | |||
| Compatibility | No | |||
