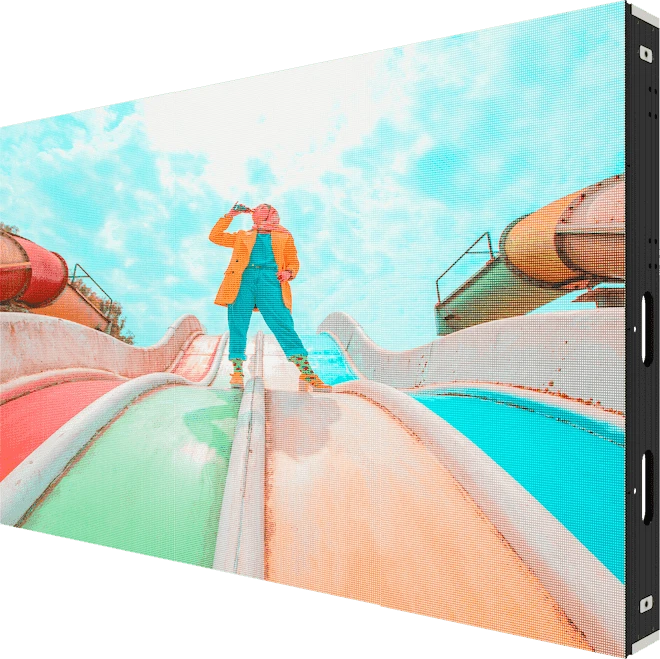

The GRENAT is a very reliable product when it comes to outdoor LED displays. With an IP65 and a P2.6 pixel pitch, it is an excellent combination of display quality and robustness. Available in three sizes, the GRENAT cabinets can be assembled together to fit your requirements. This product is wall-mounted and suits perfectly any outdoor advertising installation, as well as a visual enhancement to any desired structure.
Application
OUTDOOR
PIXEL PITCH
P2.6
MAINTENANCE

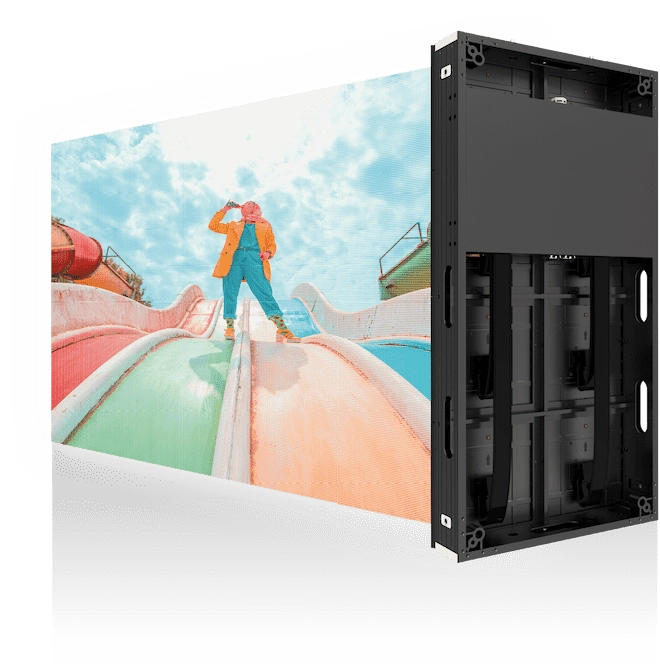

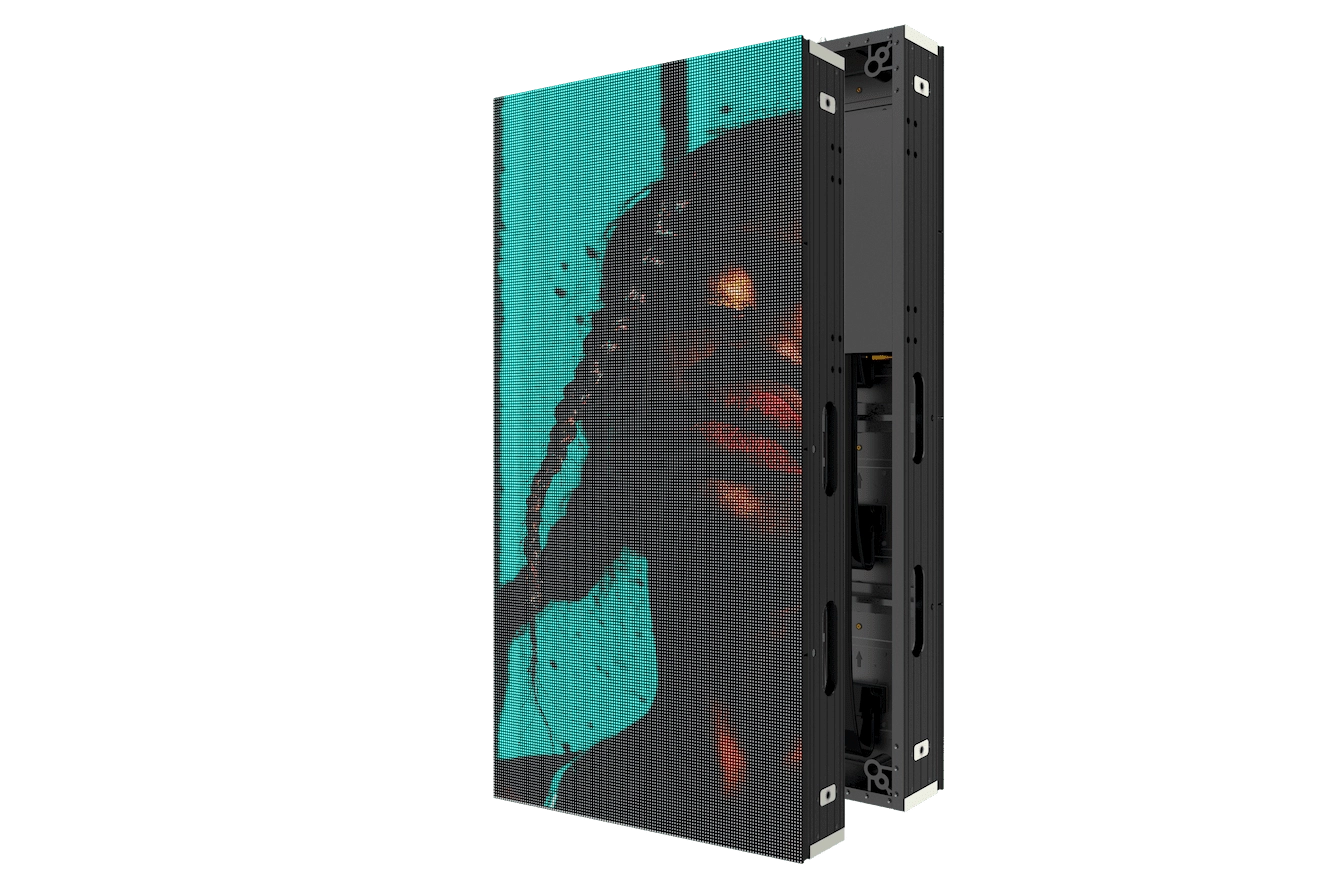

Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
500 x 750 mm
750 x 750 mm
500 x 1000 mm
BRIGHTNESS
≤4500 NITS @5 Volts
WEIGHT
14.6 - 21 kg/cabinet (depending on cabinet size)
MATERIAL
PROFILED ALUMINUM

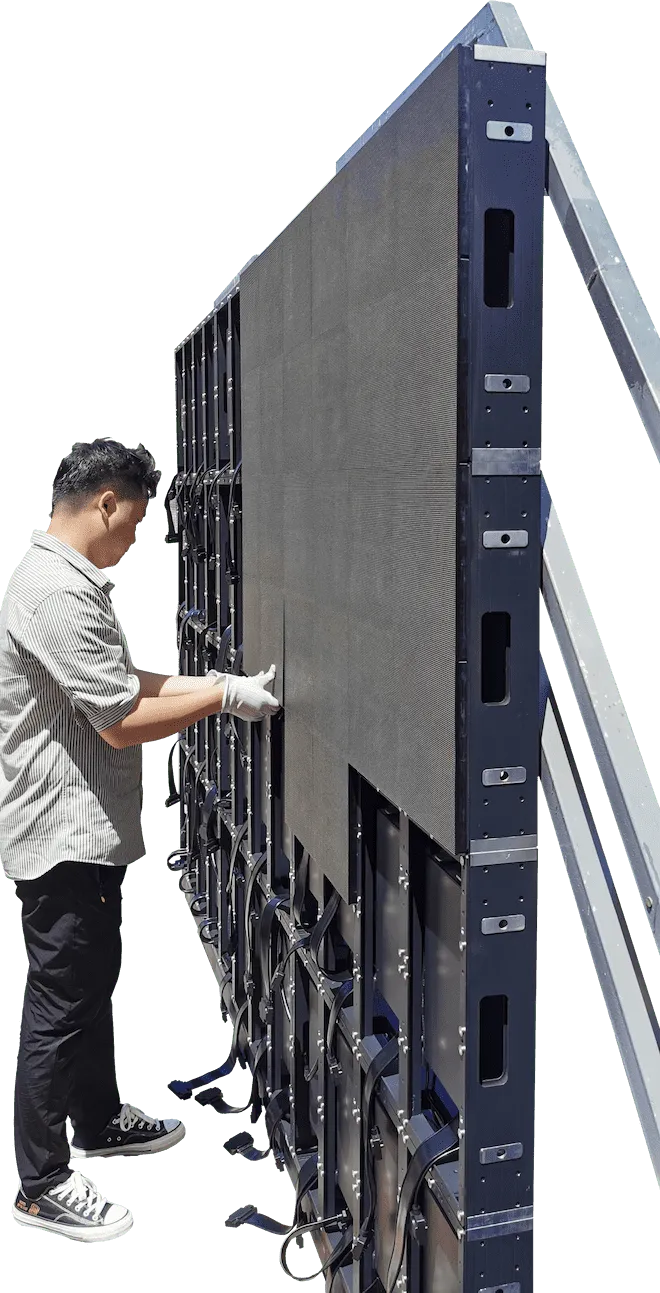

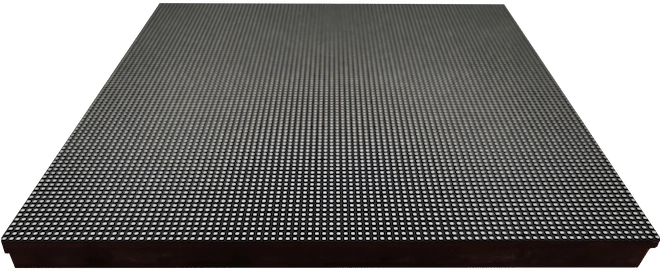

The modules of the GRENAT are magnetically attached to the cabinet and can be removed with a magnetic tool. The plugs however are secured with screws in order to prevent the modules from falling in case of an incident. These features make for a good compromise between quick maintenance and a safe application.
The GRENAT has one of the finest pixel pitches on the outdoor LED display market. This makes this product one of the highest outdoor resolution display, allowing for a stunning visual experience. Moreover, its high brightness will make this high-quality display visible from afar, no matter the weather.
The IP65 means that the GRENAT is totally protected from dust and can even withstand a low-pressure water jet. This product, once integrated, will stay true to its original condition. The GRENAT is an investment in the long run that will allow you to display your visual content with the same quality for many years.
BACK MAINTENANCEOutdoorFront MaintenanceFacadeLarge Scale LED DisplayArchitectureMediaFixed LED Display
| OUTDOOR | ||
| Product Parameters | Unit | 2.6 |
| Pixel Pitch | mm | 2,60 |
| LED | SMD1415 | |
| Application | Wall LED outdoor application | |
| Ingress Protection | IP | IP65 |
| Brightness | cd/sqm | ≤ 5500 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 3500-9300 Ajustable |
| Viewing Angle (50% brightness) | deg. | 140H / 120V |
| Cabinet Size (WxHxD) | mm | 500 x 1000 x 117 / 500 x 750 x 117 / 750 x 750 x 117 |
| Display area (WxH) | mm | 500 x 1000 / 500 x 750 / 750 x 750 |
| Module Size (WxHxD) | mm | 250 x 250 x 20.5 |
| Pixel Matrix Per Cabinet (WxH) | px | 192 x 384 / 192 x 288 / 288 x 288 |
| Pixel Matrix Per Module (WxH) | px | 96 x 96 |
| Pixel Density | px/sqm | 147456 |
| Weight of cabinet | kg | 19.5 / 14.6 / 21 |
| Cabinet Material | Profiled aluminum | |
| Maintenance Mode | Back & Front | |
| Mask specification | 95% Plastic + 5% Fiber / SS screws / No shaders | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 3840 |
| Operation Power | V | AC100-240V |
| Max. Power Consumption | W/sqm | 850 |
| Average Power Consumption | W/sqm | 285 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | - | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-95% | |
| Operating Temperature Range | - 20°C / + 60°C | |
| Screen Uniformity Correction | - | |
| Certification | FCC / CE / ETL / CCC / CB | |
| Available options | - | |
| Compatibility | Yes |
