The PLATINUM is one of our most reliable products for outdoor applications, ranging from P5.3 to P.10. Mostly suitable for an installation against a wall with no back access possibility, the PLATINUM is an excellent choice if you want an easy to integrate and reliable product with a long lifespan.
Application
OUTDOOR
PIXEL PITCH
P5.3 P6.6 P8 P10
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
960 x 960 mm (standard) customizable
BRIGHTNESS
≤6000 Nits @5 Volts
WEIGHT
35kg/cabinet
MATERIAL
Steel

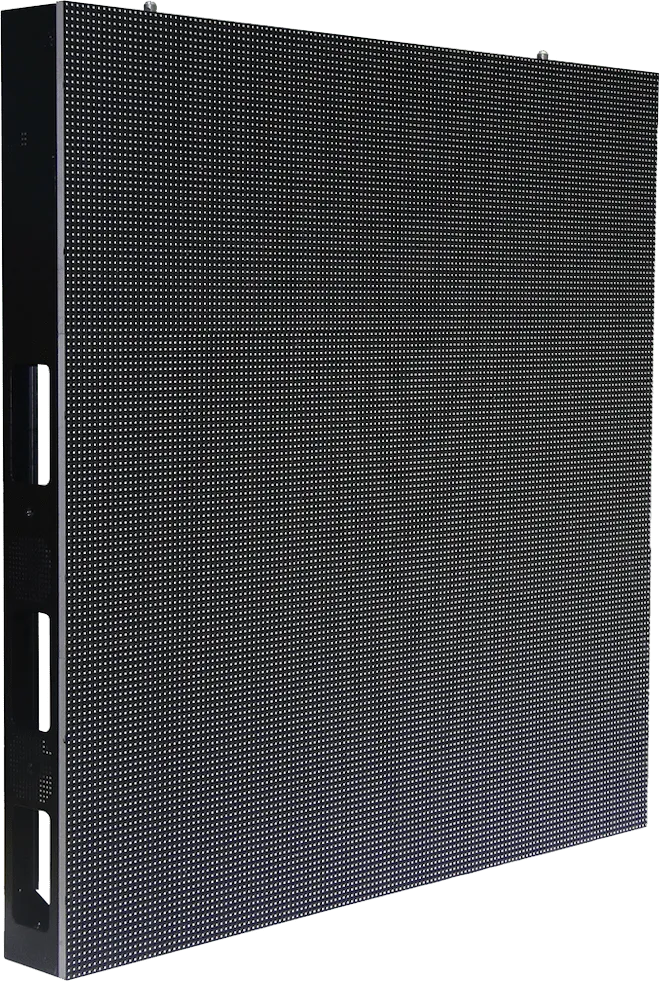

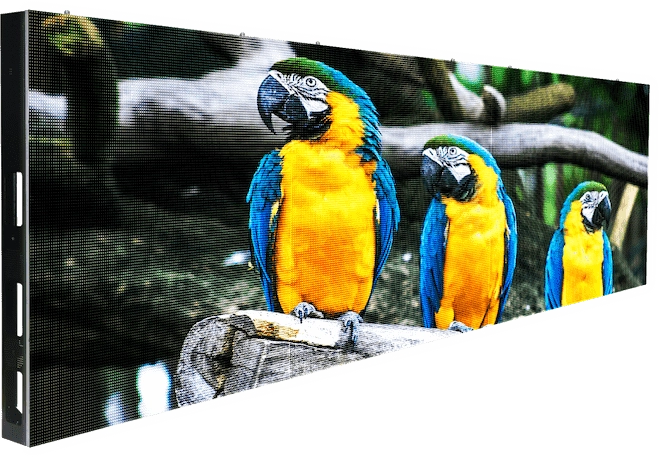

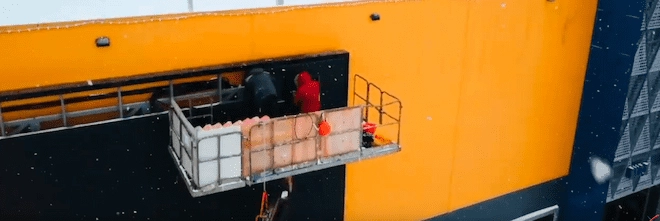

While the cabinets are 35 kg each, the size of one cabinet being 960 x 960 x 120 mm, the integration of a large screen becomes relatively fast and limits the possibility of bad alignments. It's recommended to have two technicians on-site for the integration considering the size and weight of one cabinet but maintenance can be done by only one technician with ease.
We designed the PLATINUM so it can handle extremely harsh weather conditions and perform in the most demanding environments. Additionally, the modules are made of die-casting aluminum to help a perfect and stable alignment while dissipating heat. The modules are waterproof and completely sealed (IP65 protection).

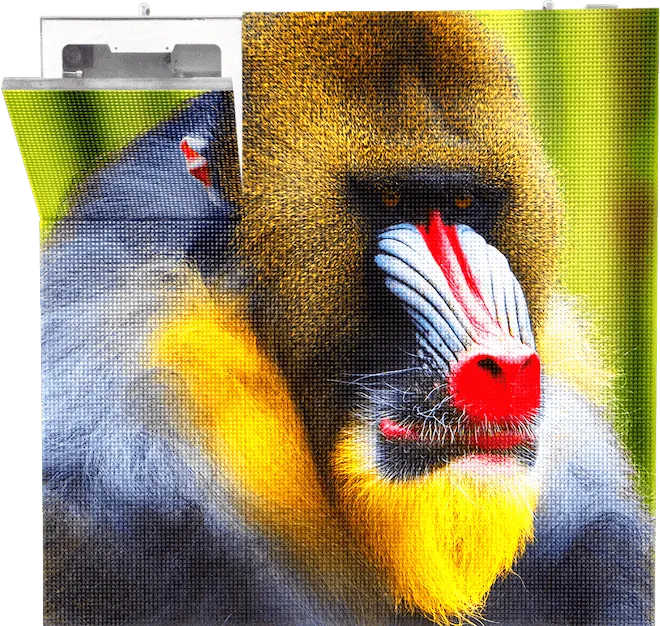

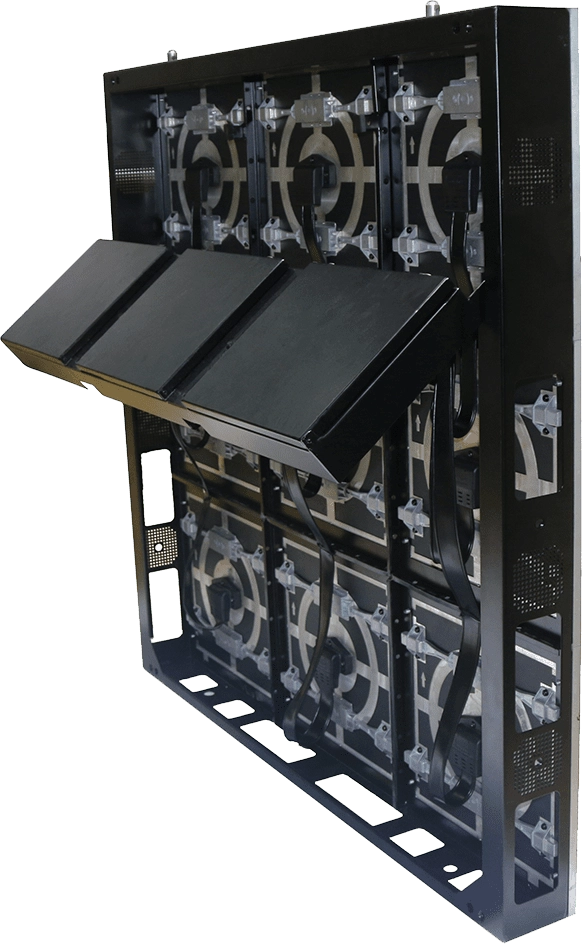

The PLATINUM is the perfect cabinet for installations against walls where you usually can't access the back of your LED screen. With the help of a T-handle, you can remove the modules from the front to replace them easily.

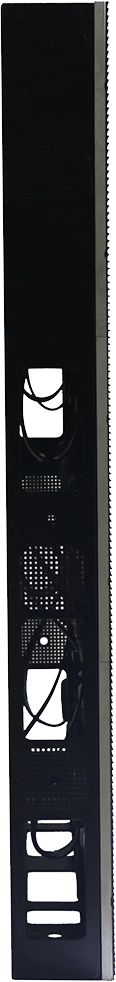

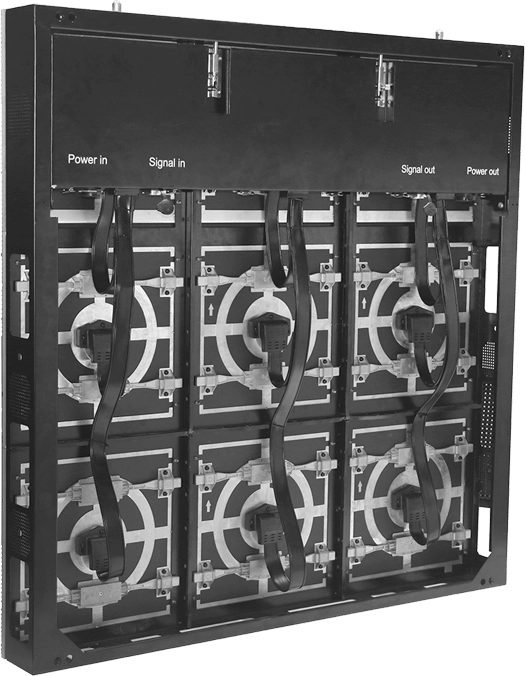

The PLATINUM is slim, simple, and minimal. The transportation handles are deployed and visible only when needed. The cable management is done from the inside of the cabinet. Most of the components visible on a standard cabinet are completely hidden and protected.
BACK MAINTENANCEOutdoorFront MaintenanceIce RinkFacadeLarge Scale LED DisplayArchitectureMediaSkyscraperWall ApplicationPlatinum
| OUTDOOR | |||||
| Product Parameters | Unit | 5.3 | 6.6 | 8 | 10 |
| Pixel Pitch | mm | 5,33 | 6,67 | 8 | 10 |
| LED | SMD2727 3in1 (Black Face) | SMD3535 3in1 (Black Face) | |||
| Application | Media | ||||
| Ingress Protection | IP | IP66 (Front) / IP68 (Back) | |||
| Brightness | cd/sqm | ≤ 6000 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | |||
| Cabinet Size (WxHxD) | mm | 960 x 960 x 120 | |||
| Display area (WxH) | mm | 960 x 960 | |||
| Module Size (WxHxD) | mm | 320 x 320 x 20 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 180 x 180 | 144 x 144 | 120 x 120 | 96 x 96 |
| Pixel Matrix Per Module (WxH) | px | 60 x 60 | 48 x 48 | 40 x 40 | 32 x 32 |
| Pixel Density | px/sqm | 35156 | 22500 | 15625 | 10000 |
| Weight of cabinet | kg | 35 | |||
| Cabinet Material | Aluminum | ||||
| Maintenance Mode | Front & back | ||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders / Backshell in Aluminum + PC | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC85-230V | |||
| Max. Power Consumption | W/sqm | 900 | |||
| Average Power Consumption | W/sqm | 300 | |||
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | -20°C / +60°C | ||||
| Screen Uniformity Correction | - | ||||
| Certification | CE / ETL / CCC | ||||
| Available options | Neutrik outdoor connectors, size can be customised | ||||
| Compatibility | - | ||||
