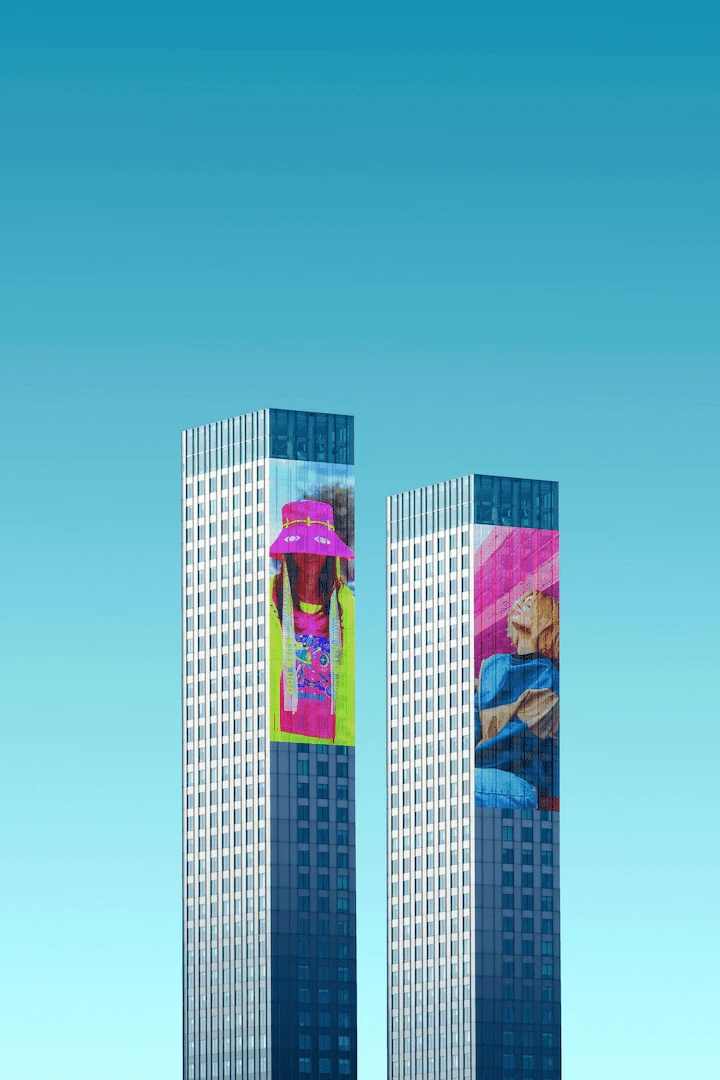

The NEON OUTDOOR is the latest addition to our transparent LED screen range, destined for outdoor applications. This product shares the same features as the NEON, to which a greater resistance to water and dust ingress is added. The NEON OUTDOOR transparency allows your giant LED application to merge with your building, rather than just covering it. It’s an ideal product to sublimate architecture with vivid, bright, animated visual content.
Application
OUTDOOR
PIXEL PITCH
P3.9a7.8 P7.8 P10.4
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
1000 x 500 mm
500 x 500 mm
BRIGHTNESS
≤5500 Nits @5 Volts
WEIGHT
12 - 6 kg / cabinet
MATERIAL
Die-casting aluminum

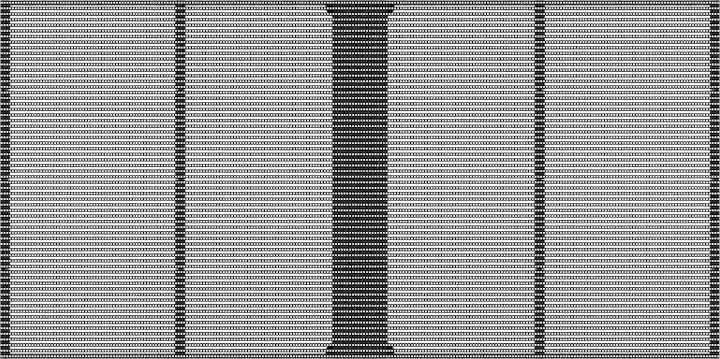

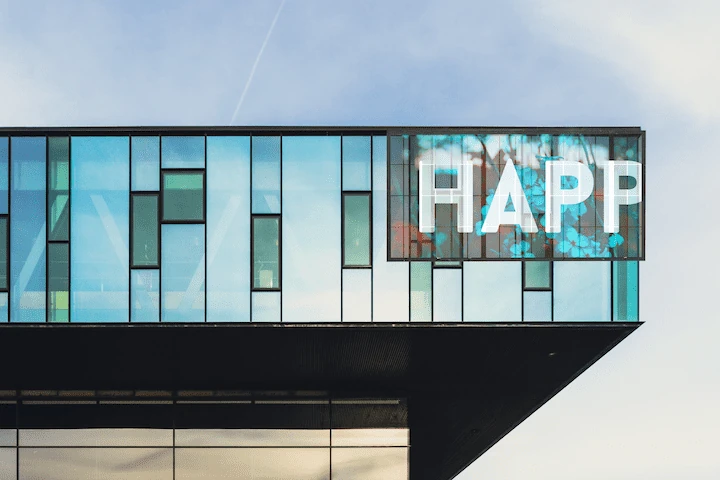

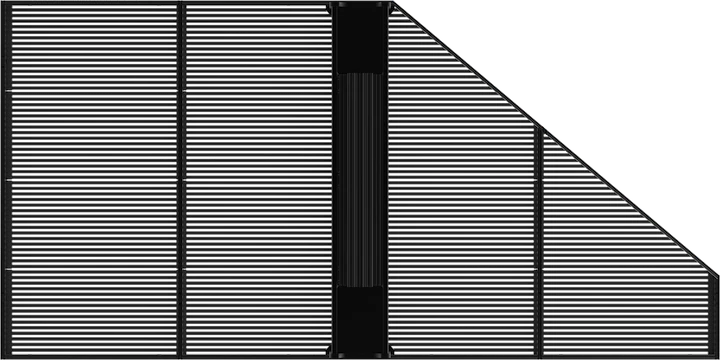

The LEDs layout on horizontal stripes allows you to conceive transparent LED screens with the NEON OUTDOOR, for your visual content to merge into your building’s design. Furthermore, this feature makes it possible for the people inside the building to still see through your application and maintain clear visibility on the outside of the building.

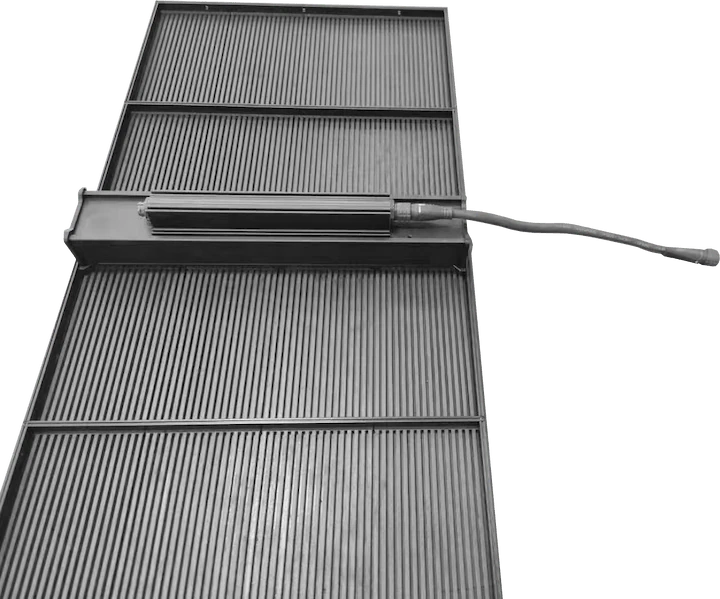

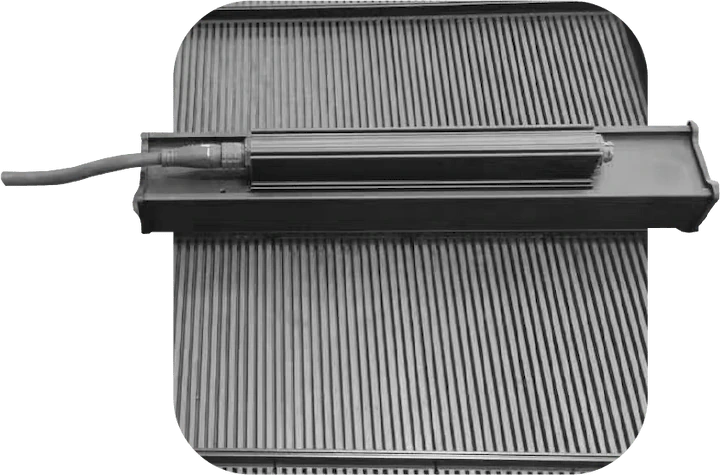

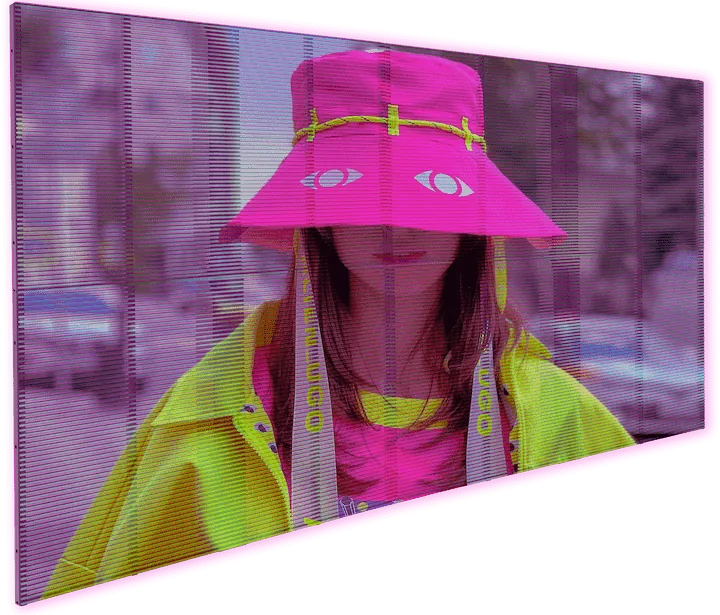

The 2in1 connectors that equip the NEON OUTDOOR greatly facilitate the installation and wiring process. The data and power are all transmitted through the same BTR cable. Once your giant LED screen is physically integrated, wiring all your cabinets together and configuring them is as fast as it is simple. This also applies to every maintenance that you might need to operate.
Like any of our outdoor LED cabinets, the NEON OUTDOOR allows a high brightness, that goes up to 5500 Nits. This feature ensures you clear visibility from afar, both day and night, perfectly suited for advertising purposes. No matter your visual content, you can rest assured that it will catch everyone’s eye 24/7.
BACK MAINTENANCEOutdoorTransparentLarge Scale LED DisplayArchitectureHigh TransparencyNeon OutdoorMedia Outdoor FacadeWaterproof
| EXTÉRIEURE | ||||
| Désignation | Unité | 3.9a7.8 | 7.8 | 10.4 |
| Pixel Pitch | mm | 3,91 x 7,81 | 7,81 | 10,42 |
| LED | SM16218 | |||
| Application | Caisson LED transparent | |||
| Indice de protection | IP | IP65 | ||
| Luminosité | cd/m² | ≤ 5500 Nits @5volts | ||
| Température des couleurs après calibration (ajustable) | deg. K | 3500-9300 Ajustable | ||
| Angles de vue (50% de luminosité) | deg. | 160H / 160V | ||
| Taille d'un caisson (LxHxP) | mm | 1000 x 500 x 96 / 500 x 500 x 96 | ||
| Surface d'affichage (LxH) | mm | 1000 x 500 / 500 x 500 | ||
| Taille d'un module (LxHxP) | mm | 500 x 500 x 1.6 | ||
| Matrice de pixels par caisson (L x H) | px | 256x64 / 128x64 | 128x64 / 64x64 | 96x48 / 48x48 |
| Matrice de pixels par module (L x H) | px | 128x64 | 64x64 | 48x48 |
| Densité des pixels | px/m² | 32747 | 16384 | 9216 |
| Poids d'un caisson | kg | 12 / 6 | ||
| Matériaux d'un caisson | Aluminium injecté sous pression | |||
| Mode de Maintenance | Arrière | |||
| Spécification du masque | Sans masque | |||
| Rapport de contraste | élevé | |||
| Échelle de gris (linéaire) | bit | 16 | ||
| Réglage de la luminosité | bit | 16 | ||
| Profondeur de traitement | bit | 16 | ||
| Couleurs | 281 Billions | |||
| Taux de rafraîchissement | Hz | 1920 | ||
| Puissance de fonctionnement | V | AC220V | ||
| Consommation électrique Max. | W/m² | 800 | ||
| Consommation électrique moyenne | W/m² | 240 | ||
| Mode de contrôle | Synchronisation | |||
| Fréquence d'image | Hz | 50Hz | ||
| Types d'entrées pris en charge | DVI / SDI / HDMI | |||
| Prêt pour la 3D (facultatif) | - | |||
| Calibration | Oui | |||
| Durée de vie (50% de luminosité) | h | 50000 | ||
| Plage d'humidité de fonctionnement | 10 / 80% | |||
| Plage de température de fonctionnement | -10°C / +45°C | |||
| Correction d'uniformité de l'écran | - | |||
| Certifications | FCC / CE / ETL / CCC / CB | |||
| Options disponibles | - | |||
| Compatibilité | Tailles différentes compatibles entre elles | |||
