With a pixel pitch ranging from P1.9 to P3.9, the GRANITE is well suited for indoor fixed applications. It can serve in monitoring rooms, conference rooms, traffic command centers as well as in hotels, shopping malls, churches, etc. Its brightness makes it effective even when the GRANITE is exposed to sunlight.
Application
Indoor
PIXEL PITCH
P1.9 P2.6 P2.9 P3.9
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)
500 X 500 MM (P1.9 - P3.9)
500 X 750 MM (P1.9 - P3.9)
500 X 1000 MM (P2.6 - P3.9)
BRIGHTNESS
≤1000 NITS @5Volts
≤3000 NITS @5Volts (opt.)
WEIGHT
5.5 - 9KG/CABINET
MATERIAL
Anodized Aluminum

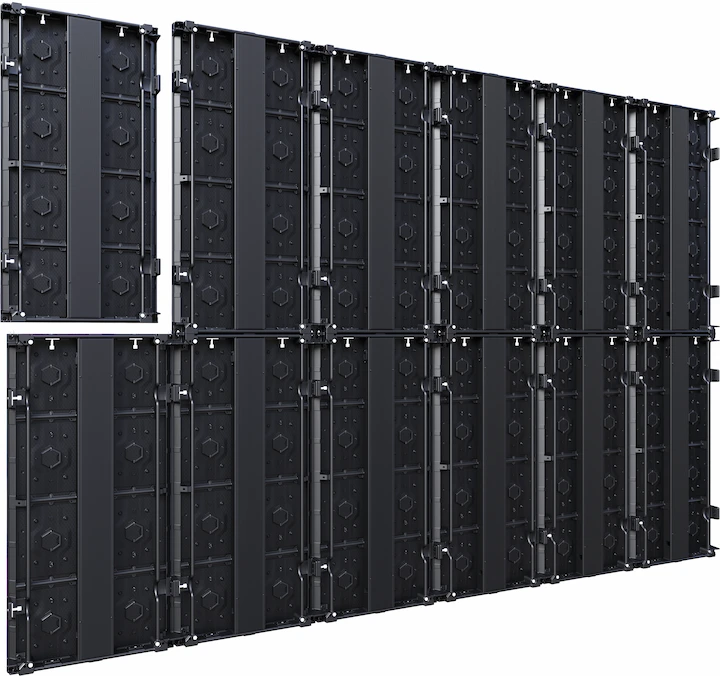

The three sizes of the GRANITE were implemented to maximize its compatibility with any indoor LED application project. Being totally compatible with one another, these different cabinets will fit any room you want to enhance with stunning visual effects.

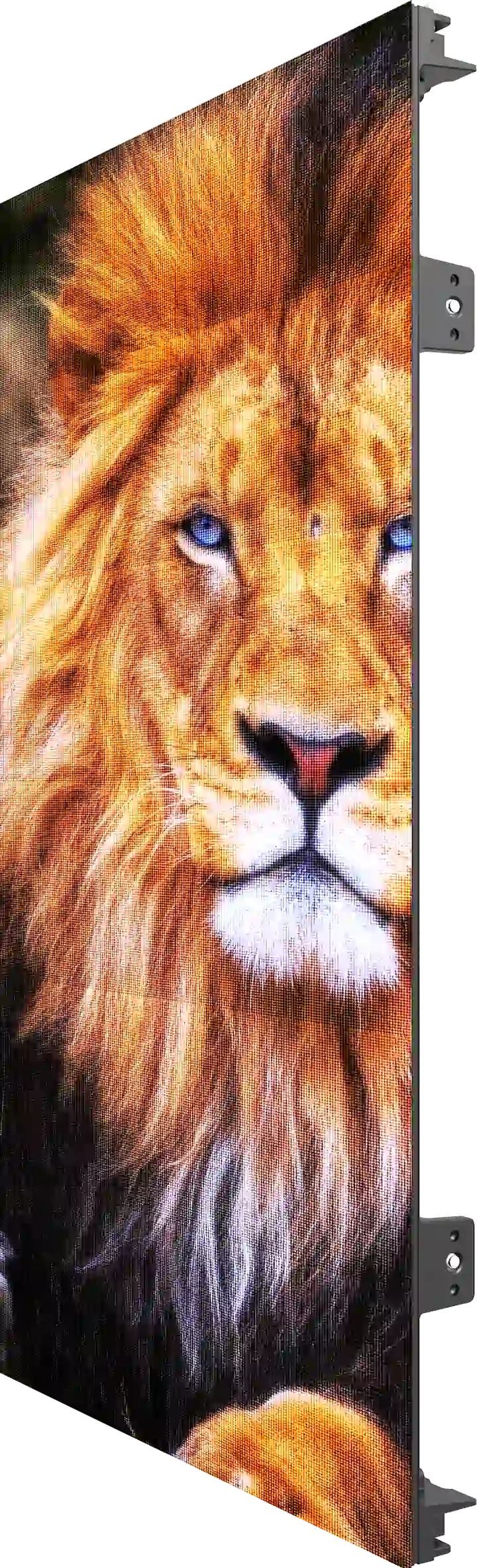

The GRANITE is the ultimate thin cabinet for a discreet indoor LED display. It enables a 90° concave screen configuration with the use of connection plates, allowing your installation to merge with any room architecture.

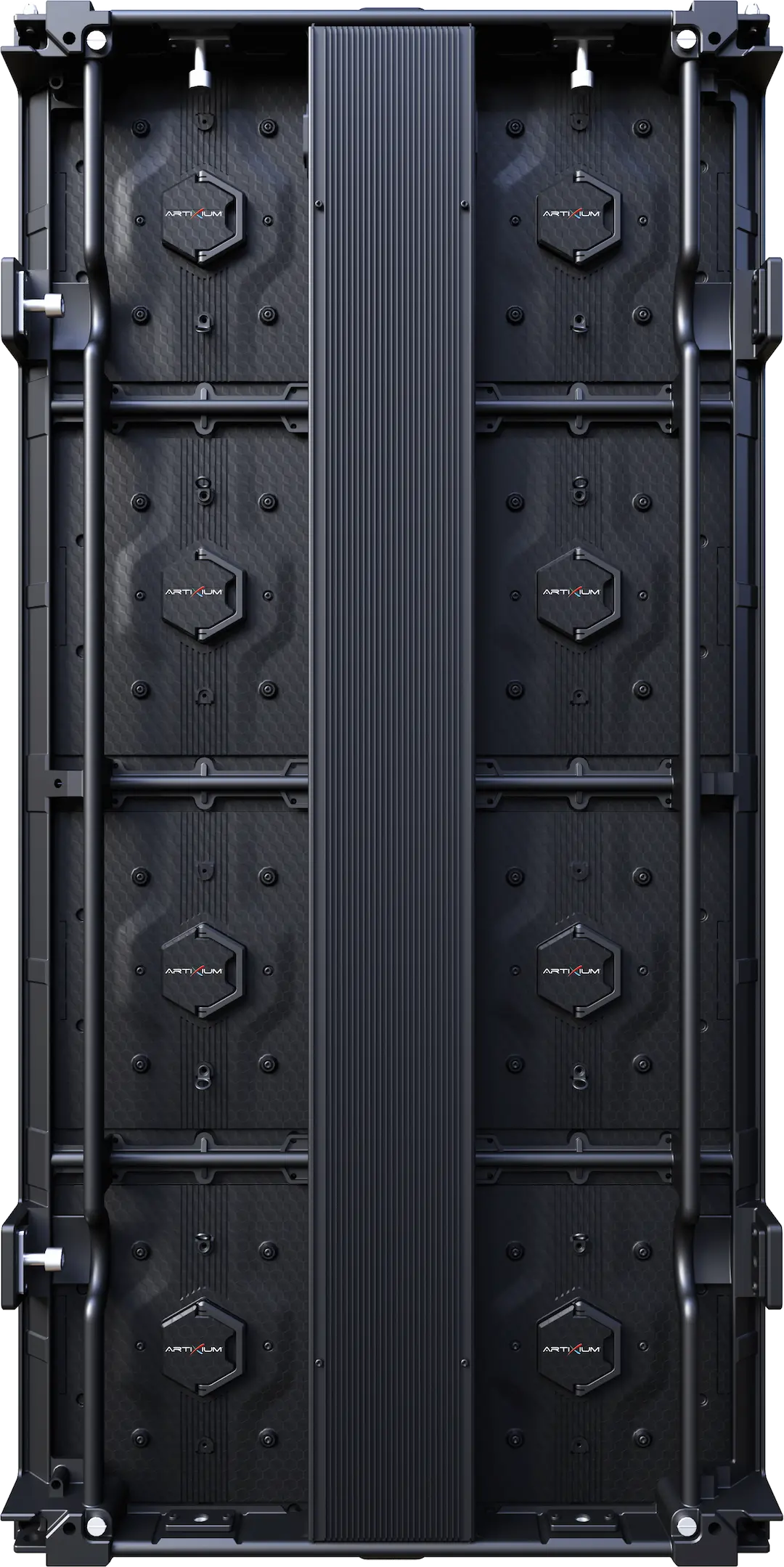

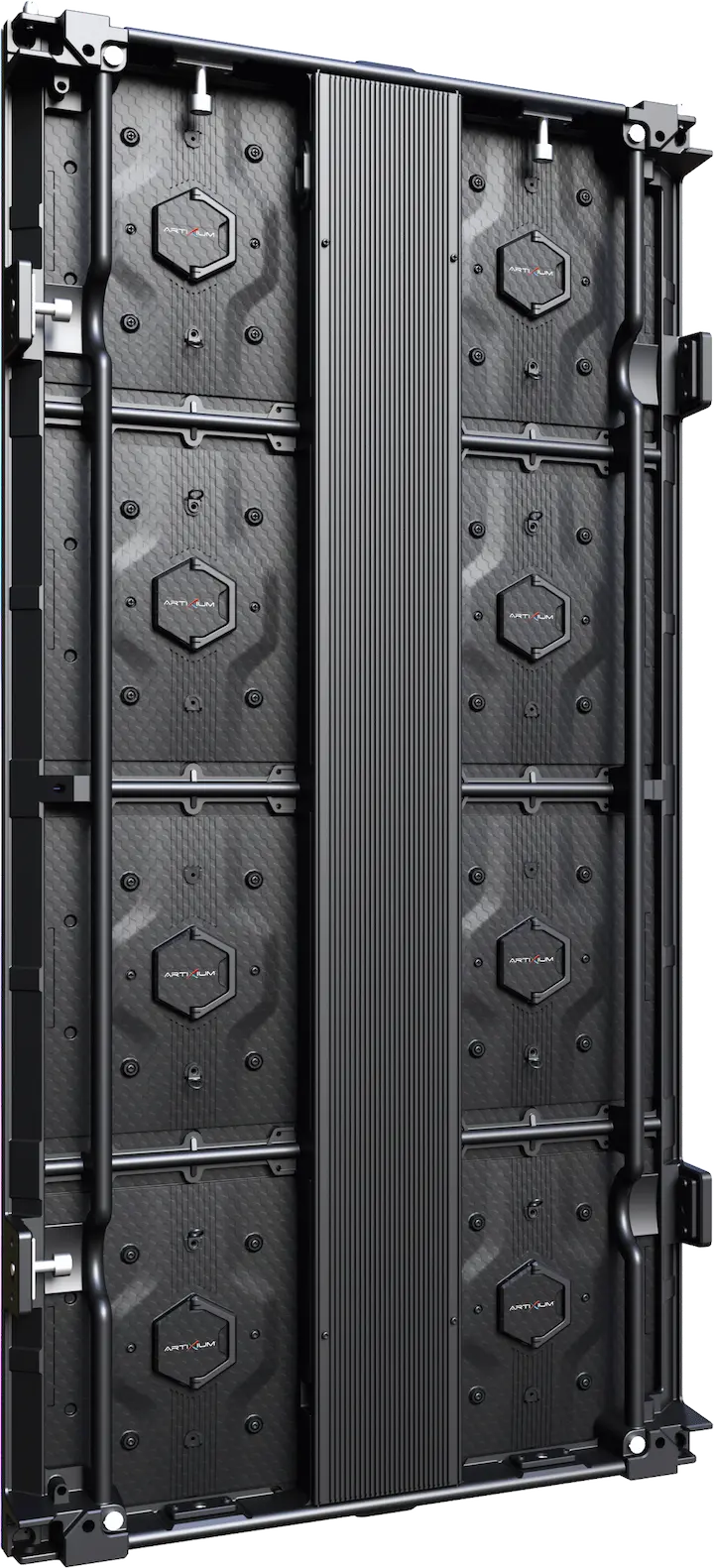

With its magnetic modules accessible from the front or from the back, the GRANITE can be integrated into many different ways and remain easy to maintain. The maintenance of the GRANITE is a one-man job.

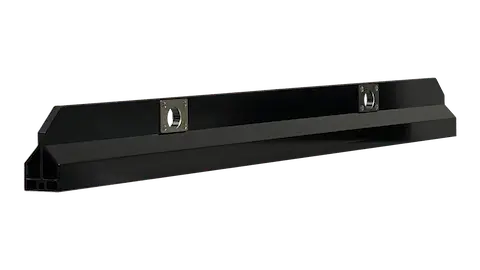

With a lightweight range from 5.5kg to 9kg per cabinet and user friendly locking systems, the GRANITE is designed to be extremely fast and simple to integrate. It supports several types of integration such as being hung from a ceiling, fixed to a structure or a wall, and more.
From P1.9 to P3.9, the GRANITE offers a high display quality. Depending on the pixel pitch, you can choose different types of LEDs according to your needs (higher brightness, better resolution, etc.).
BACK MAINTENANCEIndoorFront Maintenance90 DegreesMediaRetailFixed LED DisplayControl RoomModulable LED DisplayGranite
| INDOOR | |||||
| Product Parameters | Unit | 1.9 | 2.6 | 2.9 | 3.9 |
| Pixel Pitch | mm | 1,95 | 2,60 | 2,91 | 3,91 |
| LED | SMD1515 | SMD1515 / SMD2121 | SMD1515 / SMD2121 | SMD2121 / SMD1921 | |
| Application | Media (retail) | ||||
| Ingress Protection | IP | IP20 | |||
| Brightness | cd/sqm | ≤ 1000 Nits @5volts | ≤ 1000 Nits @5volts (SMD2121) ≤ 3000 Nits @5volts (SMD1921) |
≤ 1000 Nits @5volts (SMD2121) ≤ 3000 Nits @5volts (SMD1921) |
≤ 1000 Nits @5volts (SMD2121) ≤ 3000 Nits @5volts (SMD1921) |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | |||
| Cabinet Size (WxHxD) | mm | 500 x 500 x 61.3 / 500 x 750 x 61.3 | 500 x 500 x 61.3 / 500 x 750 x 61.3 / 500 x 1000 x 61.3 | ||
| Display area (WxH) | mm | 500 x 500 / 500 x 750 | 500 x 500 / 500 x 750 / 500 x 1000 | ||
| Module Size (WxHxD) | mm | 250 x 250 x 15 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 256 x 256 / 256 x 384 | 192 x 192 / 192 x 288 / 192 x 384 | 172 x 172 / 172 x 258 / 172 x 344 | 128 x 128 / 128 x 192 / 128 x 256 |
| Pixel Matrix Per Module (WxH) | px | 128 x 128 | 96 x 96 | 86 x 86 | 64 x 64 |
| Pixel Density | px/sqm | 262144 | 147456 | 118336 | 65536 |
| Weight of cabinet | kg | 5.5 / 7.5 / 9 | |||
| Cabinet Material | Anodized aluminum | ||||
| Maintenance Mode | Front & back | ||||
| Mask specification | 95% Plastic + 5% Fiber / clip type (no screws) / No Shaders | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC100-240V | |||
| Max. Power Consumption | W/sqm | 400 | 410 (SMD1515) / 440 (SMD2121) | 320 (SMD2121) / 420(SMD1921) | |
| Average Power Consumption | W/sqm | 160 | 165 (SMD1515) / 170 (SMD2121) | 125 (SMD2121) / 130 (SMD1921) | |
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI / S-Video / VGA | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | -20°C / +45°C | ||||
| Screen Uniformity Correction | - | ||||
| Certification | CE / ETL / CCC / EMC | ||||
| Available options | - | ||||
| Compatibility | all cabinets size are compatible with each other | ||||
