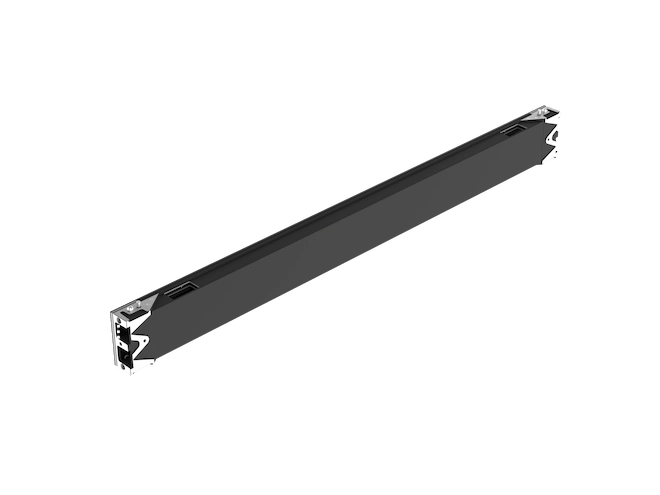

The QWARTZ MINI LED display is a very good product for shops and scenographic applications. It’s unique narrow design makes it ideal for instore product promotion or for creative displays. Both very thin and light, the QWARTZ MINI cabinets can be affixed to a wall or a structure with ease to create a framed or continued display. The different cabinets can also be assembled in a curve to add yet more creative options for your LED display. The data connexion is wireless, facilitating integration and creativity.
Application
Indoor
PIXEL PITCH
P1.9
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)
750 X 93.75 MM
1000 X 93.75MM
BRIGHTNESS
≤800 NITS @5Volts
WEIGHT
2.15 - 3kg/cabinet
MATERIAL
ALUMINUM
Thanks to a vacuum tool, the modules can be replaced from the front without difficulty. The maintenance of the QWARTZ MINI is a one-man job that only takes a few seconds per module, reducing the operating costs to a minimum. The wireless connection greatly facilitates the integration and reduces the risks of signal loss due to cable damage.

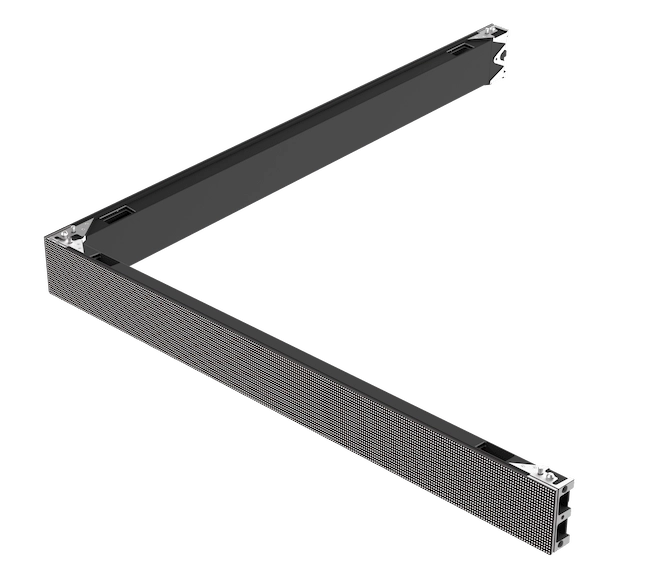

The dimension of the QWARZ MINI and its possible 90° angles make it ideal for shelf product promotion. Any customer will be attracted by the motion design displayed under your flagship products.
Unlike other LED cabinets that require to be physically assembled to create a coherent display, the QWARTZ MINI dimension and wireless connexion give a lot more creative options. By splincing different modules, you can create an original and beautiful display with a unique frame effect.
| INDOOR | ||
| Product Parameters | Unit | 1.9 |
| Pixel Pitch | mm | 1,95 |
| LED | SMD1515 GOB | |
| Application | Media (retail) | |
| Ingress Protection | IP | IP20 |
| Brightness | cd/sqm | ≤ 800 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 3000 - 10000 |
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V |
| Cabinet Size (WxHxD) | mm | 750 x 93.75 x 38.1 / 1000 x 93.75 x 38.1 |
| Display area (WxH) | mm | 750 x 93.75 / 1000 x 93.75 |
| Module Size (WxHxD) | mm | 250 x 93.75 x 2.6 |
| Pixel Matrix Per Cabinet (WxH) | px | 384 x 48 / 512 x 48 |
| Pixel Matrix Per Module (WxH) | px | 128 x 48 |
| Pixel Density | px/sqm | 262144 |
| Weight of cabinet | kg | 2.15kg / 3kg |
| Cabinet Material | Aluminum | |
| Maintenance Mode | Front | |
| Mask specification | 95% Plastic + 5% Fiber / Clip type (no screws) / No Shaders | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 14 |
| Brightness control | bit | 16 |
| Processing depth | bit | 18 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 1920 |
| Operation Power | V | 100V/240V DC |
| Max. Power Consumption | W/sqm | 1500 |
| Average Power Consumption | W/sqm | 400 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 30/120 |
| Input Types Supported | DVI/SDI/HDMI | |
| 3D ready (optional) | - | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10 - 90% | |
| Operating Temperature Range | -20°C - +40°C | |
| Certification | FCC / CE / ETL / CCC / CB | |
| Available options | Curve, Angle up to 90° | |
| Compatibility | No |
