The COBALT was especially designed to be extremely robust but also diffuse your visual content on the brightest (all the way up to 10000 NITS) LED display cabinet you will find. Addtionally, we’ve implemented a smart heat dissipation system which makes the COBALT one of the best cabinet on the market for long term fixed installations.
Application
OUTDOOR
PIXEL PITCH
P5.7 P6.6 P8 P10
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP68 (front)
IP67 (back)
Display Area (W X H)
960 X 960 mm (STANDARD)
960 X 640 mm
960 X 1280 mm
1440 X 960 mm
1440 x 640 mm
1440 x 1280 mm
1280 x 960 mm
BRIGHTNESS
≤10000 NITS @ 5Volts
WEIGHT
56.5 - 41 - 27.3 - 38 - 27 - 19 - 38 kg/cabinet
MATERIAL
DIE-CASTING ALUMINUM

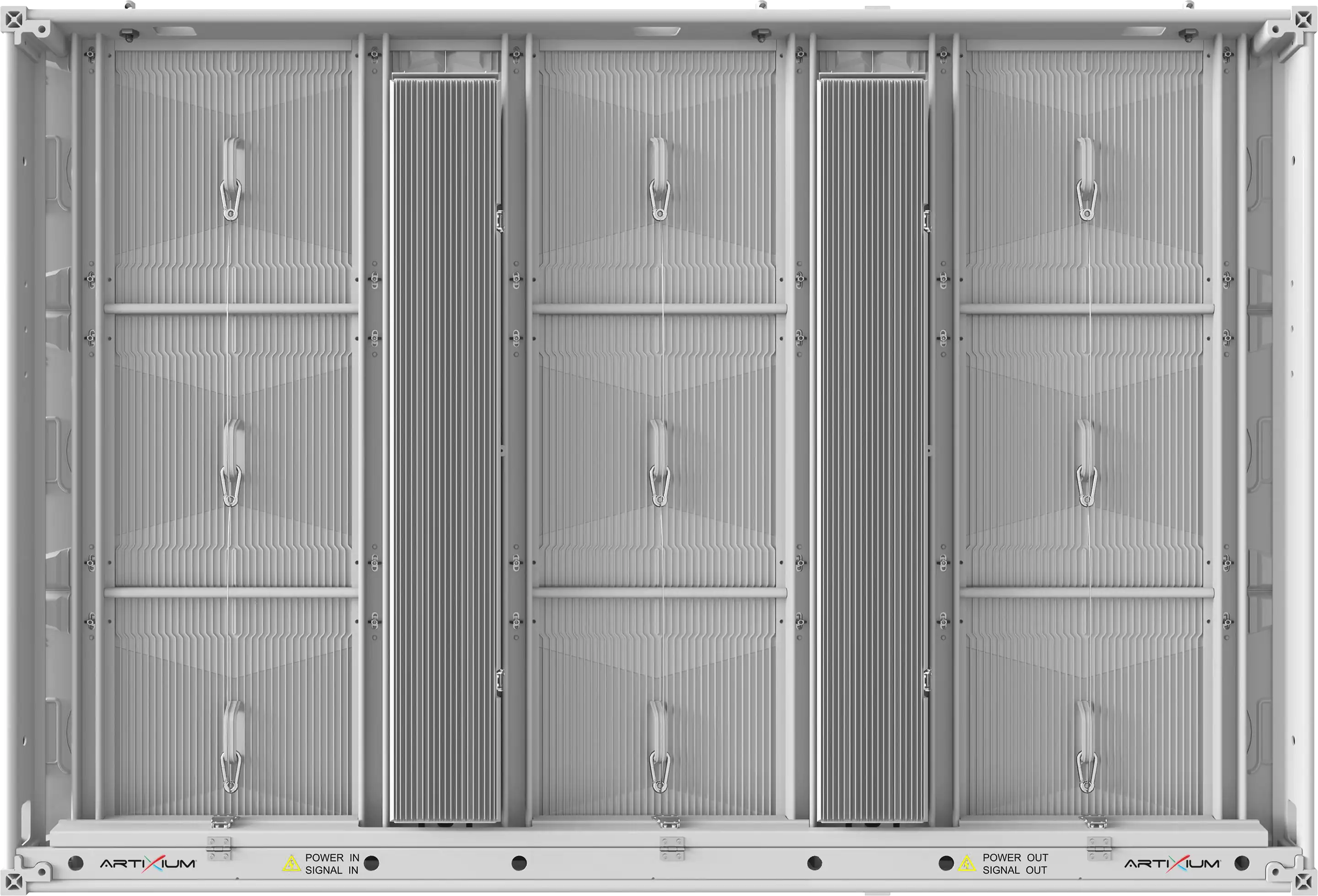

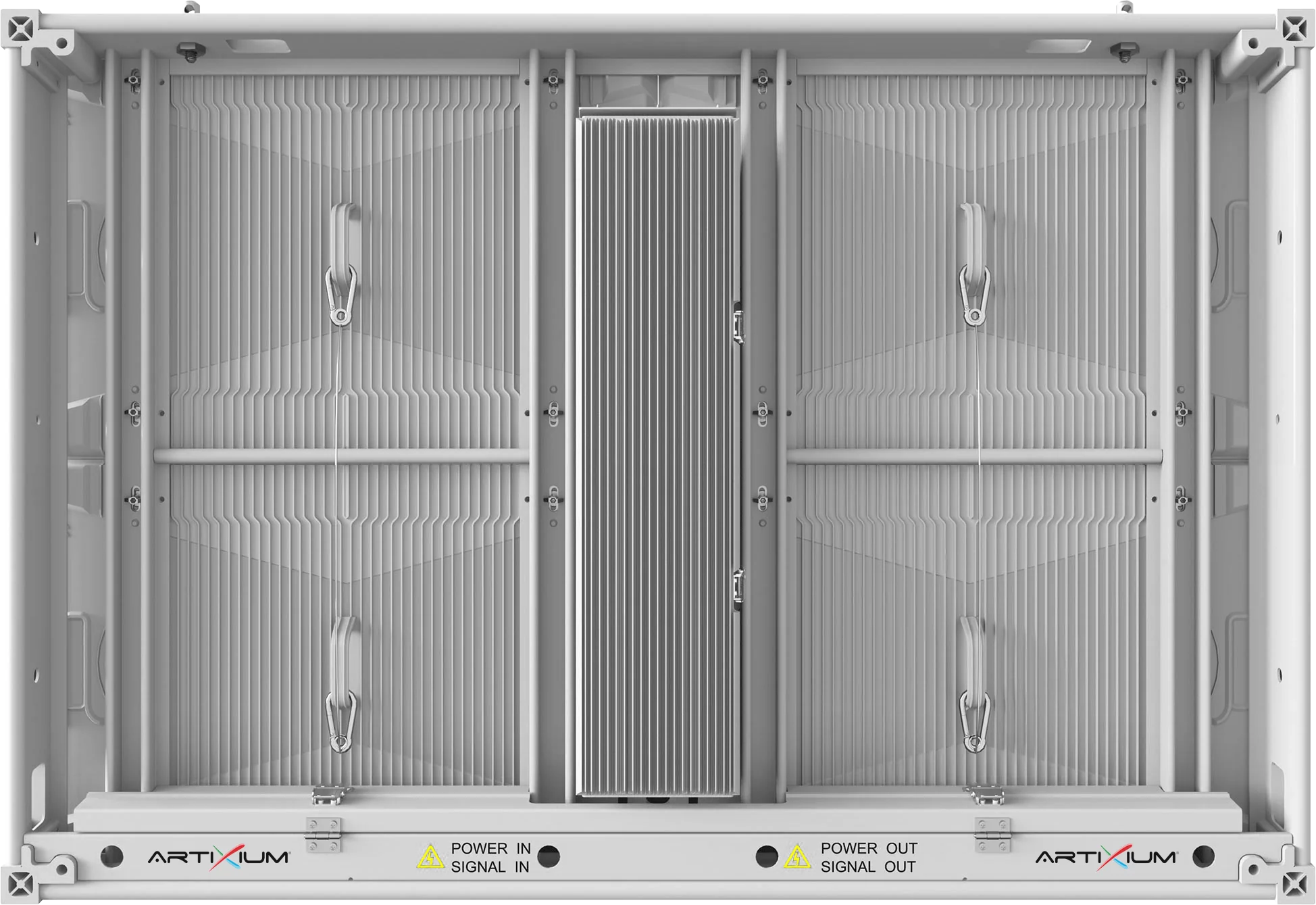

Every aspect of the COBALT cabinet is designed to allow good air convection through the power box and the modules. Combined with the white frame and aluminum material, this smart design helps to keep the COBALT as cool as possible in order to prevent your LED display's components to decay because of heat.

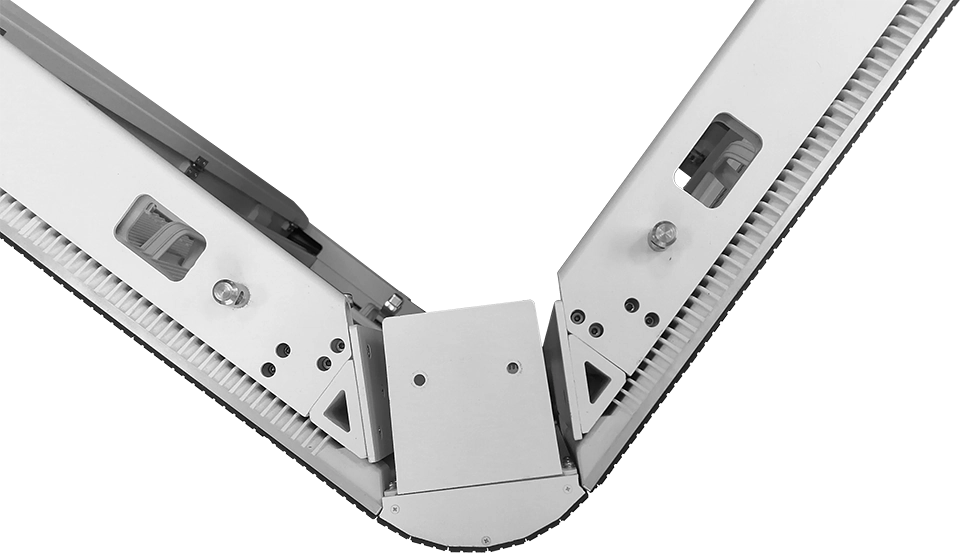

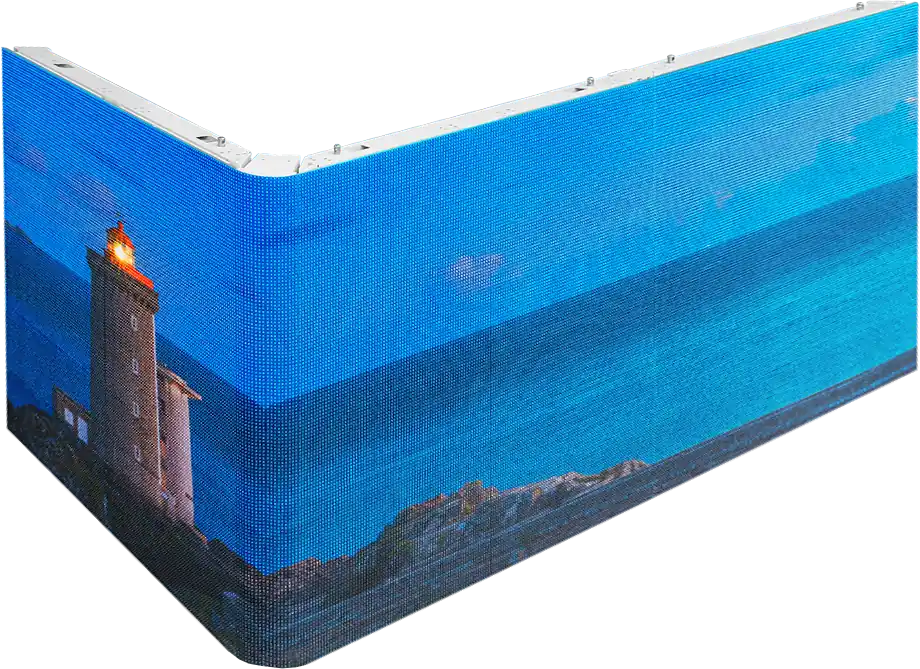

Upon request, we can supply cabinets especially cut for curved or angled applications, which combined with the different cabinet sizes available make this product very adaptable to most outdoor LED display projects.

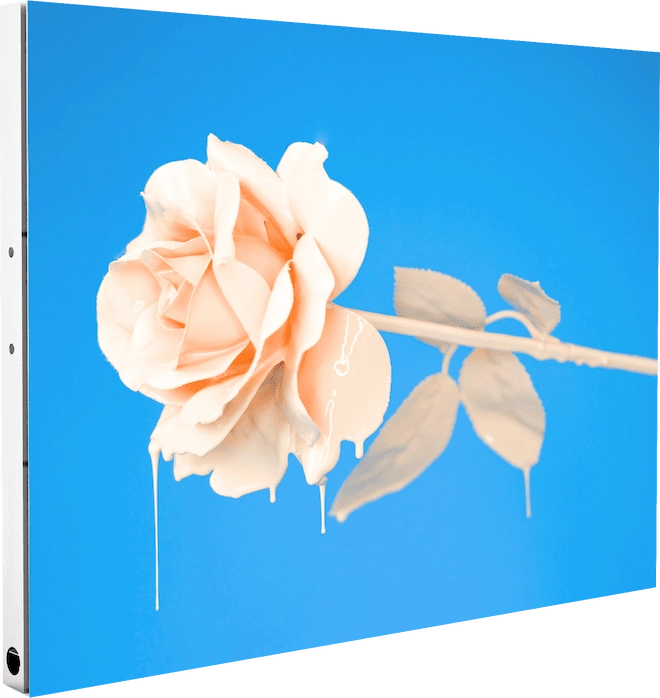

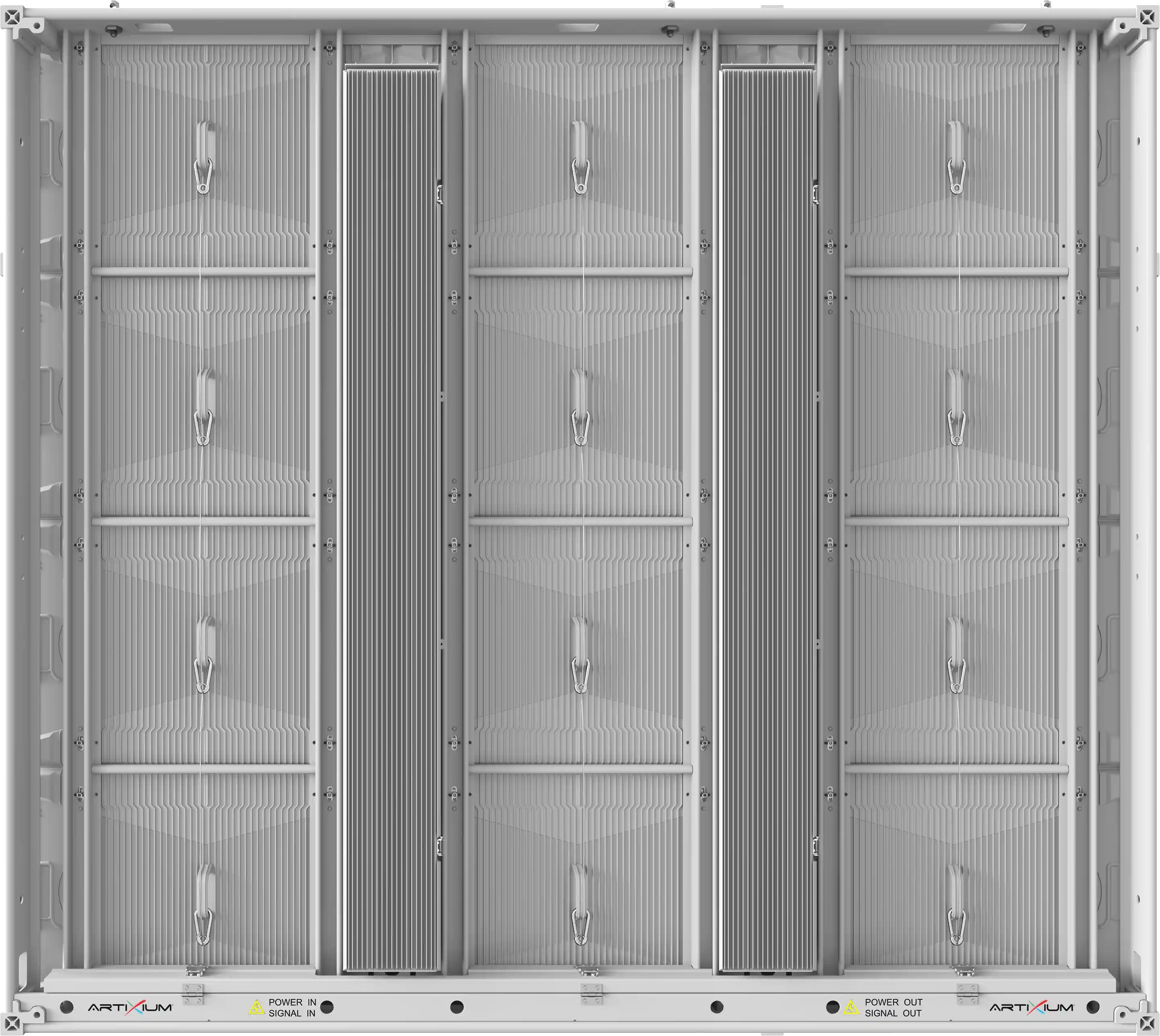

10000 NITS is the highest brightness available on the LED display market. Your led display will stay bright for a longer period of time. For instance, this product is estimated to maintain a 7000 NITS brightness after 6 years of intensive use.

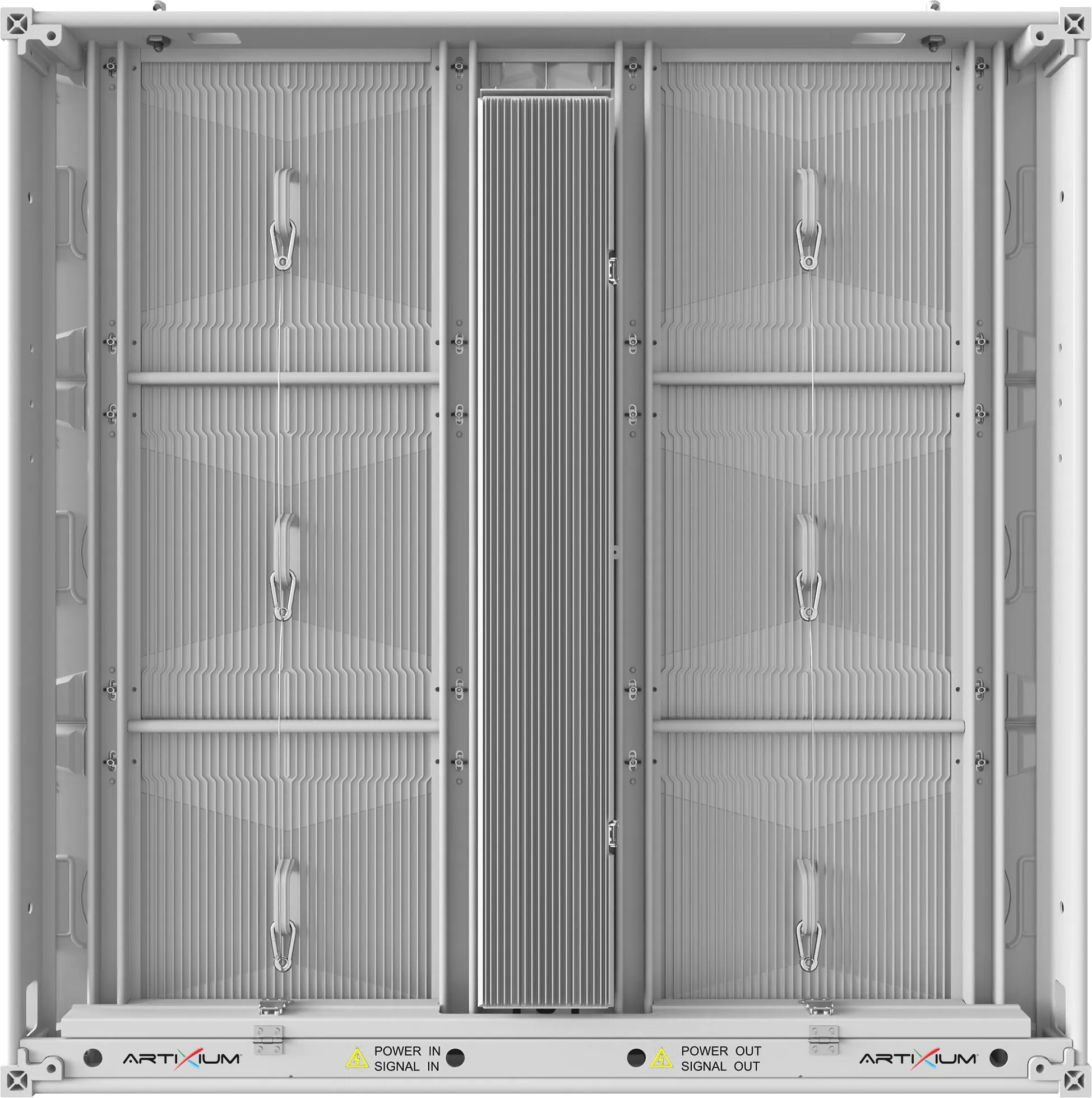

The COBALT is fully resistant to dust ingress and even high-pressure water projections. This product will stay true to its original condition no matter what.

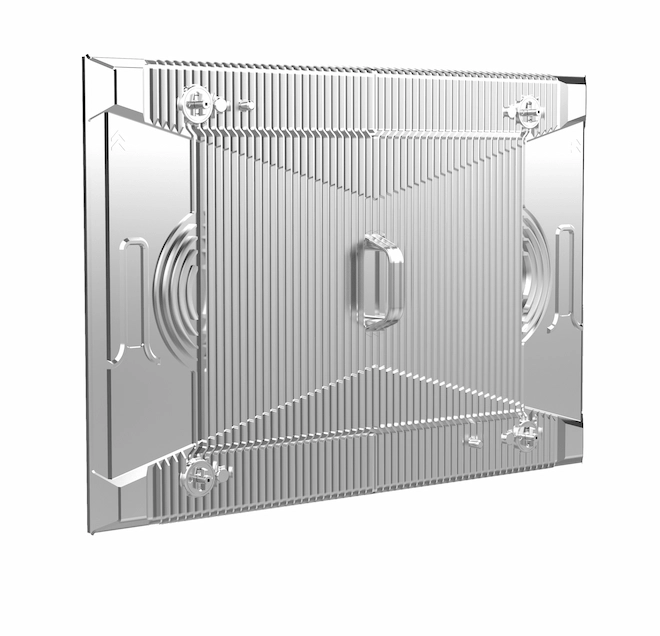

In order to accommodate most LED applications, the COBALT was designed to be maintained both from the front with a T-shaped tool or from the back without any tool required. This process is quick and can be operated by one technician.

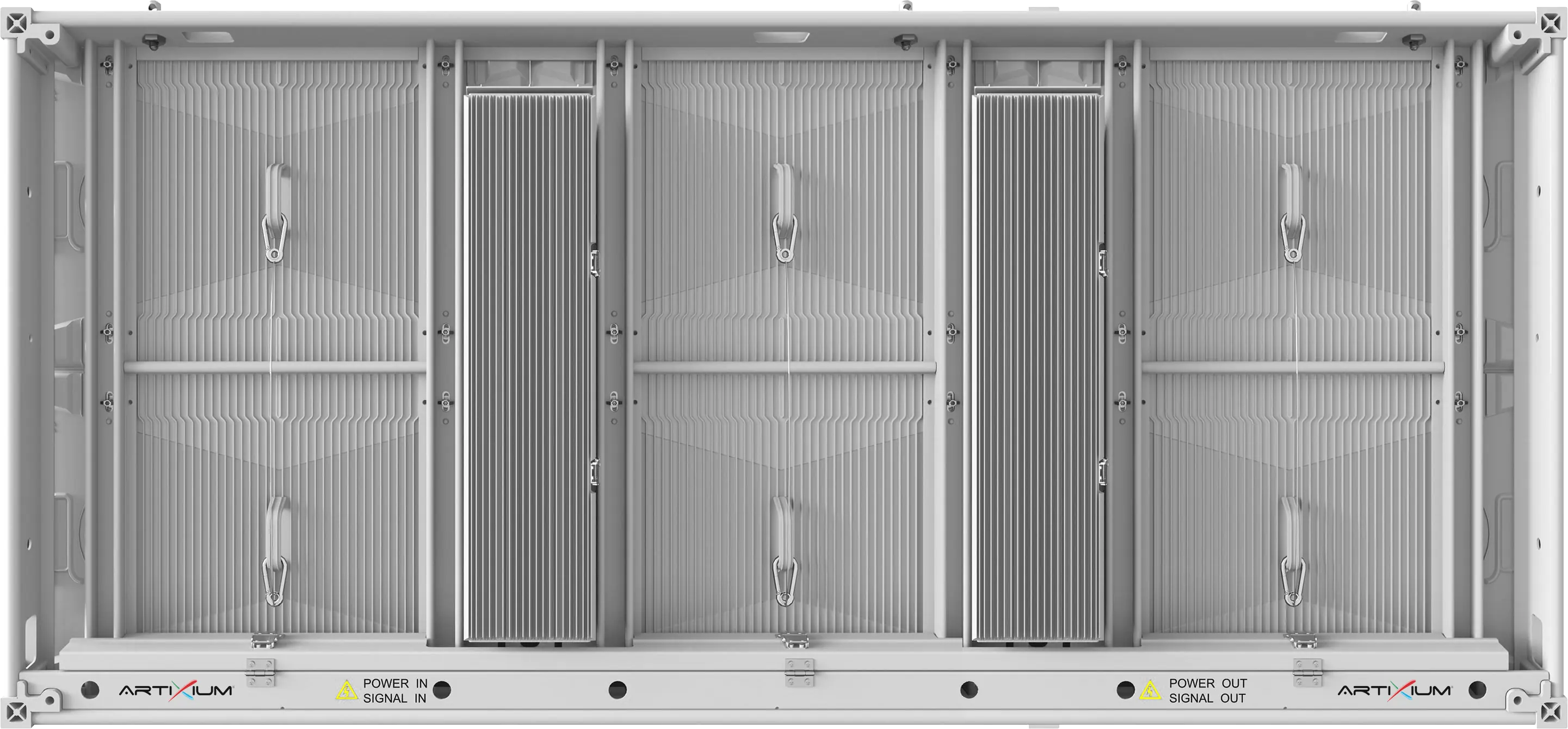

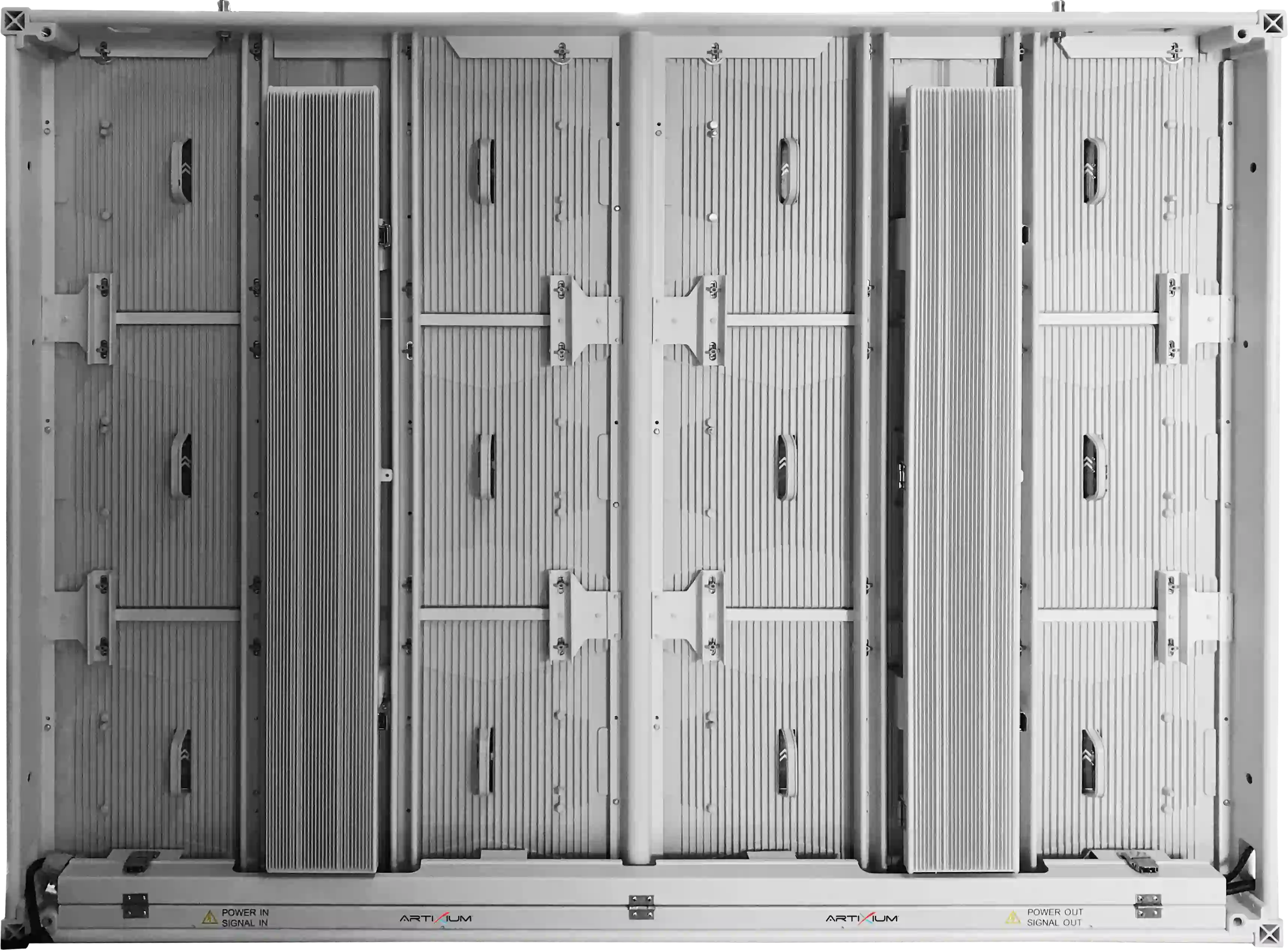

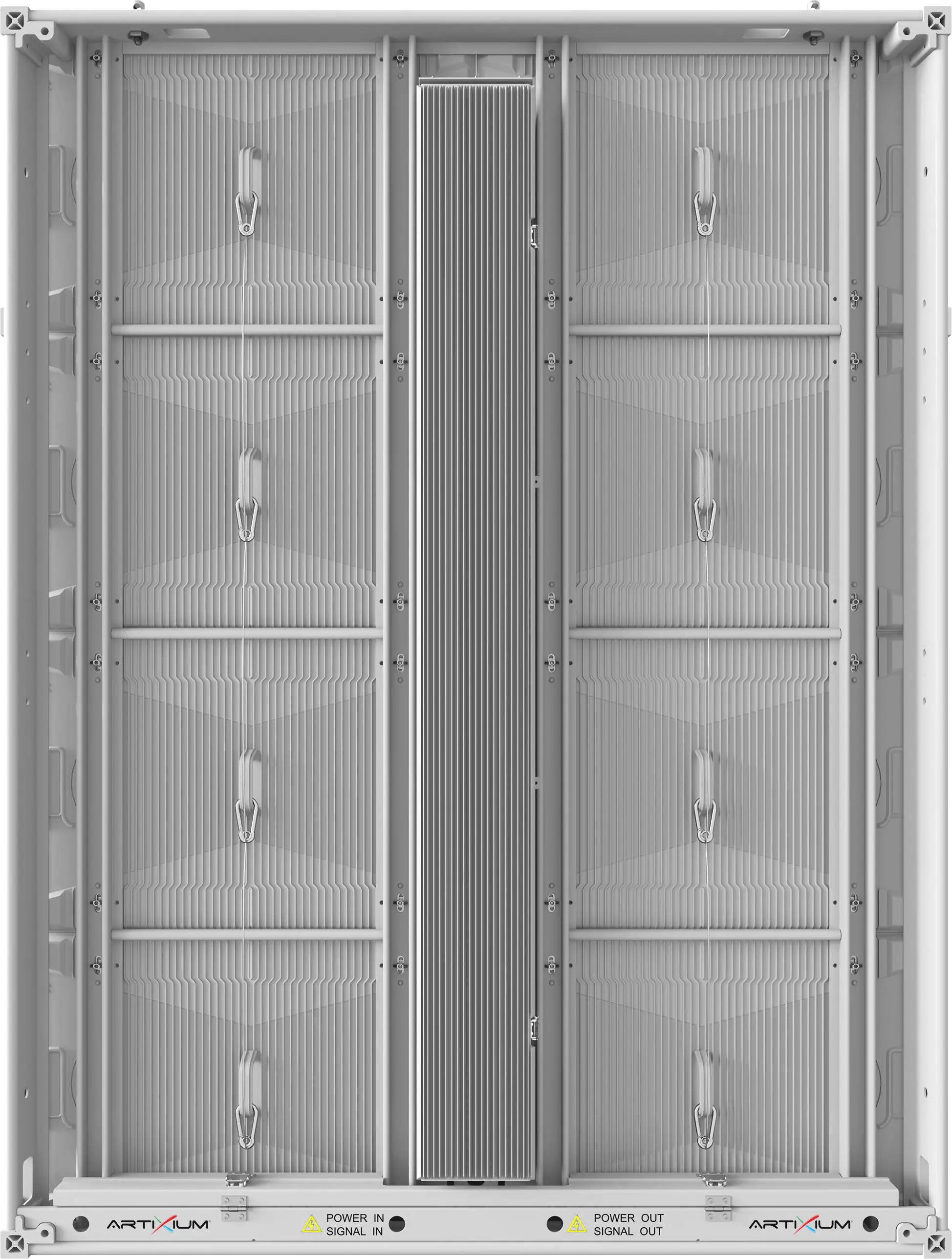

There are 6 different COBALT cabinet sizes, all compatible with one another, using 480 x 320 mm modules. We also implemented 1280 x 960 mm cabinets, compatible with the other sizes, using 320 x 320 mm modules. Thanks to all the different cabinet dimensions, you can create tailored giant LED screens with ease.
BACK MAINTENANCEOutdoorFront Maintenance90 DegreesCurveLarge Scale LED DisplayArchitectureMediaCobaltHigh BrightnessHeat Dissipation
| OUTDOOR | |||||
| Product Parameters | Unit | 5.7 | 6.6 | 8 | 10 |
| Pixel Pitch | mm | 5,71 | 6,67 | 8,00 | 10,00 |
| LED | SMD2727 | SMD3535 | |||
| Application | Outdoor ultra high brigthness | ||||
| Ingress Protection | IP | IP68 (Front) / IP67 (Back) | |||
| Brightness | cd/m² | ≤ 10000 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 180(+/-90) H | |||
| Cabinet Size (WxHxD) | mm | 960 x 960 x 101 / 960 x 640 x 101 / 960 x 1280 x 101 / 1440 x 960 x 101 / 1440 x 640 x 101 / 1440 x 1280 x 101 / 1280 x 960 x 96 | |||
| Display area (WxH) | mm | 960 x 960 / 960 x 640 / 960 x 1280 / 1440 x 960 / 1440 x 640 / 1440 x 1280 / 1280 x 960 | |||
| Module Size (WxHxD) | mm | 480 x 320 x 26 / 320 x 320 x 26 (caisson 1280 x 960) | |||
| Pixel Matrix Per Cabinet (WxH) | px | 168 x 168 / 168 x 224 / 168 x 112 / 252 x 168 / 252 x 112 / 252 x 224 / 224 x 168 |
144 x 144 / 144 x 192 / 144 x 96 / 216 x 144 / 216 x 96 / 216 x 192 / 192 x 144 |
120 x 120 / 120 x 160 / 120 x 80 / 180 x 120 / 180 x 80 / 180 x 160 / 160 x 120 |
96 x 96 / 96 x 128 / 96 x 64 / 144 x 96 / 144 x 64 / 144 x 128 / 128 x 96 |
| Pixel Matrix Per Module (WxH) | px | 84 x 56 / 56 x 56 | 72 x 48 / 48 x 48 | 60 x 40 / 40 x 40 | 48 x 32 / 32 x 32 |
| Pixel Density | px/m² | 30625 | 22500 | 15625 | 10000 |
| Weight of a cabinet | kg | 27 (960 x 960) / 19 (960 x 640) / 38 (960 x 1280) / 41 (1440 x 960) / 27.3 (1440 x 640) / 56.5 (1440 x 1280) / 38 (1280 x 960) | |||
| Cabinet Material | Die-casting aluminum | ||||
| Maintenance Mode | Front & back | ||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC85-230V | |||
| Max. Power Consumption | W/m² | 550 | |||
| Average Power Consumption | W/m² | 200 | |||
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | - 20°C / + 60°C | ||||
| Screen Uniformity Correction | |||||
| Certification | EMC CLASS B / CE / ETL / CCC | ||||
| Available options | Curve, hanging bars, corner cabinets | ||||
| Compatibility | Different sizes compatible with each other | ||||
