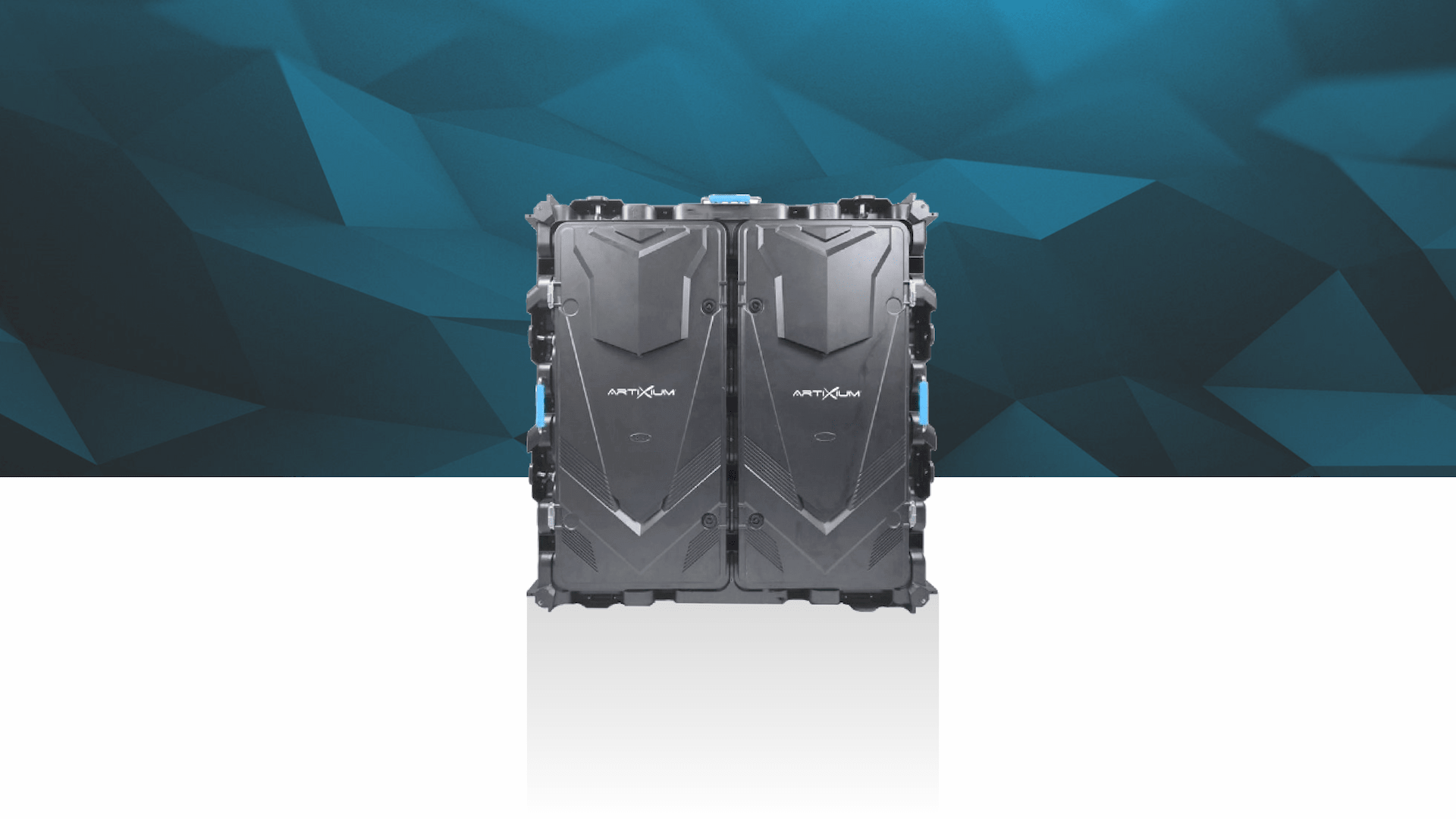

The HYDROGEN ULTRA SLIM is originally derived from our sports product range and has proven itself reliable and efficient in numerous outdoor projects. This encouraged us to conceive a media version, and thus offer a durable and trustworthy fixed LED display, suitable for both outdoor and indoor projects that require a long-lasting and enduring LED display. To us, the HYDROGEN ULTRA SLIM is synonymous with cost efficiency and peace of mind.
Application
INDOOR OUTDOOR
PIXEL PITCH
P4 P5 P6.6 P8 P10
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
960 x 960 mm (Standard)

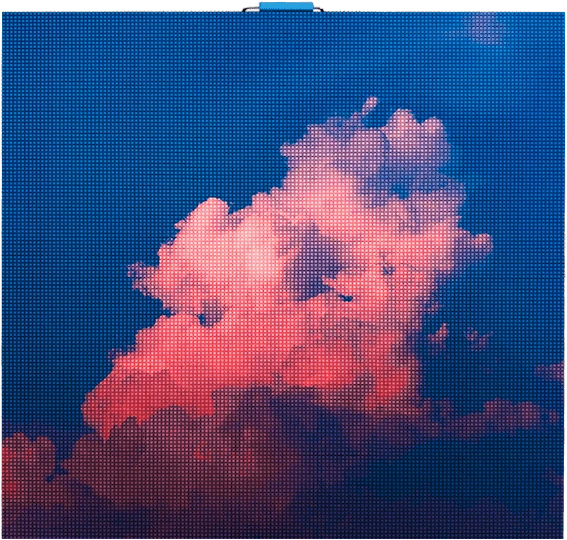

BRIGHTNESS
≤6000 NITS @5Volts
WEIGHT
33KG/CABINET
MATERIAL
MAGNESIUM ALLOY

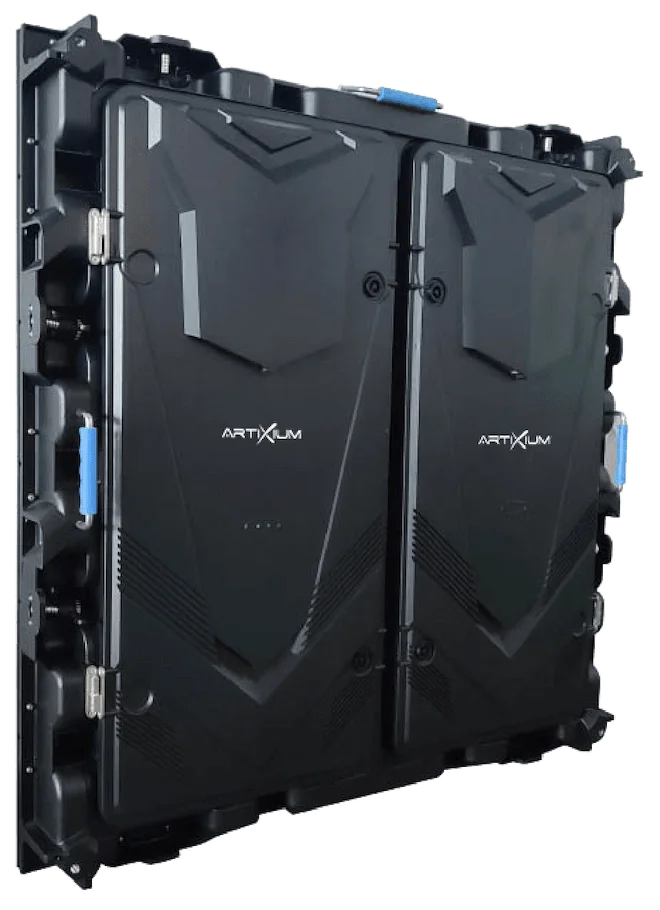

The HYDROGEN ULTRA SLIM was designed with one particular goal in mind: creating a product that will stay true to its original state in the long run, and that will perform without any issue no matter the environment. It comes with integrated fans, a heavy-duty magnesium frame and die-casting aluminum back cover, and optional Neutrik connectors, making it one of the most resilient LED displays of our media product range.

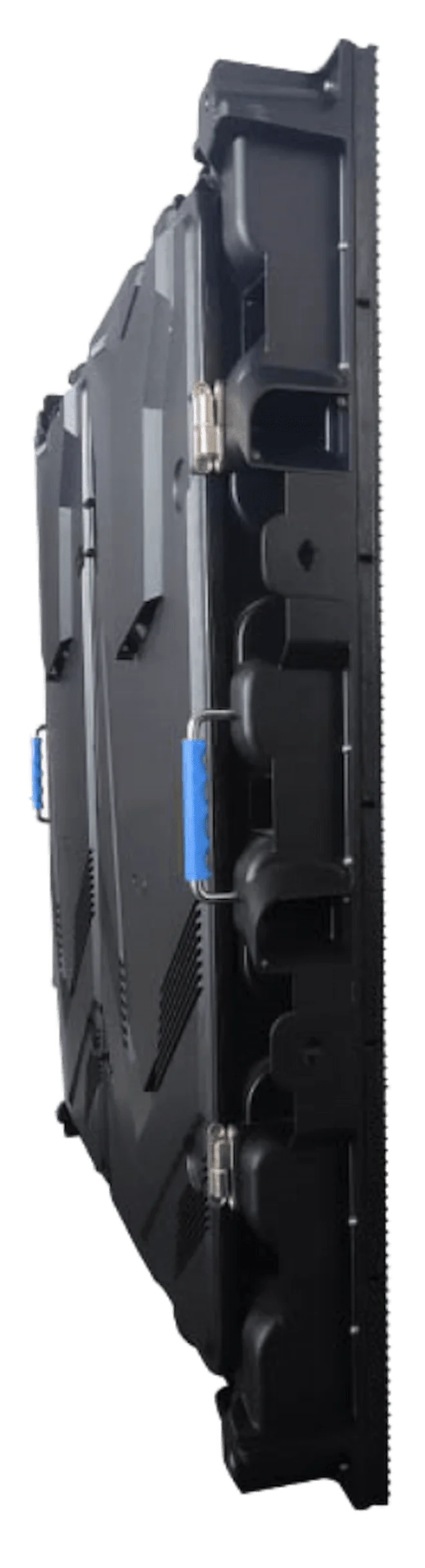

The HYDROGEN ULTRA SLIM is suited for fixed installations, the best-fitted solution being fixing the cabinets to a specially designed structure.

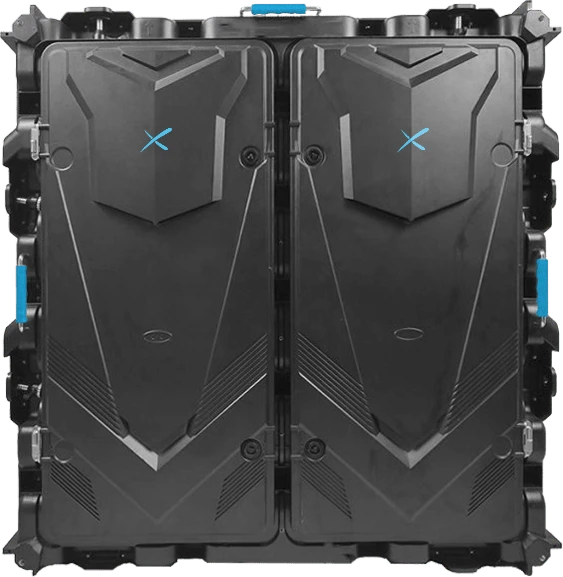

The maintenance of the HYDROGEN ULTRA SLIM can be done from the back by opening the back cover. It's an easy and quick process that can be managed by only one technician.
BACK MAINTENANCEIndoorOutdoorLarge Scale LED DisplayArchitectureMediaHeat DissipationFixed LED DisplayMedia Outdoor FacadeHydrogen Ultra Slim
| INDOOR | OUTDOOR | |||||||
| Product Parameters | Unit | 4 | 5 | 4 | 5 | 6.6 | 8 | 10 |
| Pixel Pitch | mm | 4,00 | 5,00 | 4,00 | 5,00 | 6,67 | 8 | 10 |
| LED | SMD1921 (Black Face) | SMD2727 3in1 (Black Face) | SMD1921 (Black Face) | SMD2727 3in1 (Black Face) | SMD3535 3in1 (Black Face) | |||
| Application | Cost-effective LED cabinet, fixed applications | |||||||
| Ingress Protection | IP | IP65 | ||||||
| Brightness | cd/sqm | ≤ 1500 Nits @5volts | ≤ 6000 Nits @5volts | |||||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||||||
| Cabinet Size (WxHxD) | mm | 960 x 960 x 130 | ||||||
| Display area (WxH) | mm | 960 x 960 | ||||||
| Module Size (WxHxD) | mm | 320 x 160 x 18 | ||||||
| Pixel Matrix Per Cabinet (WxH) | px | 240 x 240 | 192 x 192 | 240 x 240 | 192 x 192 | 144 x 144 | 120 x 120 | 96 x 96 |
| Pixel Matrix Per Module (WxH) | px | 80 x 40 | 64 x 32 | 80 x 40 | 64 x 32 | 48 x 24 | 40 x 20 | 32 x 16 |
| Pixel Density | px/sqm | 62500 | 40000 | 62500 | 40000 | 22500 | 15625 | 10000 |
| Weight of cabinet | kg | 33 | ||||||
| Cabinet Material | Magnesium alloy | |||||||
| Maintenance Mode | Back | |||||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders / Backshell in Aluminum + PC | |||||||
| Contrast Ratio | High | |||||||
| Grey scale (linear) | bit | 16 | ||||||
| Brightness control | bit | 16 | ||||||
| Processing depth | bit | 16 | ||||||
| Color | 281 Trillions | |||||||
| Display Refresh Rate | Hz | 3840 | ||||||
| Operation Power | V | AC85-230V | ||||||
| Max. Power Consumption | W/sqm | 600 | ||||||
| Average Power Consumption | W/sqm | 250 | ||||||
| Control Mode | Synchronization | |||||||
| Video Frame Rate | Hz | 50/60Hz | ||||||
| Input Types Supported | DVI / SDI / HDMI | |||||||
| 3D ready (optional) | oui | |||||||
| Calibration | oui | |||||||
| Lifetime (50% brightness) | h | |||||||
| Operating Humidity Range | 10-95% | |||||||
| Operating Temperature Range | -20°C / +50°C | |||||||
| Screen Uniformity Correction | - | |||||||
| Certification | CE / ETL / CCC | |||||||
| Available options | Neutrik connectors | |||||||
| Compatibility | - | |||||||
