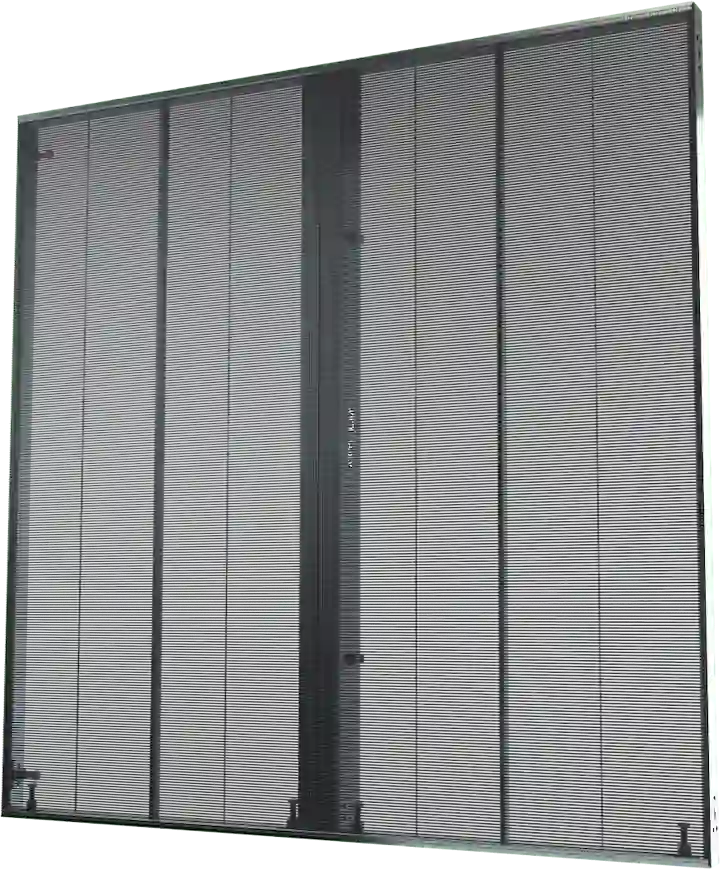

The NEON HD has been added to our range of transparent LED cabinets to allow our customers to access a product with symmetrical pixel pitch. This feature enables your screen to achieve better resolution than with other products in the NEON range, while maintaining up to 50% transparency. Additionally, the symmetrical pixel pitch allows your visual content to benefit from a more uniform rendering, similar to what traditional LED cabinets offer.
Application
Indoor
PIXEL PITCH
P2.6 P2.9 P3.4 P3.9
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)
500 x 1000 mm (p2.6)
1000 x 1000 mm
BRIGHTNESS
≤ 5000 NITS

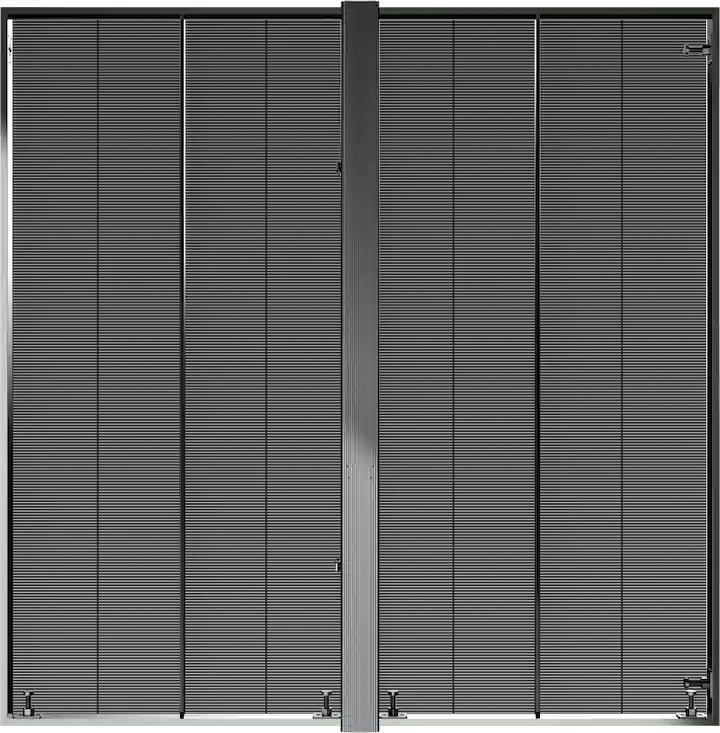

WEIGHT
± 11.5 kg/m²

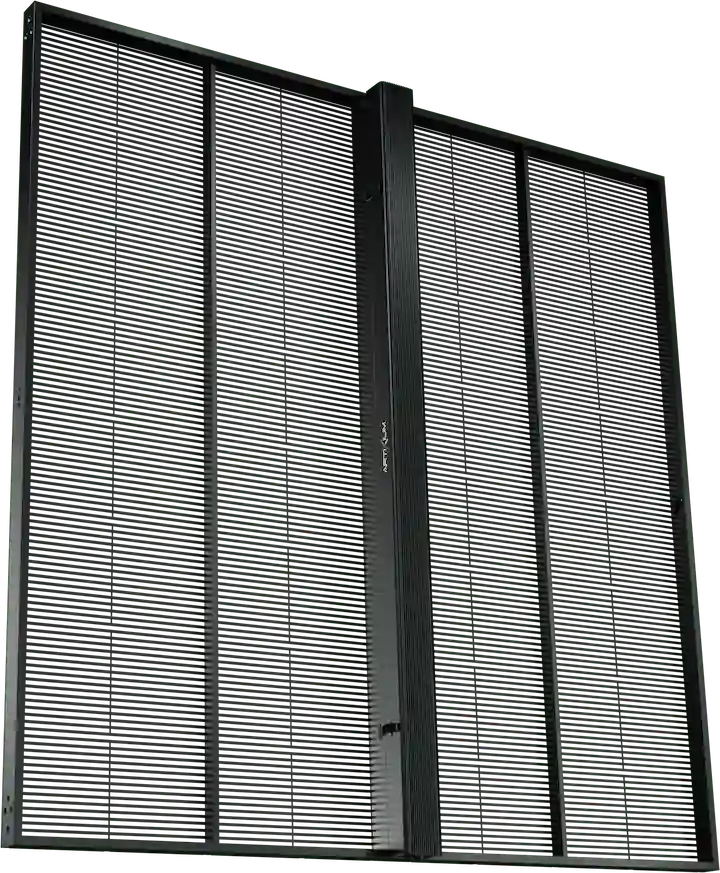

MATERIAL
Aluminum

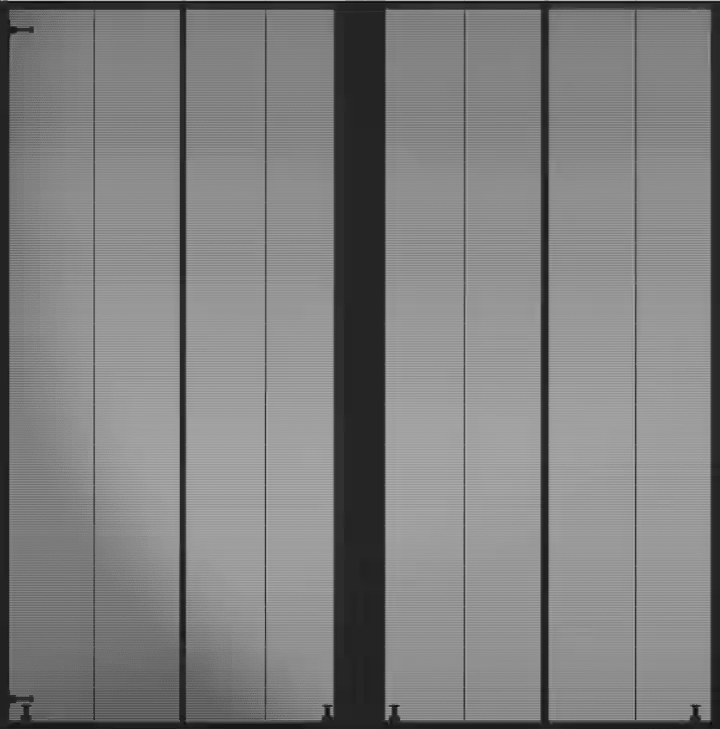

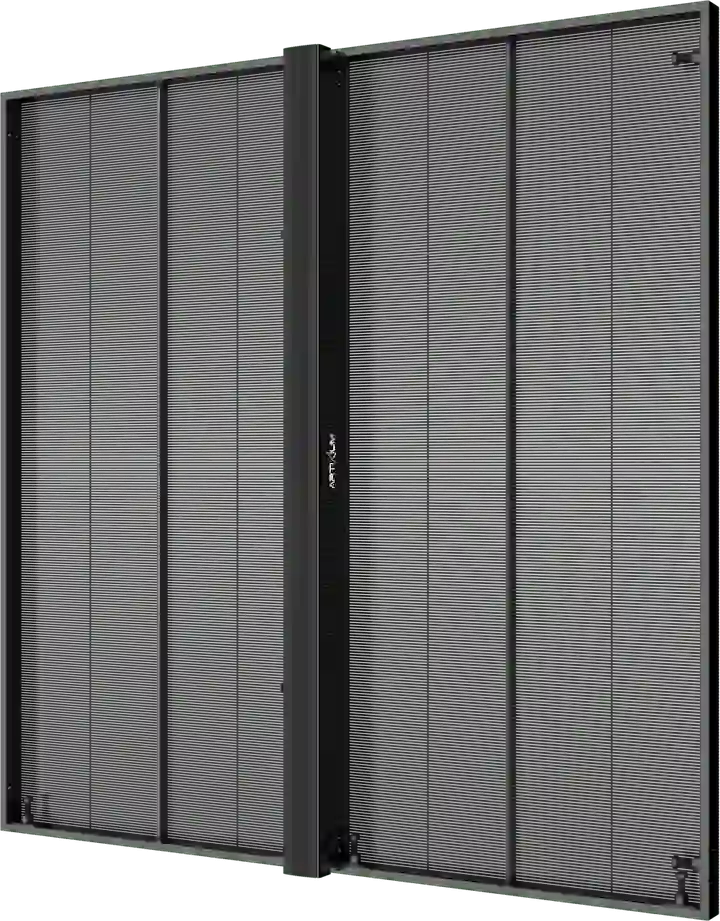

With its brightness reaching up to 5000 NITS, the NEON HD can easily be used to display visual content outdoors through a window. Coupled with its resolution, this feature makes the NEON HD ideal for commercial applications and architectural ornamentation.

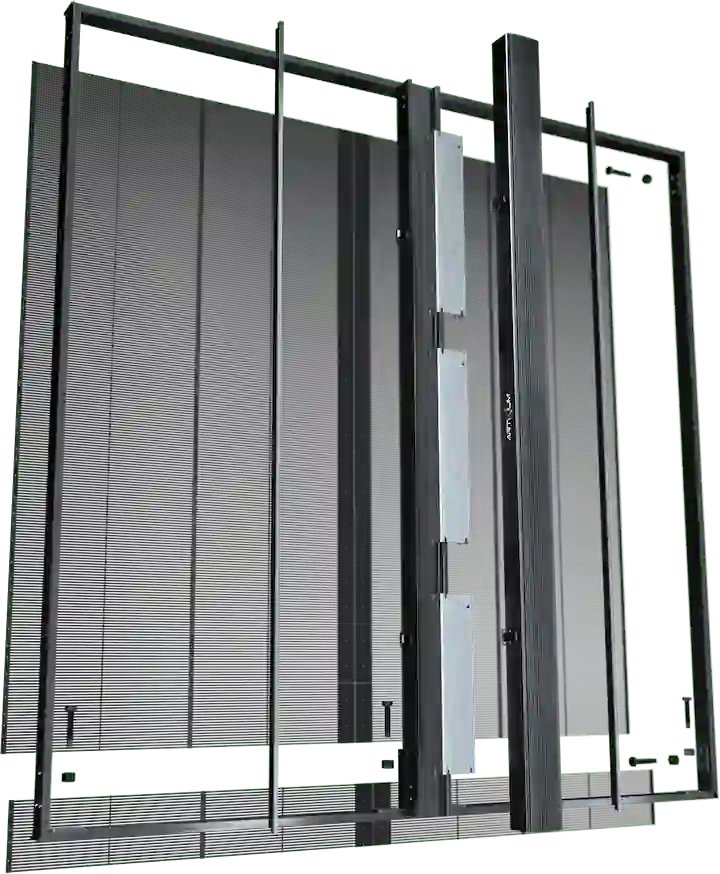

The modules of the NEON HD can be easily removed from the front of your application using a simple screwdriver. Access to the power supply, on the other hand, is quick and tool-free, from the rear of your installation. In the event that your LED screen is placed very close to a window, we recommend removing the faulty cabinet from the rear using the cabinet locking systems before repairing the affected modules.
The pixel pitch of the NEON HD places it in the same range as products like the GRANITE or the QWARTZ 2.0 in terms of resolution. It offers the same image uniformity as the CALCITE 2.0 but with better resolution and fewer restrictions regarding the dimensions of your transparent LED giant screen, due to its traditional cabinet design.
INDOORFront MaintenanceTransparentMediaCreativeRetailFixed LED DisplayChurchAirportTrain StationStoreHotelsMedical CenterStreetMovie TheaterShopping MallPharmarcyCar DealerSemi-indoor
| INDOOR | ||||||
| Product Parameters | Unit | 2.6 | 2.9 | 3.4 | 3.9 | |
| Pixel Pitch | mm | 2,60 | 2,98 | 3,47 | 3,91 | |
| LED | SMD1415 | |||||
| Application | Transparent HD LED cabinet | |||||
| Ingress Protection | IP | IP20 | ||||
| Brightness | cd/m² | ≤ 5000 Nits @5volts | ||||
| Color Temperature after calib (adjustable) | deg. K | 10000 | ||||
| Viewing Angle (50% brightness) | deg. | 140H / 140 V | ||||
| Cabinet Size (WxHxD) | mm | 500 x 1000 x 77 | 1000 x 1000 x 77 | |||
| Display area (WxH) | mm | 500 x 1000 | 1000 x 1000 | |||
| Module Size (WxHxD) | mm | 500 x 62.5 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 192 x 384 | 336 x 336 | 288 x 288 | 256 x 256 | |
| Pixel Matrix Per Module (WxH) | px | 192 x 24 | 168 x 21 | 144 x 18 | 128 x 16 | |
| Pixel Density | px/m² | 147456 | 112896 | 82944 | 65536 | |
| Weight | kg/m² | 12.5 | 12 | 11 | 10 | |
| Cabinet Material | Aluminum | |||||
| Maintenance Mode | Front & Back | |||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / No shaders | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 16 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 3840 | 2800 | 3840 | ||
| Operation Power | V | AC100-240V | ||||
| Max. Power Consumption | W/m² | 800 | ||||
| Average Power Consumption | W/m² | 240 | ||||
| Control Mode | Synchronization | |||||
| Video Frame Rate | FPS | 30-60 | ||||
| Input Types Supported | Universal | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 50000 | ||||
| Operating Humidity Range | 10-90% | |||||
| Operating Temperature Range | -10°C / +45°C | |||||
| Screen Uniformity Correction | Yes | |||||
| Certification | CE / ETL / CCC | |||||
| Available options | - | |||||
| Compatibility | No | |||||
