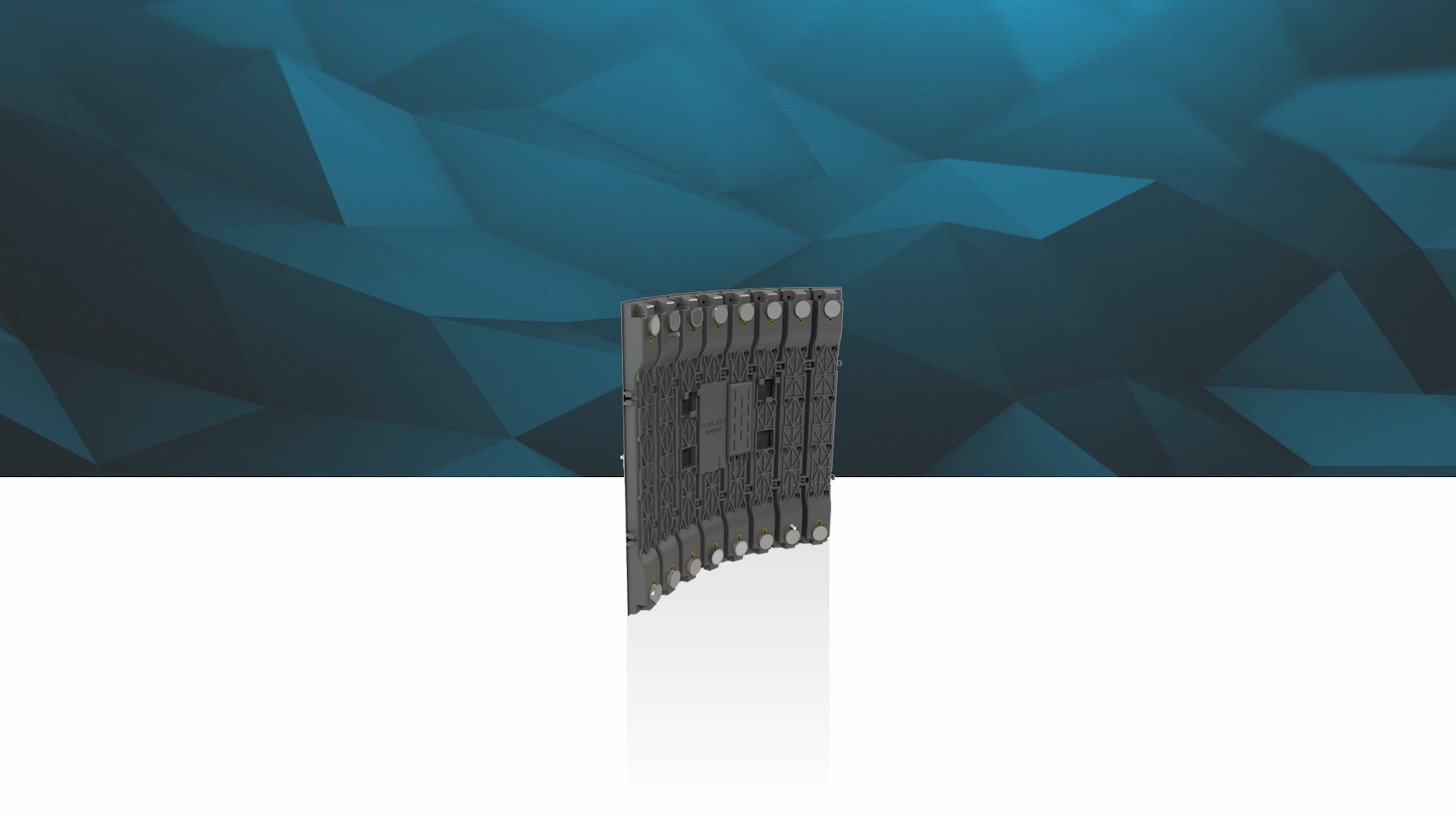

The MICA PLUS is the perfect balance between the flexibility of the MICA and the fine pixel pitch of our QWARTZ range. This module-based product is adaptable to most indoor LED display projects, easy to integrate, and even easier to maintain. It is a high-end product that can perfectly fit advertisement projects, trading floors, building lobbies, and many more.
Application
INDOOR OUTDOOR
PIXEL PITCH
P1.2 P1.5 P1.7 P1.9 P6.6
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP41 FRONT & IP40 Rear (Indoor)
IP68 (Outdoor)
Display Area (W X H)
250 X 250 mm
304.8 x 304.8 mm
320 x 320 mm
BRIGHTNESS
≤6000 NITS @5 Volts
WEIGHT
1KG - 1.1KG/MODULE
MATERIAL
Rubber + Magnets + Plastic

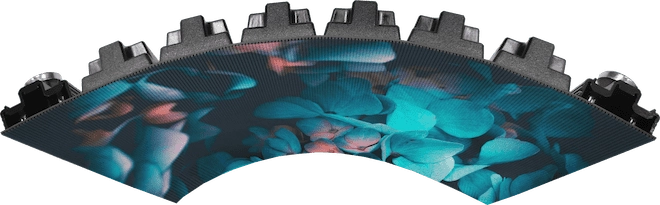

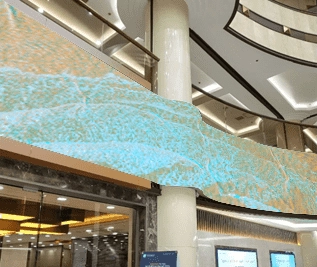

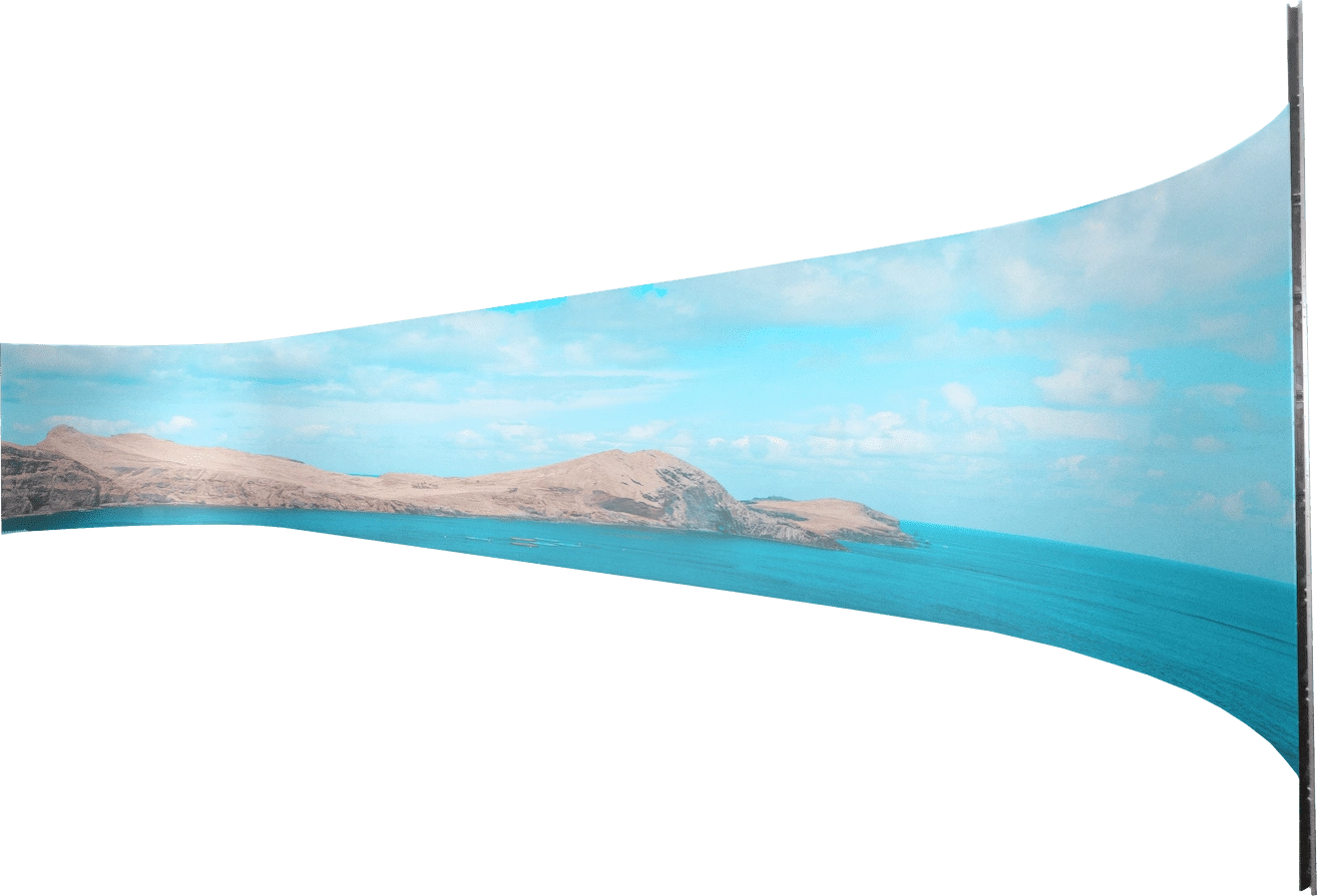

Due to its high flexibility and square dimensions, the MICA PLUS can be integrated into the most imaginative LED display projects with ease. This is the LED module you need if you're about to conceive something special for everyone to remember, as it will perfectly fit the most daring and unusual installations.

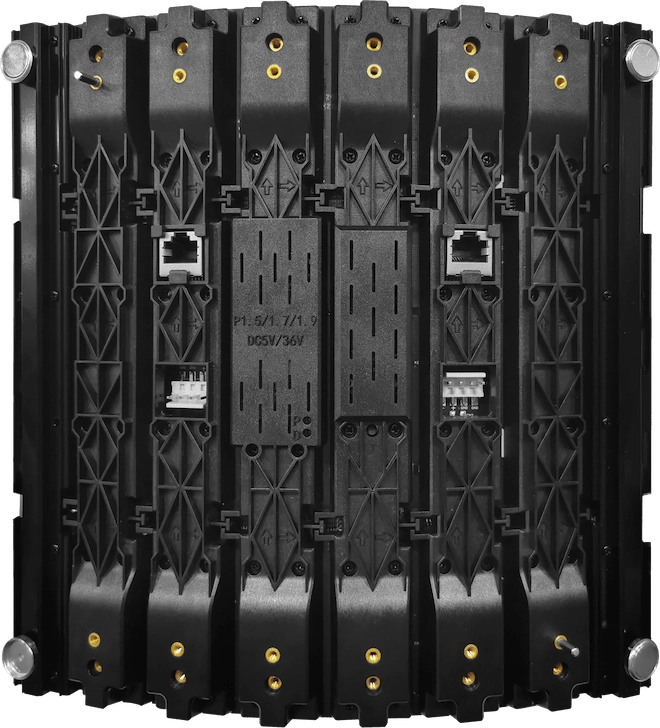

The easiest and fastest way to integrate the MICA PLUS is to use a steel frame (preexistent or not) on which the modules are simply magnetically affixed. These modules are mechanically linked together one by one, then ther'es only some wiring to do to complete the installation. This process is both fast and easy, making it very cost-effective.

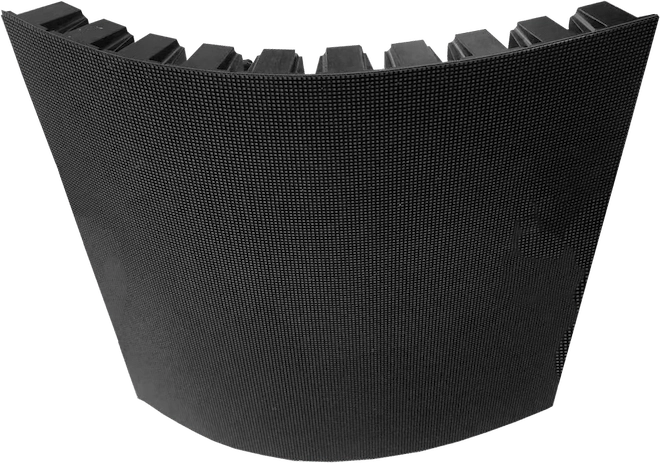

The features that make the MICA PLUS easy to integrate also make it easy and fast to maintain. The modules can simply and quickly be removed and replaced from the front of the LED display, without any tool.

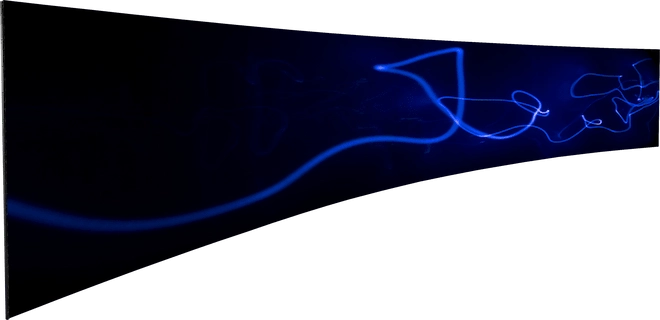

The MICA PLUS comes in P1.5, P1.7 & P1.9, which is a slightly lower resolution than our ultra HD product range. Considering the high adaptability and size of the MICA PLUS modules, you can easily attain any image ratio desired, even the famous 16:9 golden ratio.
INDOOROutdoorFront MaintenanceCurveLarge Scale LED DisplayArchitectureMediaFixed LED DisplayMagnetic ModuleModulable LED DisplayFlexible
| INDOOR | OUTDOOR | ||||||
| Product Parameters | Unit | 1.2 | 1.5 | 1.7 | 1.9 | 3.8 | 6.6 |
| Pixel Pitch | mm | 1,25 | 1,56 | 1,74 | 1,95 | 3,81 | 6,67 |
| LED | SMD0808 | SMD1010 | SMD1515 | SMD1921 | SMD2727 | ||
| Application | Flexible LED module | ||||||
| Ingress Protection | IP | IP41 (Front) / IP40 (Back) | IP68 | ||||
| Brightness | cd/sqm | ≤ 800 Nits @5volts | ≤ 5500 Nits @5volts | ≤ 6000 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||||
| Viewing Angle (50% brightness) | deg. | 130 H / 130 V | |||||
| Cabinet Size (WxHxD) | mm | 250 x 250 x 20.2 | |||||
| Display area (WxH) | mm | 250 x 250 | 304.8 x 304.8 | 320 x 320 | |||
| Module Size (WxHxD) | mm | 250 x 250 x 20.2 | 304.8 x 304.8 x 20.2 | 320 x 320 x 20.2 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 200 x 200 | 160 x 160 | 144 x 144 | 128 x 128 | 80 x 80 | 48 x 48 |
| Pixel Matrix Per Module (WxH) | px | 200 x 200 | 160 x 160 | 144 x 144 | 128 x 128 | 80 x 80 | 48 x 48 |
| Pixel Density | px/sqm | 640000 | 409600 | 331776 | 262144 | 68889 | 22500 |
| Weight of cabinet | kg | 0.8 | 1.6 | 1.8 | |||
| Cabinet Material | Rubber / Plastic / Magnets | ||||||
| Maintenance Mode | Front | ||||||
| Mask specification | No mask | ||||||
| Contrast Ratio | High | ||||||
| Grey scale (linear) | bit | 16 | |||||
| Brightness control | bit | 16 | |||||
| Processing depth | bit | 16 | |||||
| Color | 281 Trillions | ||||||
| Display Refresh Rate | Hz | 3840 | |||||
| Operation Power | V | AC100-240V | |||||
| Max. Power Consumption | W/sqm | 720 | 640 | 618 | 532 | ||
| Average Power Consumption | W/sqm | 240 | 214 | 206 | 160 | ||
| Control Mode | Synchronization | ||||||
| Video Frame Rate | Hz | 50/60Hz | |||||
| Input Types Supported | DVI / SDI / HDMI | ||||||
| 3D ready (optional) | Yes | ||||||
| Calibration | Yes | ||||||
| Lifetime (50% brightness) | h | 50000 | |||||
| Operating Humidity Range | 10-60% | ||||||
| Operating Temperature Range | -20°C / +45°C | ||||||
| Screen Uniformity Correction | - | ||||||
| Certification | FCC / CE / ETL / CCC / CB | ||||||
| Available options | Nanocoating / Gold wiring | ||||||
| Compatibility | - | ||||||
