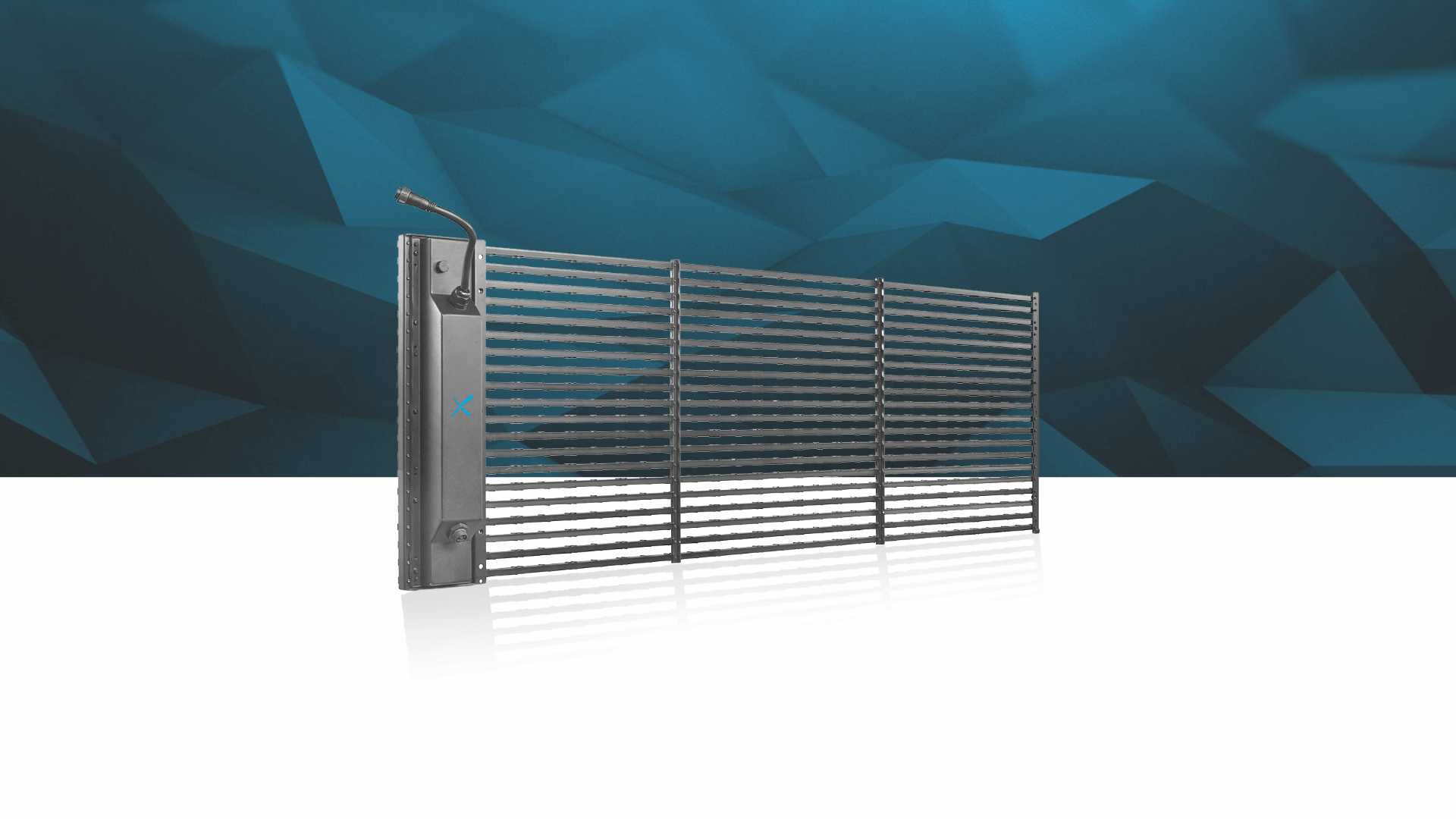

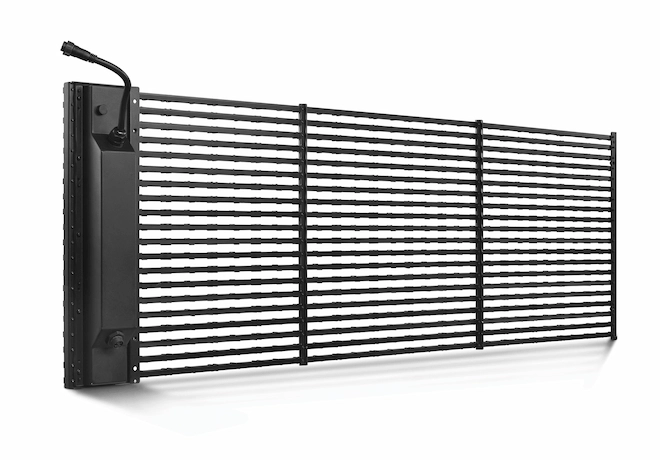

The NITROGEN is an outdoor transparent LED display most suited for architectural setups. With a pixel pitch ranging from P15a to P50a, it’s designed for long-distance viewing and large display surfaces. The NITROGEN is highly transparent, lightweight, and adaptable to any type of building. Furthermore, this product is very resistant and can withstand permanent use in the most demanding environments.
Application
OUTDOOR
PIXEL PITCH
P15.6a31.2 P25 P25a31.2 P25a41.6 P25a50
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
1000 x 500 mm (P15.6a31.2)
1500 x 500 mm
BRIGHTNESS
≤8500 NITS @5 Volts
WEIGHT
5.5 - 9kg/cabinet
MATERIAL
Anodized Aluminium

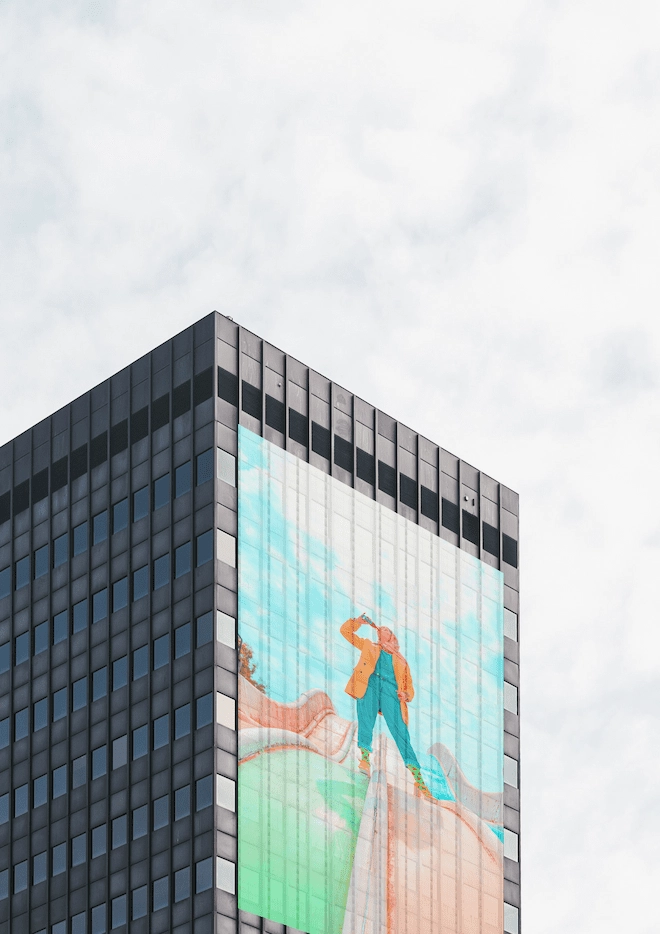

The NITROGEN can cover extremely large surfaces with a relatively low budget. From airports to stadium facades, hotels, and shopping malls, the NITROGEN will be a part of your architectural project in itself, merging with your building design thanks to its high transparency.

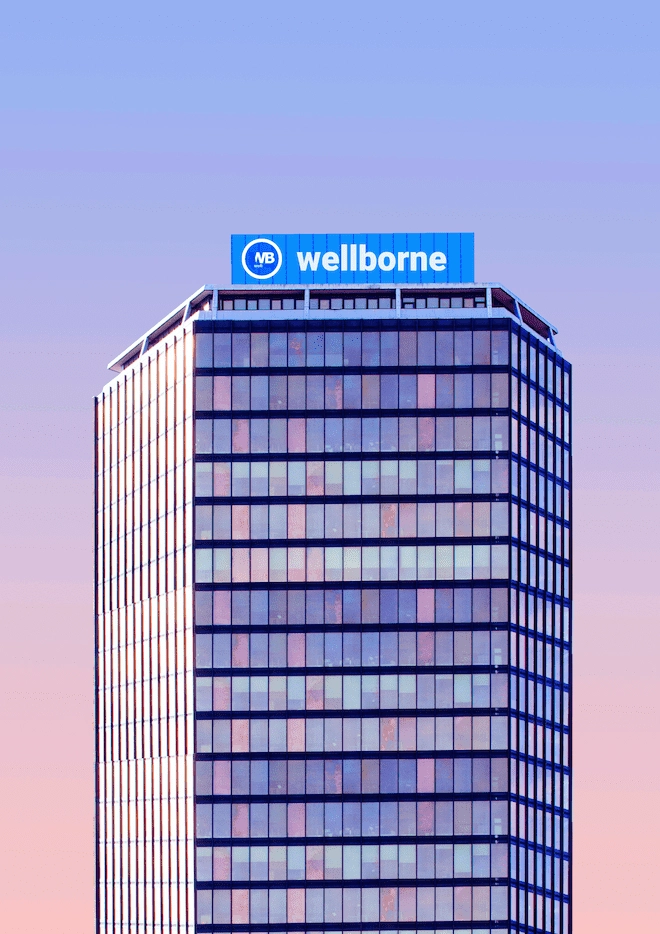

The NITROGEN draws its visual quality from two factors. First is the potential dimension it can cover, making any display very sharp even with such large pixel pitches. Then, the high brightness ensures a high visibility of said details from very long distances. Thanks to these features, the NITROGEN is the best solution for large-scale outdoor displays.
The NITROGEN is fully IP65 and UV resistant, which means it's a very tough and trustworthy product. It will perform day and night in very harsh environments with no issue whatsoever, making your building-sized LED display a sight permanently etched in your district's visual identity.
BACK MAINTENANCEOutdoorFront MaintenanceTransparentArchitectureFixed LED DisplayHigh TransparencyMedia Outdoor FacadeWaterproof
| OUTDOOR | ||||||
| Product Parameters | Unit | 15.6a31.2 | 25 | 25a31.2 | 25a41.6 | 25a50 |
| Pixel Pitch | mm | 15,63 x 31,25 | 25 | 25 x 31,25 | 25 x 41,67 | 25 x 50 |
| LED | DIP Oval 3mm | DIP Oval 3mm | DIP Oval 3mm | DIP Oval 3mm | DIP Oval 3mm | |
| Application | Media outdoor facade | |||||
| Ingress Protection | IP | IP65 | ||||
| Brightness | cd/sqm | ≤ 8500 Nits @5volts | ≤ 8000 Nits @5volts | ≤ 7000 Nits @5volts | ≤ 6000 Nits @5volts | ≤ 5000 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||
| Viewing Angle (50% brightness) | deg. | 110(+/-55) H / 60 V | ||||
| Cabinet Size (WxHxD) | mm | 1000 x 500 x 83 | 1500 x 500 x 83 | |||
| Display area (WxH) | mm | 1000 x 500 | 1500 x 500 | |||
| Module Size (WxHxD) | mm | 1000 x 250 | 1500 x 250 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 64 x 16 | 60 x 20 | 60 x 16 | 60 x 12 | 60 x 10 |
| Pixel Matrix Per Module (WxH) | px | 64 x 8 | 60 x 10 | 60 x 8 | 60 x 6 | 60 x 5 |
| Pixel Density | px/sqm | 2047 | 1600 | 1280 | 960 | 800 |
| Weight of cabinet | kg | 9 | 8.7 | 7.4 | 6.1 | 5.5 |
| Cabinet Material | Anodized aluminium | |||||
| Maintenance Mode | Front & back (no tools required) | |||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |||||
| Contrast Ratio | Low | |||||
| Grey scale (linear) | bit | 16 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 2400 | ||||
| Operation Power | V | AC85-230V | ||||
| Max. Power Consumption | W/sqm | 234 | 500 | 450 | 400 | 350 |
| Average Power Consumption | W/sqm | 178 | 170 | 150 | 140 | 150 |
| Control Mode | Synchronization | |||||
| Video Frame Rate | Hz | 50/60Hz | ||||
| Input Types Supported | DVI / SDI / HDMI | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 50000 | ||||
| Operating Humidity Range | 10-95% | |||||
| Operating Temperature Range | -20°C / +60°C | |||||
| Screen Uniformity Correction | 61% | 54% | 61% | 69% | 72% | |
| Certification | CE / ETL / CCC | |||||
| Available options | - | |||||
| Compatibility | No | |||||
