  3. Qwartz Ultra Slim
  • Application

    Indoor

  • PIXEL PITCH

    P1.5 P1.9 P2.6 P3.9

  • OPTION
    90

Overview

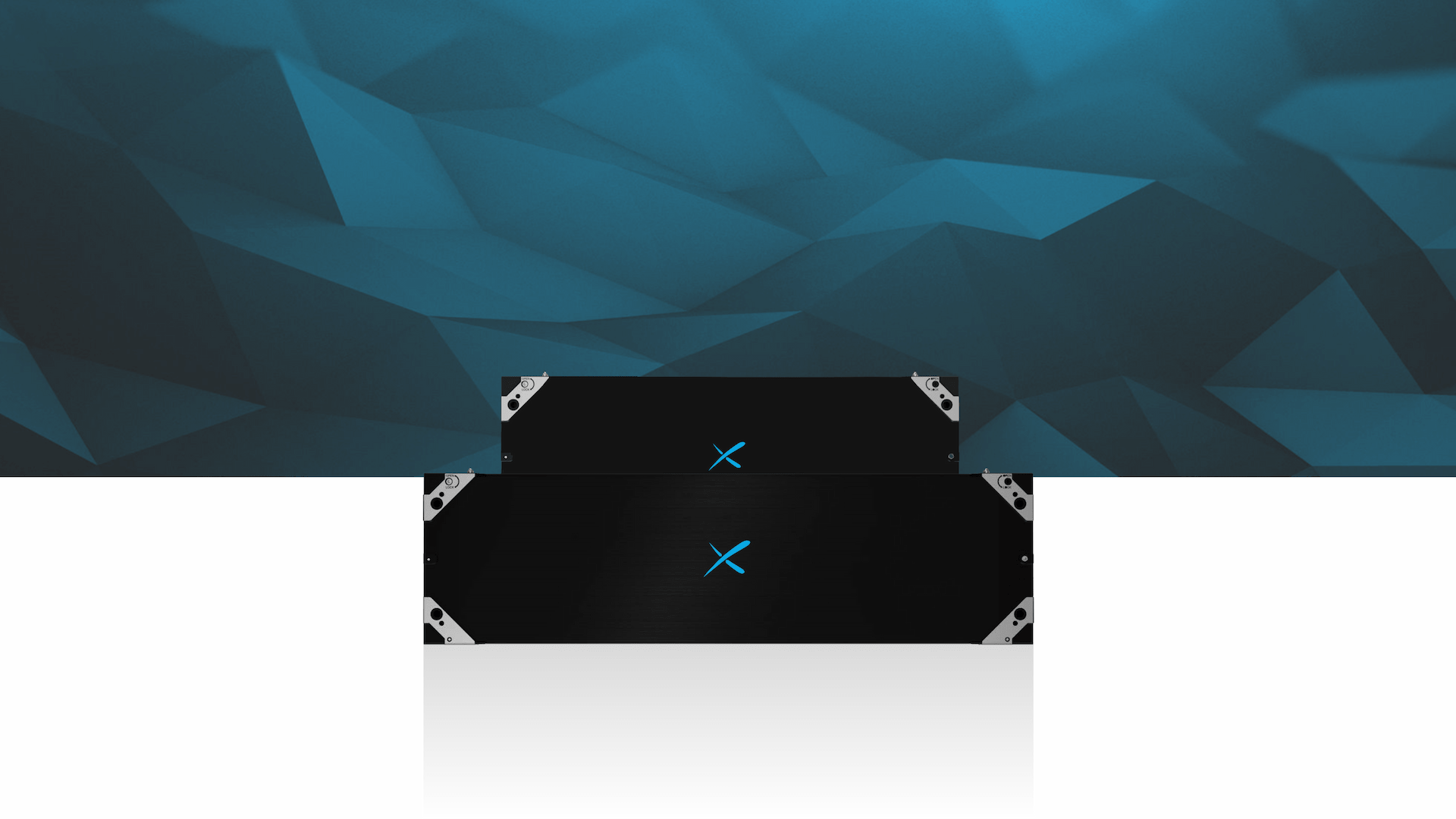

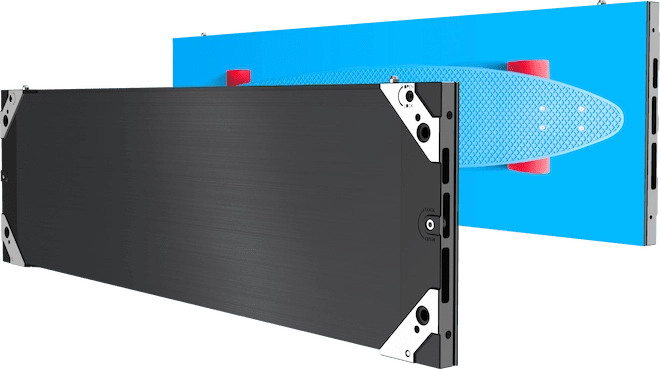

The QWARTZ ULTRA SLIM is our thinnest (28mm) and lightest (3.5kg) indoor LED cabinet. It is well suited for indoor wall LED applications and comes with a fine pixel pitch (P1.5 & P1.9), even allowing to attain the well renowned 8:9 or 16:9 ratios. This front access cabinet is a high-end product that is well suited for indoor advertisement, visual enhancement, monitoring rooms, control centers, etc.

  • Application
    Indoor

  • PIXEL PITCH
    P1.5 P1.9 P2.6 P3.9

  • MAINTENANCE
    Front Maintenance

  • INGRESS PROTECTION
    IP20

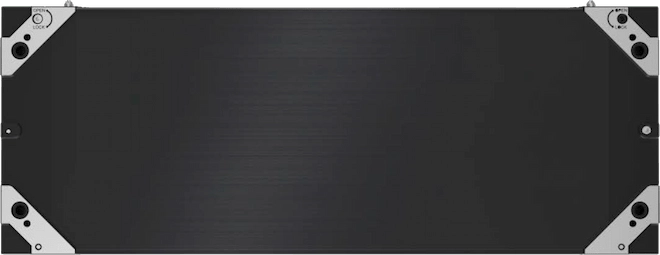

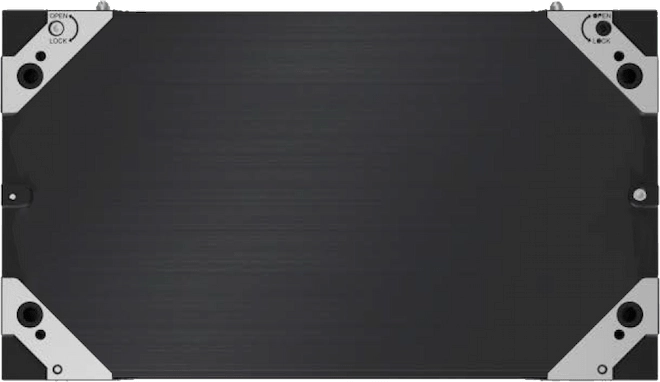

  • Display Area (W X H)
    500 X 281.25 MM
    750 X 281.25 MM
    1000 X 281.25 MM

  • BRIGHTNESS
    ≤600 nits @5 Volts (Miniled 4in1)
    ≤1000 nits @5volts (led type SMD)

  • WEIGHT
    3.5 - 5.7 KG/CABINET

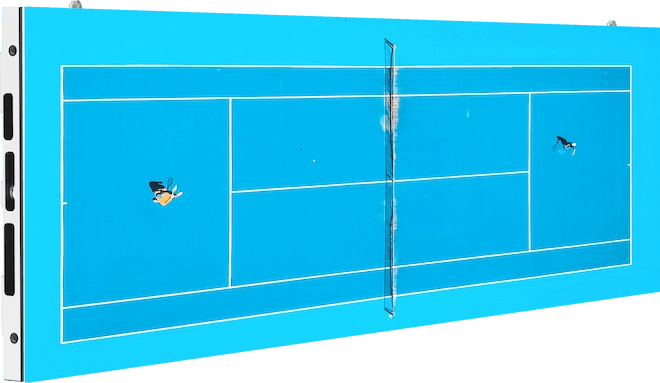

  • MATERIAL
    DIE CASTING ALUMINUM

FEATURES

INTEGRATION & MAINTENANCE

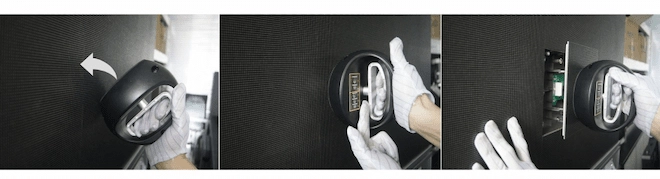

Considering the lightweight of the QWARTZ ULTRA SLIM, its integration can be done by one technician. It is best suited for wall applications, as it won't take much space, but it can very well be hung from a ceiling or stacked on the floor. Its maintenance is operated from the front with a magnetic tool. It's a simple task that also can be operated by only one technician.

MINILED 4IN1

The P1.5 QWARTZ ULTRA SLIM is available with MINILED 4in1 technology. These are made of 4 encapsulated LEDs, making them more resistant, easier to repair individually, and offering a sharpest visual resolution.

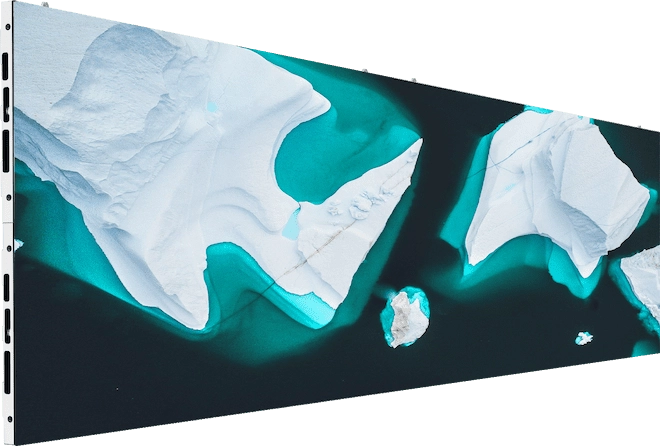

8:9 & 16:9 RATIOS

Thanks to its size, the QWARTZ ULTRA SLIM can easily reach an 8:9 or a 16:9 ratio. Combined with the fine pixel pitch of the cabinets, this means your LED display can attain HD or UHD resolution, depending on the number of cabinets used and their layout.

Certifications

INDOORFront Maintenance90 DegreesMediaFixed LED DisplayConference RoomControl RoomHotelsOfficeWall ApplicationMagnetic ModuleModulable LED DisplayTailored LED ApplicationQwartz Ultra SlimCasino

Technical Specifications

    INDOOR
Product Parameters Unit 1.5 1.9 2.6 3.9
Pixel Pitch mm 1,56 1,95 2,60 3,91
LED   MINILED 4in1 SMD1010 SMD1515 3in1 (Black Face) SMD2121 3in1 (Black Face)
Application   Retail
Ingress Protection IP IP20
Brightness cd/sqm ≤ 600 Nits @5volts ≤ 800 Nits @5volts ≤ 1000 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 160(+/-80) H / 140 V
Cabinet Size (WxHxD) mm 500 x 281.25 x 28 500 x 281.25 x 28 / 750 x 281.25 x 28 500 x 281.25 x 28 / 750 x 281.25 x 28 / 1000 x 281.5 x 28
Display area (WxH) mm 500 x 281.215 500 x 281.215 / 750 x 281.25 500 x 281.215 / 750 x 281.25 / 1000 x 281.25
Module Size (WxHxD) mm 250 x 281.25 250 x 281.25 250 x 281.25 250 x 281.25
Pixel Matrix Per Cabinet (WxH) px 320 x 180 256 x 144 / 384 x 144 192 x 108 / 288 x 108 / 384 x 108 128 x 72 / 192 x 72 / 256 x 72
Pixel Matrix Per Module (WxH) px 160 x 180 128 x 144 96 x 108 64 x 72
Pixel Density px/sqm 409600 262144 147456 65536
Weight of cabinet kg 3.5 3.5 / 4.5 3.5 / 4.5 / 5.7
Cabinet Material   Die-casting aluminum
Maintenance Mode   Front
Mask specification   No mask
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Display Refresh Rate Hz 3840
Operation Power V AC110-220V / AC200-240V
Max. Power Consumption W/sqm 570 500 400 420
Average Power Consumption W/sqm 220 200 160 170
Control Mode   Synchronization
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI / S-video / VGA
3D ready (optional)   Yes
Calibration   Yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-95%
Operating Temperature Range   -20°C / +40°C
Screen Uniformity Correction   -
Certification   CE / ETL / CCC / FCC / EMC
Available options   GME (Global Module Encapsulation), nanocoating, 90° angles
Compatibility    All cabinets size are compatible with each other
