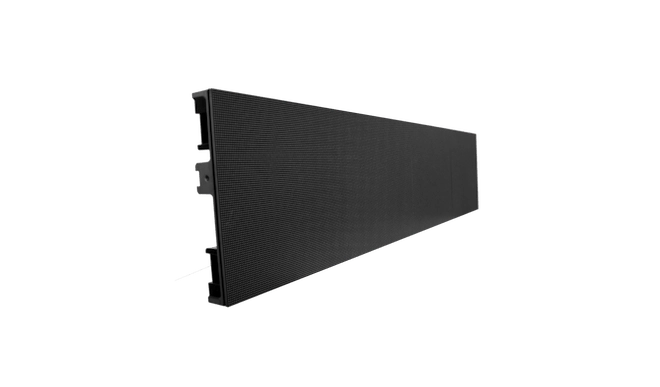

With a pixel pitch ranging from P1.9 to P4.8, the QWARTZ is the ideal LED cabinet for any indoor LED application that requires a fine pixel pitch. From monitoring rooms, to building lobbies, to trading floors, all can profit from this product's high modularity and quality.
Application
Indoor
PIXEL PITCH
P1.9 P2.6 P2.9 P3.9 P4.8
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP30

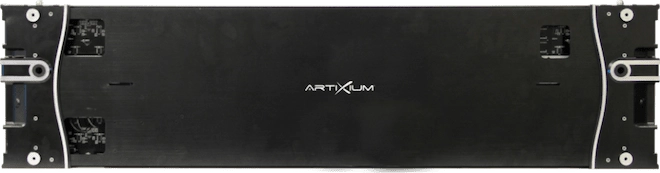

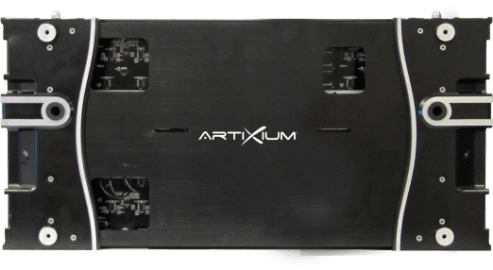

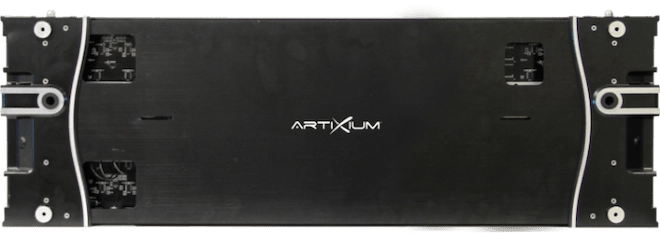

Display Area (W X H)
1000 X 250 MM
750 X 250 MM
500 X 250 MM
BRIGHTNESS
≤3000 NITS @5Volts
WEIGHT
6KG/CABINET
4.5KG/CABINET
3.5KG/CABINET
MATERIAL
DIE CASTING ALUMINUM
The QWARTZ is a precise and robust product that can directly be mounted on a wall thanks to its front integration and maintenance system. These processes can be operated by one technician because of this product's small size and lightweight.
Upon request, we can provide 45° cut cabinets in order to integrate the QWARTZ at 90° angles. Therefore, this product can easily fit different rooms for a continued aesthetic display.
With a brightness to up to 3000 NITS and a high contrast ratio, the QWARTZ can display vivid and well-defined colors. These features are to be taken into account when estimating the potential image quality of a LED display.
Even though it is an affordable product, the QWARTZ offers a fine pixel pitch for an excellent resolution. It's an excellent product if you want to conceive high resolution LED display at an affordable cost.
INDOORFront MaintenanceMediaShelfRetailFixed LED DisplayConference RoomControl RoomStoreBankOfficeMagnetic ModuleModulable LED DisplayQwartz
| INDOOR | ||||||
| Product Parameters | Unit | 1.9 | 2.6 | 2.9 | 3.9 | 4.8 |
| Pixel Pitch | mm | 1,95 | 2,60 | 2,98 | 3,91 | 4,81 |
| LED | SMD1515 3in1 (Black Face) | |||||
| Application | Media (retail) | |||||
| Ingress Protection | IP | IP30 | ||||
| Brightness | cd/sqm | ≤ 800 Nits @5volts | ≤ 1500 Nits @5volts | ≤ 3000 Nits @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||||
| Cabinet Size (WxHxD) | mm | 1000 x 250 x 42.5 / 750 x 250 x 42.5 / 500 x 250 x 42.5 | ||||
| Display area (WxH) | mm | 1000 x 250 / 750 x 250 / 500 x 250 | ||||
| Module Size (WxHxD) | mm | 250 x 250 x 15 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 512 x 128 / 384 x 128 / 256 x 250 | 384 x 96 / 288 x 96 / 192 x 250 | 336 x 84 / 252 x 84 / 168 x 250 | 256 x 64 / 192 x 64 / 128 x 250 | 208 x 52 / 156 x 52 / 104 x 250 |
| Pixel Matrix Per Module (WxH) | px | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 | 52 x 52 |
| Pixel Density | px/sqm | 262144 | 147456 | 112896 | 65536 | 43264 |
| Weight of cabinet | kg | 6 / 4.5 / 3.5 | ||||
| Cabinet Material | Die-casting aluminum | |||||
| Maintenance Mode | Front | |||||
| Mask specification | 95% Plastic + 5% Fiber / Clip type (no screws) / No Shaders | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 16 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 3840 | ||||
| Operation Power | V | AC85-230V | ||||
| Max. Power Consumption | W/sqm | 420 | ||||
| Average Power Consumption | W/sqm | 160 | ||||
| Control Mode | Synchronisation | |||||
| Video Frame Rate | Hz | 50/60Hz | ||||
| Input Types Supported | DVI / SDI / HDMI | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 50000 | ||||
| Operating Humidity Range | 10-95% | |||||
| Operating Temperature Range | -10°C / +50°C | |||||
| Screen Uniformity Correction | ||||||
| Certification | CE / ETL / CCC | |||||
| Available options | GME (Global Module Encapsulation), nanocoating, customizable size (vertical), Curve | |||||

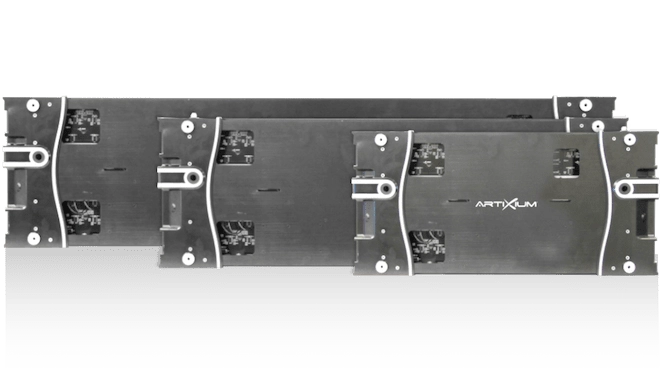

| Compatibility | All cabinets size are compatible to each other | |||||
