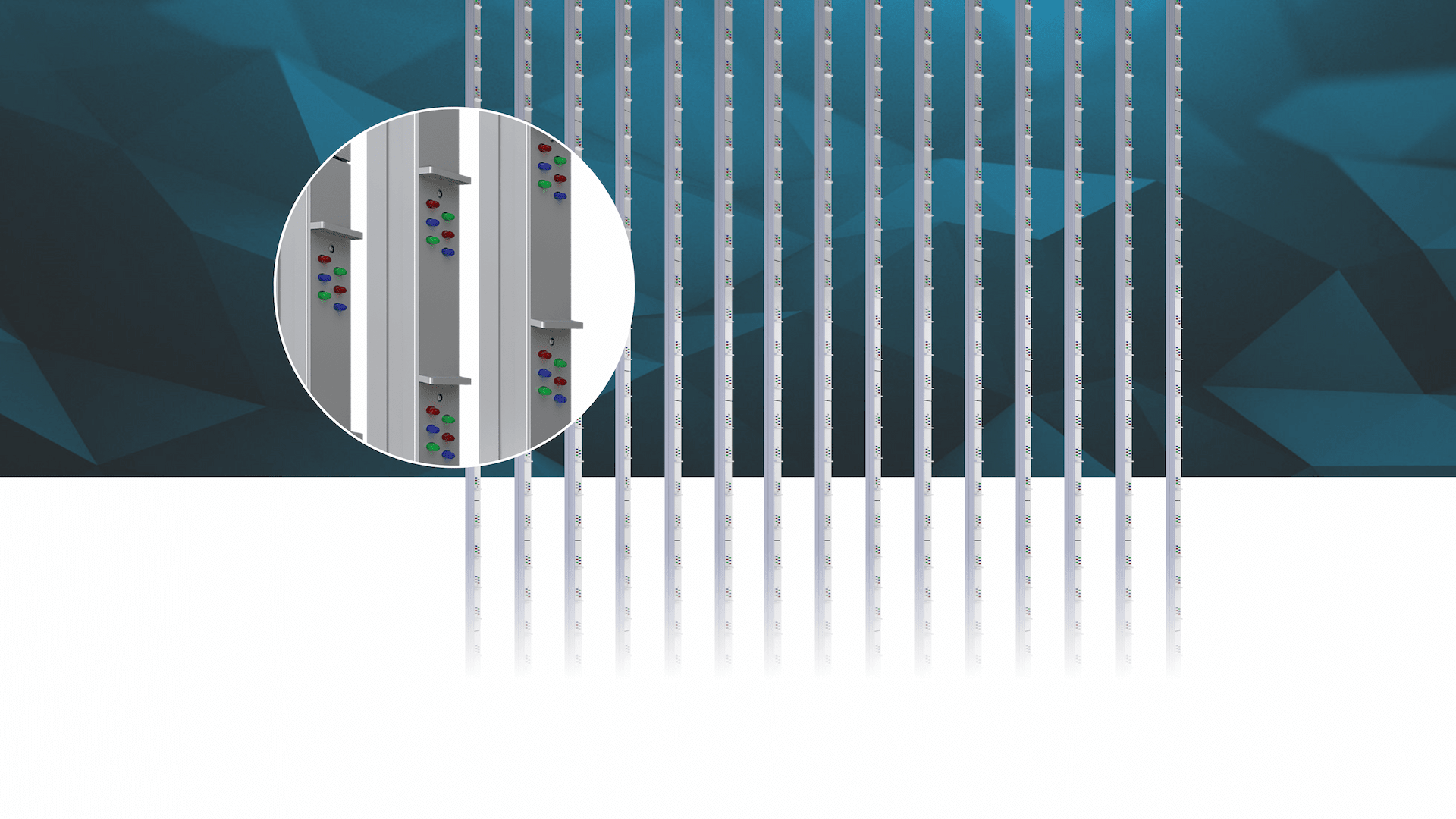

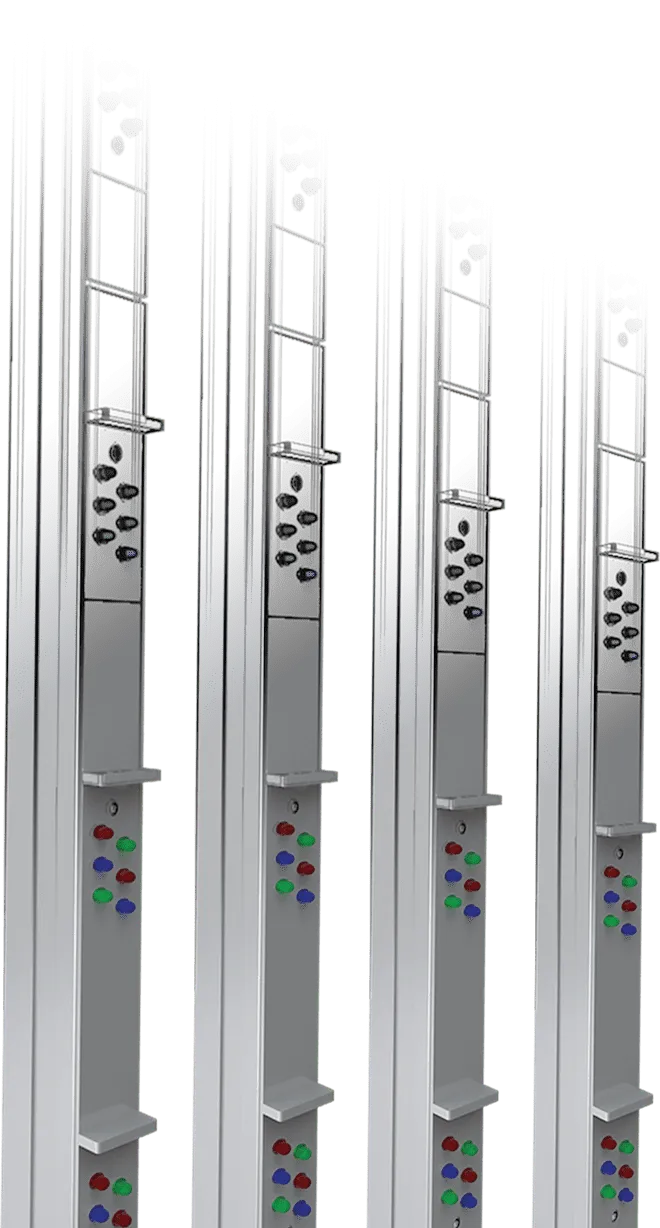

Commonly known as the "LED stripes", the OXYGEN has garnered high praises throughout Europe. With its 2R2G2B configuration and IP65, it’s ideal for architectural projects. Highly visible both day and night thanks to its high brightness, this fixed LED display will make your next architectural project stand out and become a memorable icon of its district.
Application
OUTDOOR
PIXEL PITCH
P30.9 P61.8
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
30 x 1980 mm
BRIGHTNESS
≤6000 NITS @5 Volts
WEIGHT
2.5 kg/cabinet
MATERIAL
Aluminum profile + painted mask (RAL option available)

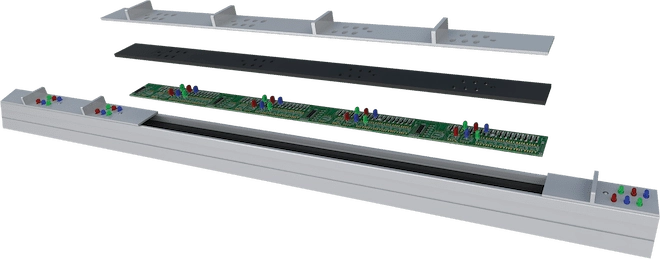

One of the main features of the OXYGEN series is the customizable length of each LED stripe in order to fit any existing structure. The aluminum shader's color can also be changed to match your requirements. Sturdy and durable, the OXYGEN can also be curved in accordance with tailored LED projects. This product is lightweight, easy to maintain, and very cost-effective both in freight and in manpower required for its integration and maintenance.
The integration of the OXYGEN can be done horizontally or vertically by only one technician due to its lightweight. The integration process requires a few preliminary steps for any architectural project: establishment of the structural plans, construction, or implementation of the support structure, integration of the OXYGEN LED stripes, power and data management, and finally testing of the LED display.

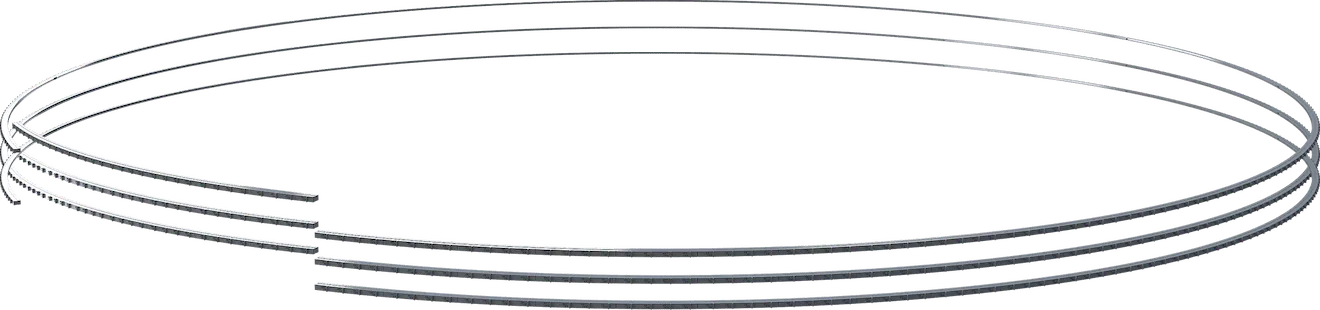

Each OXYGEN LED stripe can be curved to 30°, meaning that only 12 stripes are required to create a full circle. This feature allows for numerous customized LED display projects and makes the OXYGEN the right product for your large-scale architectural LED display.
BACK MAINTENANCEOutdoorFront MaintenanceTransparentFacadeLarge Scale LED DisplayArchitectureMediaFixed LED DisplayHigh TransparencyMedia Outdoor FacadeOxygenWaterproof
| OUTDOOR | |||
| Product Parameters | Unit | 30.9 | 61.8 |
| Pixel Pitch | mm | 30,94 | 61,88 |
| LED | DIP Oval 3mm | ||
| Application | Media outdoor facade | ||
| Ingress Protection | IP | IP65 | |
| Brightness | cd/sqm | ≤ 6000 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |
| Viewing Angle (50% brightness) | deg. | 110(+/-55) H / 60 V | |
| Cabinet Size (WxHxD) | mm | 30 x 1980 x 35 | |
| Display area (WxH) | mm | 30 x 1980 | |
| Module Size (WxHxD) | mm | No module | |
| Pixel Matrix Per Cabinet (WxH) | px | 1 x 64 | 1 x 32 |
| Pixel Matrix Per Module (WxH) | px | No module | |
| Pixel Density | px/sqm | 1045 | 261 |
| Weight of cabinet | kg | 2,5 | 2 |
| Cabinet Material | Profiled aluminum + painted mask (RAL optional) | ||
| Maintenance Mode | Front & back (no tools required) | ||
| Mask specification | Aluminum mask (RAL optional) | ||
| Contrast Ratio | High | ||
| Grey scale (linear) | bit | 16 | |
| Brightness control | bit | 16 | |
| Processing depth | bit | 16 | |
| Color | 281 Trillions | ||
| Display Refresh Rate | Hz | 1920 | |
| Operation Power | V | AC85-230V | |
| Max. Power Consumption | W/sqm | 500 | |
| Average Power Consumption | W/sqm | 252 | |
| Control Mode | Synchronization | ||
| Video Frame Rate | Hz | 50/60Hz | |
| Input Types Supported | DVI / SDI / HDMI | ||
| 3D ready (optional) | Yes | ||
| Calibration | Yes | ||
| Lifetime (50% brightness) | h | 50000 | |
| Operating Humidity Range | 10-95% | ||
| Operating Temperature Range | -20°C / +60°C | ||
| Screen Uniformity Correction | |||
| Certification | CE / ETL / CCC | ||
| Available options | RAL | ||
| Compatibility | No | ||
