The CALCITE 2.0 is the nec plus ultra of transparent LED screens. This innovative product offers a resolution and transparency rate that is unparalleled in the industry. This is made possible by the patented encapsulation of the SMD LEDs with their drivers, allowing more space between each LED.
Application
Indoor
PIXEL PITCH
P2.5 P3.9 P6.2
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)
1200 x 125 mm (P2.5)
1200 x 250 mm (P3.9)
1500 x 250 mm (P6.2)
BRIGHTNESS
≤ 4000 NITS @5volts
WEIGHT
7 - 6 - 5 kg/m²
MATERIAL
Aeronautic aluminum + Rubber

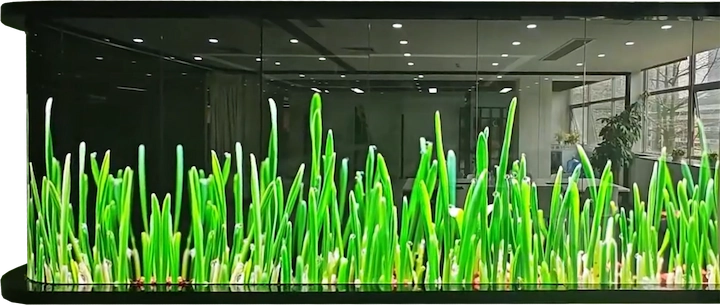

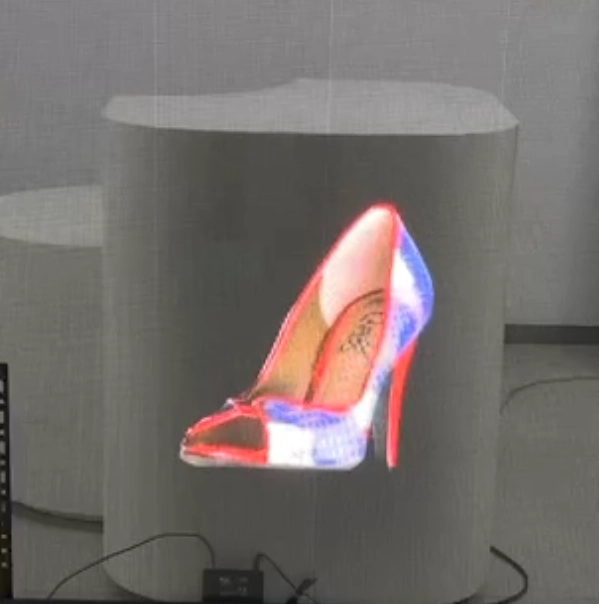

The transparency and fine pitch of the CALCITE 2.0 offer an unprecedented render for your LED display. The effect obtained when displaying 3D renders is closer to a hologram than to a traditional video, with an astonishing perceived depth and excellent definition.

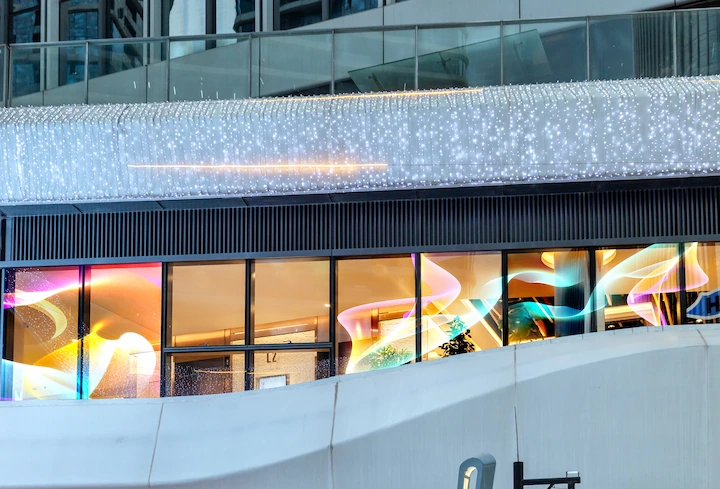

The CALCITE 2.0 is the only transparent LED screen capable of attaining a 80% transparency rate.

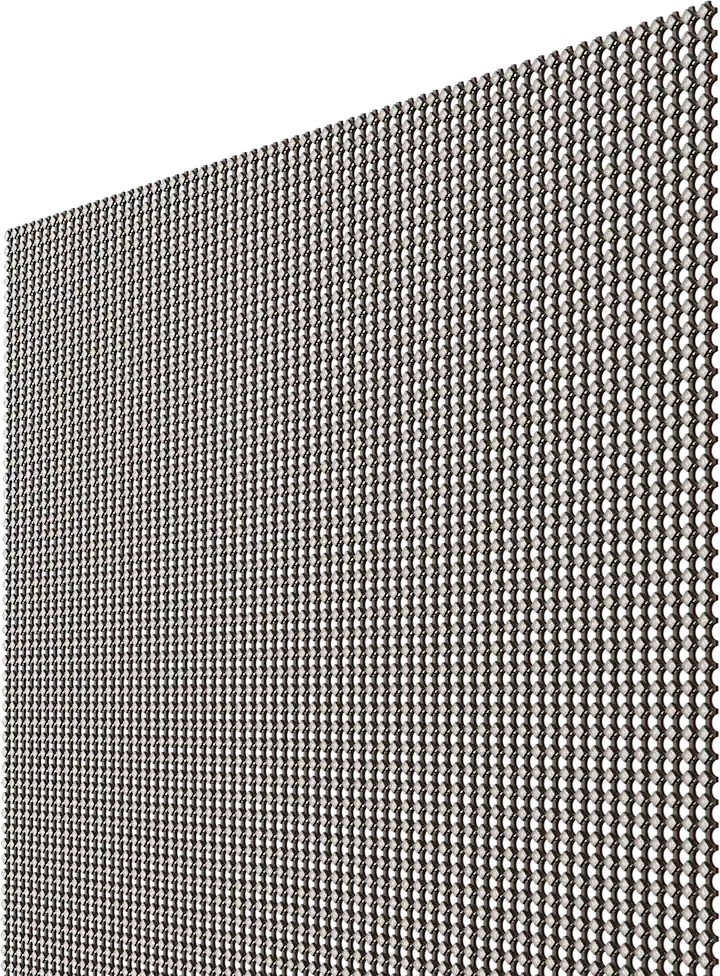

Each LED driver is encapsulated with it SMD LED. This process guarantees the highest transparency rate attained by a transparent LED screen to this date. This encapsulation allows to drastically diminish the space occupied by the electronic elements, offering a better visibility through your LED display.

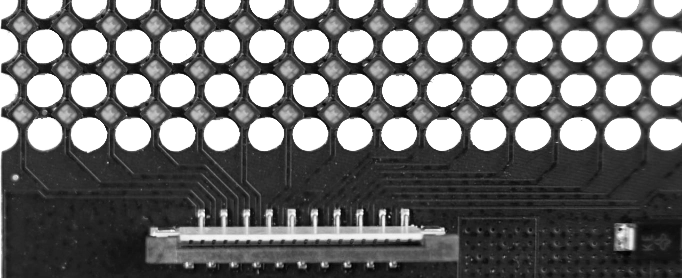

With its flexible rubber weaving and high transparency rate, the CALCITE 2.0 can fit any given glass surface, whether straight or curved. This LED film can be glued to the front or the back of the glass surface according to your project’s requirements.

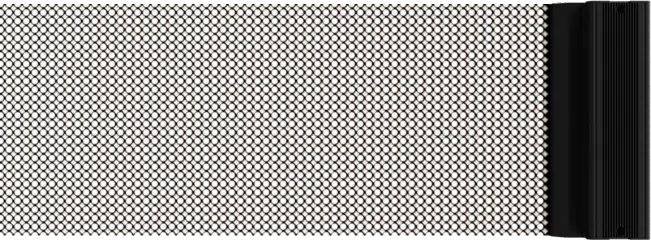

Even though the CALCITE 2.0’s IP doesn’t allow direct outdoor use, its brightness allows you to display visual content visible from the outside of your premises. This makes it ideal to enhance showcases and other glass surfaces toward the outside.
With its holographic render and high transparency, the CALCITE 2.0 is the ideal product to sublimate offices, museums, conference rooms, hotels, etc. Its great adaptability allows it to fit many projects, from the most traditional to the most ambitious ones.

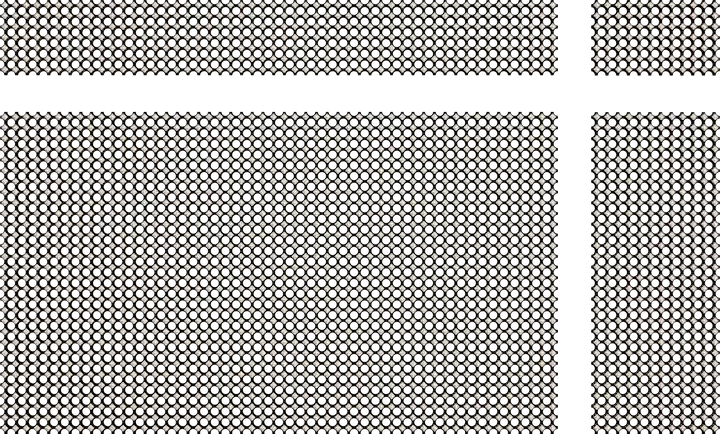

the CALCITE 2.0’s mesh can be cut horizontally and vertically to perfectly fit the surface you want to put it on. Furthermore, this product allows to create seamless transparent displays up to 3 meters tall.

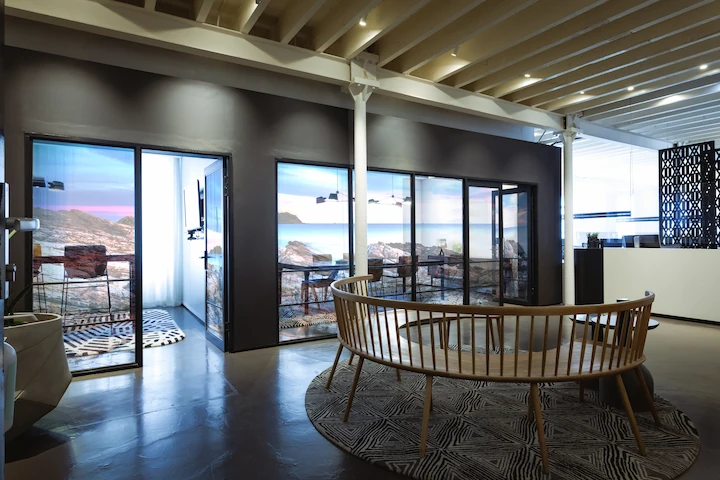

Even though it doesn’t have a mask, the CALCITE 2.0 has a high contrast ratio thanks to its encapsulated black face LEDs. This feature guarantees good visibility and great definition for your visual content, even on a transparent surface.
TRANSPARENTMediaCreativeRetailHigh EndFixed LED DisplayConference RoomControl RoomAirportTrain StationStoreHotelsPubRestaurantCafeMedical CenterHospitalStreetBankMovie TheaterShopping MallPharmarcyGas StationCar DealerOfficeArenaMuseumAquariumAdhesive LED FilmHigh Transparency
| INDOOR | ||||
| Product Parameters | Unit | 2.5 | 3.9 | 6.2 |
| Pixel Pitch | mm | 2,50 | 3,91 | 6,25 |
| LED | Custom SMD2121 4in1 (RGB + driver) | |||
| Application | Holographic transparent LED film | |||
| Ingress Protection | IP | IP20 | ||
| Brightness | cd/m² | ≤ 3000 Nits @5volts | ≤ 4000 Nits @5volts | ≤ 5000 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||
| Viewing Angle (50% brightness) | deg. | 160H / 160 V | ||
| Cabinet Size (WxHxD) | mm | 1200 x 125 x 65.7 | 1200 x 250 x 65.7 | 1500 x 250 x 65.7 |
| Display area (WxH) | mm | 1200 x 125 | 1200 x 250 | 1500 x 250 |
| Module Size (WxHxD) | mm | 1200 x 125 x 1.8 | 1200 x 250 x 1.8 | 1500 x 250 x 1.8 |
| Pixel Matrix Per Cabinet (WxH) | px | 480 x 50 | 307 x 64 | 240 x 40 |
| Pixel Matrix Per Module (WxH) | px | 480 x 50 | 307 x 64 | 240 x 40 |
| Pixel Density | px/m² | 160000 | 65536 | 25600 |
| Weight of cabinet | kg | 7 | 6 | 5 |
| Cabinet Material | Aeronautic grade aluminum | |||
| Maintenance Mode | Back & Front | |||
| Mask specification | Rubber + encapsulated PCB | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 14 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | AC100-240V | ||
| Max. Power Consumption | W/m² | 1200 | ||
| Average Power Consumption | W/m² | 500 | ||
| Control Mode | Synchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | DVI / SDI / HDMI / S-video / VGA | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 20 / 85 | |||
| Operating Temperature Range | 0 / 50 | |||
| Screen Uniformity Correction | Yes | |||
| Certification | CE / ETL / CCC | |||
| Available options | - | |||
| Compatibility | No | |||
