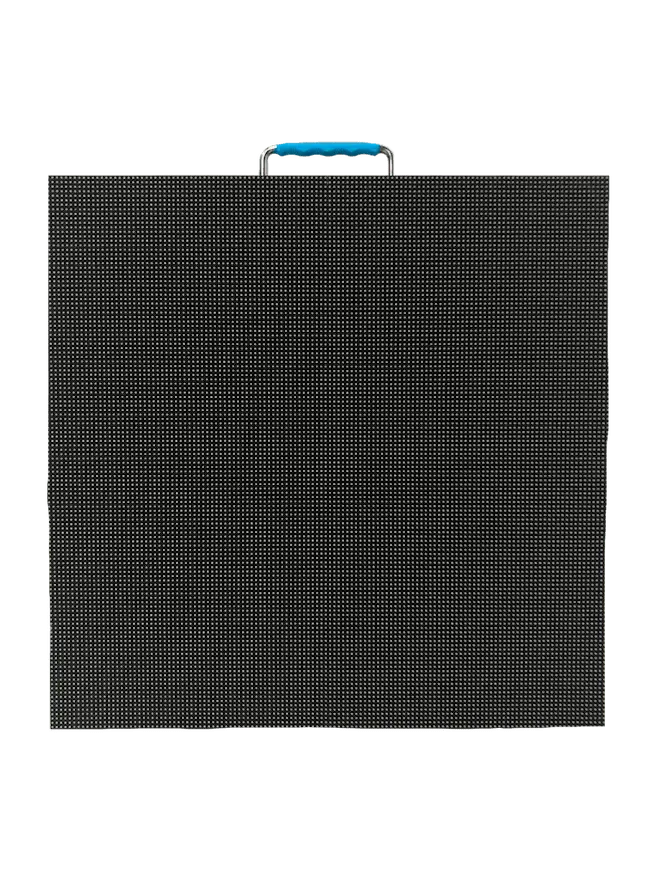

The PROTON 2.0 is our newborn solution for cost-effective fixed installations. This indoor and outdoor product is the perfect balance between simple engineering and optimized components. With a size of 500 x 500 x 83 mm and a weight of 8 to 14 kg, the PROTON 2.0 is the right product to make your fixed installation projects fast and easy.
Application
INDOOR OUTDOOR
PIXEL PITCH
P2.6 P2.9 P3.9 P4.8 P5.9

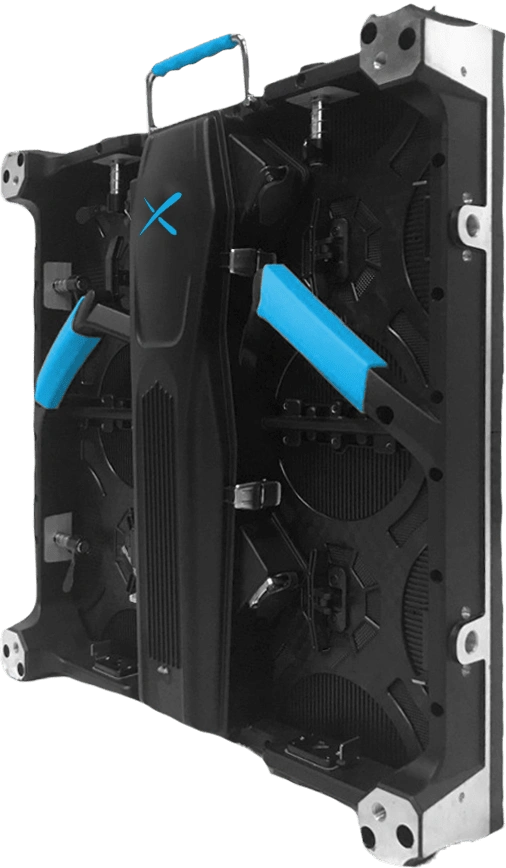

MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP41 (indoor) or IP44 optional with nanocoating
IP65 (outdoor)
Display Area (W X H)
500 x 500 mm
BRIGHTNESS
≤5500 Nits @5 Volts
WEIGHT
14 KG/cabinet (indoor)
8 KG/cabinet (outdoor)
MATERIAL
DIE-CASTING ALUMINUM

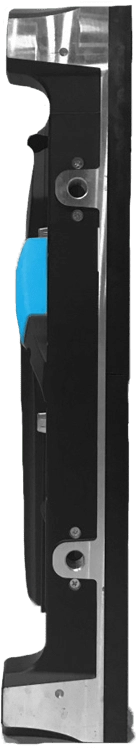

This option was designed to allow the PROTON 2.0 to be integrated at +/-10° curves. This tool-less feature doesn't require any additional accessories, it's directly integrated into the frame to save time during installation.

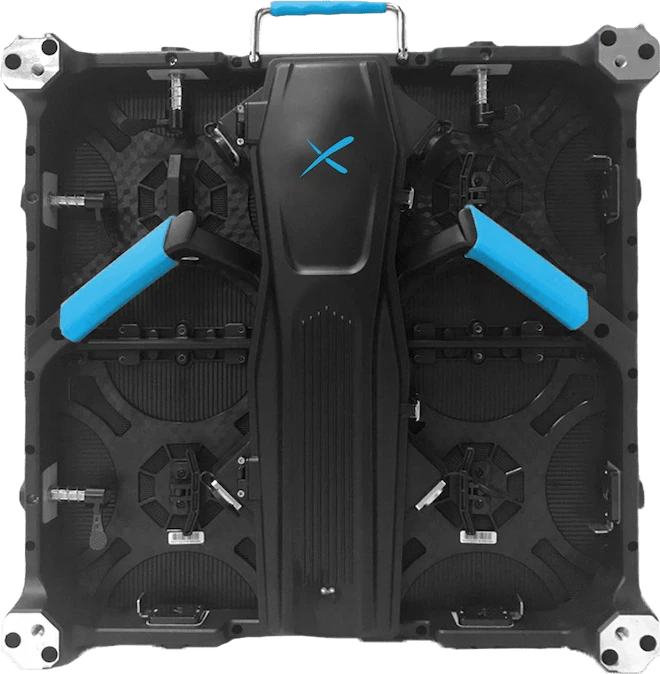

In addition to its remarkable features, the PROTON 2.0 was designed to be user-friendly. Weighing from 8 to 14 kg per cabinet and with a toolless locking system, the PROTON 2.0 installation process is done with ease.
The PROTON 2.0 is perfectly adapted to fixed applications. For this cost-effective product, we didn't compromise on the components or the quality of the features. However, the real added value of the PROTON 2.0 is its ability to be as suitable for fixed installation as well as for rental applications, allowing your fixed installation to be easily re-purposed as rental cabinets.
BACK MAINTENANCEIndoorOutdoorCurveMediaFixed LED DisplayDOOH
| INDOOR | OUTDOOR | |||||||
| Product Parameters | Unit | 2.6 | 2.9 | 3.9 | 2.9 | 3.9 | 4.8 | 5.9 |
| Pixel Pitch | mm | 2,60 | 2,98 | 3,91 | 2,98 | 3,91 | 4,81 | 5,95 |
| LED | SMD1515 3in1 (Black Face) | SMD1921 (Black Face) | SMD2727 3in1 (Black Face) | |||||
| Application | Media | |||||||
| Ingress Protection | IP | IP41 (IP44 optional with nanocoating) | IP65 | |||||
| Brightness | cd/sqm | ≤ 2000 Nits @5volts | ≤ 5500 Nits @5volts | |||||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||||||
| Cabinet Size (WxHxD) | mm | 500 x 500 x 87 | ||||||
| Display area (WxH) | mm | 500 x 500 | ||||||
| Module Size (WxHxD) | mm | 250 x 250 x 15 | 250 x 250 x 15 | |||||
| Pixel Matrix Per Cabinet (WxH) | px | 192 x 384 | 168 x 336 | 128 x 256 | 168 x 168 | 128 x 128 | 104 x 104 | 84 x 84 |
| Pixel Matrix Per Module (WxH) | px | 96 x 96 | 84 x 84 | 64 x 64 | 84 x 84 | 64 x 64 | 52 x 52 | 42 x 42 |
| Pixel Density | px/sqm | 147456 | 112896 | 65536 | 112896 | 65536 | 43264 | 28224 |
| Weight of cabinet | kg | 14 | 8 | |||||
| Cabinet Material | Die-casting aluminum | |||||||
| Maintenance Mode | Back | |||||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / No Shaders | |||||||
| Contrast Ratio | High | |||||||
| Grey scale (linear) | bit | 16 | ||||||
| Brightness control | bit | 16 | ||||||
| Processing depth | bit | 16 | ||||||
| Color | 281 Trillions | |||||||
| Display Refresh Rate | Hz | 3840 | ||||||
| Operation Power | V | AC85-230V | ||||||
| Max. Power Consumption | W/sqm | 480 | 560 | |||||
| Average Power Consumption | W/sqm | 190 | 220 | |||||
| Control Mode | Synchronization | |||||||
| Video Frame Rate | Hz | 50/60Hz | ||||||
| Input Types Supported | DVI / SDI / HDMI | |||||||
| 3D ready (optional) | Yes | |||||||
| Calibration | Yes | |||||||
| Lifetime (50% brightness) | h | 50000 | ||||||
| Operating Humidity Range | 10-95% | |||||||
| Operating Temperature Range | -10°C / +50°C | |||||||
| Screen Uniformity Correction | ||||||||
| Certification | ||||||||
