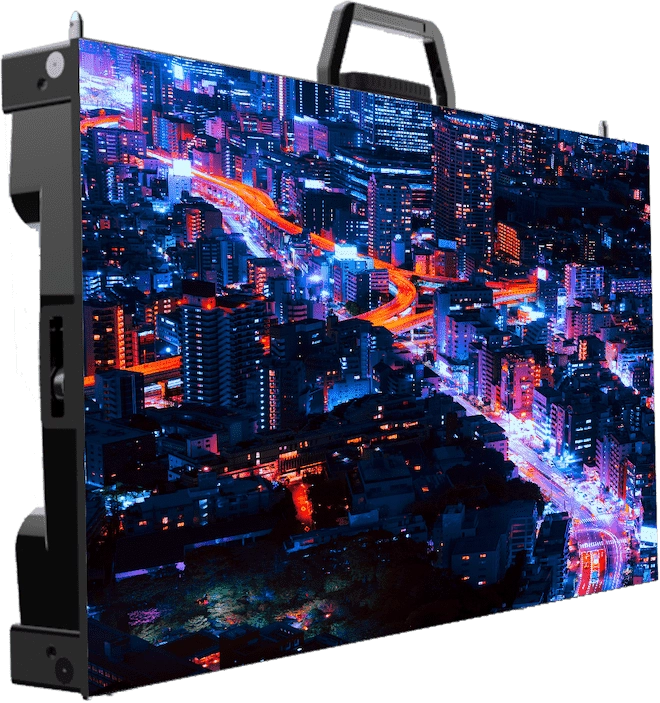

The TITANITE ranges from P0.9 to P1.9, which makes it one of the finest pixel pitches on the LED display market. It is extremely lightweight and is accessible from the front in order to be easy to integrate and maintain. This product is well suited for multiple applications that require a high-end LED display such as monitoring rooms, traffic control centers, or even private indoor cinemas.
Application
Indoor
PIXEL PITCH
P0.9 P1.2 P1.5 P1.9
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP30
Display Area (W X H)
609.92 X 343.08 MM
BRIGHTNESS
≤800 NITS @5 Volts
WEIGHT
6.5 KG/CABINET
MATERIAL
DIE CASTING ALUMINUM

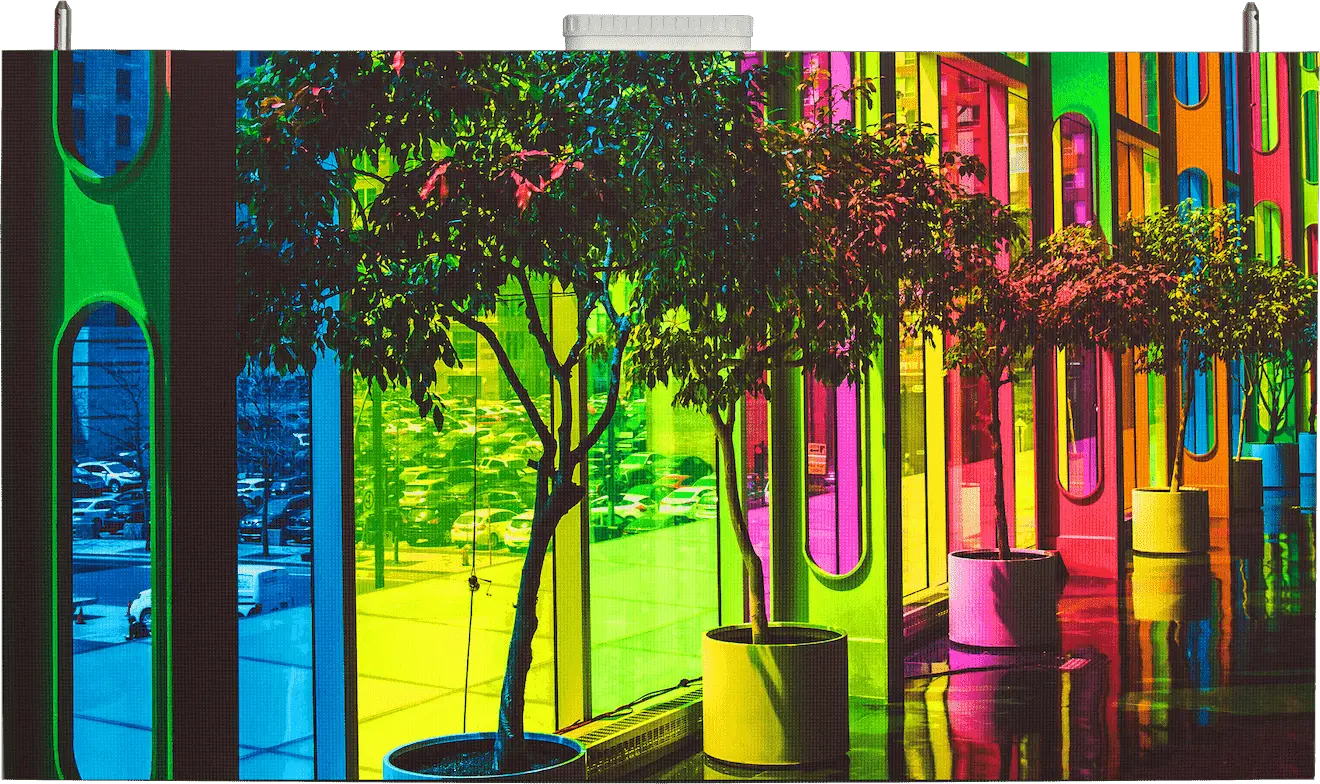

The TITANITE is built to a perfect 16:9 golden ratio, which is the best way to achieve an HD or even UHD resolution. Depending on the number of cabinets and their layout, you can stream 2k, 4k, and 8k with ease, this potential being maximized by the range of extremely fine pixel pitches offered by the TITANITE. Buying the TITANITE means investing in the highest display quality on the market.

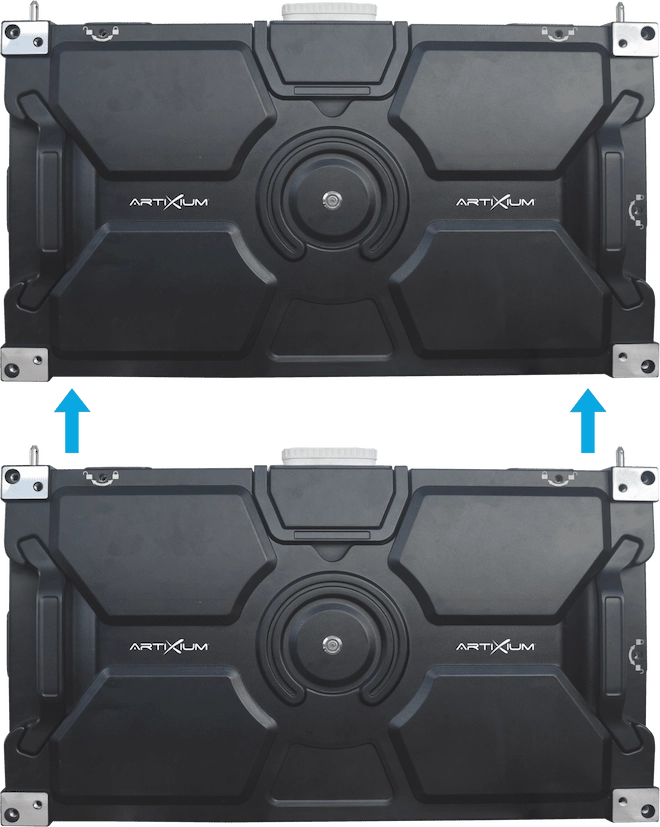

The TITANITE's features were meant to greatly facilitate its integration. It comes with user-friendly handles, integrated connectors, and kingpins that make the assembly of multiple cabinets an easy task. Furthermore, the 6.5kg cabinet weight means it can easily be manipulated and integrated by a single technician.

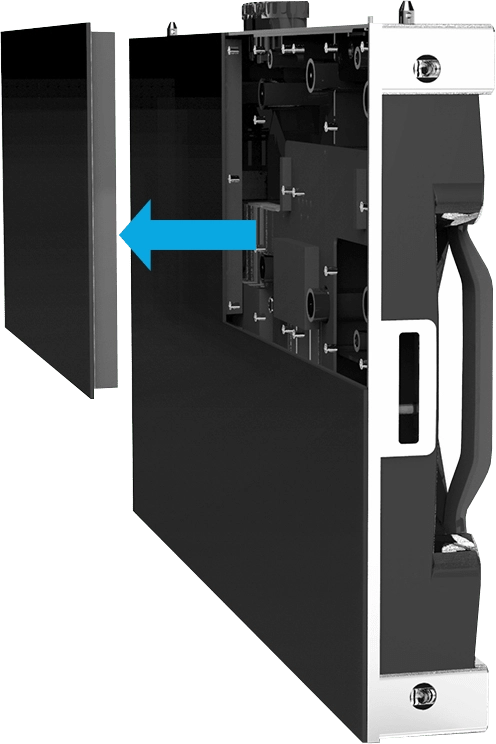

The TITANITE's maintenance is easily operated by one technician from the front with a T-shaped handle. This makes this product ideal for wall applications that don't allow access from the back. Therefore, the TITANITE is well suited for interior garnishing as well as for other wall projects such as headquarters, trading floors, and many more.
INDOORFront MaintenanceFine PitchMediaRetailHigh EndFixed LED DisplayConference RoomControl RoomUltra HDTitanite
| INDOOR | |||||
| Product Parameters | Unit | 0.9 | 1.2 | 1.5 | 1.9 |
| Pixel Pitch | mm | 0,95 | 1,27 | 1,59 | 1,91 |
| LED | SMD0606 3in1 (Full Black Face) | SMD1010 3in1 (Full Black Face) | SMD1515 3in1 (Full Black Face) | ||
| Application | Media UHD | ||||
| Ingress Protection | IP | IP30 | |||
| Brightness | cd/sqm | ≤ 800 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 160 H / 120 V | |||
| Cabinet Size (WxHxD) | mm | 609.92 x 343.08 x 80 | |||
| Display area (WxH) | mm | 609.92 x 343.08 | |||
| Module Size (WxHxD) | mm | 304.96 x 171.54 x 15 | |||
| Pixel Matrix Per Cabinet (WxH) | px | 640 x 360 | 480 x 270 | 384 x 216 | 320 x 180 |
| Pixel Matrix Per Module (WxH) | px | 160 x 180 | 120 x 135 | 96 x 108 | 80 x 90 |
| Pixel Density | px/sqm | 1101068 | 619351 | 396385 | 275267 |
| Weight of cabinet | kg | 6.5 | |||
| Cabinet Material | Die-casting aluminum | ||||
| Maintenance Mode | Front | ||||
| Mask specification | No Mask, Truly Black PCBA | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 14 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC85-230V | |||
| Max. Power Consumption | W/sqm | 620 | 600 | 550 | 600 |
| Average Power Consumption | W/sqm | 260 | 250 | 220 | 250 |
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-90% | ||||
| Operating Temperature Range | -20°C / +50°C | ||||
| Screen Uniformity Correction | - | ||||
| Certification | CE / ETL / CCC | ||||
| Available options | Nanocoating, hanging bars | ||||
| Compatibility | No | ||||
