The MOONSTONE represents the latest addition to our FACADE range, specifically designed for large-scale outdoor projects. With its high brightness and wide 50mm pitch, it stands out particularly in LED display applications on extensive surfaces. Its exceptional flexibility makes it a suitable choice for a variety of shapes and configurations of outdoor surfaces. With an IP65 ingress protection, this product is perfectly equipped to withstand all weather conditions, ensuring flawless performance even in challenging environments.
Application
OUTDOOR
PIXEL PITCH
P50
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
400 x 5000 mm
BRIGHTNESS
≤ 6500 NITS
WEIGHT
7 kg/m²
MATERIAL
PVC + Rubber

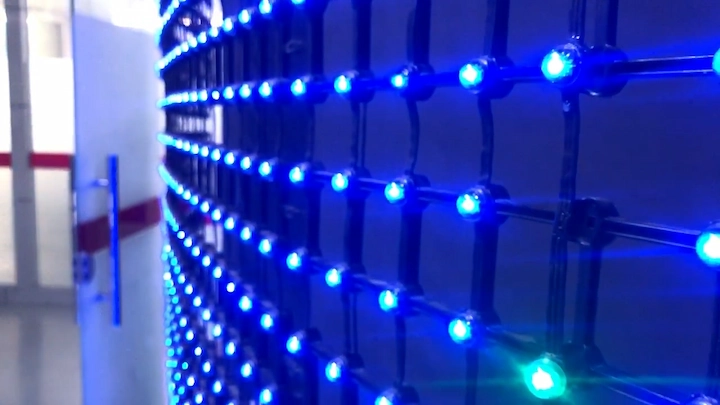

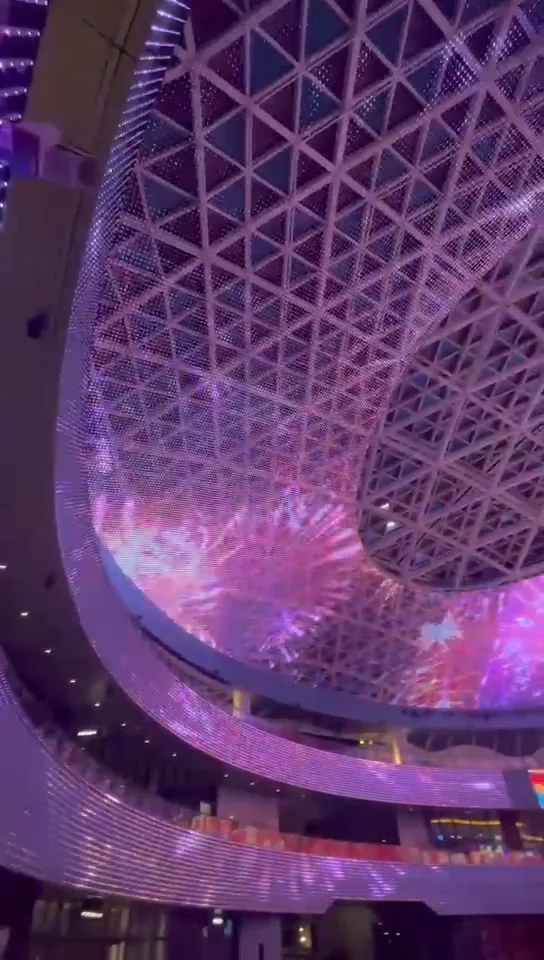

Thanks to its design, which involves connecting strips of LED capsules using detachable PVC bars, the MOONSTONE can achieve any size or shape according to your requirements. With its high flexibility, your screen will be suitable for attaching to any buildings you desire.

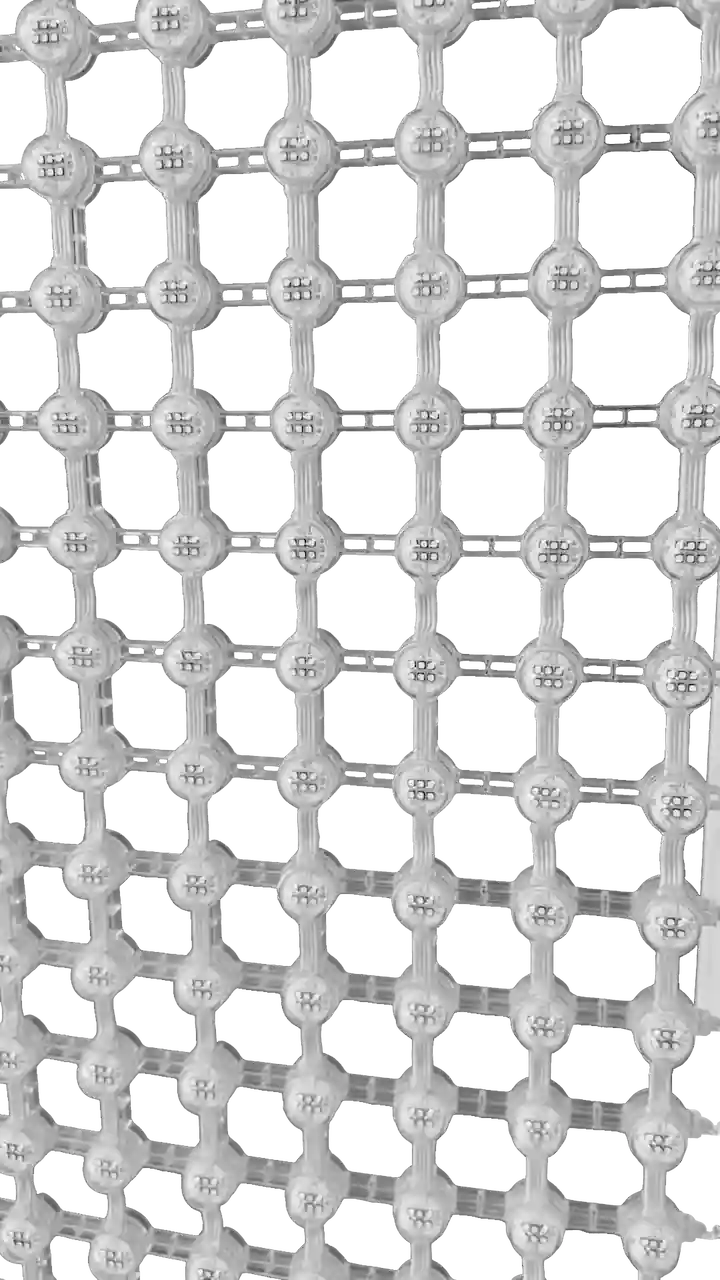

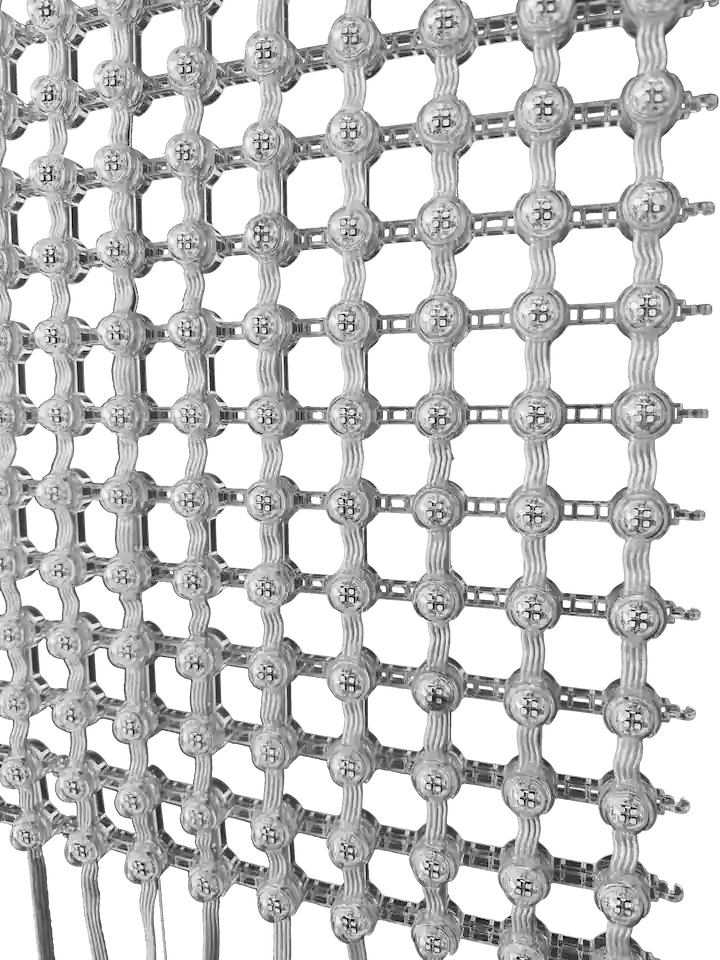

In order to enhance image quality and brightness, the MOONSTONE encapsulates SMD2727 LEDs in groups of 6. These are protected from the elements by a transparent PVC capsule in a dome shape, which diffuses the lights from the LEDs to increase the visibility of your giant screen.

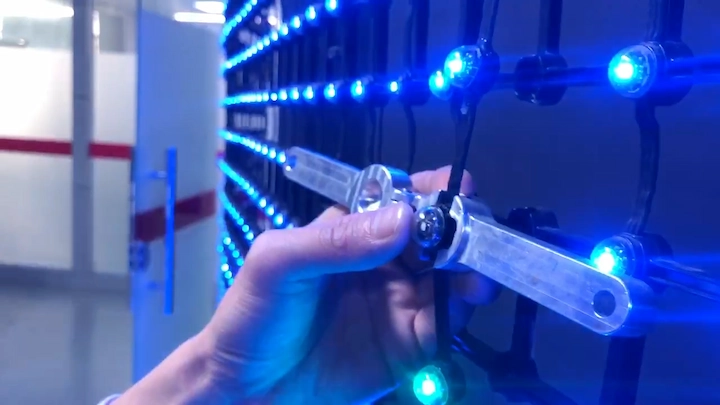

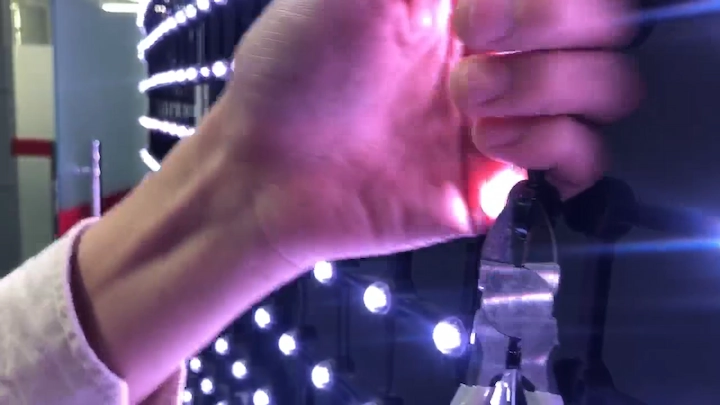

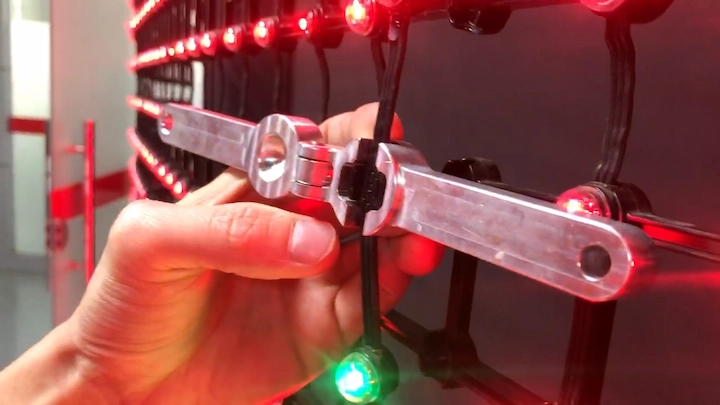

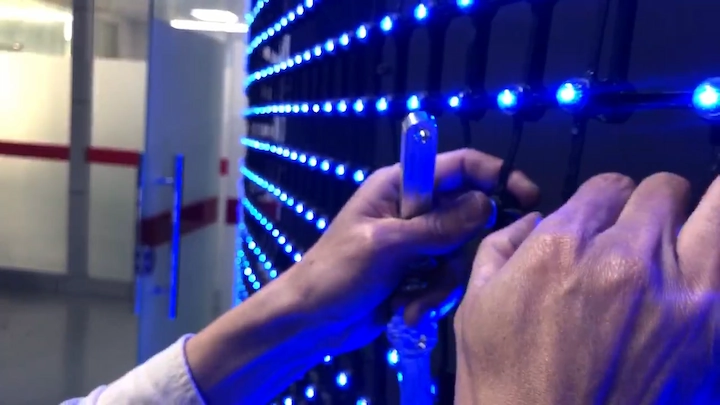

The replacement of a defective capsule takes less than a minute, whether from the front or the back of your setup. This operation is performed with an easy-to-use tool, specially designed to simplify the process.
MEDIAHigh ResistanceRetailFixed LED DisplayHotelsPubShopping MallFlexibleMedia Outdoor FacadeWaterproofTailored LED ApplicationOutdoorRobust LED DisplayHigh BrightnessMoonstoneFacadeFlexibility6 LEDs Per Capsule
| OUTDOOR | ||
| Product Parameters | Unit | 50 |
| Pixel Pitch | mm | 50,00 |
| LED | 6 x SMD2727 | |
| Application | Outdoor facade | |
| Ingress Protection | IP | IP65 |
| Brightness | cd/m² | ≤ 6500 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 140 H / 110 V |
| Display Area (WxH) | mm | 400 x 5000 x 8 |
| Cabinet Size (WxHxD) | mm | 400 x 5000 |
| Module Size (WxHxD) | mm | No module |
| Pixel Matrix Per Cabinet (W x H) | px | 8 x 100 |
| Pixel Matrix Per Module (W x H) | px | No module |
| Pixel Density | px/m² | 400 |
| Weight of cabinet | kg | 7 |
| Cabinet Material | PVC + Rubber | |
| Maintenance Mode | Front & back | |
| Mask specification | Transparent PVC capsule | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Billions | |
| Display Refresh Rate | Hz | 1920 |
| Operation Power | V | AC85-230V |
| Max. Power Consumption | W/m² | 600 |
| Average Power Consumption | W/m² | 200 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-90% | |
| Operating Temperature Range | -20°C / +50°C | |
| Screen Uniformity Correction | ||
| Certification | CE / RoHS |
