  3. Palladium
  • Application

    OUTDOOR

  • PIXEL PITCH

    P1 P1.2 P1.5 P1.8 P2 P2.5

  • OPTION
    90

Overview

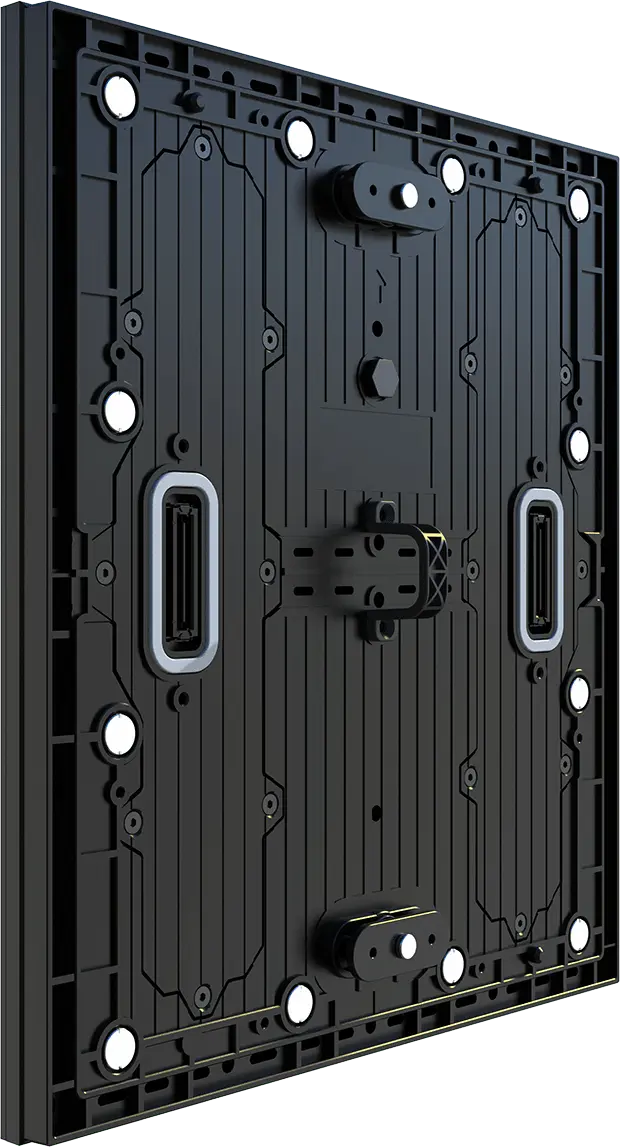

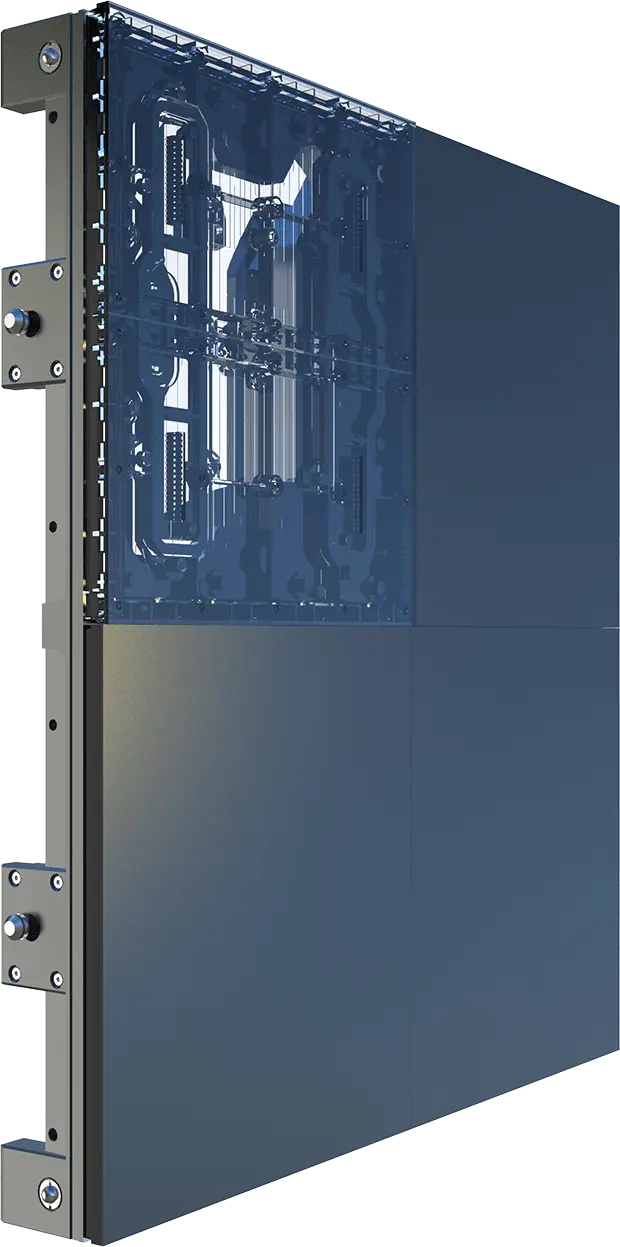

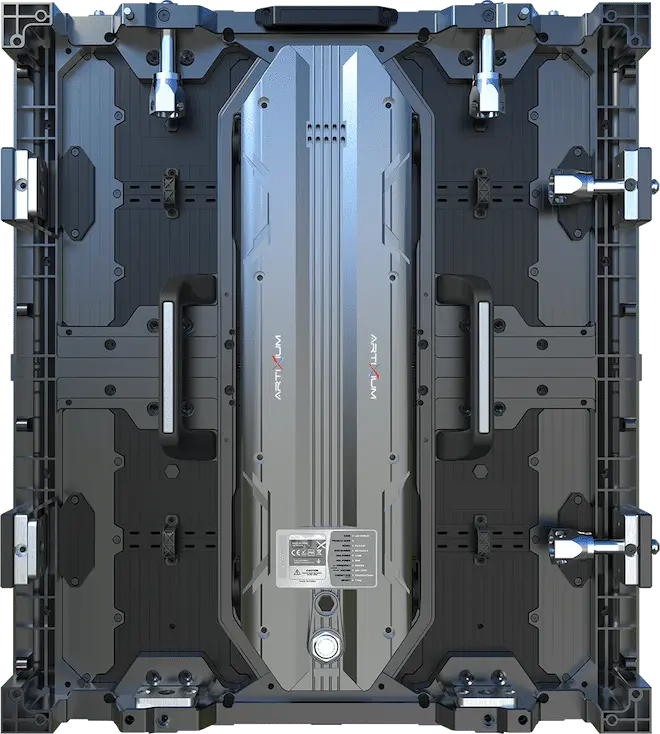

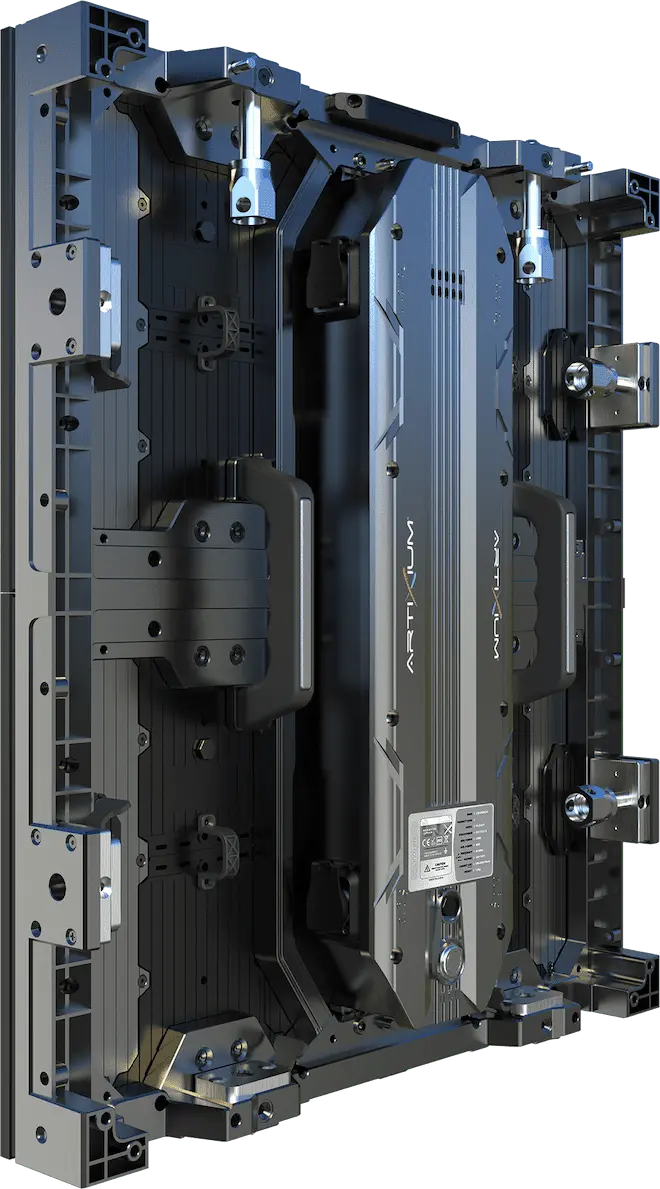

The PALLADIUM is our newest Ultra HD LED cabinet dedicated to outdoor applications. With its front and back maintenance system, this product can accommodate most LED screen projects without any issue. This LED cabinet is the first on the market to offer ultra-fine pixels pitches for outdoor applications. In most cases, outdoor LED screens rely on the viewing distance to compensate for larger pixel pitches, but with the PALLADIUM you can create an outdoor display that will retain a high definition at a short viewing distance.

  • Application
    OUTDOOR

  • PIXEL PITCH
    P1 P1.2 P1.5 P1.8 P2 P2.5

  • MAINTENANCE
    Back & Front Maintenance

  • INGRESS PROTECTION
    IP65 (Front)
    IP54 (Rear)

  • Display Area (W X H)
    480 x 540 mm

  • BRIGHTNESS
    ≤ 4000 Nits @5volts

  • WEIGHT
    9 kg / CABINET

  • MATERIAL
    DIE-CASTING ALUMINUM

FEATURES

16:9 GOLDEN RATIO

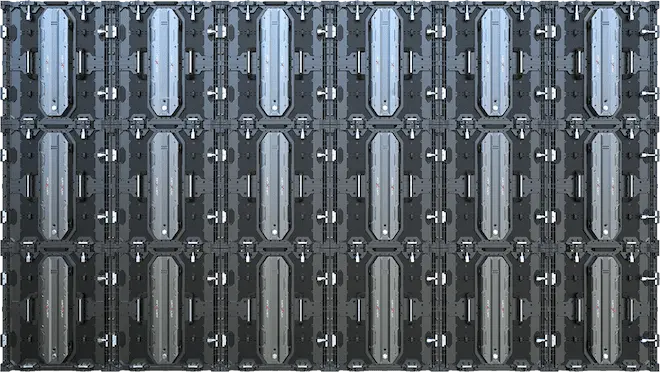

The PALLADIUM was specially designed to easily attain a 16:9 ratio. Paired with its ultra-fine pixel pitch, this property makes it extremely easy for you to create a 2K to 8K giant LED screen. This LED cabinet is a high-end product, suited for the utmost prestigious LED display projects.

FRONT & BACK MAINTENANCE

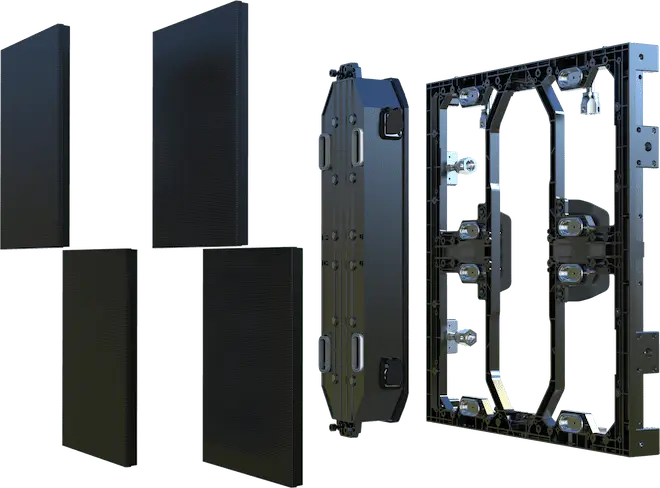

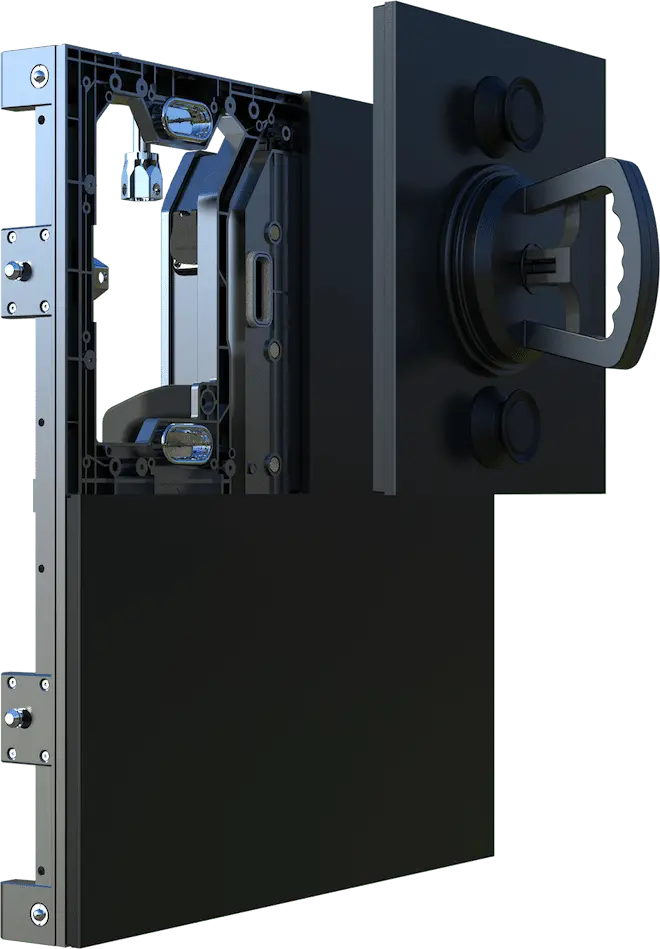

To maximize its adaptability to any LED screen project, the PALLADIUM is fully accessible from the front, by removing the magnetic modules, or from the back. Both these processes are easy and fast to operate and can be managed by one technician.

MICRO X TECHNOLOGY

The PALLADIUM is, with the IRIDIUM, the first LED cabinet on the market to offer an ultra-fine pixel pitch for outdoor applications, thanks to the Micro X LEDS. These LEDS are the latest technology available, with high resistance, high brightness, wide color gamut, anti-reflection treatment, high contrast ratio. For outdoor LED screens, the Micro X technology is the best you can get.

FAST & EASY INTEGRATION

Some of the PALLADIUM’s features were directly inspired by our Event Pro Touring range to facilitate its integration process. Each cabinet is lightweight enough to be managed by one person, it comes with cabinet and module handles, toolless locking systems, magnetic front access modules, etc. The installation could even be quickly managed by only one technician.

Certifications

BACK MAINTENANCEOutdoorFront Maintenance90 DegreesFine PitchLarge Scale LED DisplayMediaHigh EndFixed LED DisplayWall ApplicationMagnetic ModuleTailored LED ApplicationUltra HDPalladium

Technical Specifications

    OUTDOOR
Product Parameters Unit 1 1.2 1.5 1.8 2.0 2.5
Pixel Pitch mm 1,00 1,25 1,50 1,88 2,00 2,50
LED   MicroX
Application   Outdoor Ultra HD LED cabinet
Ingress Protection IP IP65 (front) / IP54 (back)
Brightness cd/sqm ≤ 4000 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 160 H / 160 V
Cabinet Size (WxHxD) mm 511.5 x 576.4 x 87.6
Display area (WxH) mm 480 x 540
Module Size (WxHxD) mm 240 x 270 x 13
Pixel Matrix Per Cabinet (WxH) px 480 x 540 384 x 432 320 x 360 256 x 288 240 x 270 192 x 216
Pixel Matrix Per Module (WxH) px 240 x 270 192 x 216 160 x 180 128 x 144 120 x 135 96 x 108
Pixel Density px/sqm 1000000 640000 444444 284444 250000 160000
Weight of cabinet kg 9
Cabinet Material   Die-casting aluminum
Maintenance Mode   Front and back (tools required for front)
Mask specification   95% Plastic + 5% Fiber / SS Screws / Shaders
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Display Refresh Rate Hz 3840
Operation Power V AC100-240V
Max. Power Consumption W/sqm 680W/sqm
Average Power Consumption W/sqm
Control Mode   Synchronization
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
3D ready (optional)   yes
Calibration   yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-95%
Operating Temperature Range
Screen Uniformity Correction   -
Certification   CE / ETL / CCC

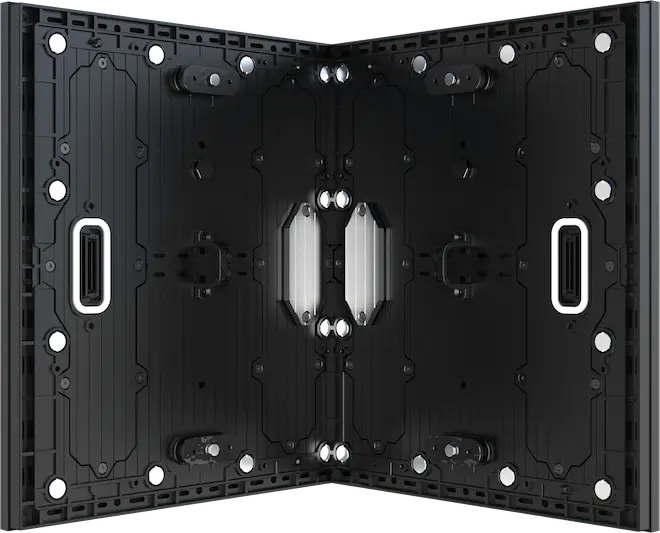

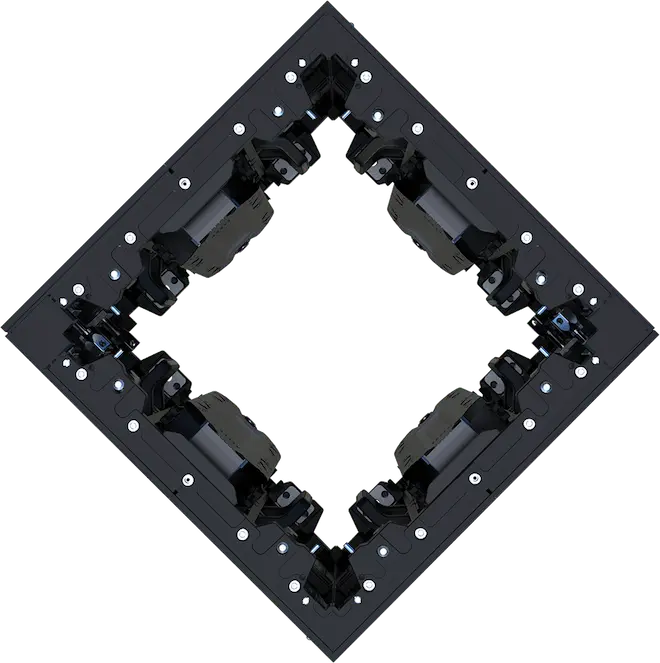

Available options   90° angles
Compatibility    -

Compatible accessories

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter

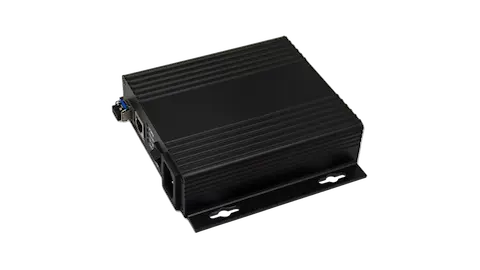

CVT320
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case

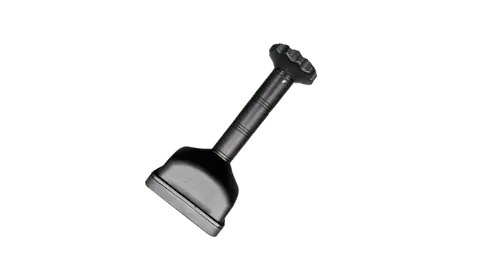

MAGNET TOOL
Magnet tool
Request a quotation
*
*
*
*
    OUTDOOR Product Parameters Unit 1 1.2 1.5 1.8 2.0 2.5 Pixel Pitch mm 1,00 1,25 1,50 1,88 2,00 2,50 LED   MicroX Application   Outdoor Ultra HD LED cabinet Ingress Protection IP IP65 (front) / IP54 (back) Brightness cd/sqm ≤ 4000 Nits @5volts Color Temperature after calib (adjustable) deg. K 6500 Viewing Angle (50% brightness) deg. 160 H / 160 V Cabinet Size (WxHxD) mm 511.5 x 576.4 x 87.6 Display area (WxH) mm 480 x 540 Module Size (WxHxD) mm 240 x 270 x 13 Pixel Matrix Per Cabinet (WxH) px 480 x 540 384 x 432 320 x 360 256 x 288 240 x 270 192 x 216 Pixel Matrix Per Module (WxH) px 240 x 270 192 x 216 160 x 180 128 x 144 120 x 135 96 x 108 Pixel Density px/sqm 1000000 640000 444444 284444 250000 160000 Weight of cabinet kg 9 Cabinet Material   Die-casting aluminum Maintenance Mode   Front and back (tools required for front) Mask specification   95% Plastic + 5% Fiber / SS Screws / Shaders Contrast Ratio   High Grey scale (linear) bit 16 Brightness control bit 16 Processing depth bit 16 Color   281 Trillions Display Refresh Rate Hz 3840 Operation Power V AC100-240V Max. Power Consumption W/sqm 680W/sqm Average Power Consumption W/sqm   Control Mode   Synchronization Video Frame Rate Hz 50/60Hz Input Types Supported   DVI / SDI / HDMI 3D ready (optional)   yes Calibration   yes Lifetime (50% brightness) h 50000 Operating Humidity Range   10-95% Operating Temperature Range     Screen Uniformity Correction   - Certification   CE / ETL / CCC Available options   90° angles Compatibility    - ">

MORE PRODUCTS

CATEGORY

Application

MAINTENANCE MODE

PIXEL PITCH

TO

OPTION

Clear
DOWNLOAD BROCHURE SEE ALL
90

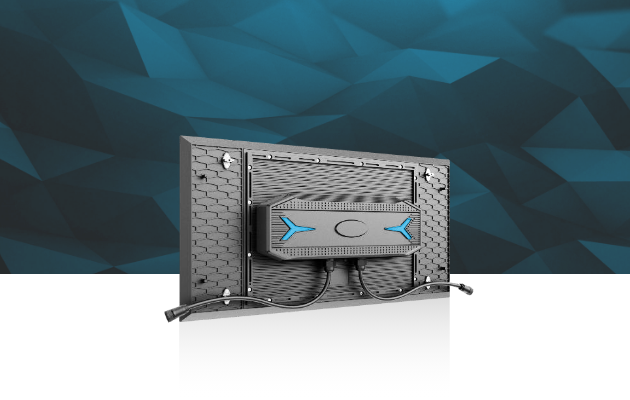

Axxion600 2.0

Outdoor

P4.7 P9.5

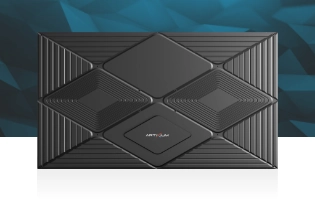

Cadmium

Indoor

P0.6 P1.3

C

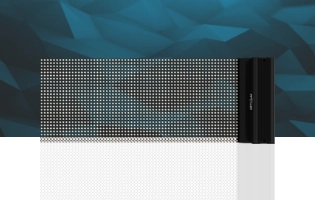

Calcite 2.0

Indoor

P2.5 P6.2

90

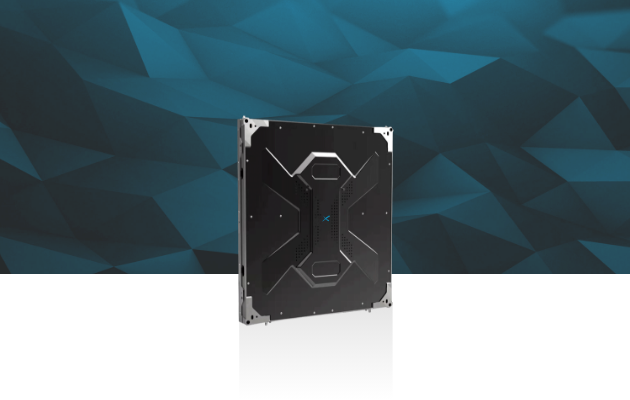

Citrine

Indoor

P1.2 P2.5

C
90

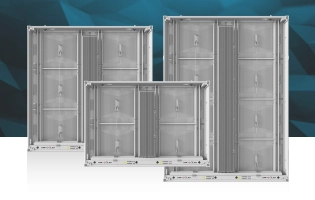

Cobalt

Outdoor

P5.7 P10

C

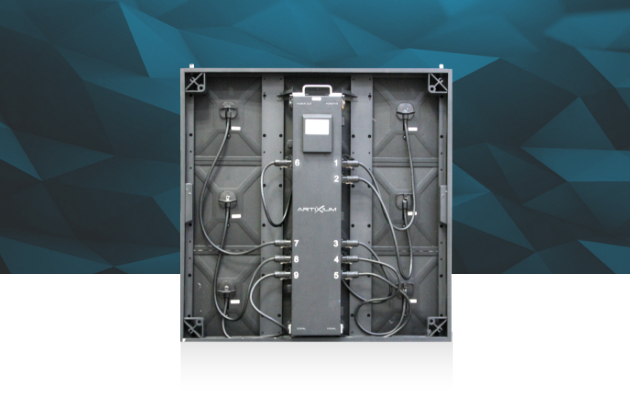

Diamond

Outdoor

P4.2 P10

F

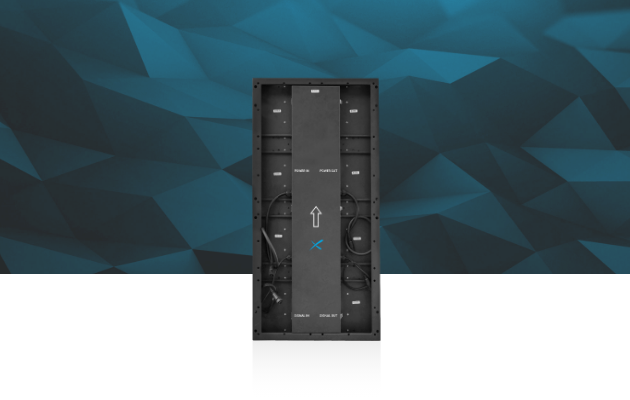

Diaspore

INDOOR OUTDOOR

P2.9 P6.2

F

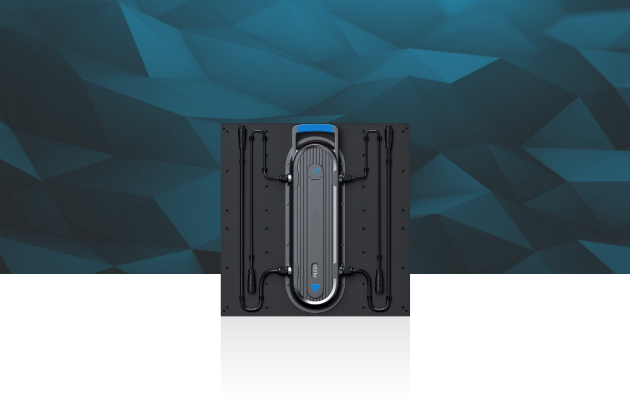

Diaspore Mini

INDOOR OUTDOOR

P2.9 P6.2

90

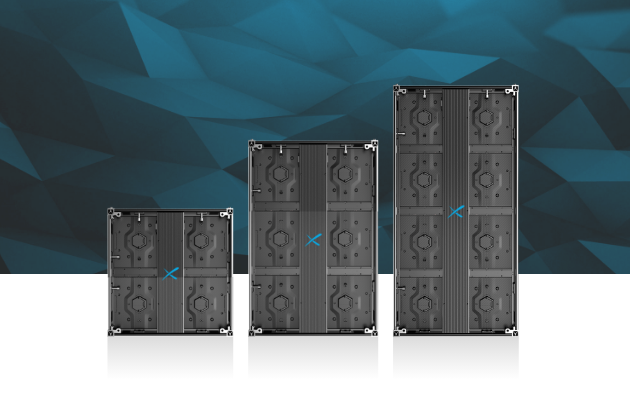

Granite

Indoor

P1.9 P3.9

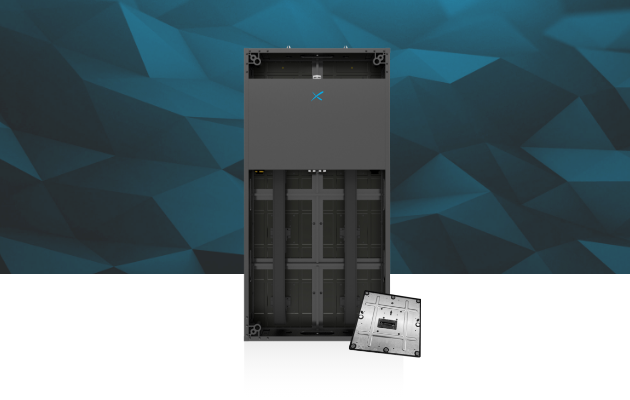

Grenat

Outdoor

P2.6

C
90

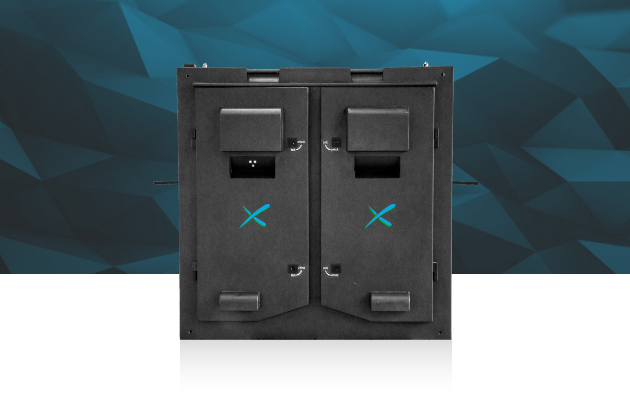

Hydrogen

INDOOR OUTDOOR

P3 P10

C

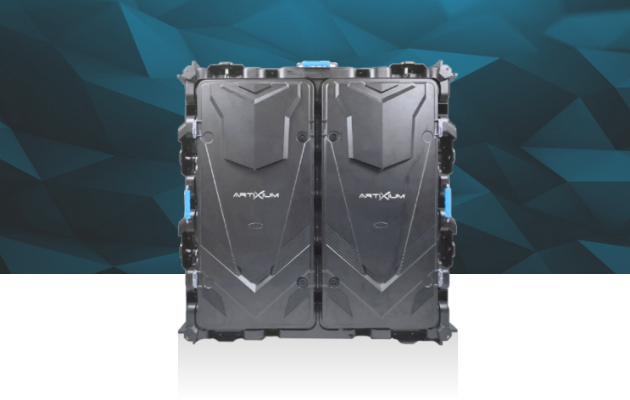

Hydrogen Ultra Slim

INDOOR OUTDOOR

P4 P10

90
F

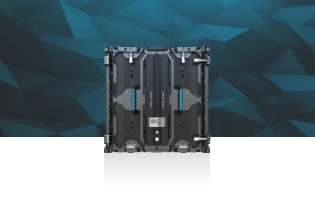

Iridium

Outdoor

P1.5 P3.9

C

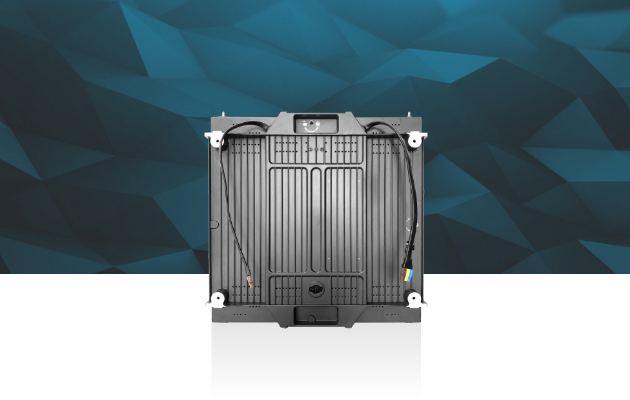

Iron 2.0

Indoor

P1.9 P3.9

C
Khalx

Indoor

P6.5 P10

C

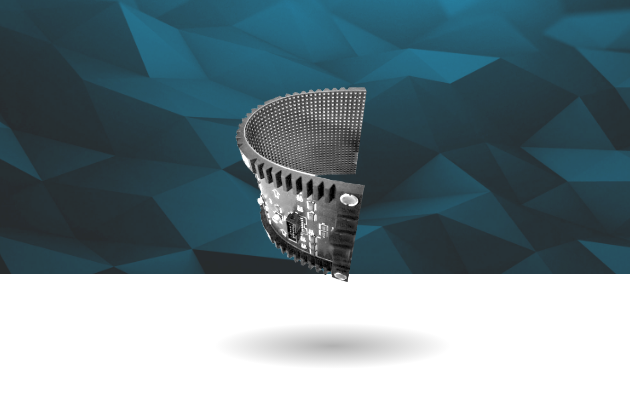

Mica

Indoor

P1.8 P5

C

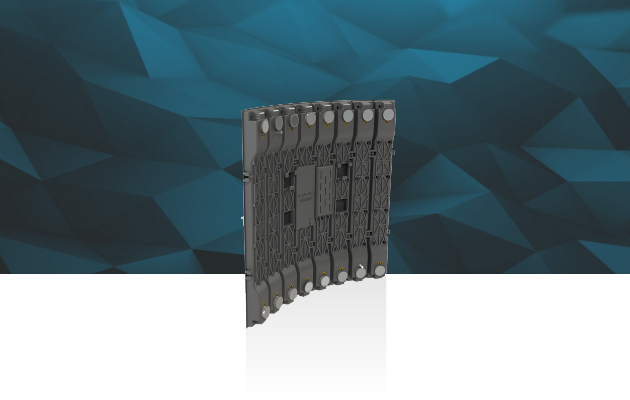

Mica Plus

INDOOR OUTDOOR

P1.2 P6.6

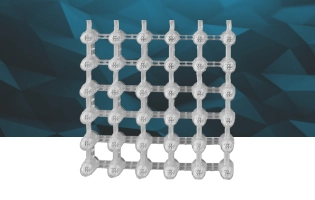

Moonstone

Outdoor

P50

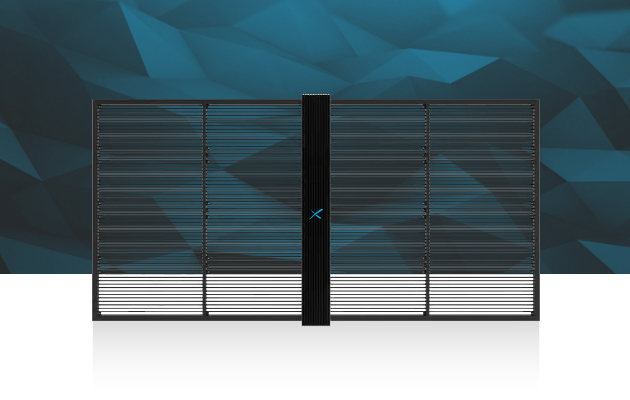

Neon

Indoor

P1.9a3.9 P10.4

C

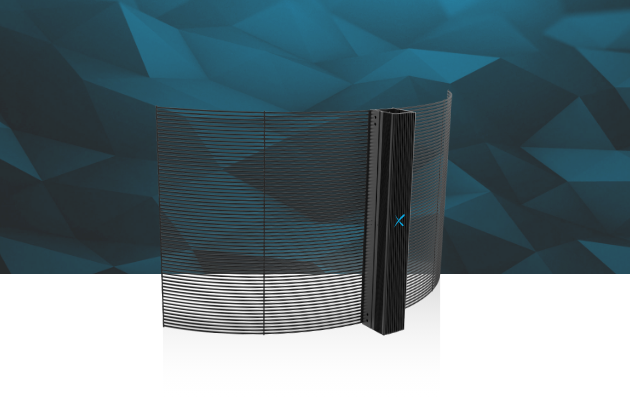

Neon Curve

Indoor

P2.8a5.6 P10.4

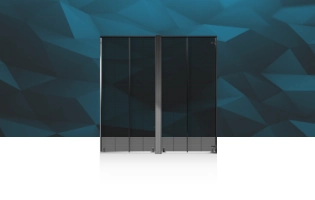

Neon HD

Indoor

P2.6 P3.9

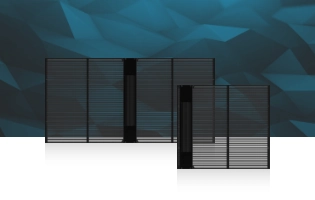

Neon Outdoor

Outdoor

P3.9a7.8 P10.4

C

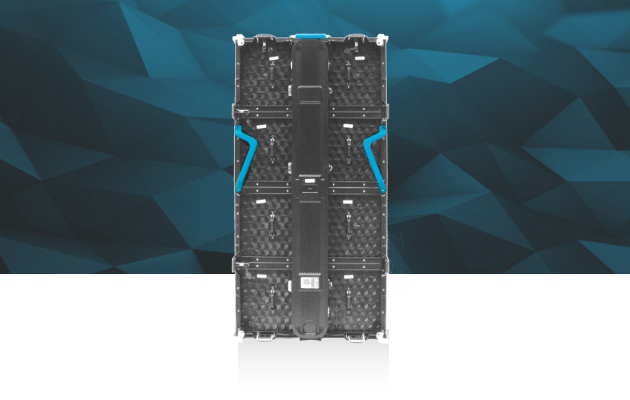

Neutron

INDOOR OUTDOOR

P2.6 P6.2

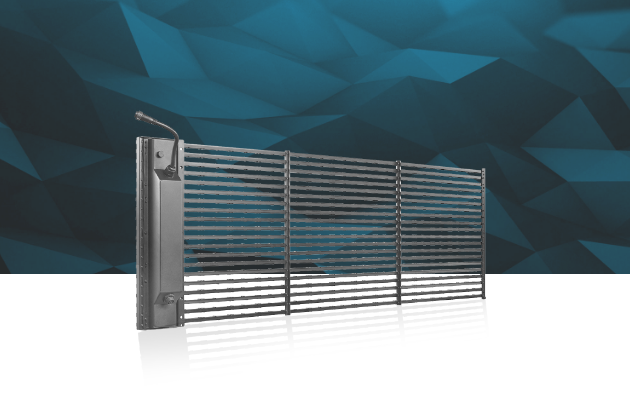

Nitrogen

Outdoor

P15.6a31.2 P25a50

F
Opal

Indoor

P2.6 P6.2

C
Oxygen

Outdoor

P30.9 P61.8

90

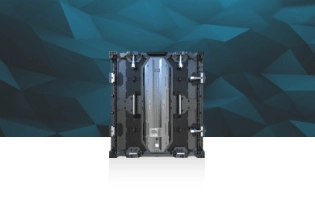

Palladium

Outdoor

P1 P2.5

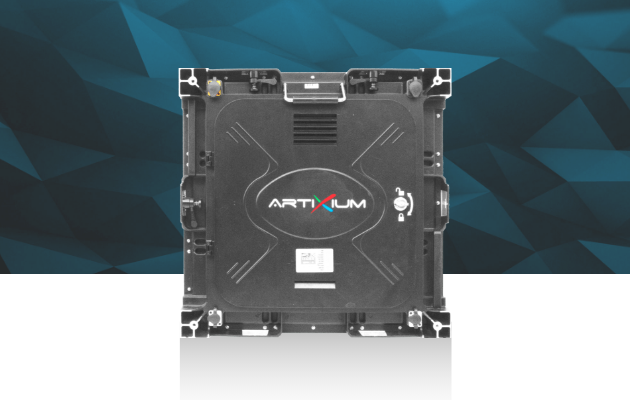

Photon

INDOOR OUTDOOR

P3 P6

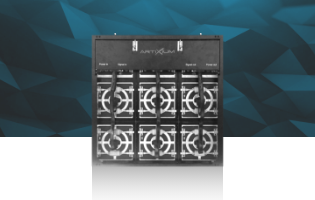

Platinum

Outdoor

P5.3 P10

C

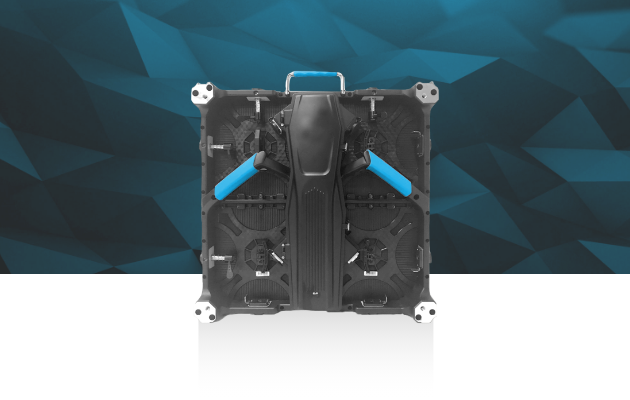

Proton 2.0

INDOOR OUTDOOR

P2.6 P5.9

90

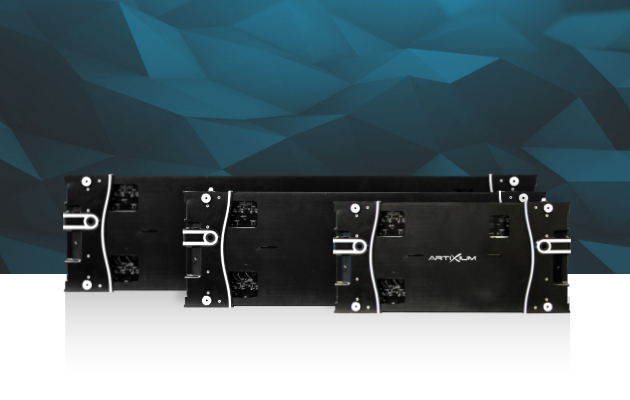

Qwartz

Indoor

P1.9 P4.8

C
90

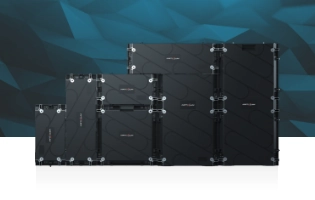

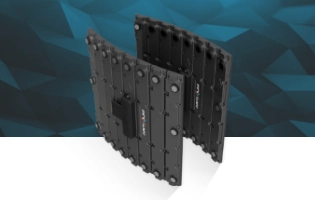

Qwartz 2.0

Indoor

P1.5 P5.9

C
90

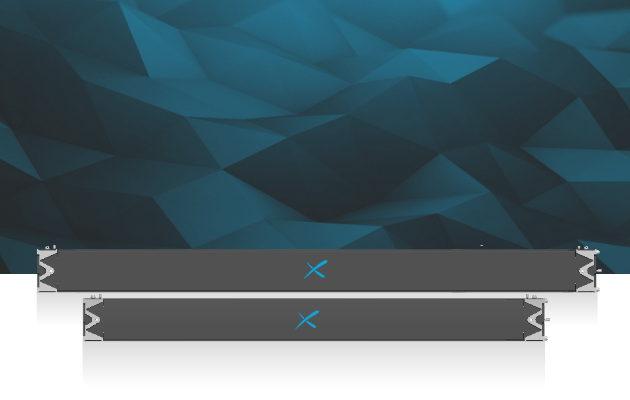

Qwartz Mini

Indoor

P1.9

90

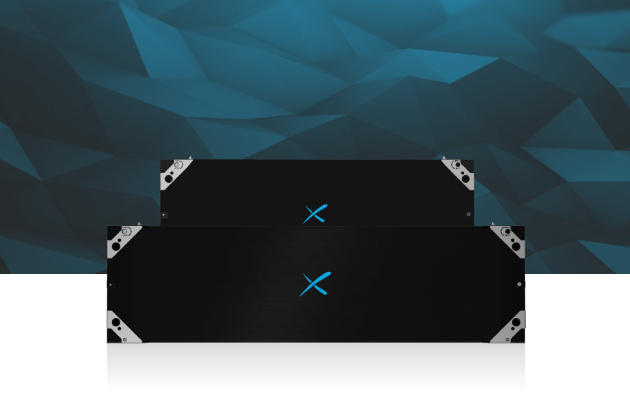

Qwartz Ultra Slim

Indoor

P1.5 P3.9

90

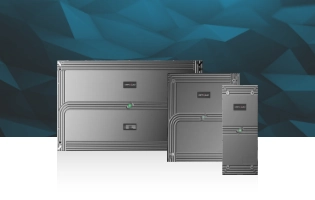

Qwartz Ultra Slim 2.0

Indoor

P1.5 P3.9

90
Qwartz Ultra Slim 3.0

Indoor

P1.9 P2.6

Silicium

Outdoor

P1.9 P2.9

C
90

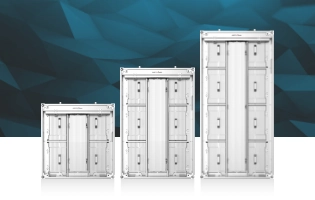

Thorite 2.0

Outdoor

P2.9 P4.8

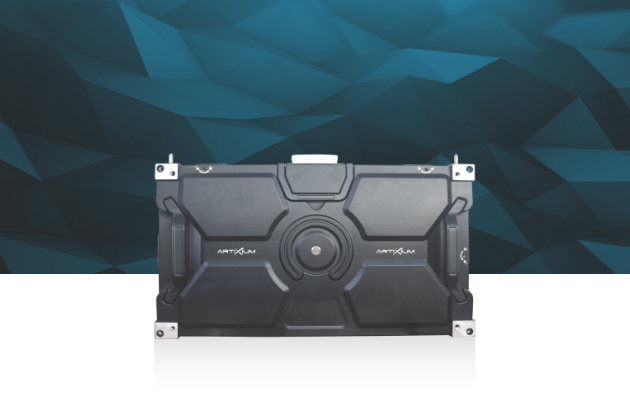

Titanite

Indoor

P0.9 P1.9

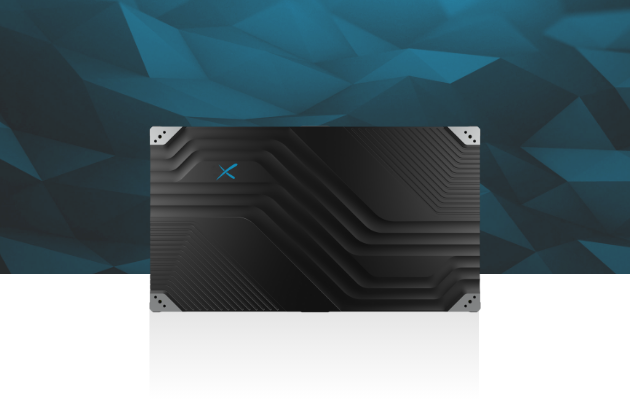

Titanite 2.0

Indoor

P1.2 P1.8

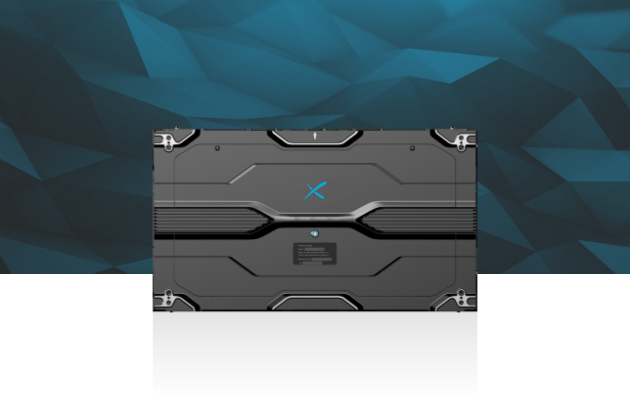

Titanium 2.0
