Overview

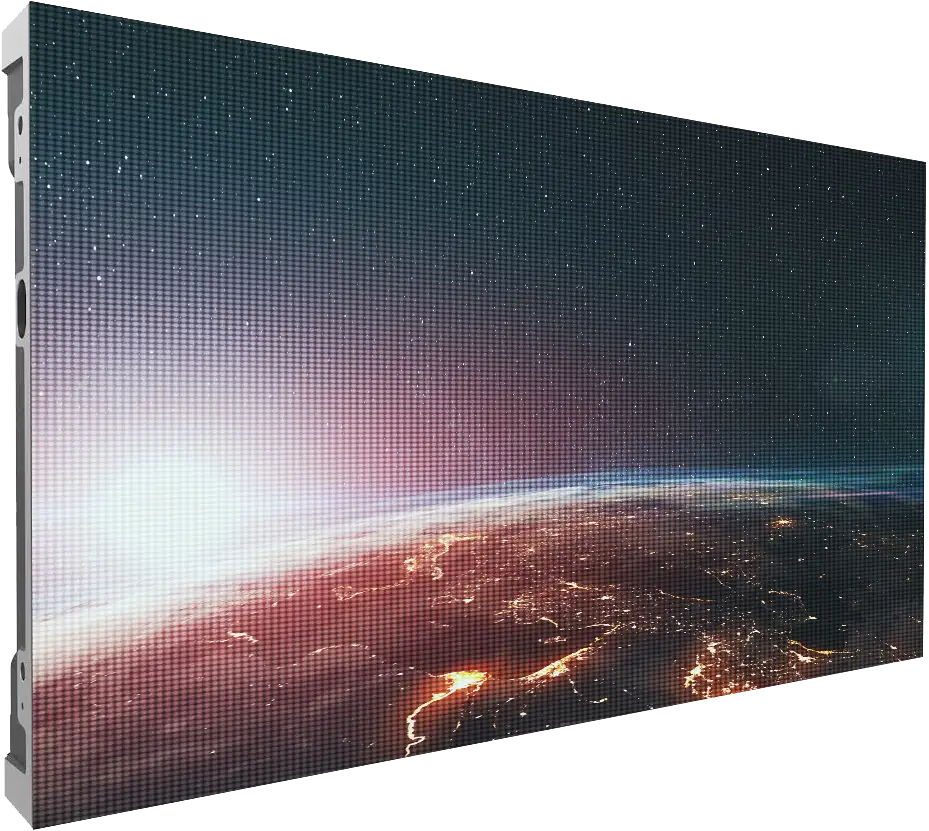

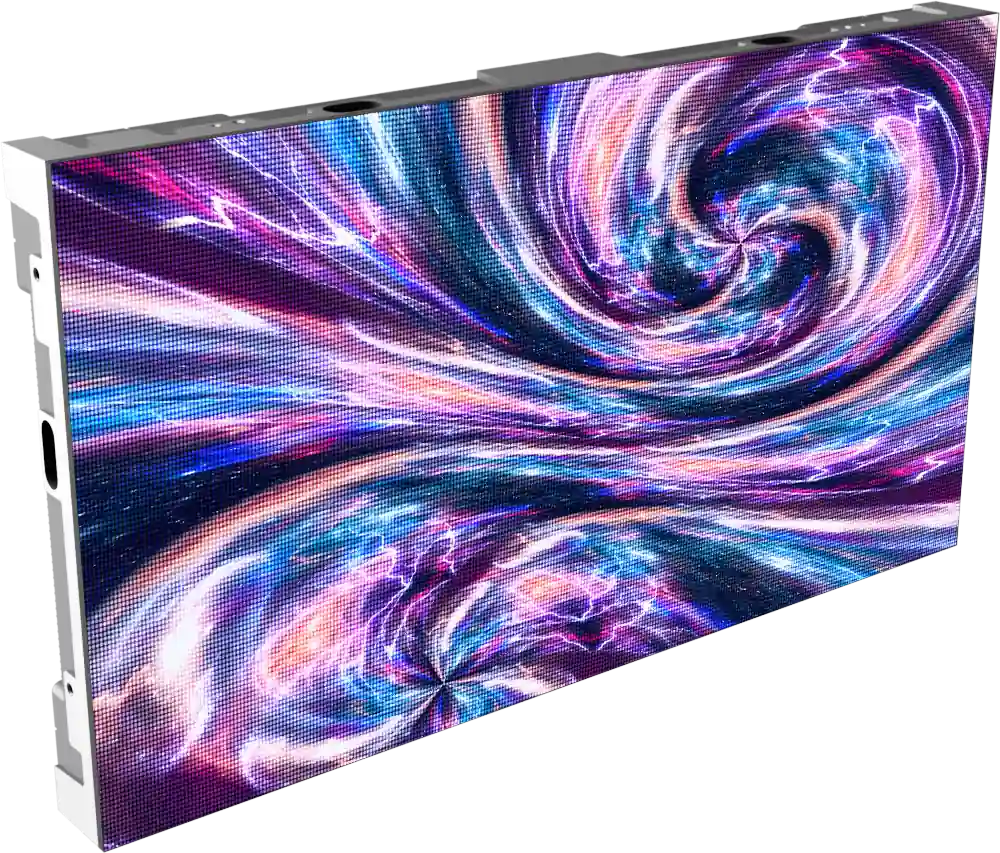

Push the limits of image performance with TITANITE ACCESS, our 16:9 LED cabinet equipped with Full Black Face SMD LEDs. Offering an ultra-fine pixel pitch from P1.2 to P1.8, it combines exceptional image quality with easy operation and installation, making it ideal for demanding applications.

  • Application
    Indoor

  • PIXEL PITCH
    P1.2 P1.8

  • MAINTENANCE
    Front Maintenance

  • INGRESS PROTECTION
    IP54

  • Display Area (W X H)
    600 x 337.5 mm

  • BRIGHTNESS
    ≤ 600 NITS

  • WEIGHT
    6 kg/cabinet

  • MATERIAL
    Die-casting aluminum

Features

FULL BLACK FACE SMD

The 1010, 1212 and 1515 SMDs used in TITANITE ACCESS deliver excellent display quality and image definition thanks to their Full Black Face resin. In addition, this technology allows individual LEDs to be repaired far more easily than on GOB or COB panels.

16:9 RATIO

TITANITE ACCESS features a native 16:9 aspect ratio, perfectly aligned with current video standards. This format simplifies the creation of video walls at common resolutions such as Full HD, 4K or 8K, without requiring cropping or software adjustments. It also streamlines integration into professional environments, corporate presentations, live broadcasts, or immersive scenography, while ensuring perfectly proportioned visuals.

HIGH-END APPLICATIONS

With its ultra-fine resolution, native 16:9 format and FULL BLACK FACE SMD LEDs, TITANITE ACCESS stands out as an ideal solution for demanding environments, while maintaining the most affordable price point in our Ultra HD range. It naturally fits into control and monitoring rooms, broadcast studios, boardrooms, premium reception areas, and technology showrooms. Its precision and compact design also make it a strong choice for virtual production stages, corporate video walls, and premium architectural integrations.

ULTRA HD & 4K RESOLUTION

Thanks to its ultra-fine pixel pitch, TITANITE ACCESS achieves Full HD, Ultra HD 4K and even 8K resolutions with a reduced number of cabinets. Below is a summary table of the available resolutions and the number of cabinets required for each:

FRONT MAINTENANCE

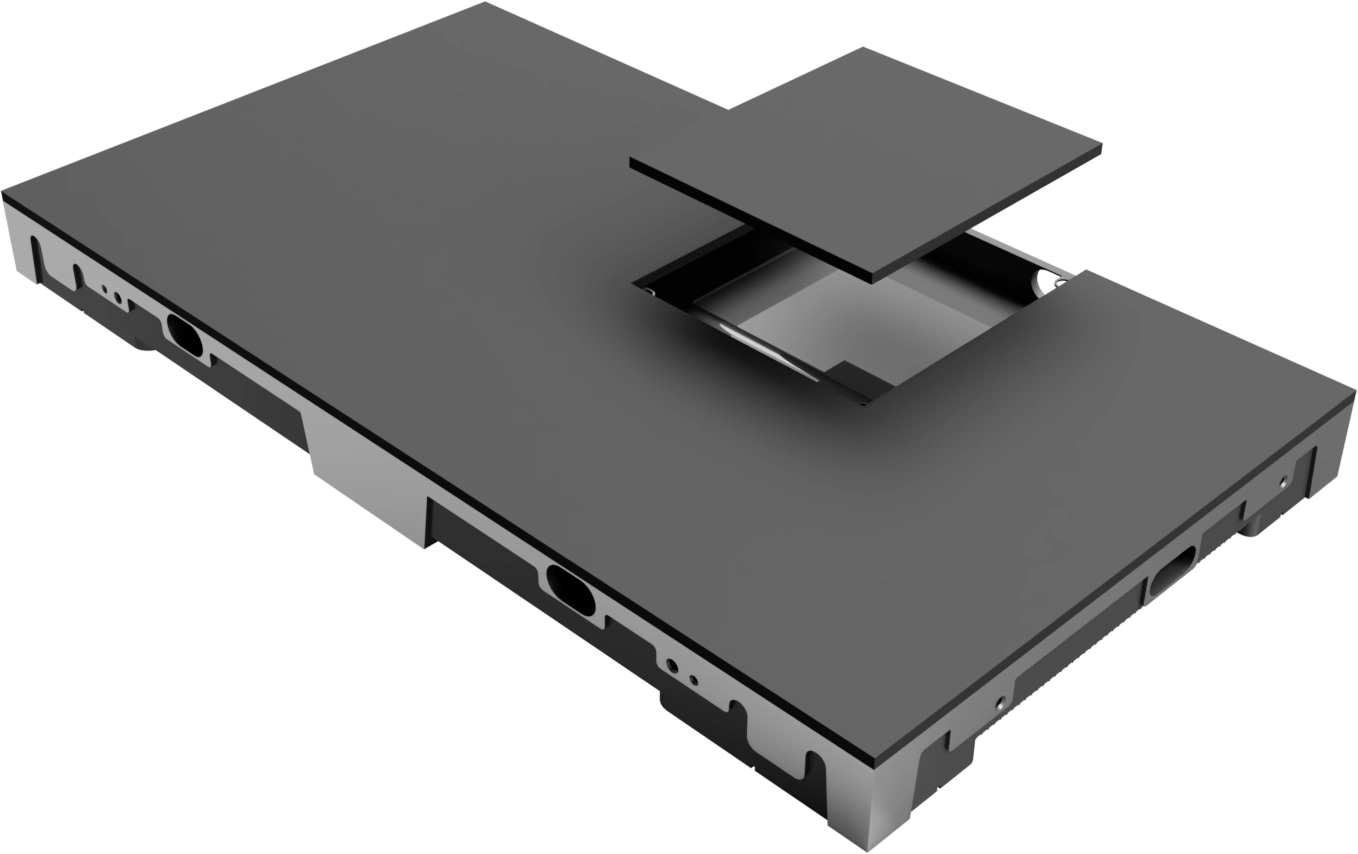

TITANITE ACCESS is designed to ensure fast and effortless maintenance. The LED modules are magnetically attached to the cabinet, enabling front access without dismantling the entire structure. A simple vacuum-based tool applied to the LED surface allows the modules to be removed safely and precisely, making maintenance or replacement operations as quick as they are discreet.

Technical Specifications

    INDOOR
Product Parameters Unit 1.2 1.5 1.8
Pixel Pitch mm 1,25 1,56 1,88
LED   SMD1010 SMD1212 SMD1515
Application   Media UHD
Ingress Protection IP IP54
Brightness cd/m² ≤ 600 @5volts Adjustable
Color Temperature after calib (adjustable) deg. K 5000 - 10000
Viewing Angle (50% brightness) deg. 160 H / 140 V
Cabinet Size (WxHxD) mm 600 x 337.5 x 49
Display area (WxH) mm 600 x 337.5
Module Size (WxHxD) mm 150 x 168.75
Pixel Matrix Per Cabinet (WxH) px 480 x 270 384 x 216 320 x 180
Pixel Matrix Per Module (WxH) px 120 x 135 96 x 108 80 x 90
Pixel Density px/m² 640000 409600 284444
Weight of cabinet kg 6
Cabinet Material   Die-casting aluminum
Maintenance Mode   Front
Mask specification   No mask
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 14 - 16
Color   281 Trillions
Scan Rate   3840
Display Refresh Rate Hz AC100 - 240V
Operation Power V 650
Max. Power Consumption W/m² 150
Average Power Consumption W/m² Synchronous
Control Mode   50/60Hz
Video Frame Rate Hz DVI / SDI / HDMI
Input Types Supported   Yes
3D ready (optional)   Yes
Calibration   100000
Lifetime (50% brightness) h 10-90%
Operating Humidity Range   -10°C / +45°C
Operating Temperature Range   -
Screen Uniformity Correction   CCC / EMC CLASS-A / CE / ROHS
Certification   -
Available options   No
Compatibility    -

COMPATIBLE ACCESSORIES

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT320
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case
