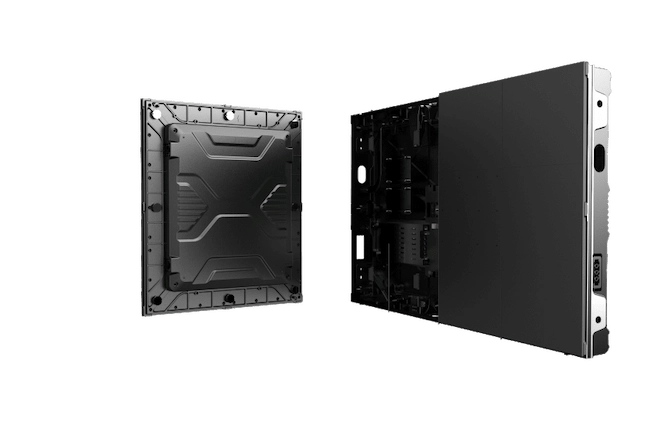

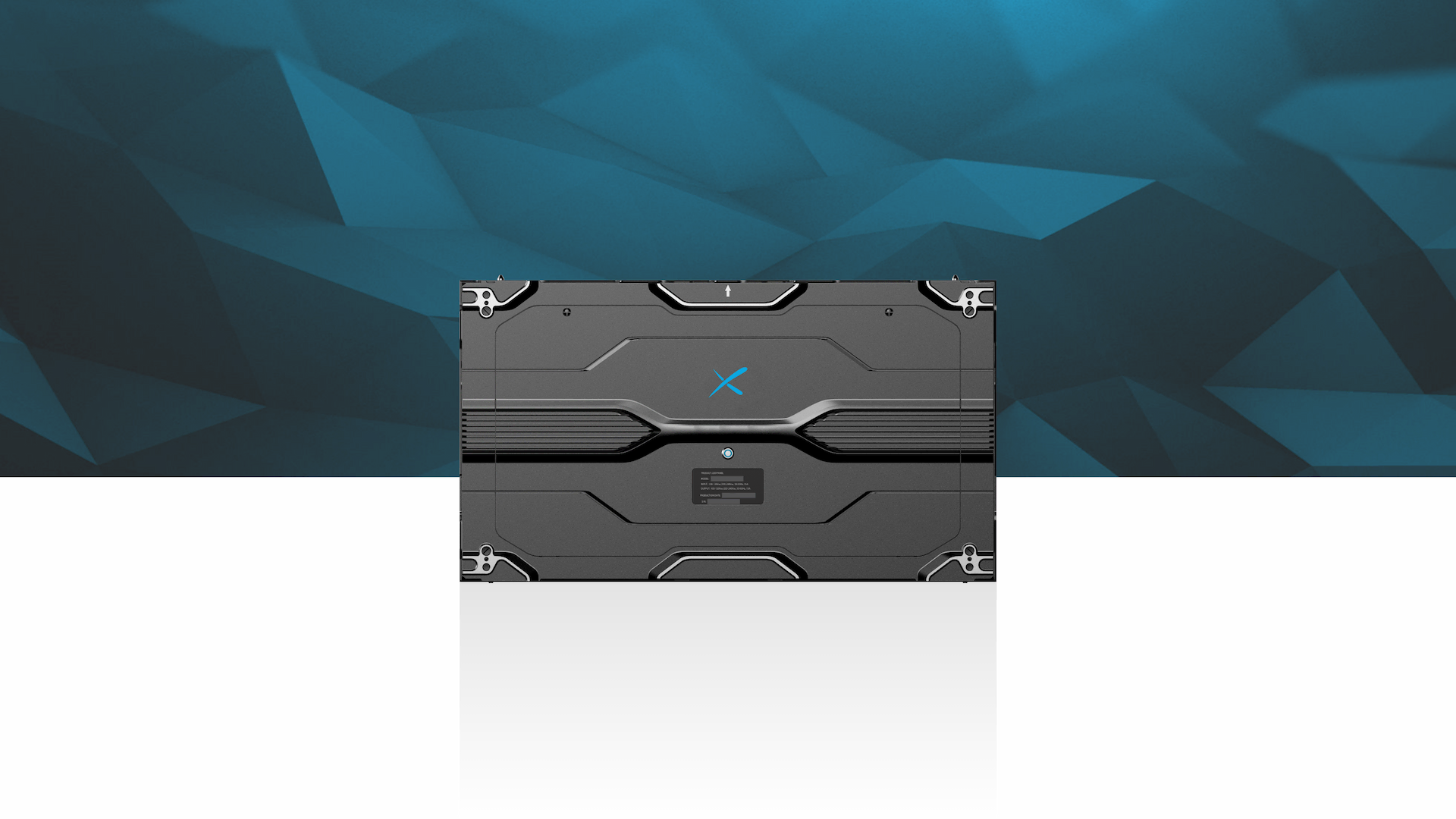

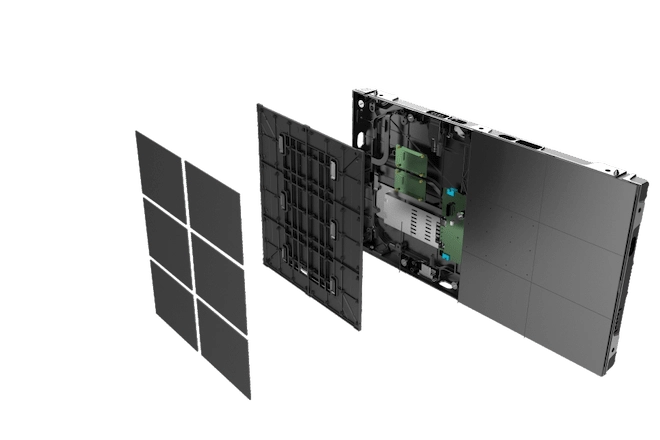

The TITANIUM 2.0 is one of Artixium’s most high-end LED displays. Ranging from P0.7 to P1.5, each cabinet has a perfect 16:9 ratio allowing for maximal display quality. The modules are assembled on two panels, which are assembled on a cabinet. All of these elements are joined magnetically, allowing for quick access to all the components from the front. The integrated inputs and outputs for power and data facilitate the integration, and the seamless cables allow for an aesthetic application.
Application
Indoor
PIXEL PITCH
P0.7 P0.9 P1.2 P1.5
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP65 (Front)
IP20 (Rear)
Display Area (W X H)
600 X 337.5 MM
BRIGHTNESS
≤600 NITS @5Volts
WEIGHT
6.3 - 6.8KG/CABINET
MATERIAL
ALUMINUM DIE CASTING
The COD LED technology used in the manufacturing of the TITANIUM 2.0 doesn't require a mask to be added to the modules. Instead, they are coated with a protective treatment that can be adjusted to your needs: mat, semi-gloss or glossy treatments are available. Thanks to the 16:9 cabinet golden ratio, the application can easily attain HD or even UHD display quality.
The TITANIUM 2.0 LED cabinet allows for quick and easy integration in three steps: preparation of the support, integration of the cabinets, integration of the panels on the cabinets. The lightweight of the cabinet and the fact that all its elements are assembled magnetically make this process quick, easy and flawless. These same characteristics help with the maintenance of your application, which is a quick task for one technician.

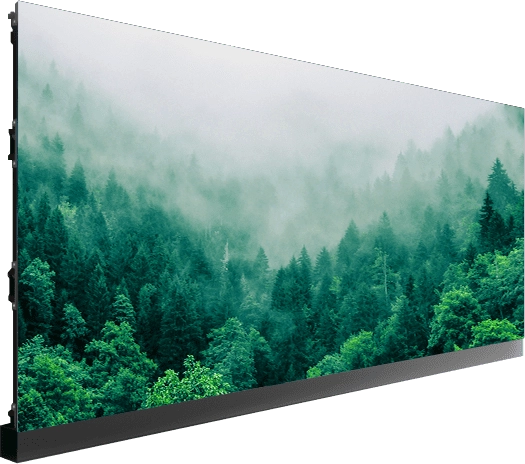

The features of the TITANIUM 2.0 make it ideal for a lot of situations, whether you need a wall display in a monitoring room, a presentation screen for a conference room, or a private cinema setup... You can use this product for any kind of indoor LED display and be sure that you invested in the best product the market has to offer.
BACK MAINTENANCEIndoorFront MaintenanceFine PitchMediaHigh EndConference RoomControl RoomWall ApplicationUltra HDTitanium 2.0
| INDOOR | |||||
| Product Parameters | Unit | 0.7 | 0.9 | 1.2 | 1.5 |
| Pixel Pitch | mm | 0,78 | 0,93 | 1,25 | 1,56 |
| LED | COB Flip Chip on Board | ||||
| Application | Media Fine Pitch (control room, conference room, shopping mall, showroom, etc.) | ||||
| Ingress Protection | IP | IP65 (front) / IP20 (back) | |||
| Brightness | cd/sqm | ≤ 600 Nits @5volts | |||
| Color Temperature after calib (adjustable) | deg. K | 3000 - 10000 Adjustable | |||
| Viewing Angle (50% brightness) | deg. | 170H / 170 V | |||
| Cabinet Size (WxHxD) | mm | 600 x 343.5 x 45.6 | 600 x 352.4 x 32.5 | ||
| Display area (WxH) | mm | 600 x 337.5 | |||
| Module Size (WxHxD) | mm | 150 x 112.5 x 3.5 | 150 x 168.7 x 3.5 | ||
| Pixel Matrix Per Cabinet (WxH) | px | 769 x 433 | 645 x 363 | 480 x 270 | 385 x 217 |
| Pixel Matrix Per Module (WxH) | px | 192 x 144 | 161 x 121 | 120 x 90 | 96 x 108 |
| Pixel Density | px/sqm | 1642669 | 1155625 | 640000 | 411736 |
| Weight of cabinet | kg | 6.8 | 6.5 | 6.3 | |
| Cabinet Material | Die-casting aluminum | ||||
| Maintenance Mode | Front | ||||
| Mask specification | No mask | ||||
| Contrast Ratio | High | ||||
| Grey scale (linear) | bit | 14 | 13 | ||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC100-240V | |||
| Max. Power Consumption | W/sqm | 620 | 560 | 430 | |
| Average Power Consumption | W/sqm | 208 | 185 | 150 | |
| Control Mode | Synchronisation | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 100000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | -10°C / +40°C | ||||
| Screen Uniformity Correction | Oui | ||||
| Certification | CE / ETL / CCC | ||||
| Available options | surface treatment : glossy, semi glossy, mat | ||||
| Compatibility | No | ||||
