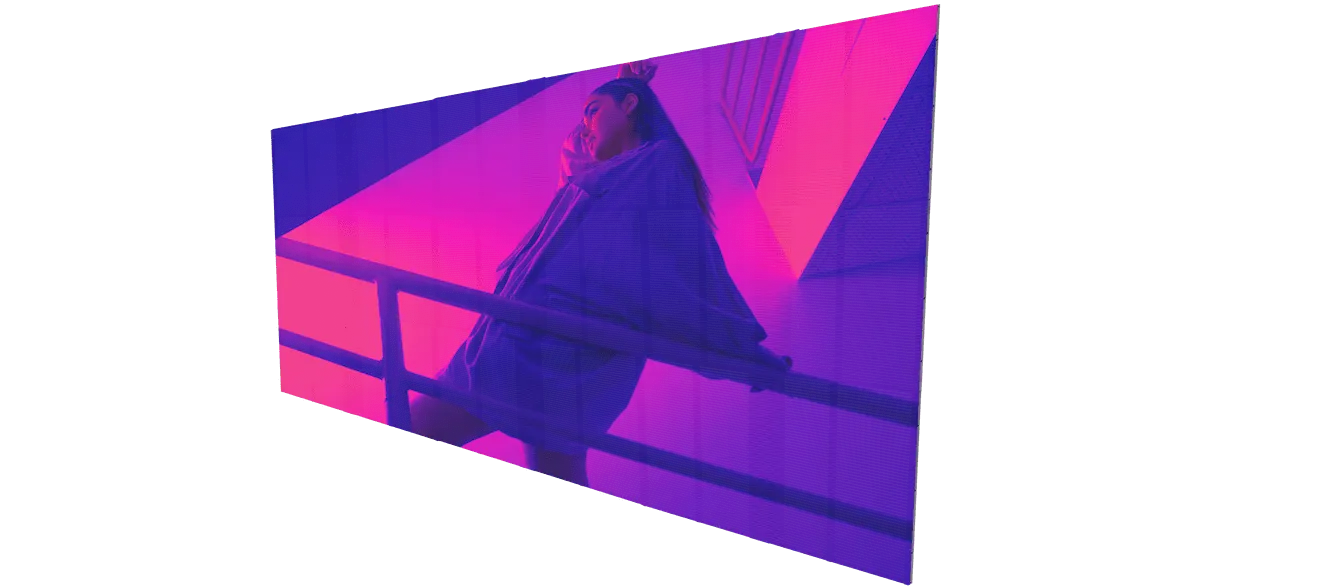

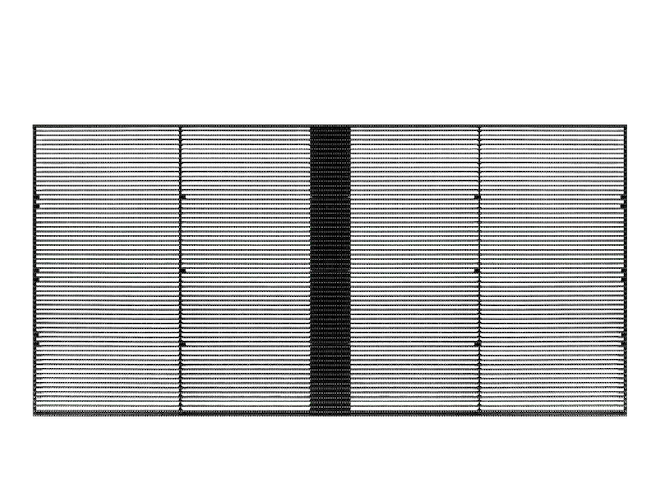

The NEON is the best LED solution for a semi-indoor application or for any LED display you want to be able to see through. Its brightness lets you display visual content from the inside of your building to the outside. Whether it’s a store front or a window, any of these surfaces can serve as a support for a vivid LED display that will still allow transparency. This is possible thanks to the asymmetric pixel pitch, leaving a small gap between each LED stripe for people to see the display as well as what’s behind it.
Application
Indoor
PIXEL PITCH
P1.9a3.9 P2.8a5.6 P3.9a7.8 P5.2a10.4 P7.8 P10.4
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP22
Display Area (W X H)
1000 x 500 mm
BRIGHTNESS
≤ 5500 Nits @5 Volts
WEIGHT
5kg/cabinet
MATERIAL
Aluminum CNC cutted frame
The NEON is provided with 2 in 1 cables that facilitate the integration and allow for wireless data display management to ease the uploading of any visual content. This comes particularly handy when it comes to display that often has to be uploaded (sales, new fashion season, etc.) or to LED applications placed behind hard-to-access windows or glass surfaces.

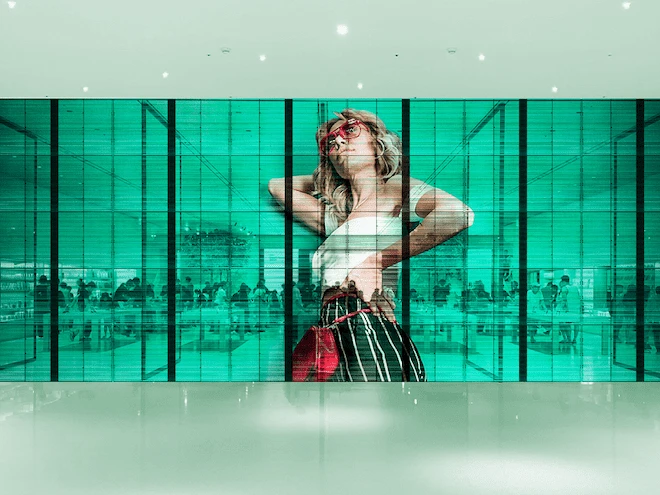

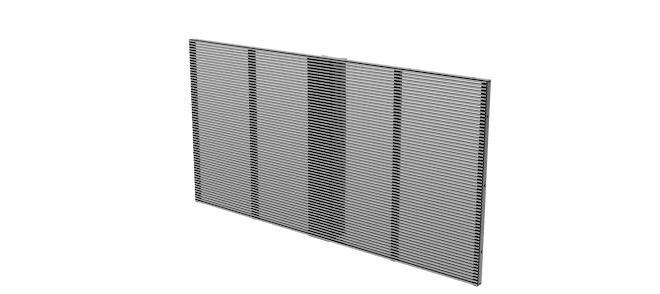

Thank's to the vertical P7.8 pixel pitch used on the NEON cabinet, you can easily see through it when it's on. This allows you to display any visual content and enable passerby to get a glimpse inside your business. When it's turned off, the NEON is barely noticeable and is the evident solution if you want to advertise your business.

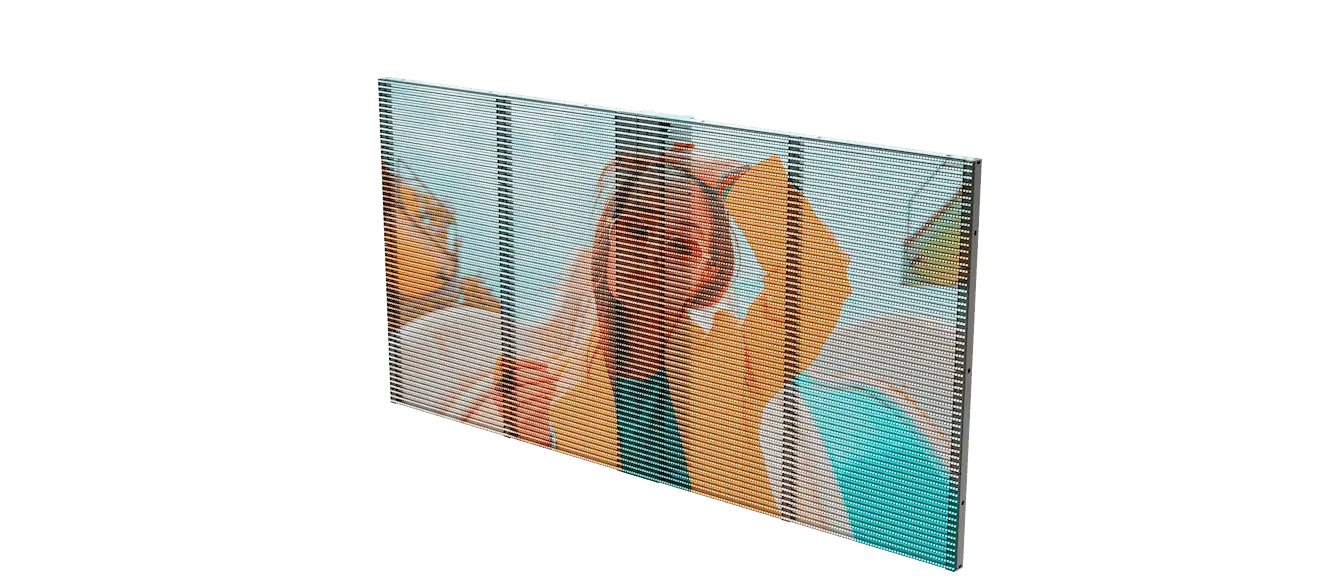

The NEON cabinets are light, tough, and easy to assemble and maintain. The maintenance is done from the rear of the cabinets, and each stripe can be replaced individually.
BACK MAINTENANCEIndoorTransparentLarge Scale LED DisplayArchitectureMediaFixed LED DisplayHigh TransparencyNeonSemi-indoor
| INDOOR | |||||||
| Product Parameters | Unit | 1.9a3.9 | 2.8a5.6 | 3.9a7.8 | 5.2a10.4 | 7.8 | 10.4 |
| Pixel Pitch | mm | 1,98 x 3,91 | 2,84 x 5,68 | 3,91 x 7,81 | 5,21 x 10,42 | 7,81 | 10,42 |
| LED | SMD 1921 | ||||||
| Application | Transparent LED cabinet | ||||||
| Ingress Protection | IP | IP22 | |||||
| Brightness | cd/sqm | ≤ 5500 Nits @5volts | |||||
| Color Temperature after calib (adjustable) | deg. K | 3500-9300 Adjustable | |||||
| Viewing Angle (50% brightness) | deg. | 160H / 160V | |||||

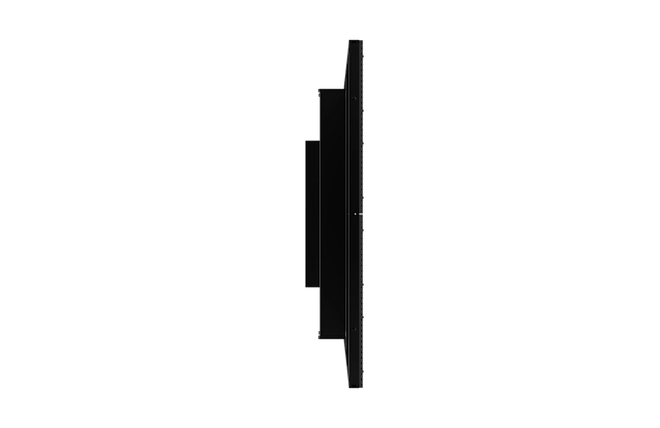

| Cabinet Size (WxHxD) | mm | 1000 x 500 x 92 | |||||
| Display area (WxH) | mm | 1000 x 500 | |||||
| Module Size (WxHxD) | mm | 500 x 500 x 1.6 | |||||
| Pixel Matrix Per Cabinet (WxH) | px | 505 x 128 | 352 x 88 | 256 x 64 | 192 x 48 | 128 x 64 | 96 x 48 |
| Pixel Matrix Per Module (WxH) | px | 253 x 128 | 176 x 88 | 128 x 64 | 96 x 48 | 64 x 64 | 48 x 48 |
| Pixel Density | px/sqm | 129169 | 61992 | 32747 | 18420 | 16384 | 9216 |
| Weight of cabinet | kg | 5 | |||||
| Cabinet Material | CNC aluminum | ||||||
| Maintenance Mode | Back | ||||||
| Mask specification | No mask | ||||||
| Contrast Ratio | High | ||||||
| Grey scale (linear) | bit | 16 | |||||
| Brightness control | bit | 16 | |||||
| Processing depth | bit | 16 | |||||
| Color | 281 Trillions | ||||||
| Display Refresh Rate | Hz | 1920 | |||||
| Operation Power | V | AC220V | |||||
| Max. Power Consumption | W/sqm | 800 | |||||
| Average Power Consumption | W/sqm | 180 | |||||
| Control Mode | Synchronization | ||||||
| Video Frame Rate | Hz | 50Hz | |||||
| Input Types Supported | DVI / SDI / HDMI | ||||||
| 3D ready (optional) | - | ||||||
| Calibration | Yes | ||||||
| Lifetime (50% brightness) | h | 100000 | |||||
| Operating Humidity Range | 10 / 80% | ||||||
| Operating Temperature Range | -10°C / +45°C | ||||||
| Screen Uniformity Correction | - | ||||||
| Certification | FCC / CE / ETL / CCC / CB | ||||||
| Available options | - | ||||||
| Compatibility | No | ||||||
