  3. Qwartz 2.0 Curve
  • Application

    Indoor

  • PIXEL PITCH

    P1.9 P2.6 3.1 P3.9

  • OPTION
    C

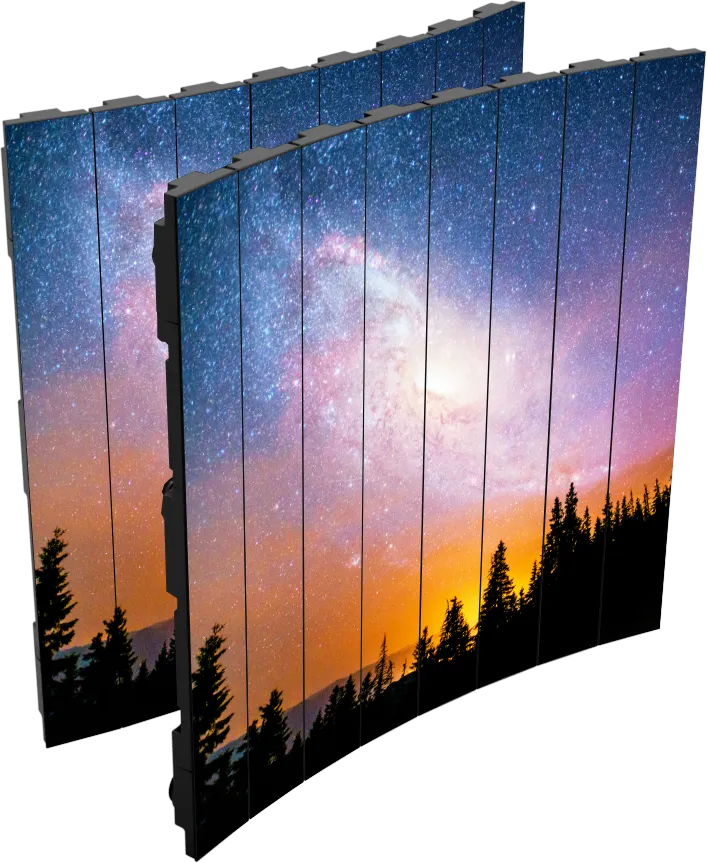

Overview

The brand-new QWARTZ 2.0 CURVE from Artixium combines the technology of flexible LED modules with the QWARTZ series, our benchmark for indoor large-format displays. Fully compatible with QWARTZ 2.0 cabinets, the QWARTZ 2.0 CURVE opens up new creative possibilities for even the most ambitious LED installations.

  • Application
    Indoor

  • PIXEL PITCH
    P1.9 P2.6 3.1 P3.9

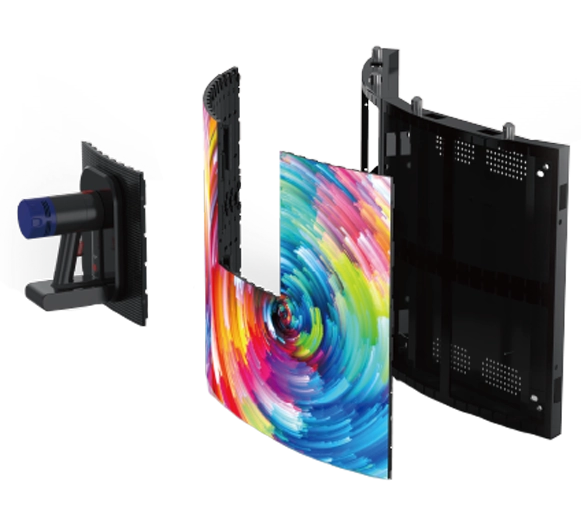

  • MAINTENANCE
    Front Maintenance

  • INGRESS PROTECTION
    IP30

  • Display Area (W X H)
    250 x 250

  • BRIGHTNESS
    ≤ 800 Nits @5volts

  • WEIGHT
    8.5 kg/cabinet 500 x 500 mm

  • MATERIAL
    Die-casting aluminum

Features

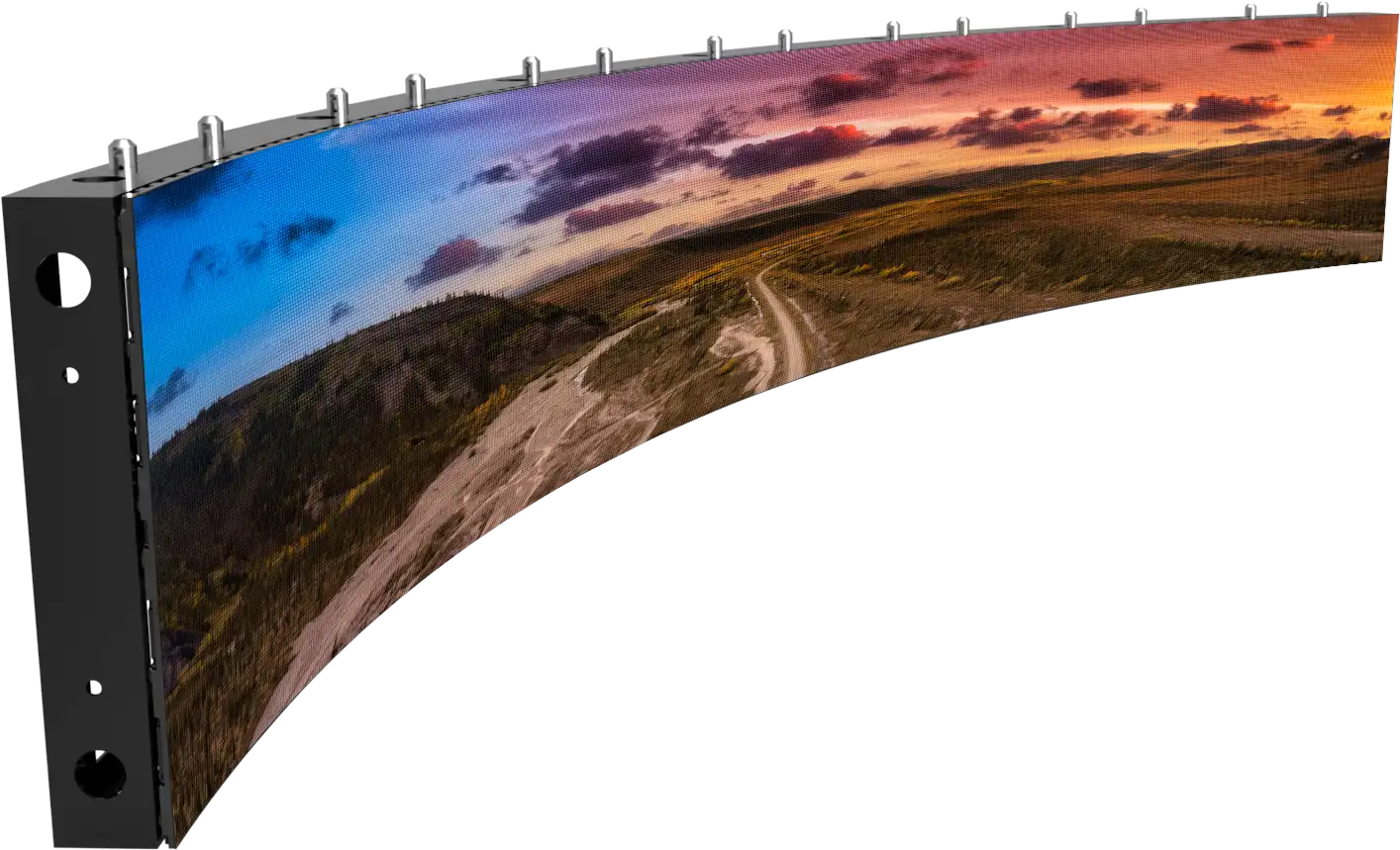

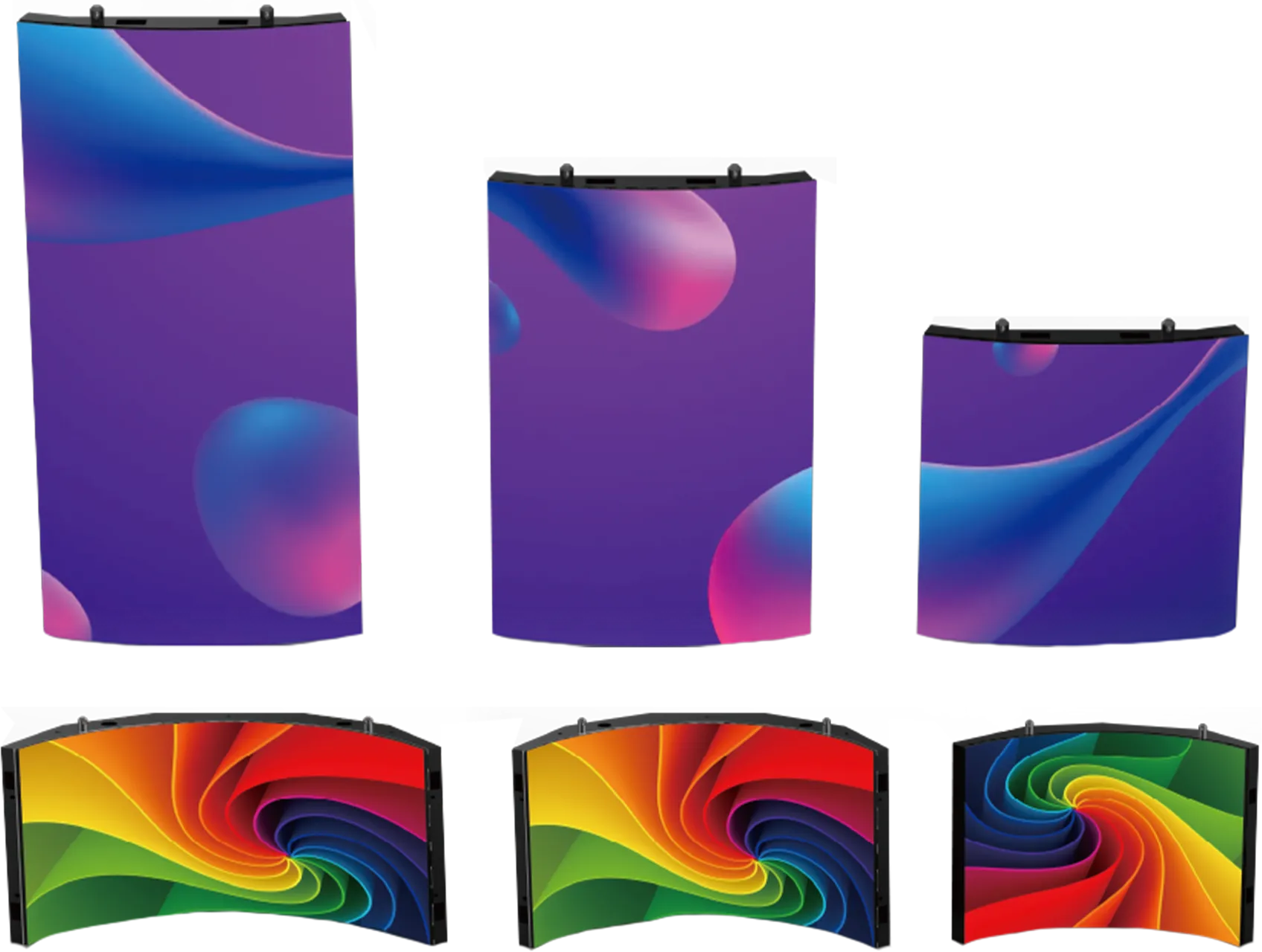

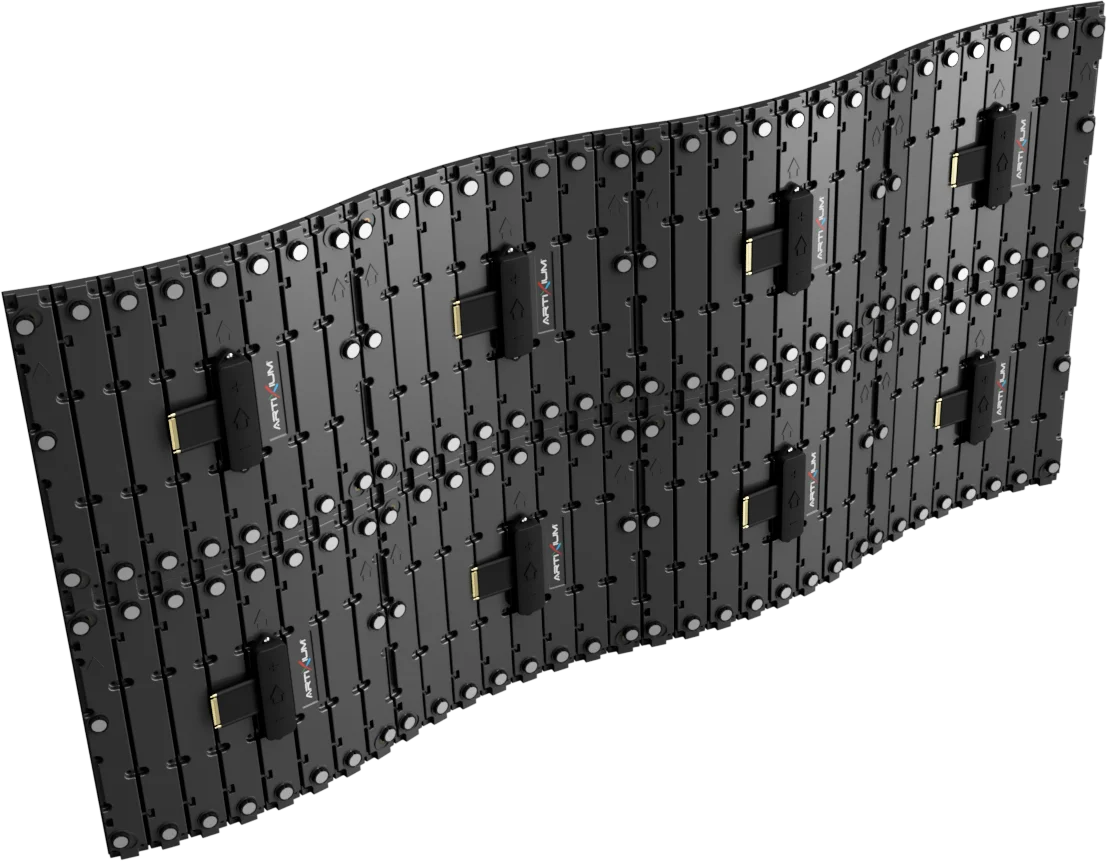

Custom-made mounting structures

To ensure a precise and seamless installation of your LED display, we offer custom-designed mounting structures that allow for a fast and simplified setup. Engineered for mechanical compatibility with our QWARTZ 2.0 cabinets, these structures make it easy to integrate curved sections with flat ones.

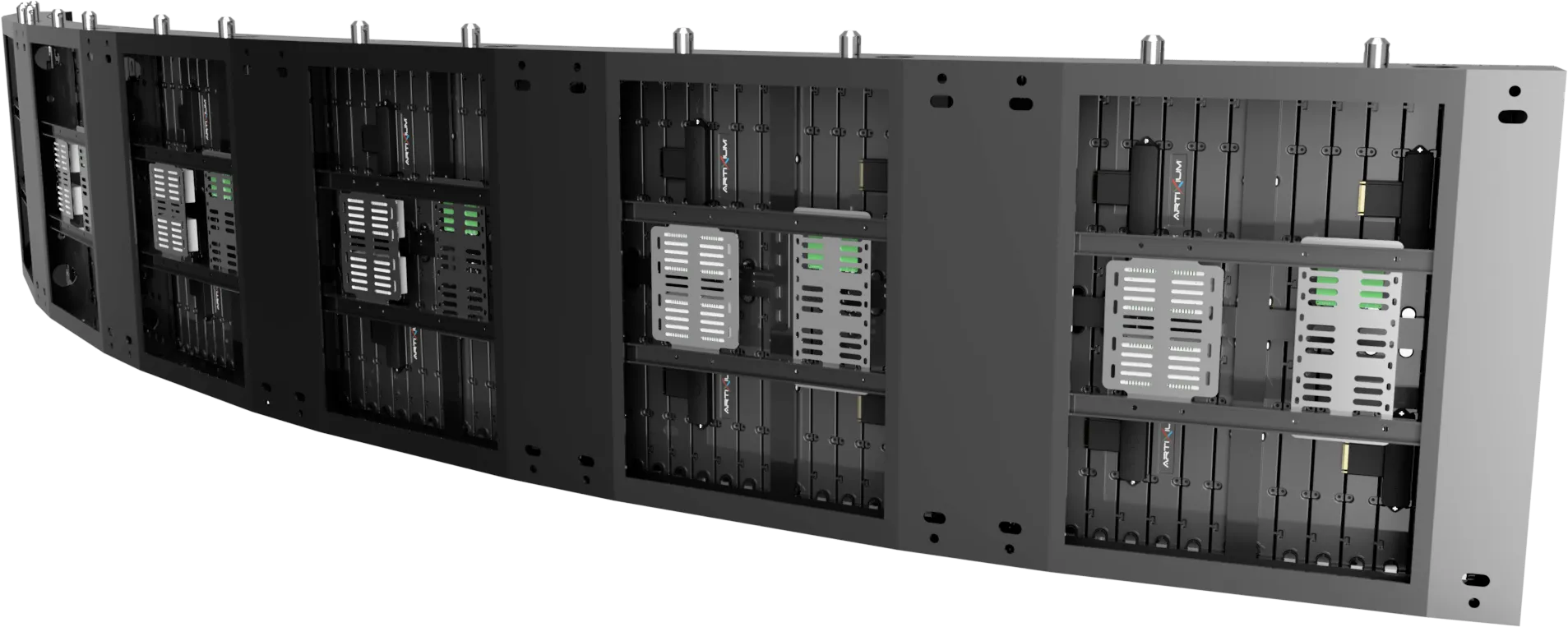

Fine pixel pitch

Like the standard QWARTZ 2.0, the QWARTZ 2.0 CURVE features a fine pixel pitch tailored for high-definition LED applications. With pitch options ranging from P1.9 to P3.9, you can achieve a resolution perfectly suited to your screen’s size, delivering an impressive visual experience.

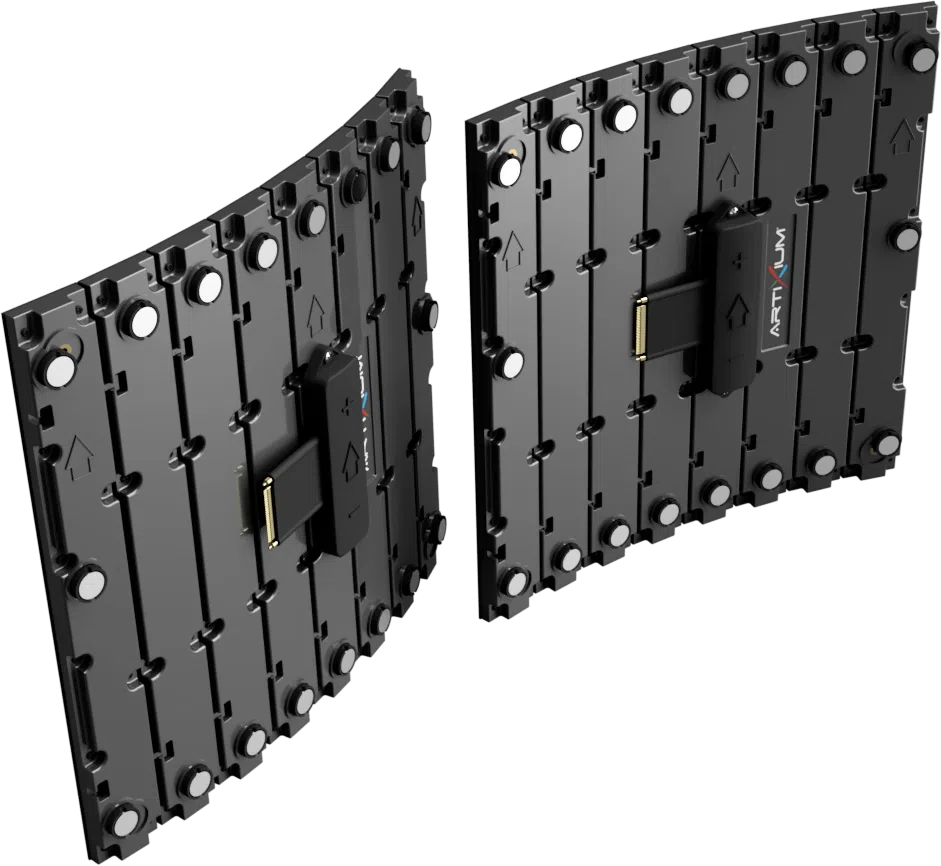

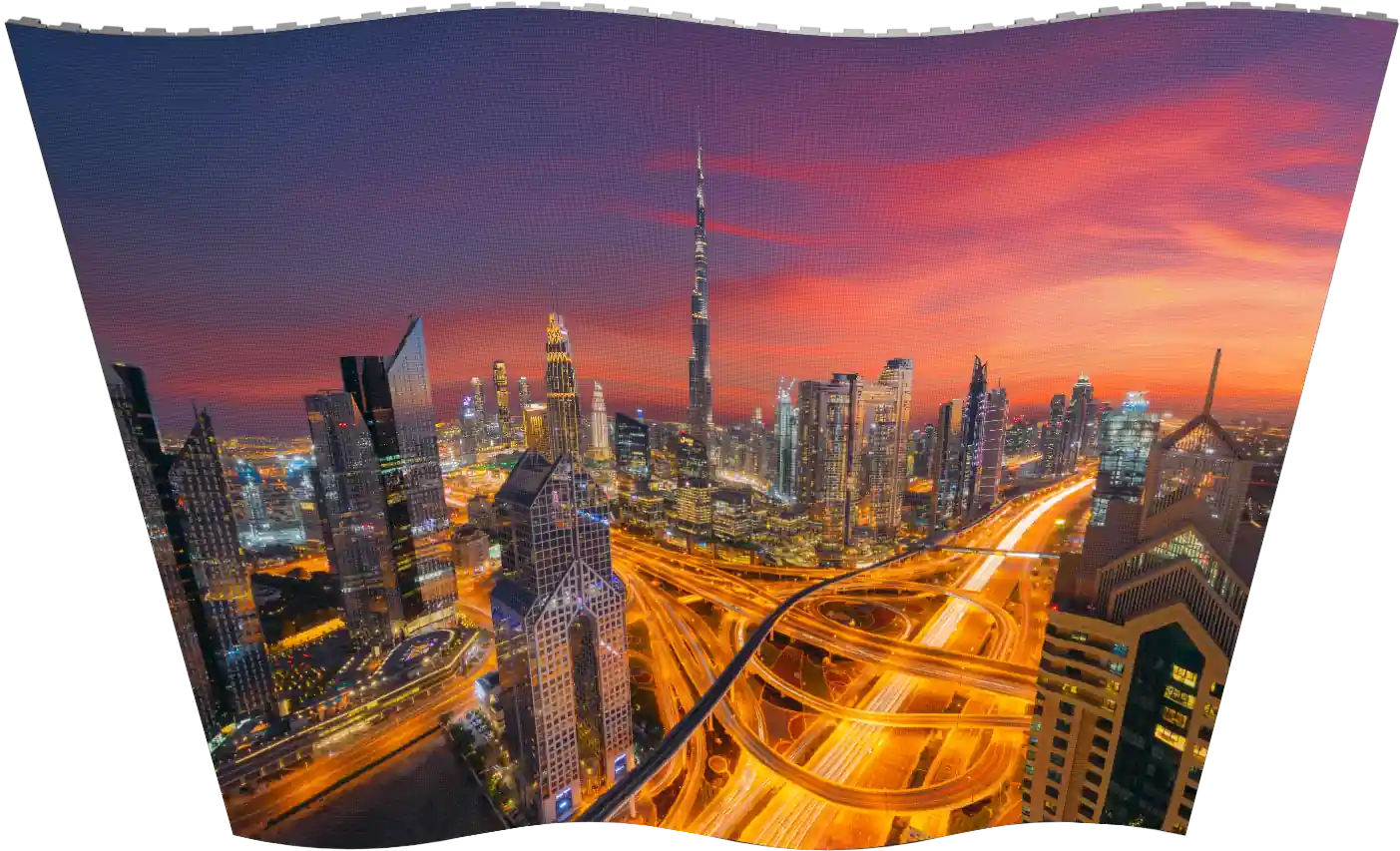

Flexibility

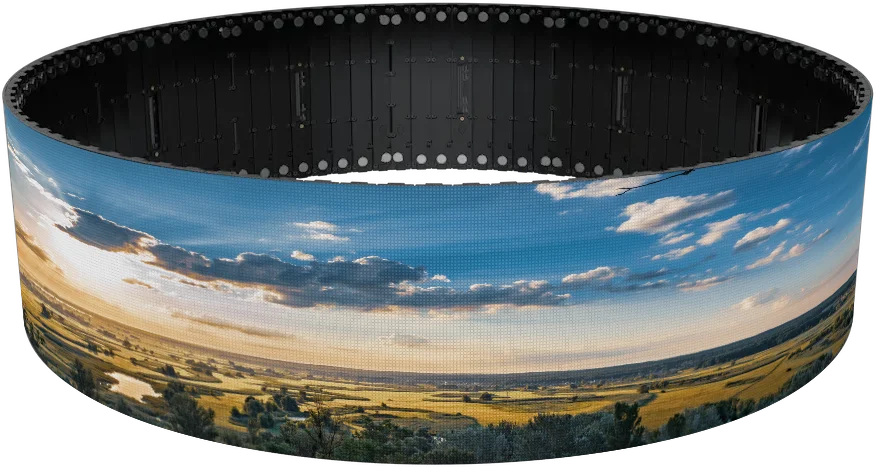

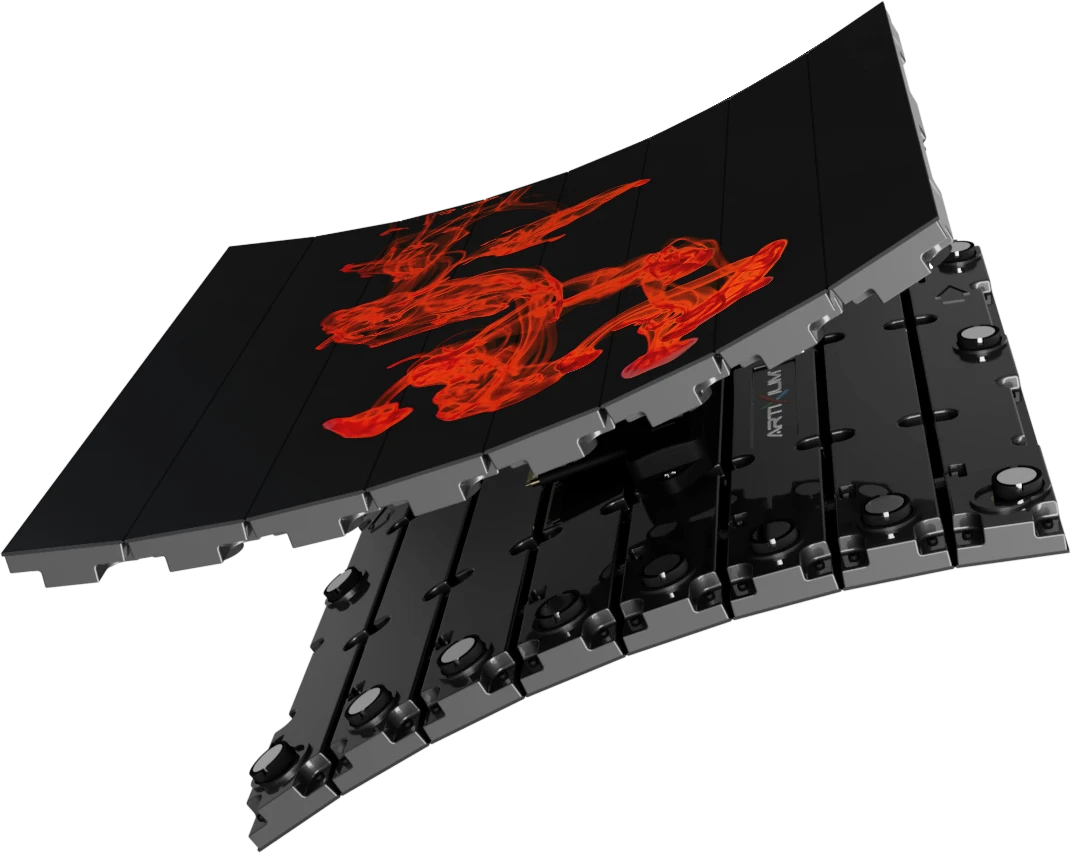

The QWARTZ 2.0 CURVE module is articulated into eight segments, allowing for curvatures up to 30° (concave or convex). This enables the creation of a wide range of curved shapes, from arches and waves to full circles (minimum diameter: 950 mm).

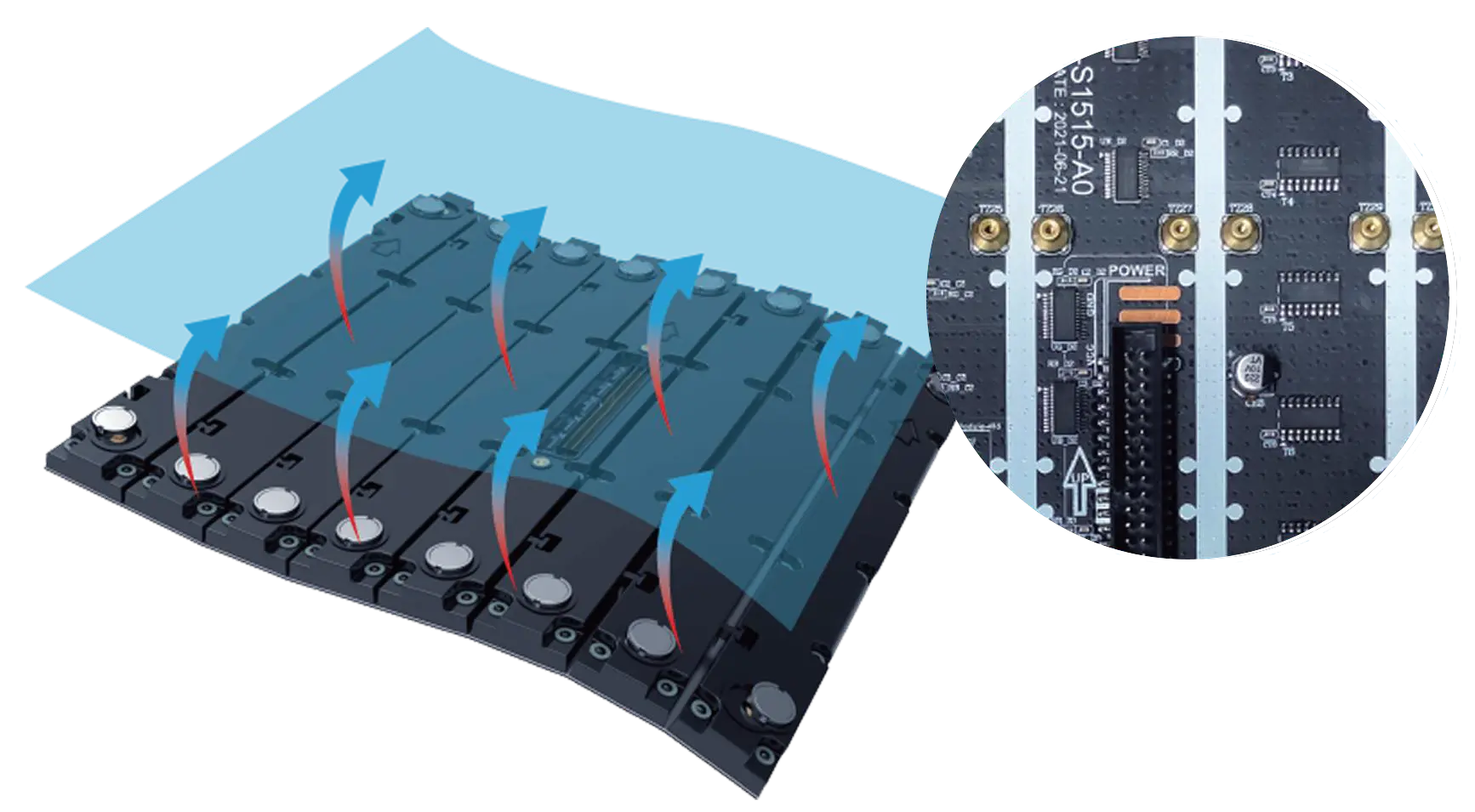

High-quality PCB

To meet the demands of flexibility, the QWARTZ 2.0 CURVE features a glass fiber-reinforced epoxy resin PCB. This material ensures excellent flexibility and rigidity, while providing outstanding heat tolerance for reliable and long-lasting performance.

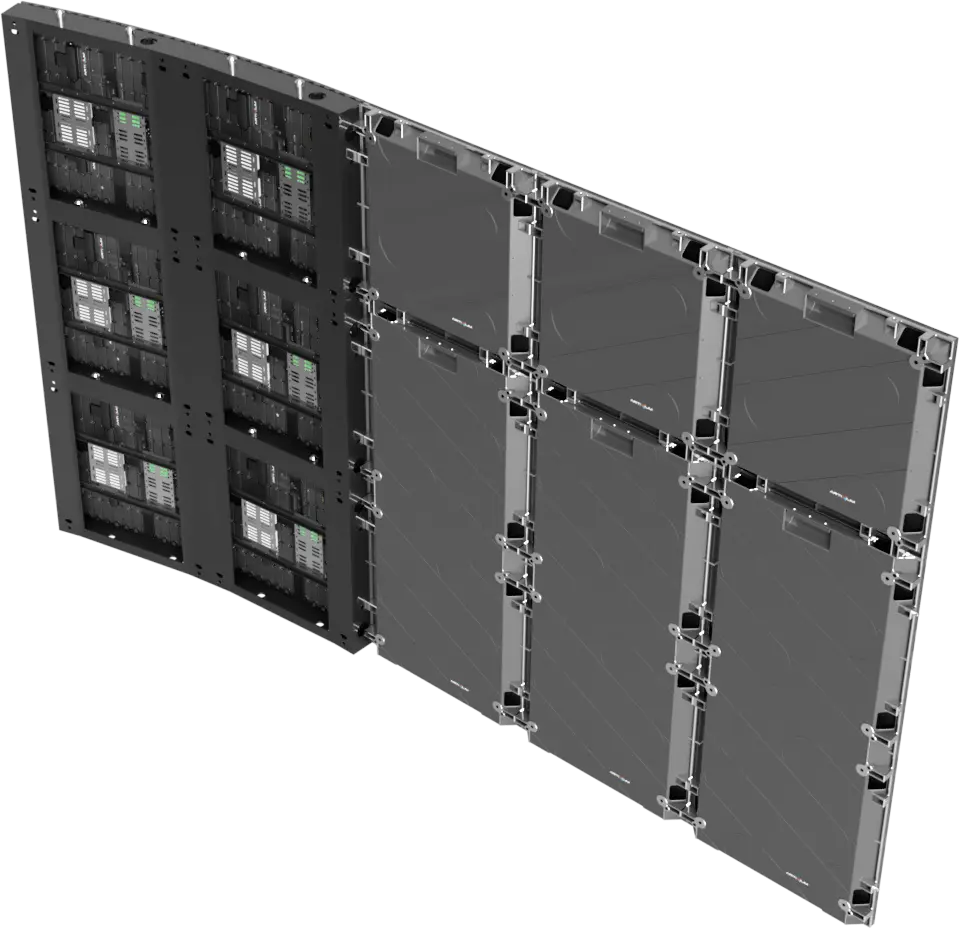

QWARTZ 2.0 compatibility

One of the standout advantages of this product is its full compatibility with QWARTZ 2.0 cabinets, allowing you to build a versatile stock of cross-compatible LED screens. This makes it easy to handle both standard projects and highly creative, customized installations.

Technical Specifications

    INDOOR
Product Parameters Unit 1.9 2.6 3.1 3.9
Pixel Pitch mm 1,95 2,60 3,13 3,91
LED   SMD1515 (Full Black Face) SMD2020 (Full Black Face)
Application   Indoor flexible module
Ingress Protection IP IP30
Brightness cd/m² ≤ 800 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 140 H / 140 V
Cabinet Size (WxHxD) mm 250 x 250 x 20
Display area (WxH) mm 250 x 250
Module Size (WxHxD) mm 250 x 250
Pixel Matrix Per Cabinet (WxH) px 128 x 128 96 x 96 80 x 80 64 x 64
Pixel Matrix Per Module (WxH) px 128 x 128 96 x 96 80 x 80 64 x 64
Pixel Density px/m² 262144 147456 102400 65536
Weight of cabinet kg 0.5
Cabinet Material   Polycarbonate
Maintenance Mode   Front
Mask specification   95% Plastic + 5% Fiber / SS screws / No shaders
Contrast Ratio   High
Grey scale (linear) bit ≥14
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Scan Rate   1/32 1/24 1/20 1/16
Display Refresh Rate Hz 2880
Operation Power V AC100-240V
Max. Power Consumption W/m² 450
Average Power Consumption W/m² 150
Control Mode   Synchronous / Asynchronous
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
3D ready (optional)   Yes
Calibration   Yes
Lifetime (50% brightness) h 100000
Operating Humidity Range   10-90%
Operating Temperature Range   0°C / +40°C
Screen Uniformity Correction   Yes
Certification   CE / FCC / ETL
Available options   Custom support frames
Compatibility    Compatible with the Qwartz 2,0
