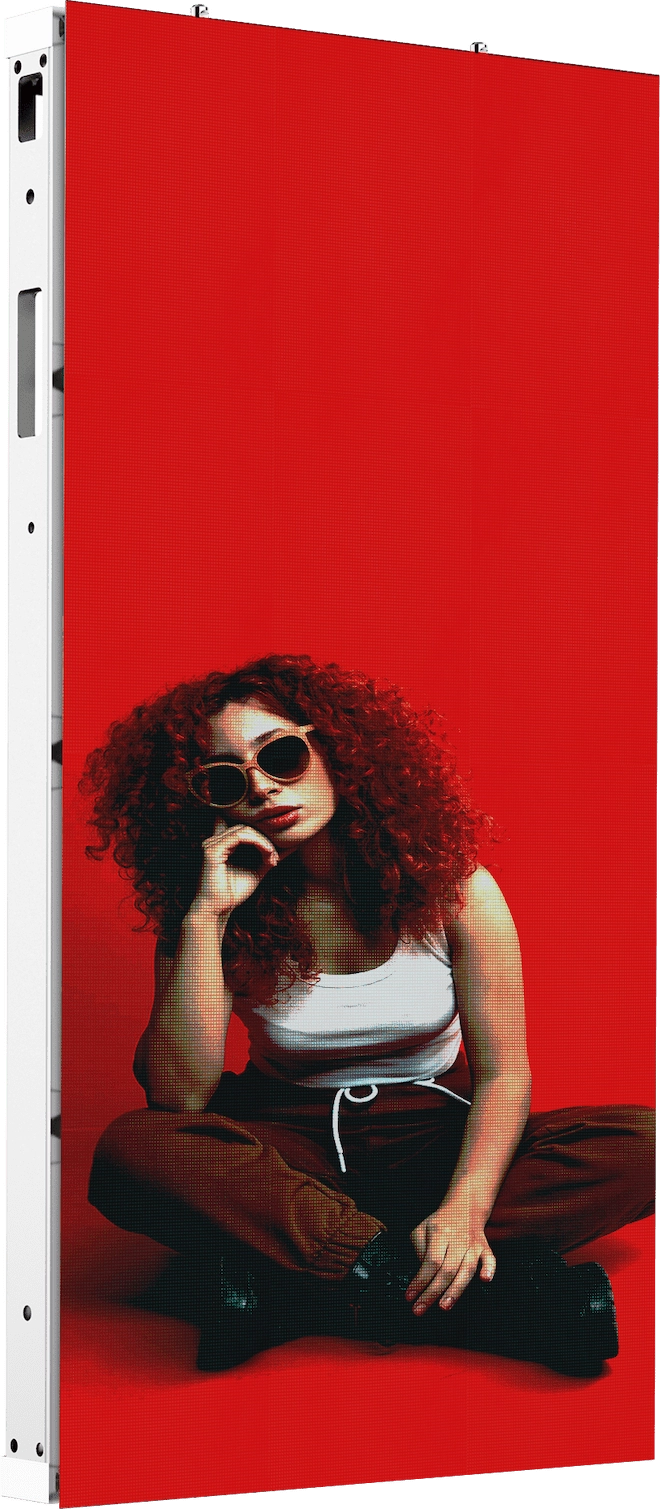

A fine pixel pitch and high ingress protection make the THORITE 2.0 one of the best solutions for an outdoor LED display. It is suitable for building facades, storefronts, shopping malls as well as any other outdoor application that requires a product both performant and highly modulable.
Application
OUTDOOR
PIXEL PITCH
P2.9 P3.9 P4.8
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP68
Display Area (W X H)
500 x 500 mm
500 x 750 mm
500 x 1000 mm
750 x 750 mm
BRIGHTNESS
≤7000 Nits @5 Volts
WEIGHT
8 - 12 - 16 kg/ cabinet (depending on cabinet size)
MATERIAL
Die-casting Aluminium

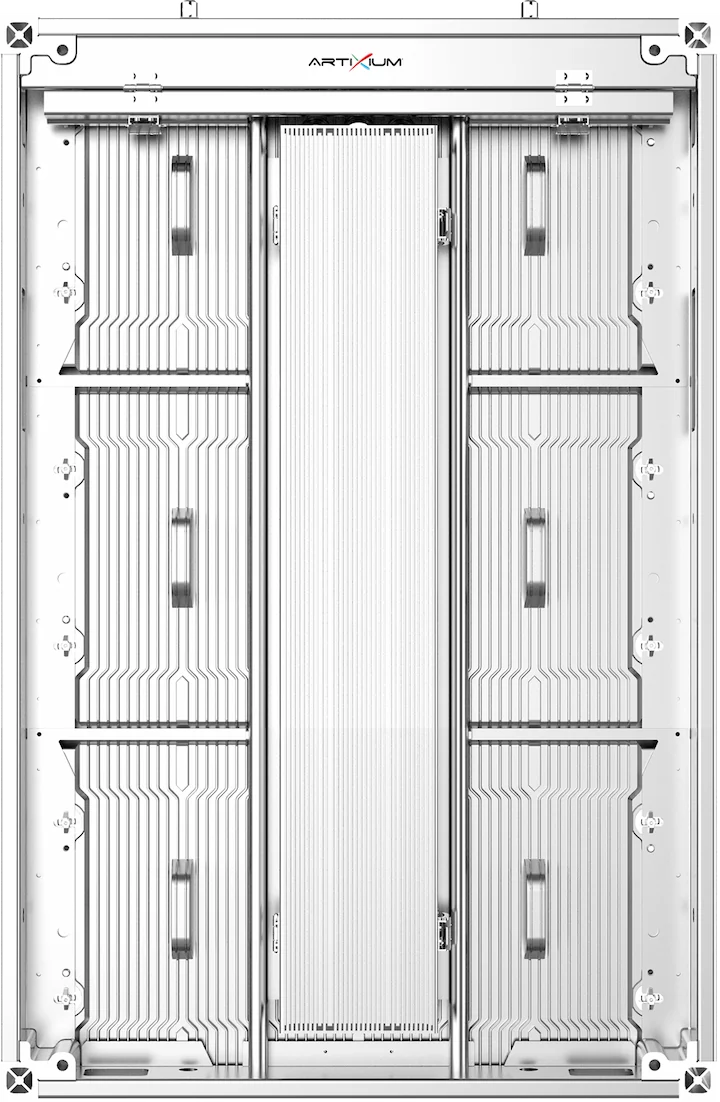

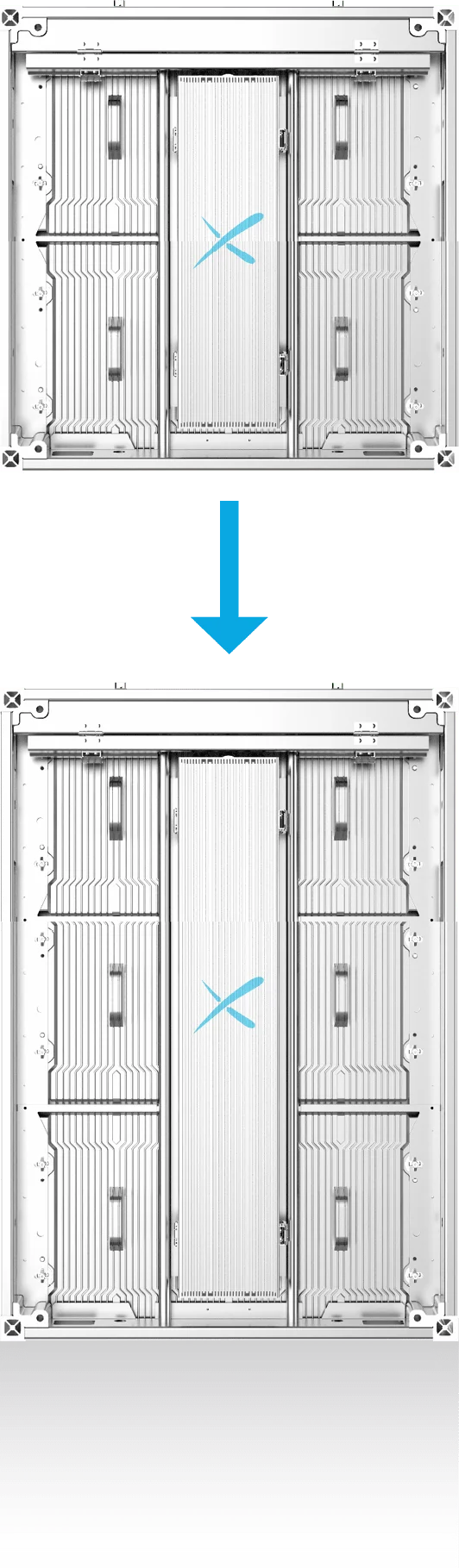

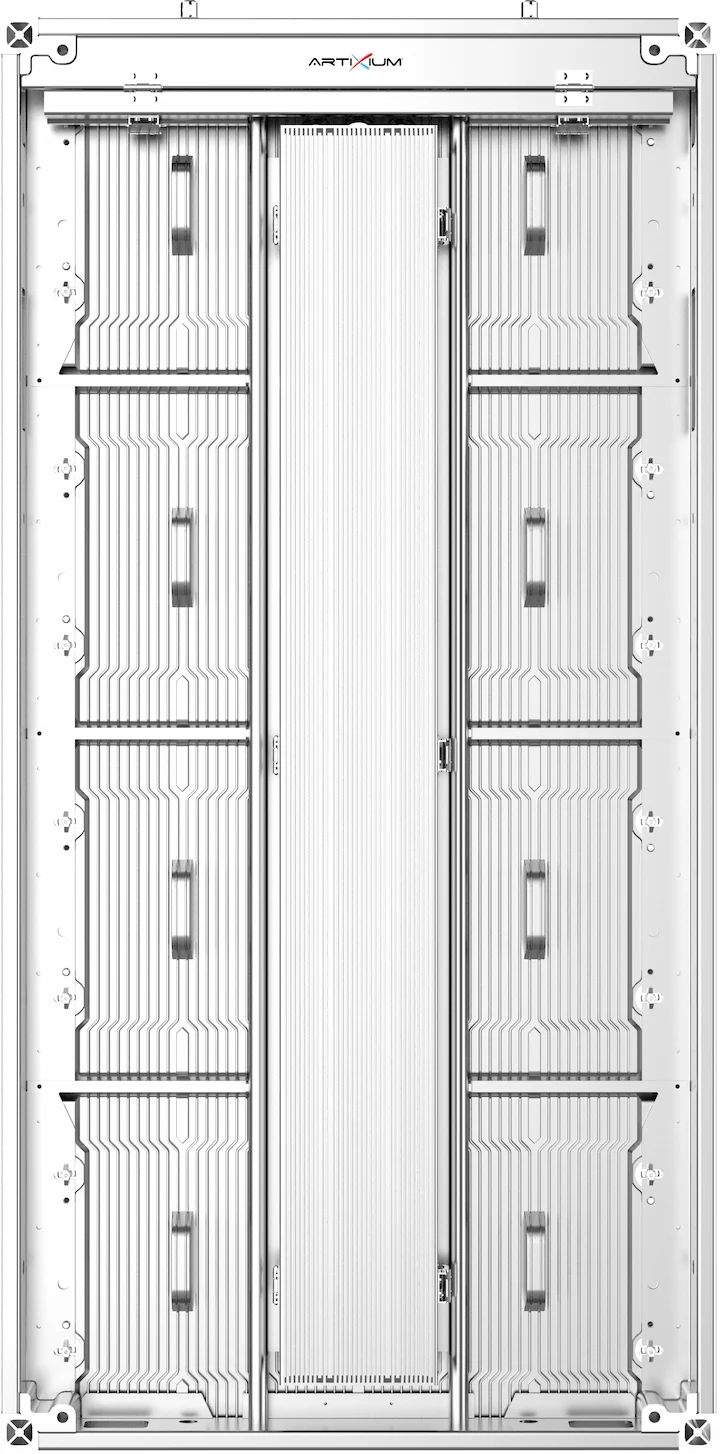

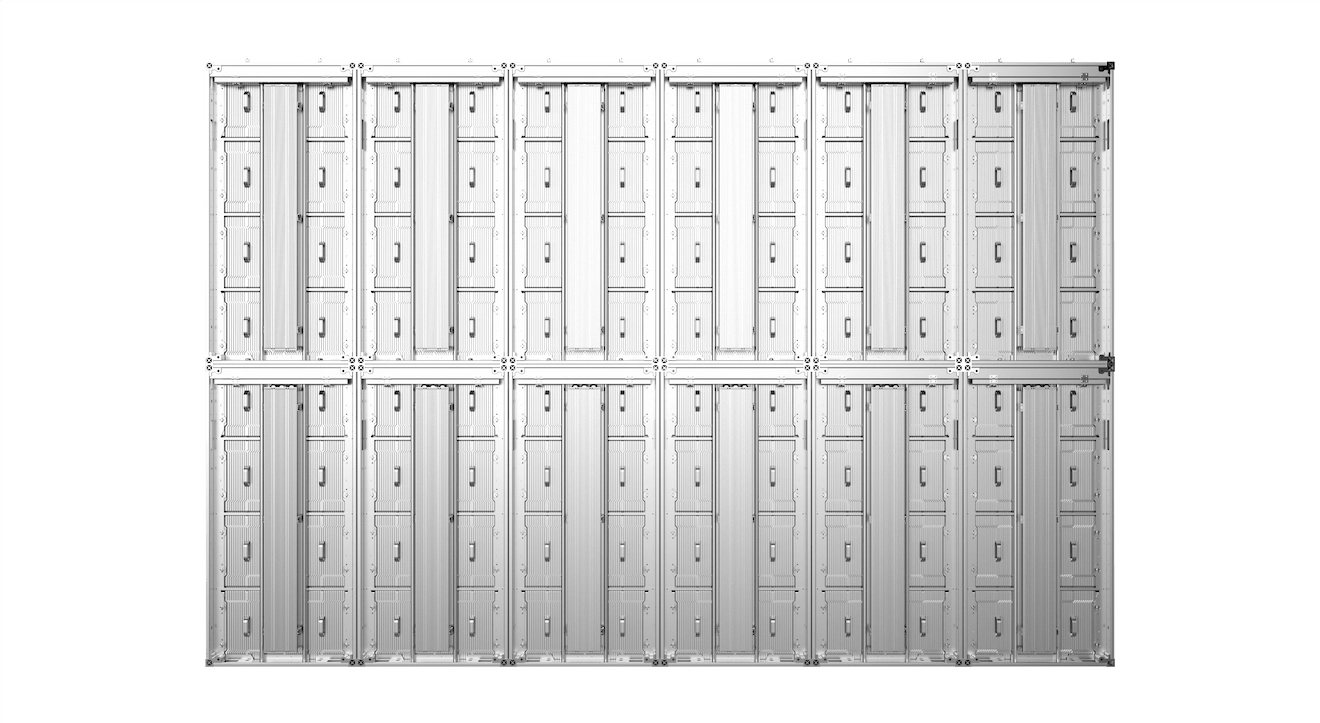

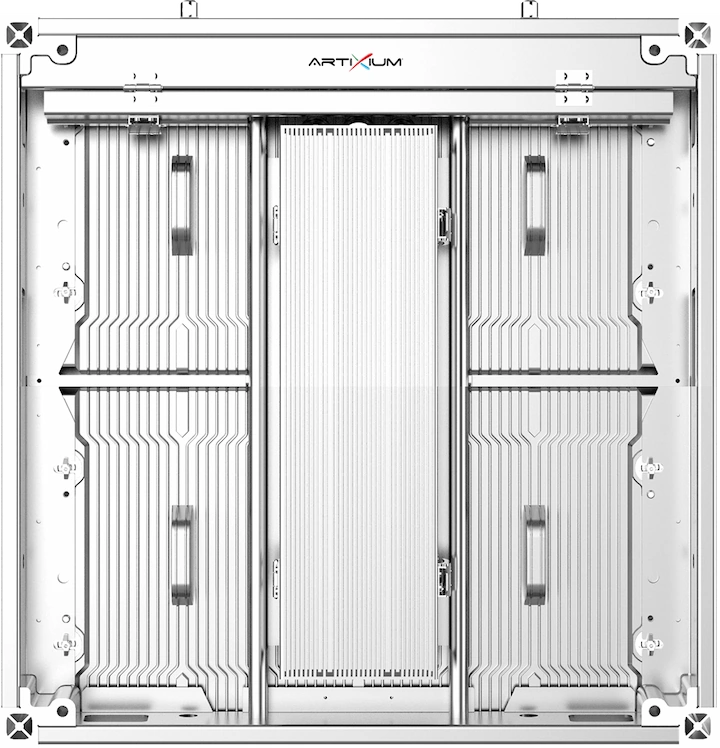

The three sizes of the THORITE 2.0 were implemented to maximize its compatibility with any outdoor LED application project. Being totally compatible with one another, these different cabinets will fit any building or structure you want to enhance with stunning visual effects.

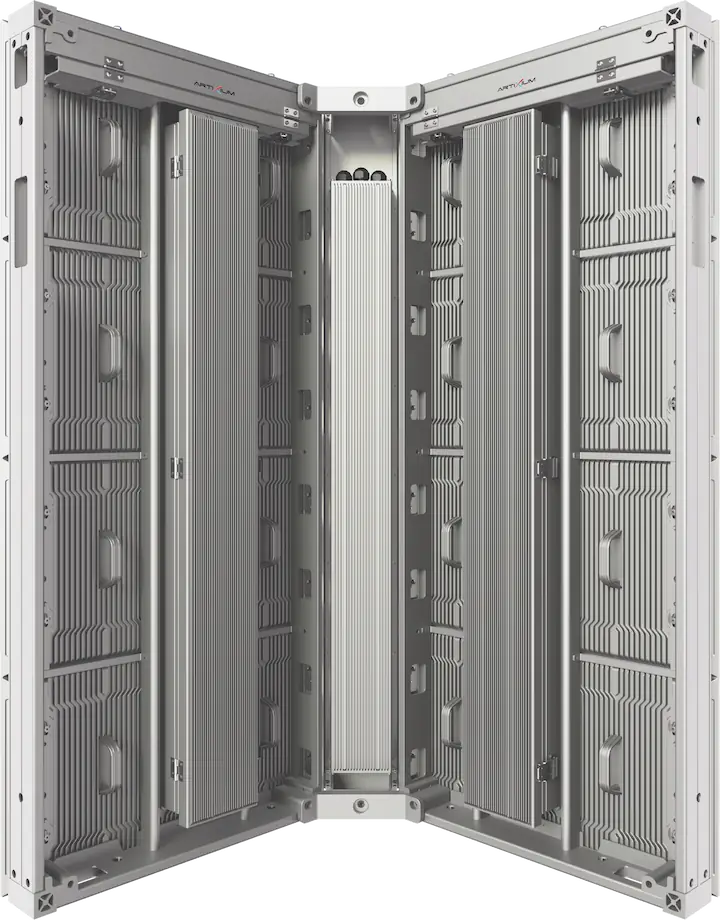

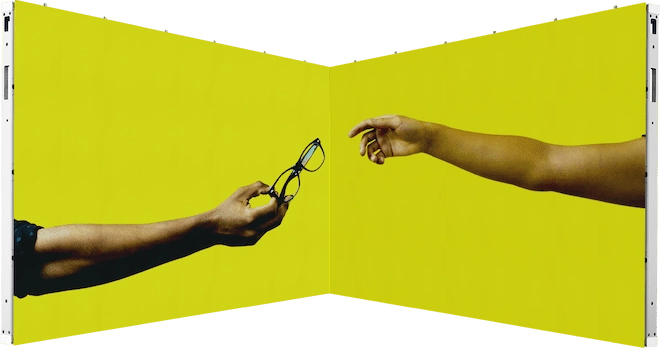

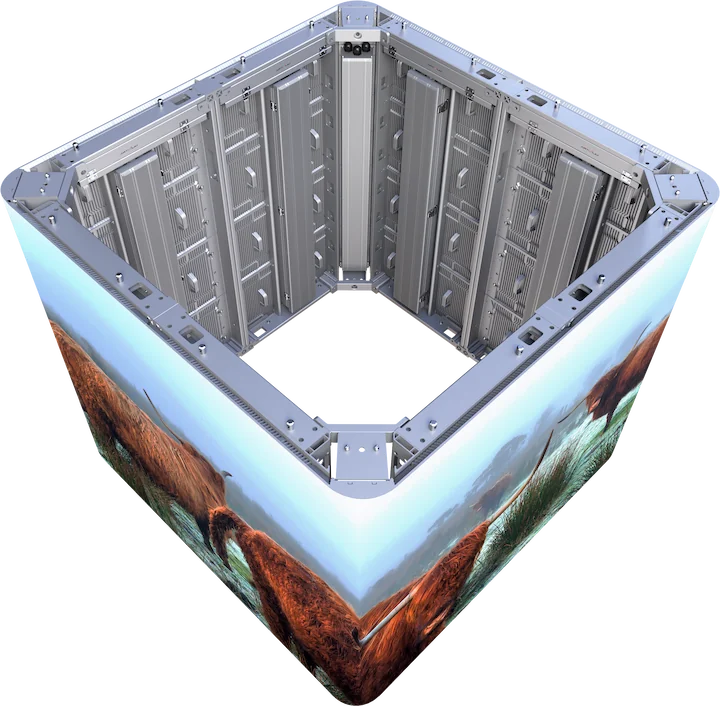

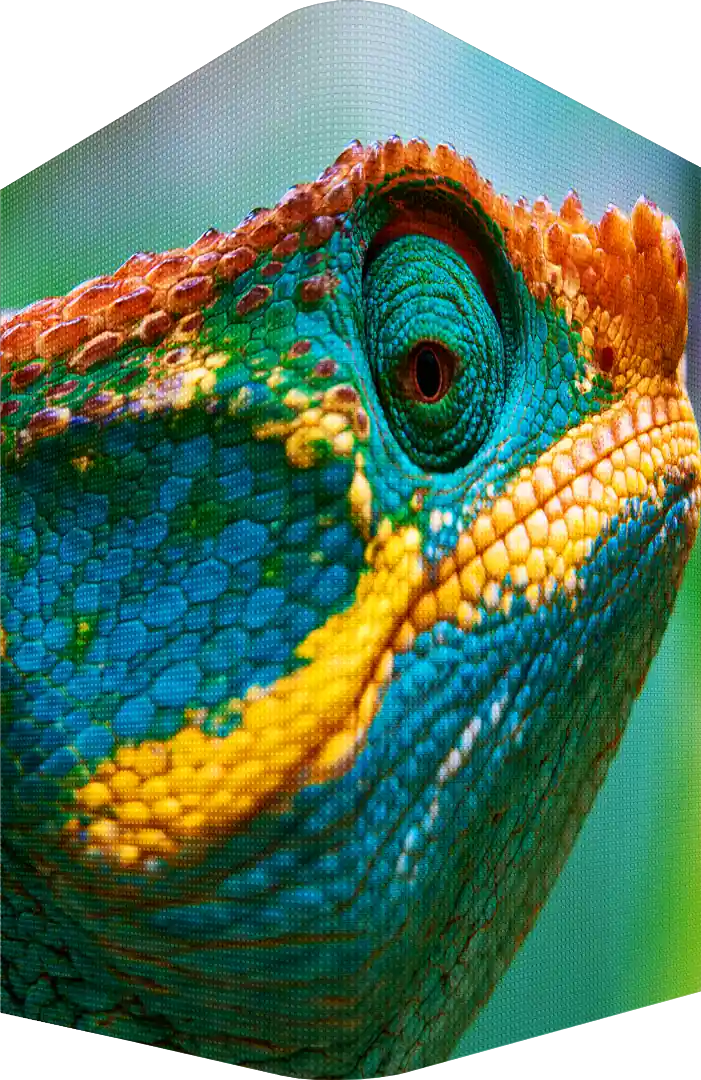

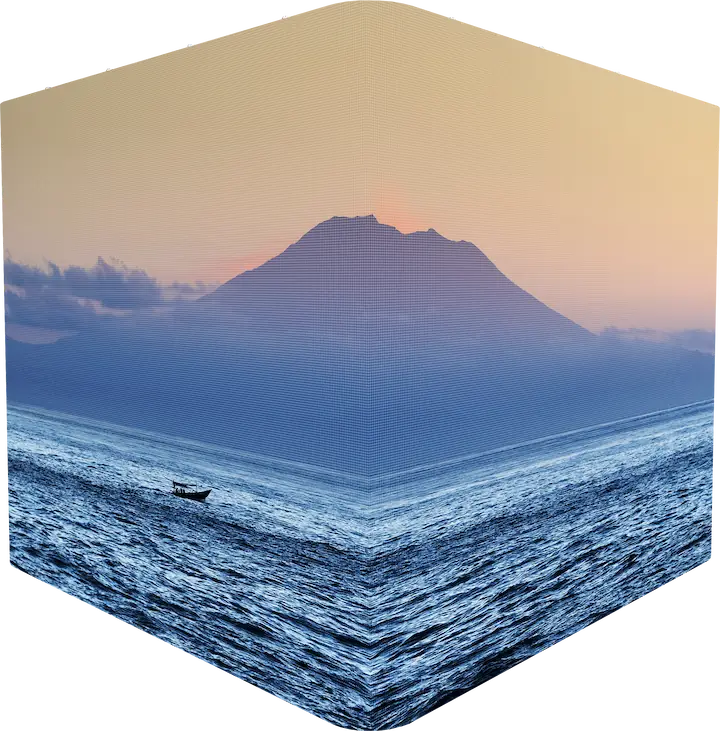

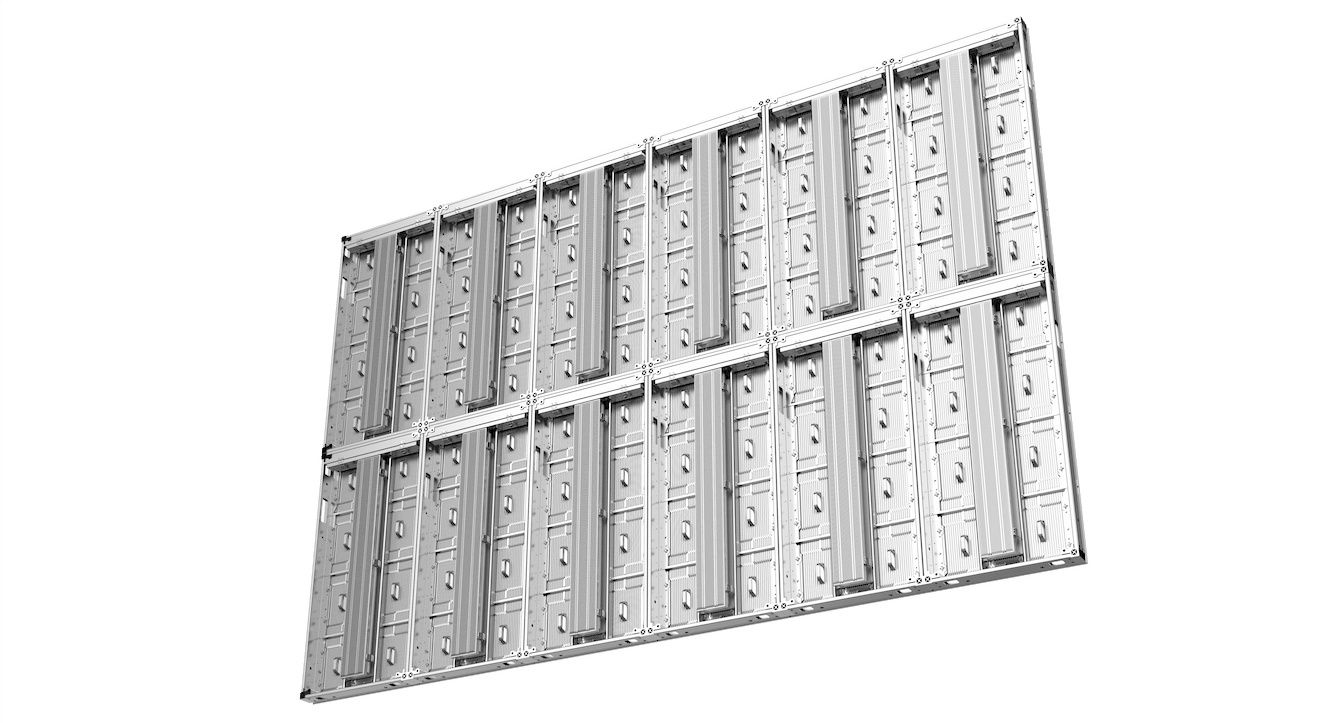

The THORITE 2.0 can be integrated to a curve or an angle, concave or convex, to better fit any structure you want to overhaul with a LED display. It is a highly customizable product meant for tailored projects. Furthermore, we can provide angle cabinets specially designed to allow seamless 90° applications.

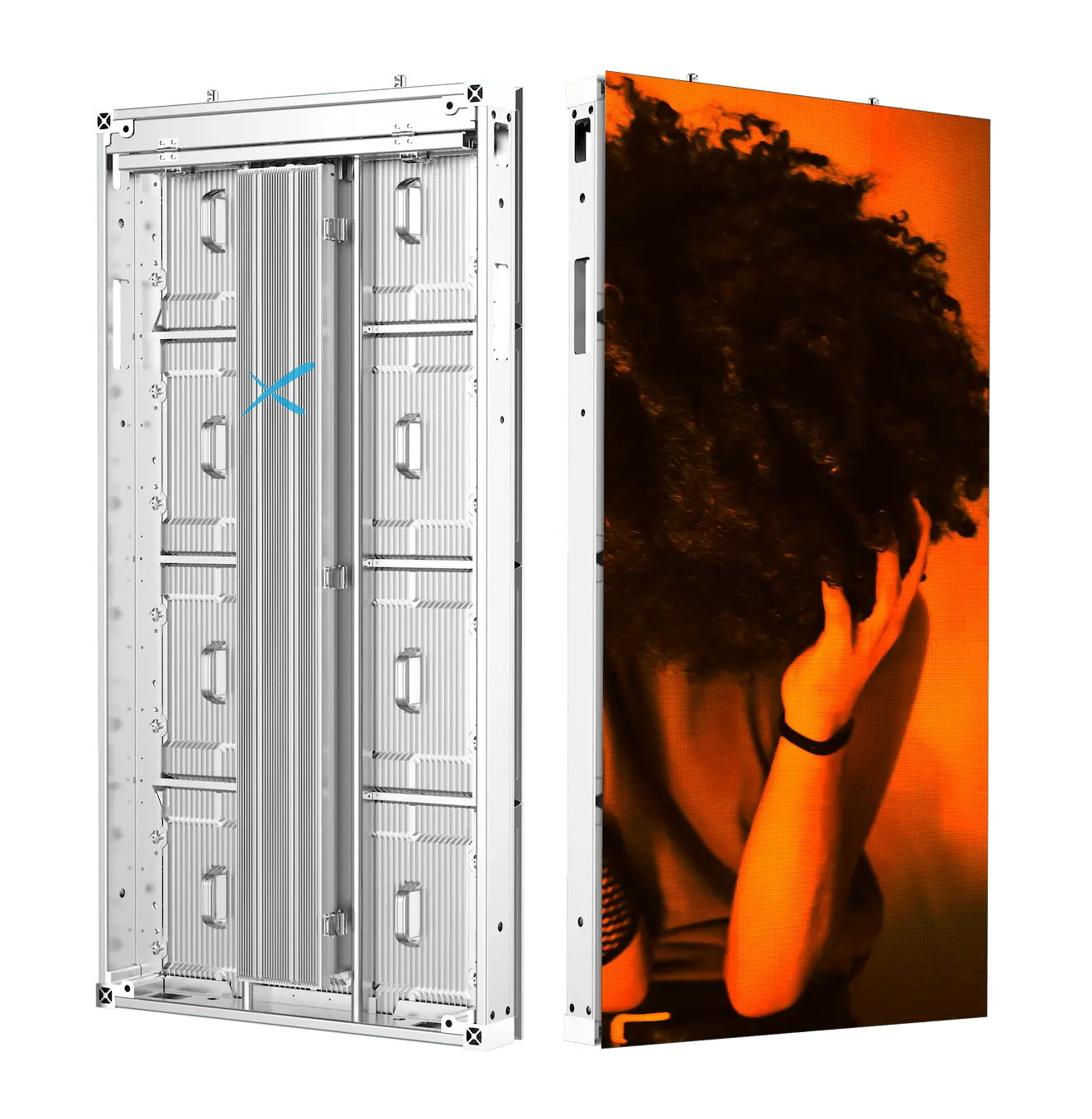

The cabinets of the THORITE 2.0 are designed to allow a complete maintenance both from the front, using a special tool, or from the back thanks to the module handles. No matter the layout of your display, you can be sure that it will be convenient to maintain.
P2.9 is a very fine pixel pitch when it comes to outdoor LED displays, meaning that the THORITE 2.0 will visually perform outstandingly. This quality is further enhanced by this product’s high brightness, that will provide vivid colors visible from afar. Furthermore, the IP68 means this product is totally immuned to dust ingress and can even be submerged for an hour. The THORITE 2.0 truly is one of the best outdoor LED displays on the market.
BACK MAINTENANCEOutdoorFront Maintenance90 DegreesCurveFacadeLarge Scale LED DisplayArchitectureMediaThorite 2.0Modulable LED Display
| OUTDOOR | |||||
| Product Parameters | Unit | 2.9 | 3.9 | 3.9 | 4.8 |
| Pixel Pitch | mm | 2,98 | 3,91 | 3,91 | 4,81 |
| LED | SMD1921 (White Led) | SMD1921 (White Led) | SMD1921 (Black face) | SMD1921 (White Led) | |
| Application | Media | ||||
| Ingress Protection | IP | IP68 | |||
| Brightness | cd/sqm | ≤ 5500 Nits @5volts | ≤ 7000 Nits @5volts | ≤ 5500 Nits @5volts | ≤ 7000 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||
| Viewing Angle (50% brightness) | deg. | 160(+/-80) H / 140 V | |||
| Cabinet Size (WxHxD) | mm | 500 x 1000 x 96.7 / 500 x 750 x 96.7 / 500 x 500 x 96.7 | 500 x 1000 x 96.7 / 500 x 750 x 96.7 / 500 x 500 x 96.7 / 750 x 750 x 96.2 | 500 x 1000 x 96.7 / 500 x 750 x 96.7 / 500 x 500 x 96.7 | |
| Display area (WxH) | mm | 500 x 1000 / 500 x 750 / 500 x 500 | 500 x 1000 / 500 x 750 / 500 x 500 / 750 x 750 | 500 x 1000 / 500 x 750 / 500 x 500 | |
| Module Size (WxHxD) | mm | 250 x 250 x 19.5 | 500 x 250 x 19.5 / 375 x 250 x 19.5 (caissons 750 x 750) | 500 x 250 x 19.5 | |
| Pixel Matrix Per Cabinet (WxH) | px | 168 x 336 / 168 x 252 / 168 x 168 | 128 x 256 / 128 x 192 / 128 x 128 / 192 x 192 | 128 x 256 / 128 x 192 / 128 x 128 / 192 x 192 | 104 x 208 / 104 x 156 / 104 x 104 |
| Pixel Matrix Per Module (WxH) | px | 84 x 84 | 128 x 64 / 96 x 64 | 128 x 64 / 96 x 64 | 104 x 52 |
| Pixel Density | px/sqm | 112896 | 65536 | 43264 | |
| Weight of cabinet | kg | 16 / 12 / 8 | |||
| Cabinet Material | Die-casting aluminum | ||||
| Maintenance Mode | Front & back (tools required for front) | ||||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | ||||
| Contrast Ratio | Élevé | ||||
| Grey scale (linear) | bit | 16 | |||
| Brightness control | bit | 16 | |||
| Processing depth | bit | 16 | |||
| Color | 281 Trillions | ||||
| Display Refresh Rate | Hz | 3840 | |||
| Operation Power | V | AC85-230V | |||
| Max. Power Consumption | W/sqm | 550 | |||
| Average Power Consumption | W/sqm | 200 | |||
| Control Mode | Synchronization | ||||
| Video Frame Rate | Hz | 50/60Hz | |||
| Input Types Supported | DVI / SDI / HDMI | ||||
| 3D ready (optional) | Yes | ||||
| Calibration | Yes | ||||
| Lifetime (50% brightness) | h | 50000 | |||
| Operating Humidity Range | 10-95% | ||||
| Operating Temperature Range | -20°C / +60°C | ||||
| Screen Uniformity Correction | - | ||||
| Certification | CE / ETL / CCC | ||||
| Available options | Different sizes, curve, angle cabinets | ||||
| Compatibility | all different sizes compatible with each other | ||||
