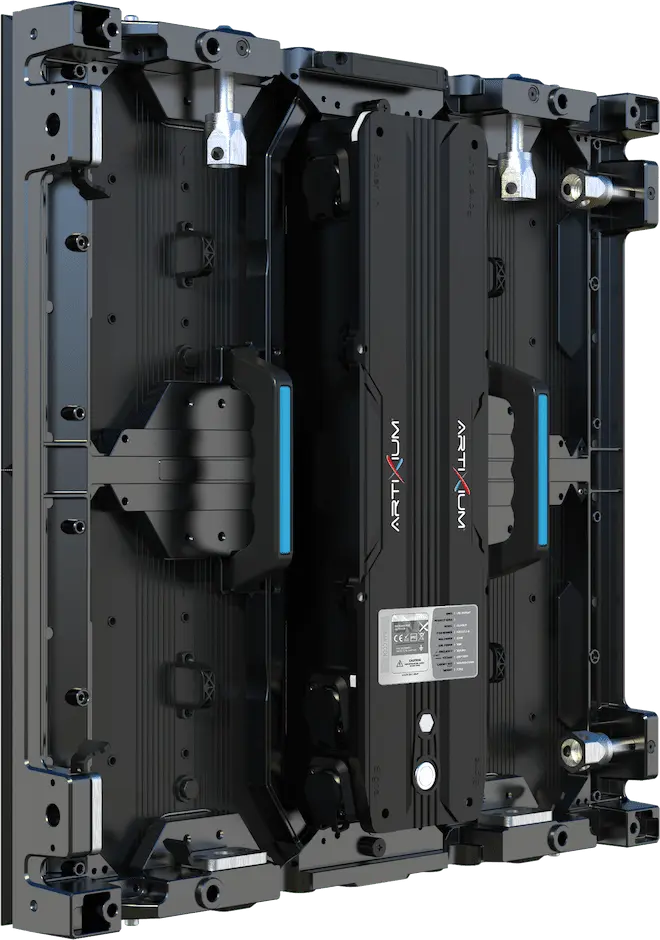

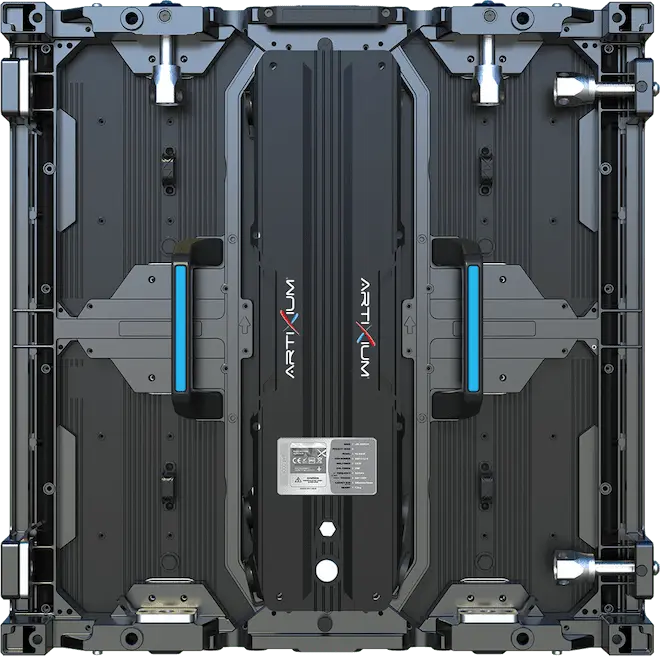

The IRIDIUM is our newest modulable high-end Ultra HD LED cabinet for outdoor applications. This product’s dimensions and features were thought to maximize its adaptability to almost any LED screen project. While the PALLADIUM is designed to easily attain a 16:9 ratio, the IRIDIUM was conceived for it to fit perfectly any environment you’ll integrate it into. With the finest outdoor pixel pitches on the market and the new X-GME technology, this product represents today’s cutting-edge LED technology.
Application
OUTDOOR
PIXEL PITCH
P1.5 P1.9 P2.6 P2.9 P3.9
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65 (Front)
IP54 (Rear)
Display Area (W X H)
500 x 500 mm
BRIGHTNESS
≤ 4500 Nits @5 Volts
WEIGHT
9 kg / cabinet
MATERIAL
Die-Casting Aluminum
The X-GME is the newest the Global Module Encapsulation technology has to offer. It allows total protection against UV rays, shocks, water, and dust, whilst still impacting your LED screen’s uniformity, brightness, and contrast ratio far less than a traditional GME would.

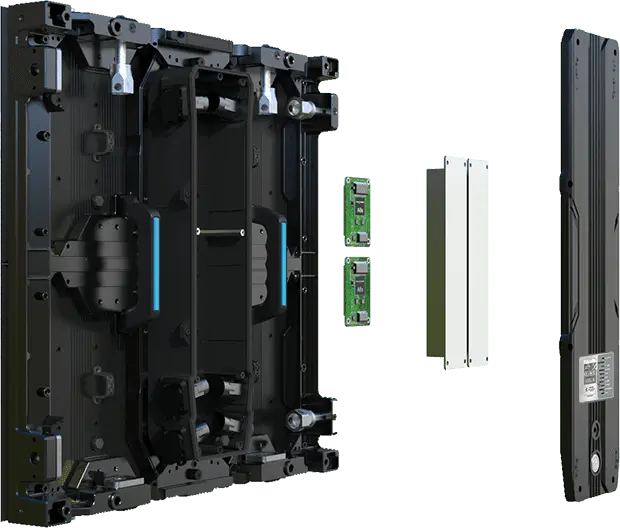

To maximize its adaptability to any LED screen project, the IRIDIUM is fully accessible from the front, by removing the magnetic modules, or from the back. Both these processes are easy and fast to operate and can be managed by one technician.
The IRIDUM is, with the PALLADIUM, the first LED cabinet on the market to offer an ultra-fine pixel pitch for outdoor applications, thanks to the Micro X LEDS. These LEDS are the latest technology available, with high resistance, high brightness, wide color gamut, anti-reflection treatment, high contrast ratio. For outdoor LED screens, the Micro X technology is the best you can get.

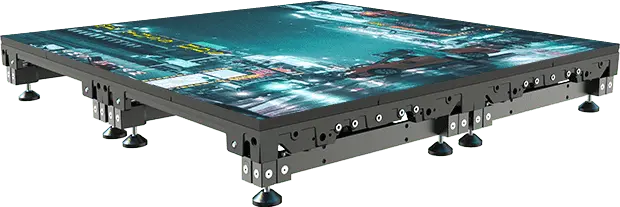

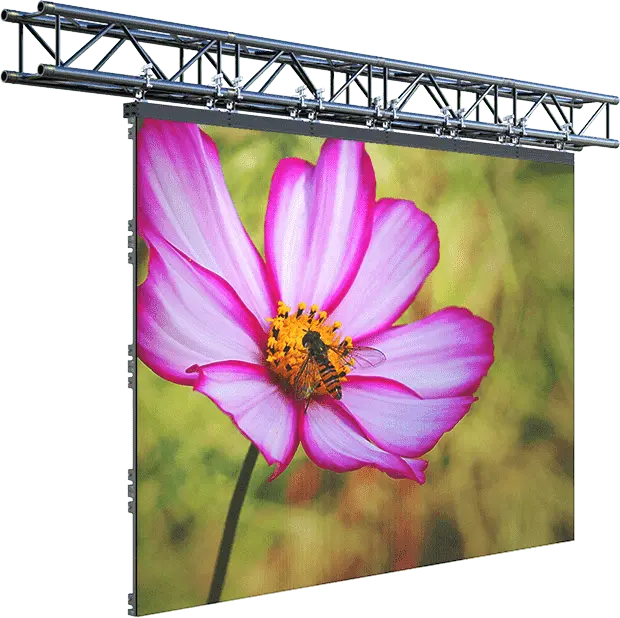

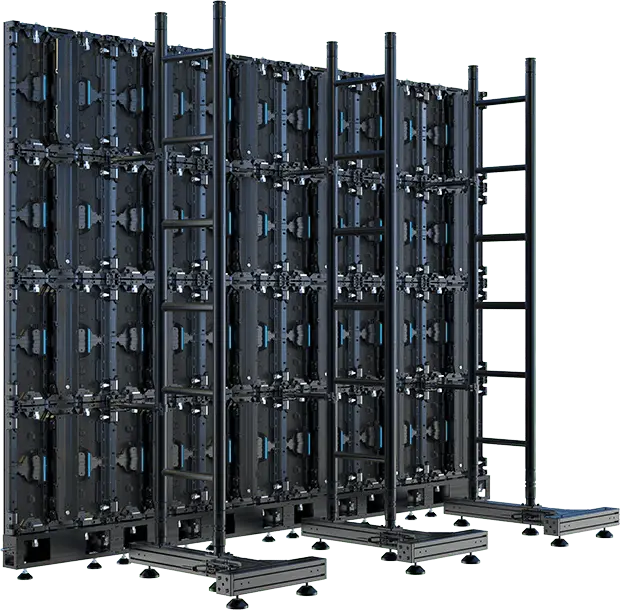

While the PALLADIUM was designed to make 16:9 ultra HD indoor and outdoor LED screens, the IRIDIUM is conceived for less traditional LED applications. With square dimensions, and features designed to allow many different integration methods, this product was thought of as a high-end visual enhancement, that can fit almost any outdoor project.
BACK MAINTENANCEOutdoorFront Maintenance90 DegreesMediaShockproofFloor InstallationHigh ResistanceHigh BrightnessFixed LED DisplayMagnetic ModuleWaterproof
| OUTDOOR | ||||||
| Product Parameters | Unit | 1.5 | 1.9 | 2.6 | 2.9 | 3.9 |
| Pixel Pitch | mm | 1,56 | 1,95 | 2,60 | 2,98 | 3,91 |
| LED | MicroX | SMD1515 (X-GME) | SMD1921 (X-GME) | |||
| Application | Fine pitch outdoor LED cabinet | |||||
| Ingress Protection | IP | IP65 (front) / IP54 (back) | ||||
| Brightness | cd/sqm | ≤ 4500 Nits @5volts | ||||
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||||
| Viewing Angle (50% brightness) | deg. | 160H / 160 V | ||||
| Cabinet Size (WxHxD) | mm | 535.8 x531 x 83.1 | ||||
| Display area (WxH) | mm | 500 x 500 | ||||
| Module Size (WxHxD) | mm | 250 x 250 x 26 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 320 x 320 | 256 x 256 | 192 x 192 | 168 x 168 | 128 x 128 |
| Pixel Matrix Per Module (WxH) | px | 160 x 160 | 128 x 128 | 96 x 96 | 84 x 84 | 64 x 64 |
| Pixel Density | px/sqm | 409600 | 262144 | 147456 | 112896 | 65536 |
| Weight of cabinet | kg | 9 | ||||
| Cabinet Material | Die-casting aluminum | |||||
| Maintenance Mode | Front & back | |||||
| Mask specification | 95% Plastic + 5% Fiber / SS screws / Shaders | |||||
| Contrast Ratio | High | |||||
| Grey scale (linear) | bit | 14 | ||||
| Brightness control | bit | 16 | ||||
| Processing depth | bit | 16 | ||||
| Color | 281 Trillions | |||||
| Display Refresh Rate | Hz | 3840 | ||||
| Operation Power | V | AC100-240V | ||||
| Max. Power Consumption | W/sqm | 600 | 800 | |||
| Average Power Consumption | W/sqm | 200 | 300 | |||
| Control Mode | Synchronization | |||||
| Video Frame Rate | Hz | 50/60Hz | ||||
| Input Types Supported | DVI / SDI / HDMI / S-video / VGA | |||||
| 3D ready (optional) | Yes | |||||
| Calibration | Yes | |||||
| Lifetime (50% brightness) | h | 100000 | ||||
| Operating Humidity Range | 10-95% | |||||
| Operating Temperature Range | -30°C / +50°C | |||||
| Screen Uniformity Correction | Yes | |||||
| Certification | CE / ETL / CCC | |||||
| Available options | 90° angles, floor | |||||
| Compatibility | No | |||||
