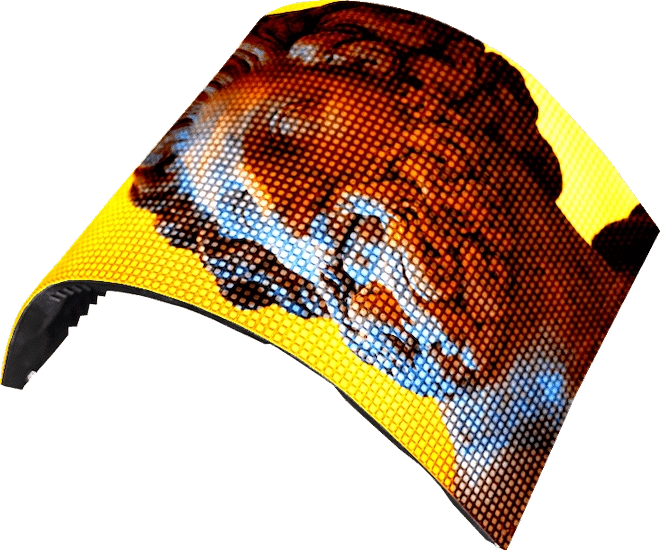

When it comes to unorthodox LED display projects, the MICA is a solution of choice. Its flexibility makes it an extremely creative-oriented product, that’s why it doesn’t come as rigid cabinets but as magnetic modules that can be attached to any desired steel structure. With a pixel pitch ranging from P1.5 to P4, the MICA has the potential of a very qualitative LED display.
Application
Indoor
PIXEL PITCH
P1.8 P2 P2.5 P3 P4 P5
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP43
Display Area (W X H)
200 X 150 MM
240 X 120 MM
256 x 128 mm
320 x 160 mm
BRIGHTNESS
≤1200 NITS @5 Volts
WEIGHT
20KG/SQM
MATERIAL
Rubber + Magnets + Flexible PCB
The standard 240 x 120 x 9 mm size of the MICA allows for a perfect 16:9 golden ratio. By laying out your MICA modules by a multiple of 9 in height and a multiple of 8 in width, you can easily attain 2k and 4k resolutions, the finer the pixel pitch the sooner you'll attain said resolution.

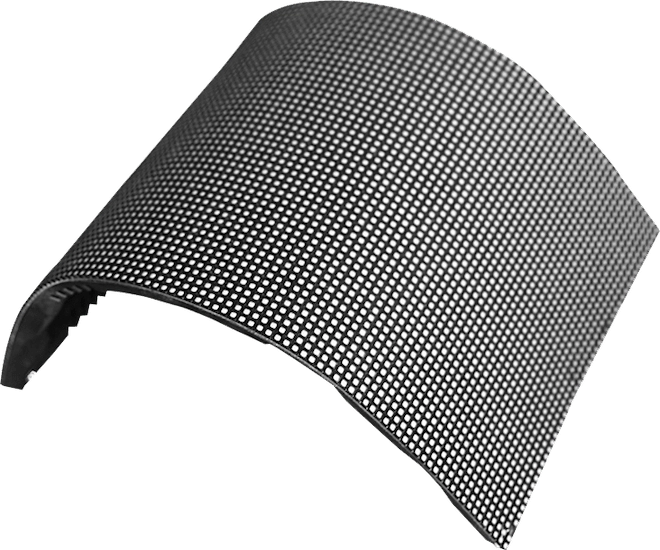

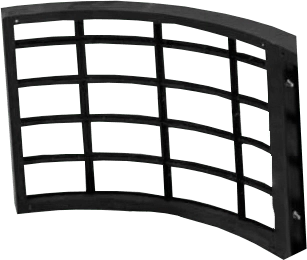

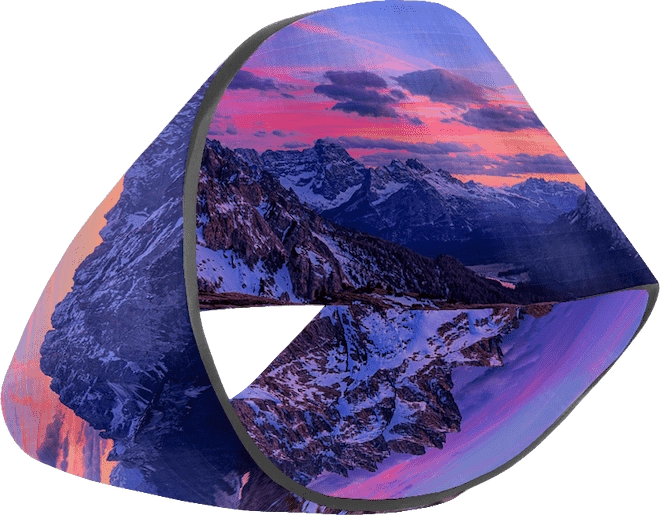

The design of the MICA LED display is clearly oriented towards original projects involving all sorts of curves. By using tailored steel structures, you can create almost any shape and the MICA modules will fit them all. Whether you want to think of it as part of your interior architecture or as a standalone artistic LED display, there are no limits to what you can create with the MICA.

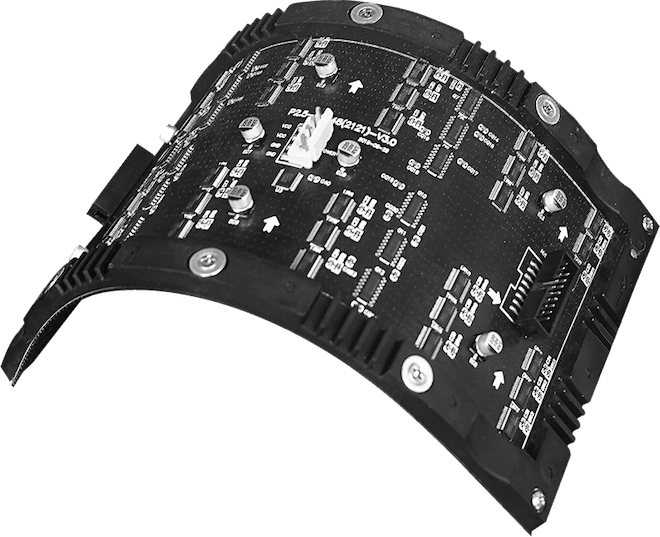

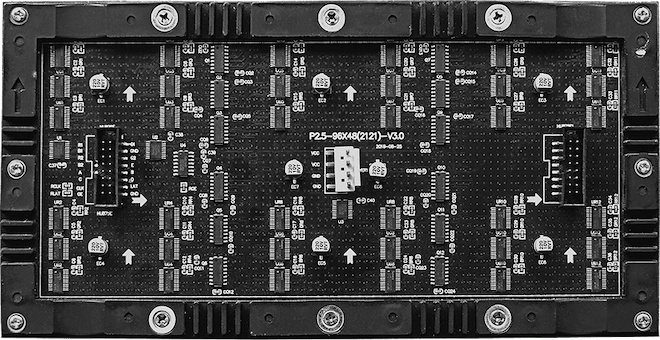

As you can get very creative with your MICA layout, you can rest assured that no matter the complexity of your project, its maintenance will be an easy task. The MICA modules are indeed magnetically affixed to a metal structure, making them extremely easy to remove and to replace, both from the front and from the back.

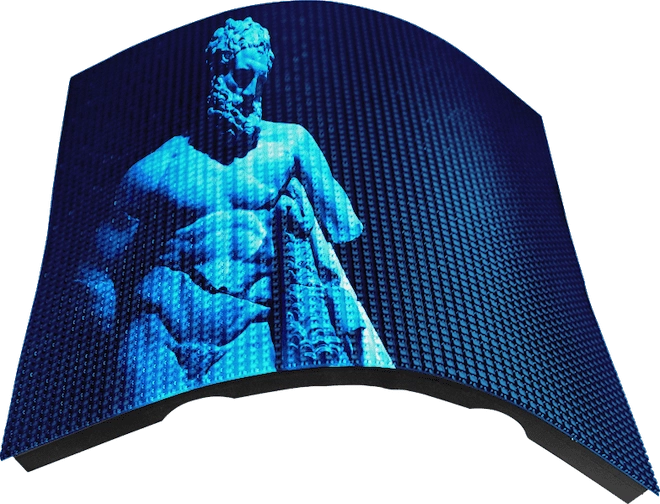

When it comes to indoor LED displays, the MICA is a very resistant product. Some of it is due to the fact that it's mostly made of rubber and therefore is highly shock resilient, but some of it is actually due to the quality of its components that offer good resistance to water projections and dust.
BACK MAINTENANCEIndoorFront MaintenanceArchitectureMediaCreativeFixed LED DisplayFlexible
| INDOOR | |||||||||
| Product Parameters | Unit | 1.8 | 2.0 | 2.5 | 3 | 4 | 5 | ||
| Pixel Pitch | mm | 1,88 | 2,00 | 2,50 | 3,00 | 4 | 5 | ||
| LED | SMD1515 | SMD2121 | |||||||
| Application | Indoor flexible LED module | ||||||||
| Ingress Protection | IP | IP43 | |||||||
| Brightness | cd/sqm | ≤ 1200 Nits @5volts | |||||||
| Color Temperature after calib (adjustable) | deg. K | 3200 - 9000 adjustable | |||||||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | |||||||
| Cabinet Size (WxHxD) | mm | 240 x 120 x 9 | 320 x 160 x 9 | 240 x 120 x 9 | 240 x 120 x 9 | 256 x 128 x 9 | 240 x 120 x 9 | 320 x 160 x 9 | |
| Display area (WxH) | mm | 240 x 120 | 320 x 160 | 240 x 120 | 240 x 120 | 256 x 128 | 240 x 120 | 320 x 160 | |
| Module Size (WxHxD) | mm | 240 x 120 x 9 | 320 x 160 x 9 | 240 x 120 x 9 | 240 x 120 x 9 | 256 x 128 x 9 | 240 x 120 x 9 | 320 x 160 x 9 | |
| Pixel Matrix Per Cabinet (WxH) | px | 128 x 64 | 120 x 60 | 128 x 64 | 96 x 48 | 80 x 40 | 64 x 32 | 60 x 30 | 64 x 32 |
| Pixel Matrix Per Module (WxH) | px | 128 x 64 | 120 x 60 | 128 x 64 | 96 x 48 | 80 x 40 | 64 x 32 | 60 x 30 | 64 x 32 |
| Pixel Density | px/sqm | 284444 | 250000 | 160000 | 111111 | 62500 | 40000 | ||
| Weight | kg/sqm | 20 | |||||||
| Cabinet Material | Rubber + Magnets + Flexible PCB | ||||||||
| Maintenance Mode | Front & back | ||||||||
| Mask specification | Rubber | ||||||||
| Contrast Ratio | High | ||||||||
| Grey scale (linear) | bit | 16 | |||||||
| Brightness control | bit | 16 | |||||||
| Processing depth | bit | 16 | |||||||
| Color | 281 Trillions | ||||||||
| Display Refresh Rate | Hz | 3840 | |||||||
| Operation Power | V | AC85-230V | |||||||
| Max. Power Consumption | W/sqm | 240 | |||||||
| Average Power Consumption | W/sqm | 96 | |||||||
| Control Mode | Synhronization | ||||||||
| Video Frame Rate | Hz | 50/60Hz | |||||||
| Input Types Supported | DVI / SDI / HDMI / VGA | ||||||||
| 3D ready (optional) | Yes | ||||||||
| Calibration | Yes | ||||||||
| Lifetime (50% brightness) | h | 50000 | |||||||
| Operating Humidity Range | 10-90% | ||||||||
| Operating Temperature Range | -20°C / +50°C | ||||||||
| Screen Uniformity Correction | - | ||||||||
| Certification | CE / ETL / CCC | ||||||||
| Available options | Nanocoating | ||||||||
| Compatibility | - | ||||||||
