Designed to get the best of both the QWARTZ and the GRANITE, the QWARTZ 2.0 is the newest addition to our indoor LED cabinet range. With fine pixel pitch, unprecedented modularity, and a competitive value for money, this product is going to be the new standard for indoor applications. Its lightweight and slim profile make this product ideal for indoor wall applications and can be integrated swiftly and with ease. Six different cabinet sizes are available and are all compatible with one another. These cabinets can be installed both vertically and horizontally.
Application
Indoor
PIXEL PITCH
P1.9 P2.5 P2.6 P2.9 3.1 P3.9 P4.8 P5.9
MAINTENANCE
Front Maintenance
INGRESS PROTECTION
IP30
Display Area (W X H)

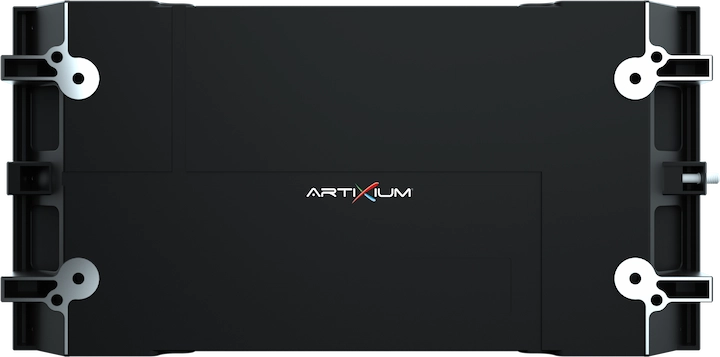

250 x 500 mm
250 x 750 mm
250 x 1000 mm
500 x 500 mm
500 x 750 mm

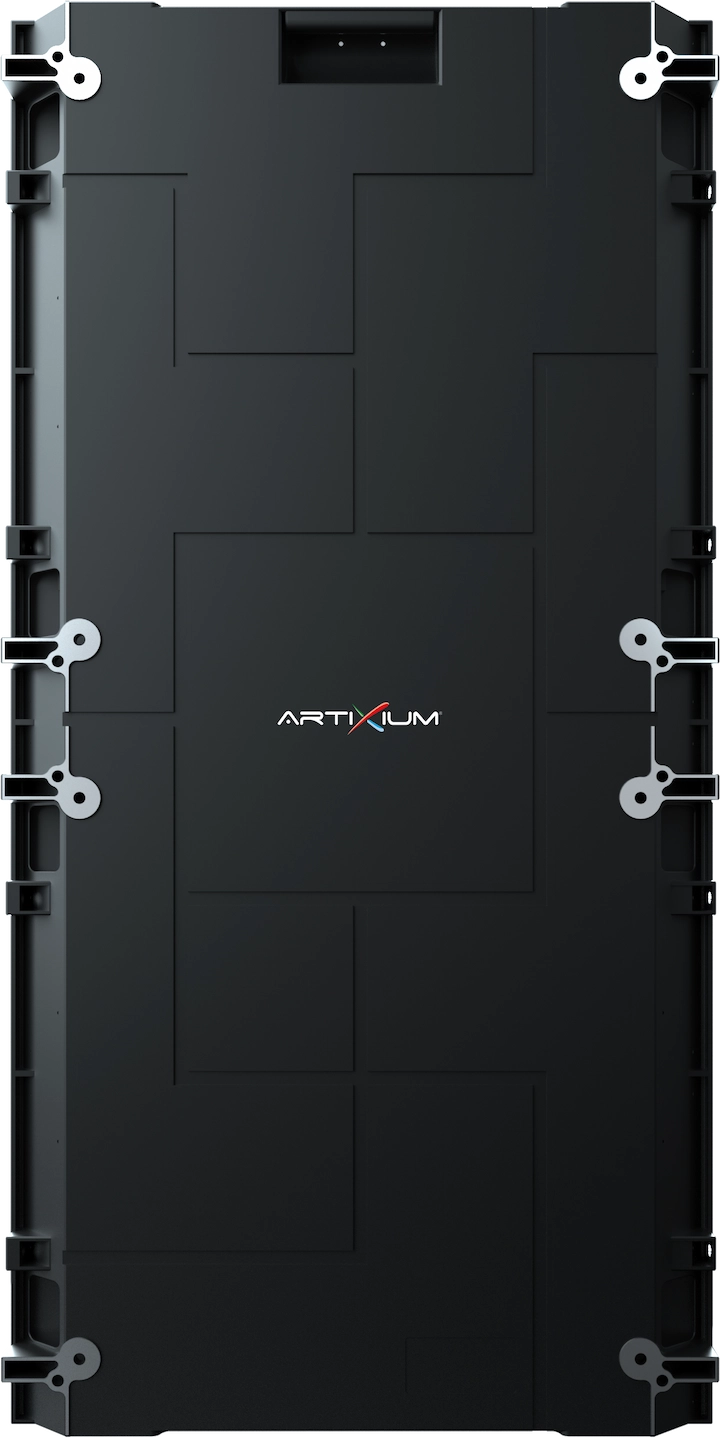

500 x 1000 mm
BRIGHTNESS
≤ 800 Nits @5volts
WEIGHT
± 22.4 kg/m²
MATERIAL

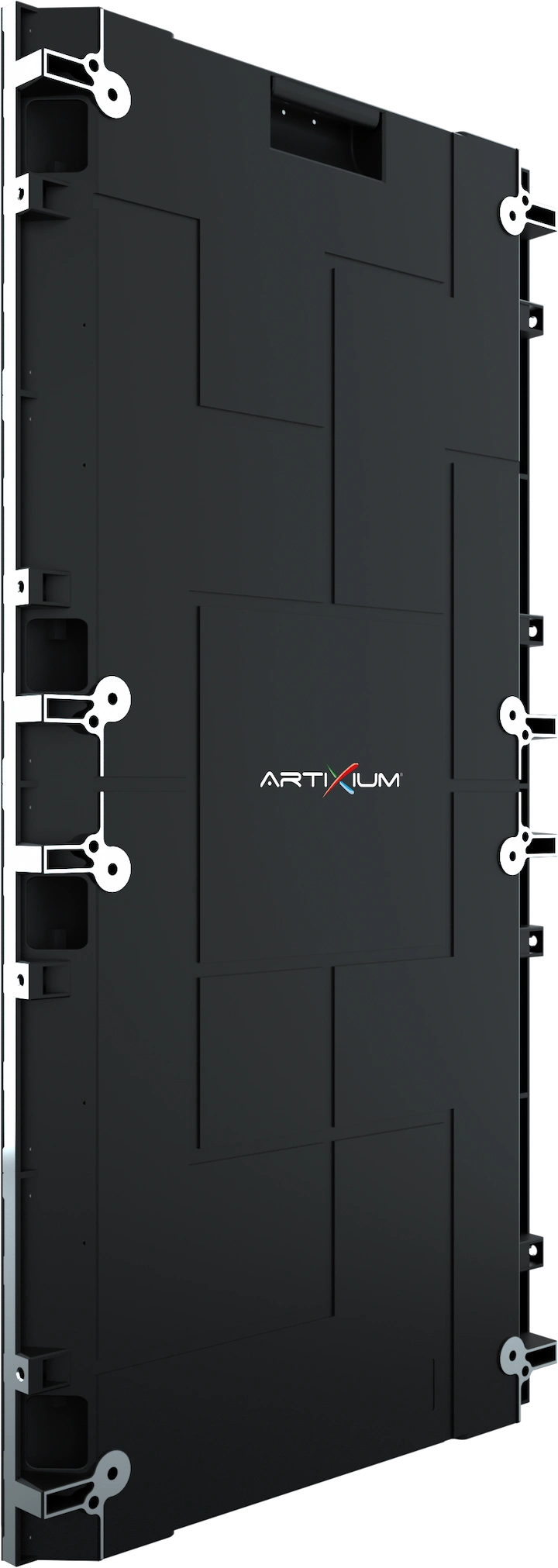

Die-casting aluminum
With fine pixel pitch ranging from P1.9 to P5.9 and Black Face SMD LEDs, the QWARTZ 2.0 can display very high-quality visual content. This feature makes it ideal for numerous applications, such as conference rooms, briefing screens, museums, or even leisure screens, etc.

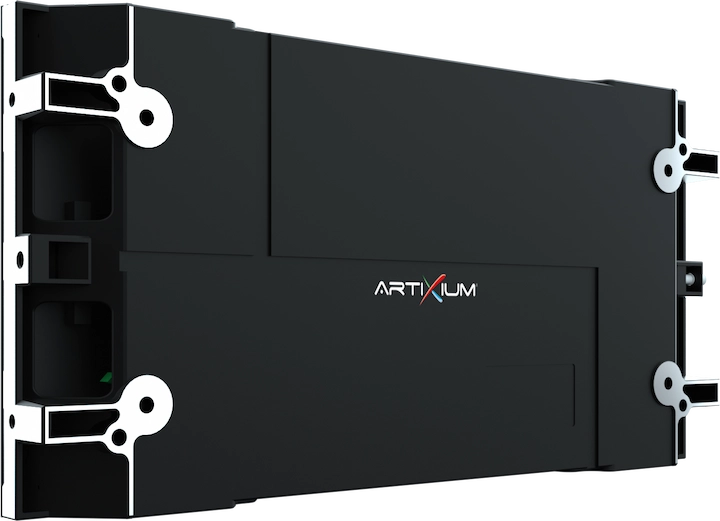

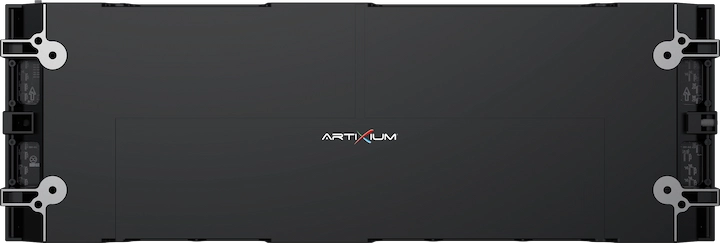

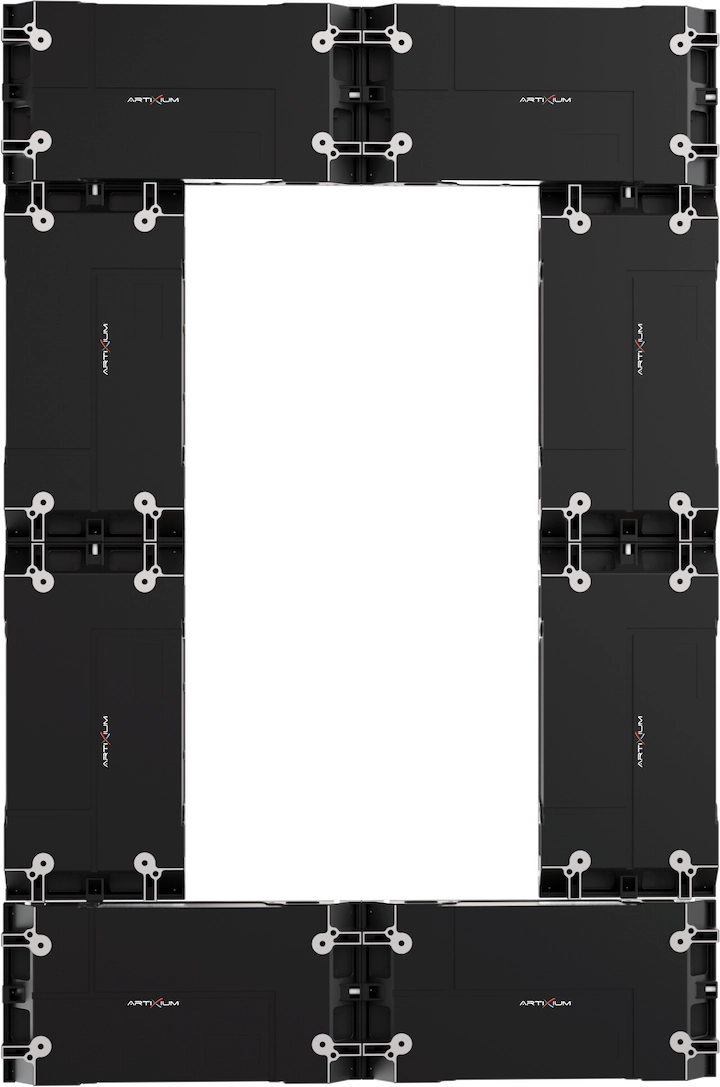

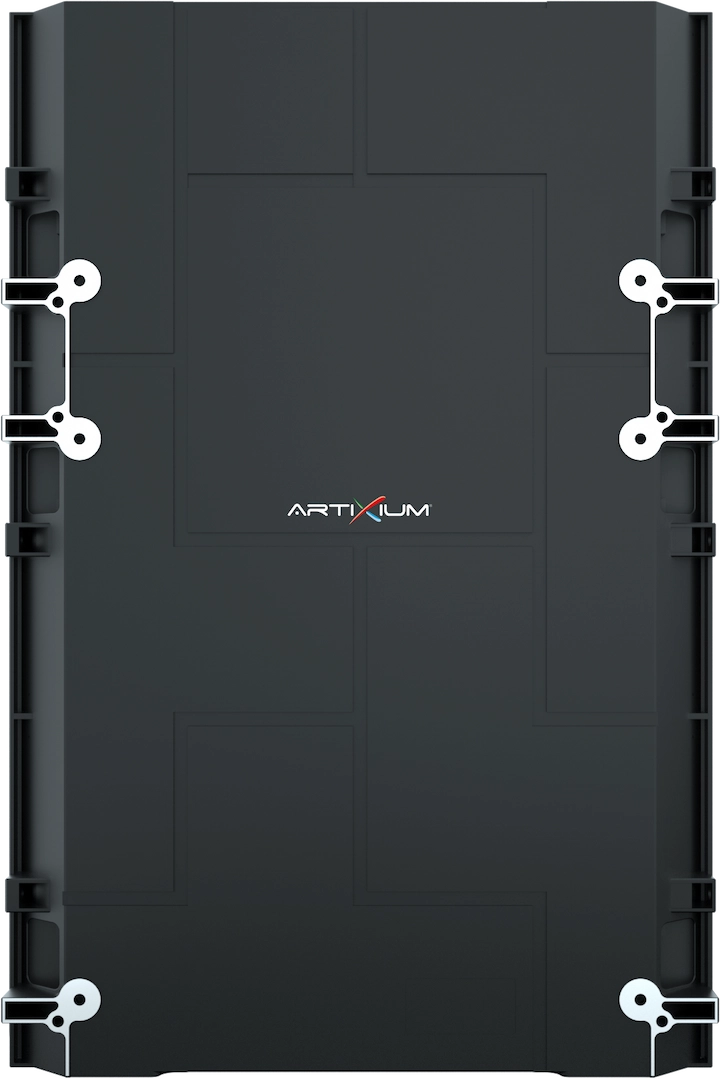

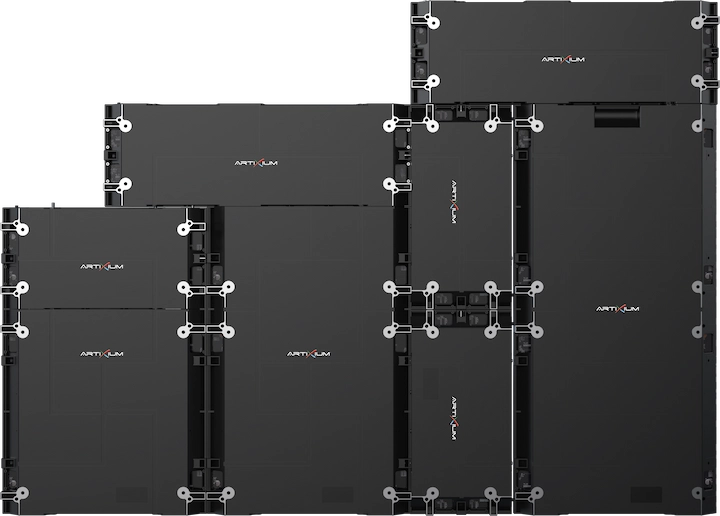

The QWARTZ 2.0 cabinets are available in 6 different sizes, compatible with each other, ranging from the 250 x 500 mm ribbon to the big 500 x 1000 mm cabinet. These cabinets can be integrated vertically or horizontally, and offer a wide range of possible applications. The only real limits are your project’s ambition and creativity.

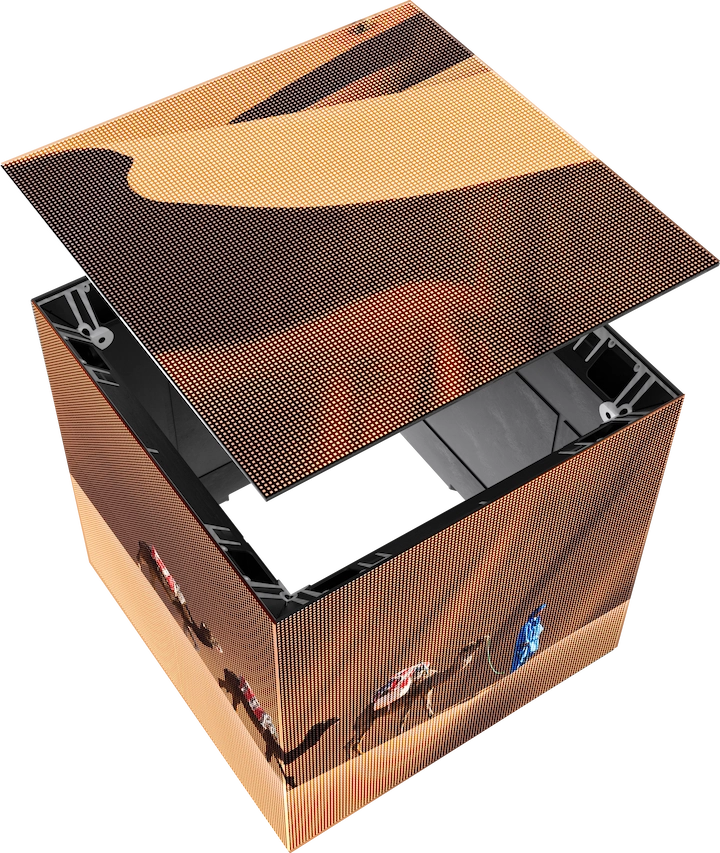

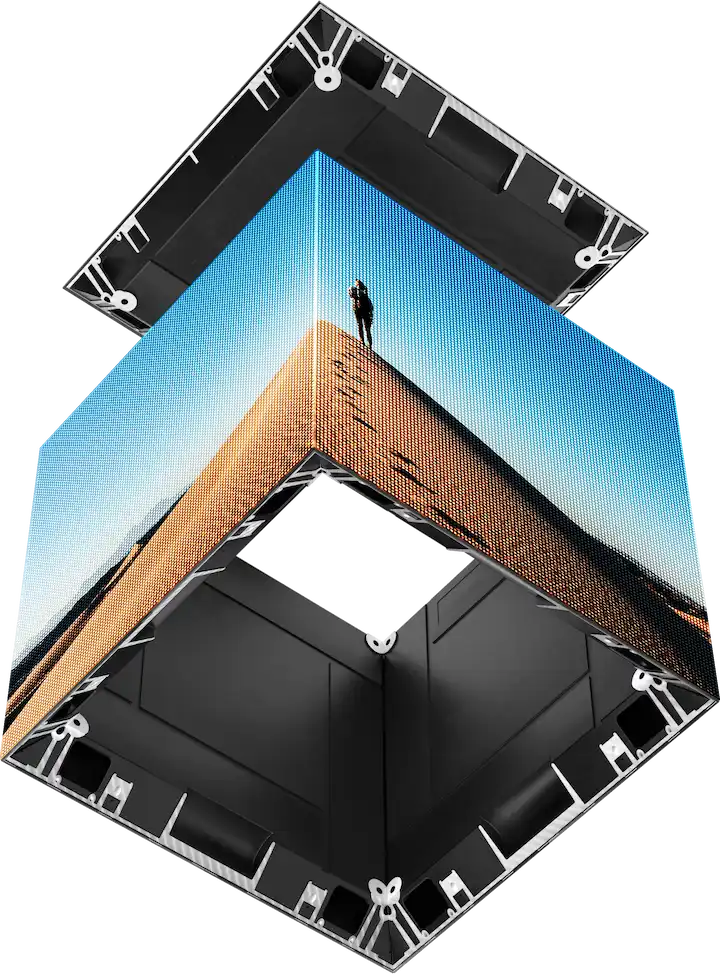

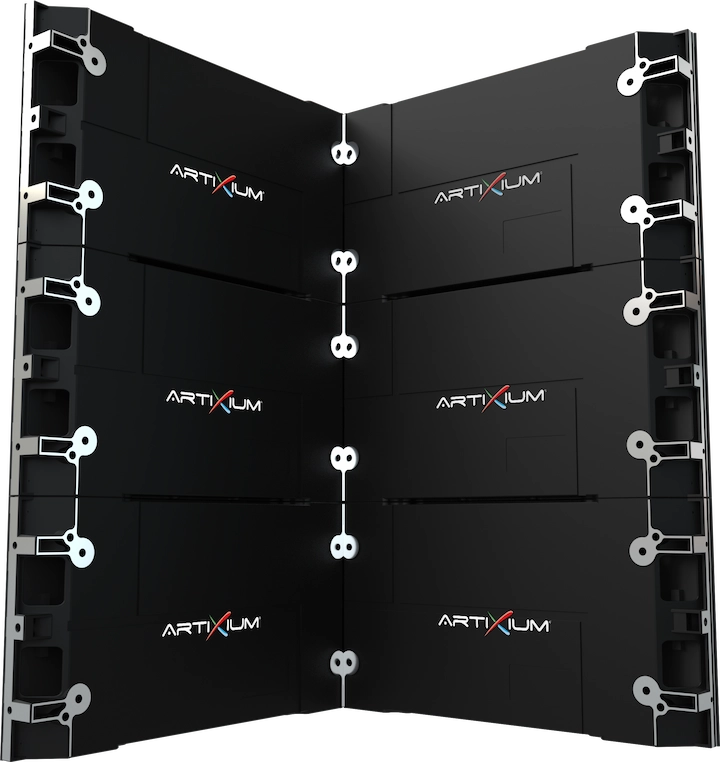

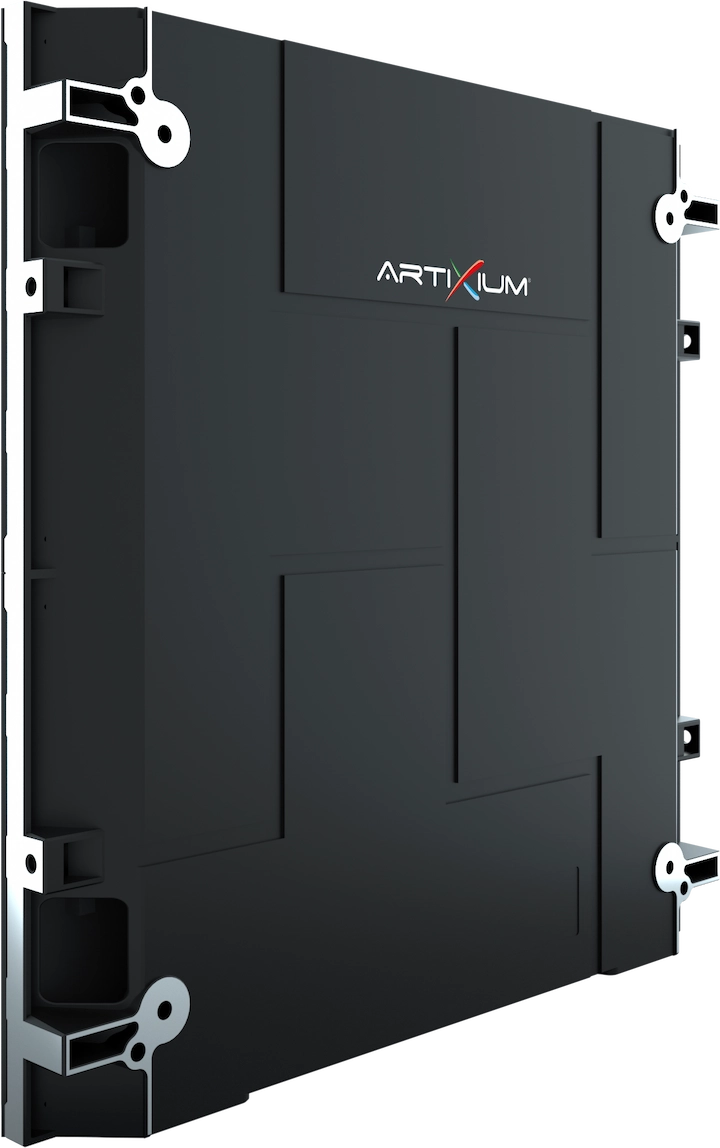

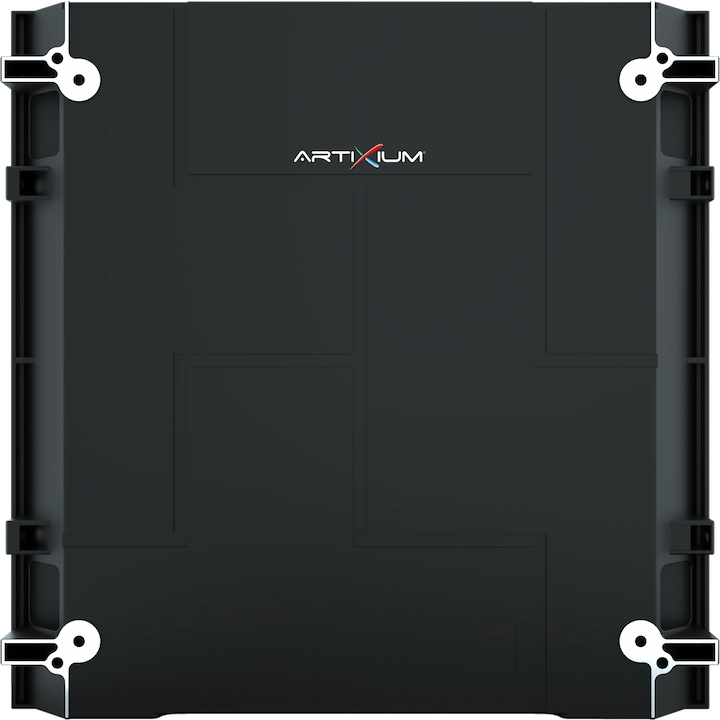

All the QWARTZ 2.0 cabinets can be bevelled at 45° on the sides in order to allow perfect 90° applications. This feature even allows you to install your cabinets at a curve, given that the receiving structure is built accordingly. There also are 500 x 500 mm cabinets bevelled on all four sides, giving you the opportunity to create entire LED cubes. We implemented this feature to make sure that the QWARTZ 2.0 will fit almost any project, regardless of its complexity.

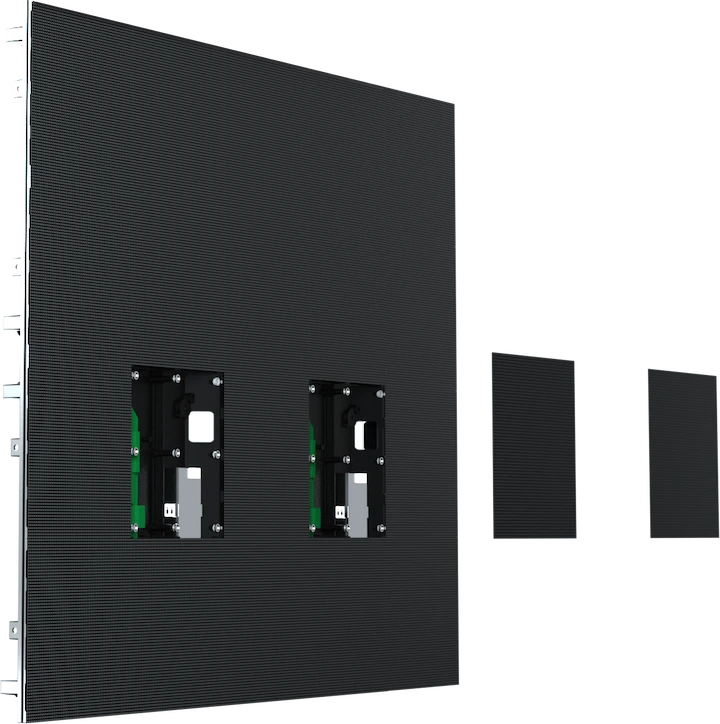

The QWARTZ 2.0 modules are accessible from the front thanks to their magnetic fixation. With the help of a suction tool, replacing a module, or accessing the cabinet’s internal parts can be done swiftly and with ease by one technician.
The P2.6 version of the QWARTZ 2.0 is available with SMD1010 LEDs and a touch-reactive covering, giving you the option to get a fully interactive LED screen. This option is very useful for professional use, as it allows you to conceive a tailored giant touchpad for meetings, conferences, etc.
The P2.6, P2.9 & P3.1 versions of the QWARTZ 2.0 can be equipped with high-brightness LEDs (SMD1516 or SMD1921) to better suit applications where your screen might be exposed to direct sunlight. This option allows you to fit your screen in any given indoor space, notably with a lot of windows, all the while guaranteeing excellent visibility.

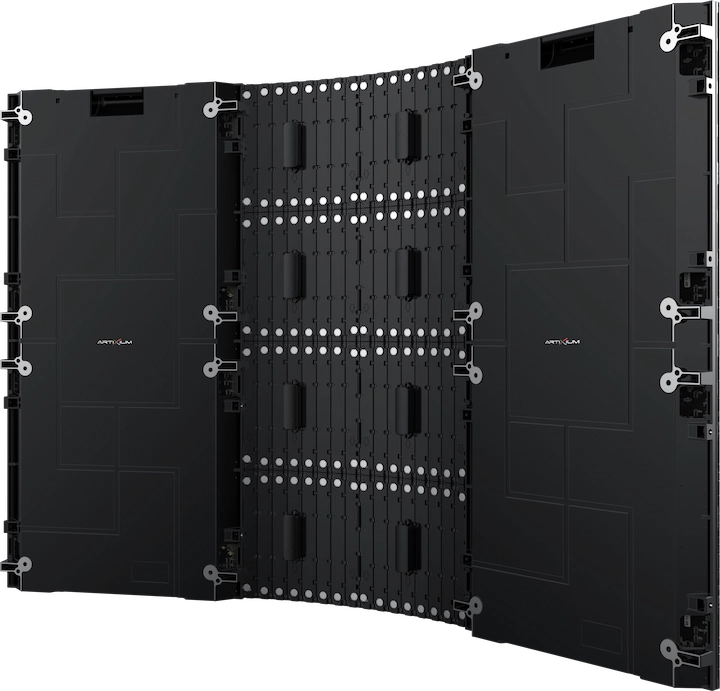

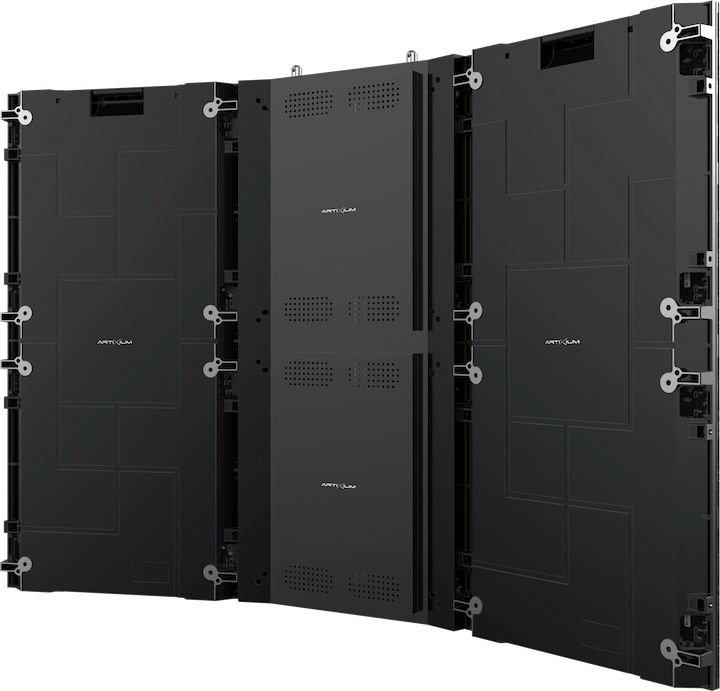

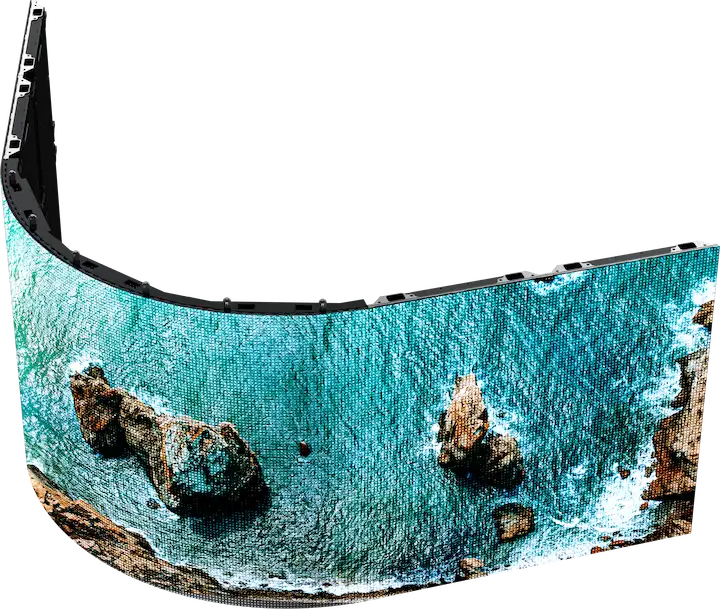

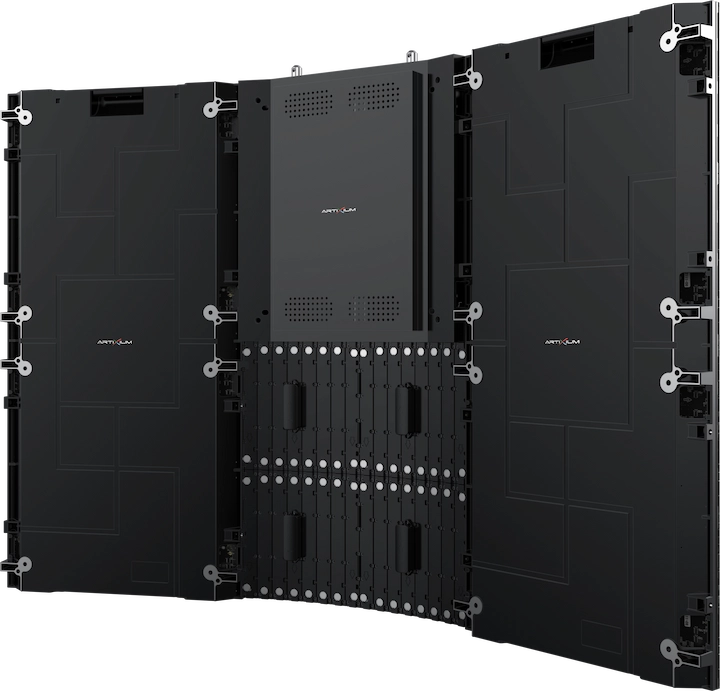

For the most creative application projects, we can provide flexible modules specially designed to fit any curve imaginable. Compatible with all QWARTZ 2.0 cabinets, these modules allow you to answer any of the most demanding tenders without changing anything to your LED screen’s electrical and data configuration. We can also provide tailored backshells to ease the installation process and enhance your modules’ ventilation and physical integrity.
| INDOOR | |||||||||
| Product Parameters | Unit | 1.9 | 2.5 | 2.6 | 2.9 | 3.1 | 3.9 | 4.8 | 5.9 |
| Pixel Pitch | mm | 1,95 | 2,50 | 2,60 | 2,98 | 3,13 | 3,91 | 4,81 | 5,95 |
| LED | SMD1212 3in1 Black Face ( SMD1515 opt.) |
SMD1515 3in1 Black Face ( SMD2020 opt.) |
SMD2020 3in1 Black Face | ||||||
| Application | Media (retail) | ||||||||
| Ingress Protection | IP | IP30 | |||||||
| Brightness | cd/m² | ≤ 800 Nits @5volts | ≤ 800 Nits @5volts (≤ 3000 Nits opt.) | ≤ 800 Nits @5volts | |||||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||||||
| Viewing Angle (50% brightness) | deg. | 140 H / 140 V | |||||||
| Cabinet Size (WxHxD) | mm | 250 x 500 x 47 / 250 x 750 x 47 / 250 x 1000 x 47 / 500 x 500 x 47 / 500 x 750 x 47 / 500 x 1000 x 47 | |||||||
| Display area (WxH) | mm | 250 x 500 / 250 x 750 / 250 x 1000 / 500 x 500 / 500 x 750 / 500 x 1000 | |||||||
| Module Size (WxHxD) | mm | 250 x 250 | |||||||
| Pixel Matrix Per Cabinet (WxH) | px | 128 x 256 / 128 x 384 / 128 x 512 / 256 x 256 / 256 x 384 / 256 x 512 | 100 x 200 / 100 x 300 / 100 x 400 / 200 x 200 / 200 x 300 / 200 x 400 | 96 x 192 / 96 x 288 / 96 x 384 / 192 x 192 / 192 x 288 / 192 x 384 | 84 x 168 / 84 x 252 / 84 x 336 / 168 x 168 / 168 x 252 / 168 x 336 | 80 x 160 / 80 x 240 / 80 x 320 / 160 x 160 / 160 x 240 / 160 x 320 | 64 x 128 / 64 x 192 / 64 x 256 / 128 x 128 / 128 x 192 / 128 x 256 | 52 x 104 / 52 x 156 / 52 x 208 / 104 x 104 / 104 x 156 / 104 x 208 | 42 x 84 / 42 x 126 / 42 x 168 / 84 x 84 / 84 x 126 / 84 x 168 |
| Pixel Matrix Per Module (WxH) | px | 128 x 128 | 100 x 100 | 96 x 96 | 84 x 84 | 80 x 80 | 64 x 64 | 52 x 52 | 42 x 42 |
| Pixel Density | px/m² | 262144 | 160000 | 147456 | 112896 | 102400 | 65536 | 43264 | 28224 |
| Weight of cabinet | kg | ± 22.4 | |||||||
| Cabinet Material | Die-casting aluminum | ||||||||
| Maintenance Mode | Front | ||||||||
| Mask specification | 95% Plastic + 5% Fiber / Clips (no screws) / No shaders | ||||||||
| Contrast Ratio | Élevé | ||||||||
| Grey scale (linear) | bit | 16 | |||||||
| Brightness control | bit | 16 | |||||||
| Processing depth | bit | 16 | |||||||
| Color | 281 Trillions | ||||||||
| Display Refresh Rate | Hz | 3840 | |||||||
| Operation Power | V | AC85-230V | |||||||
| Max. Power Consumption | W/m² | 420 | |||||||
| Average Power Consumption | W/m² | 160 | |||||||
| Control Mode | Synchronous / Asynchronous | ||||||||
| Video Frame Rate | Hz | 50/60Hz | |||||||
| Input Types Supported | DVI / SDI / HDMI | ||||||||
| 3D ready (optional) | Yes | ||||||||
| Calibration | Yes | ||||||||
| Lifetime (50% brightness) | h | 50000 | |||||||
| Operating Humidity Range | 10-90% | ||||||||
| Operating Temperature Range | 0°C / +40°C | ||||||||
| Screen Uniformity Correction | Yes | ||||||||
| Certification | CE / FCC / ETL | ||||||||
| Available options | 90° angle | Touch reactive (LED SMD1010) / High brightness LED (SMD1516) / 90° angle |
High brightness LED (SMD1921) / 90° angle | 90° angle | |||||
| Compatibility | All cabinet sizes are compatible with one another / A cabinet can be installed vertically or horizontally | ||||||||
