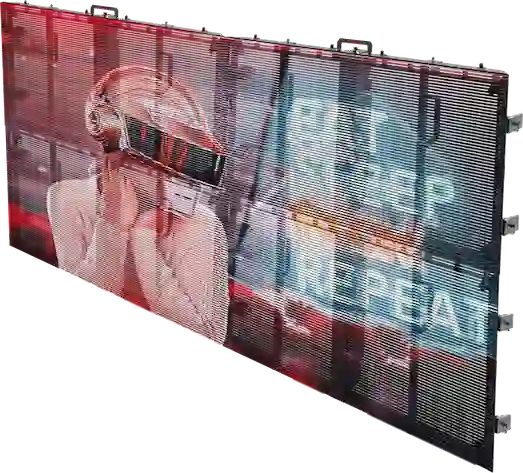

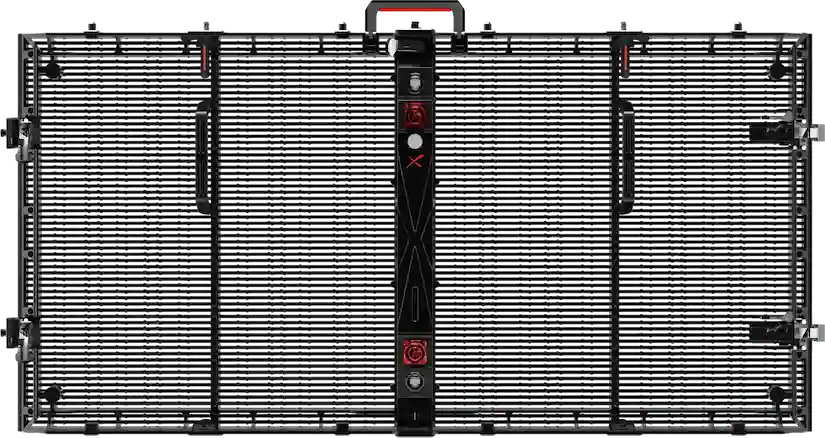

The ORION is our most recent addition tour our TRANSPARENT TOURING range. Its many touring-oriented features were designed to ease its installation, deassembly and transport while offering many integration possibilities. This trustworthy LED cabinet will be a great addition to your rental cabinet fleet. Its transparency and brightness will be of great use for any indoor touring application.
Application
Indoor
PIXEL PITCH
P3.9a7.8
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP40
Display Area (W X H)
1000 x 500mm
BRIGHTNESS
≤ 5000 Nits @5volts
WEIGHT
7.5 kg/cabinet
MATERIAL
Die-casting aluminum

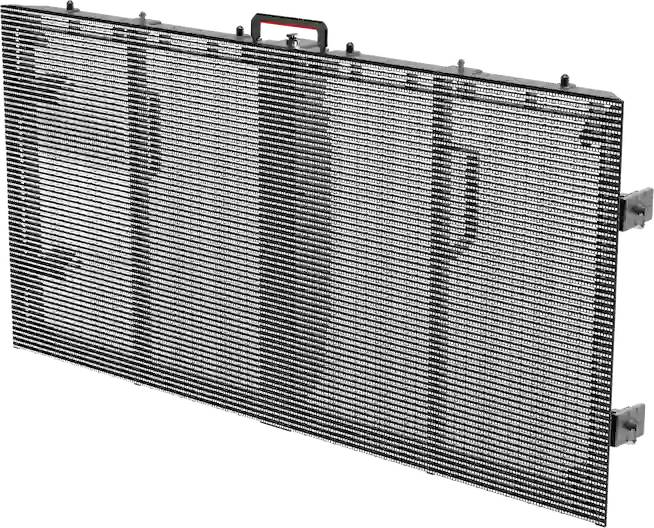

The ORION is able to reach a 5000 NITS brightness, which can be very useful when it comes to event applications. Amongst the many light effects of your stage, the visual content displayed on your ORION screen will remain clearly visible. When it comes to touring solutions, a high brightness is a clear advantage, as it guarantees visibility in any circumstances.

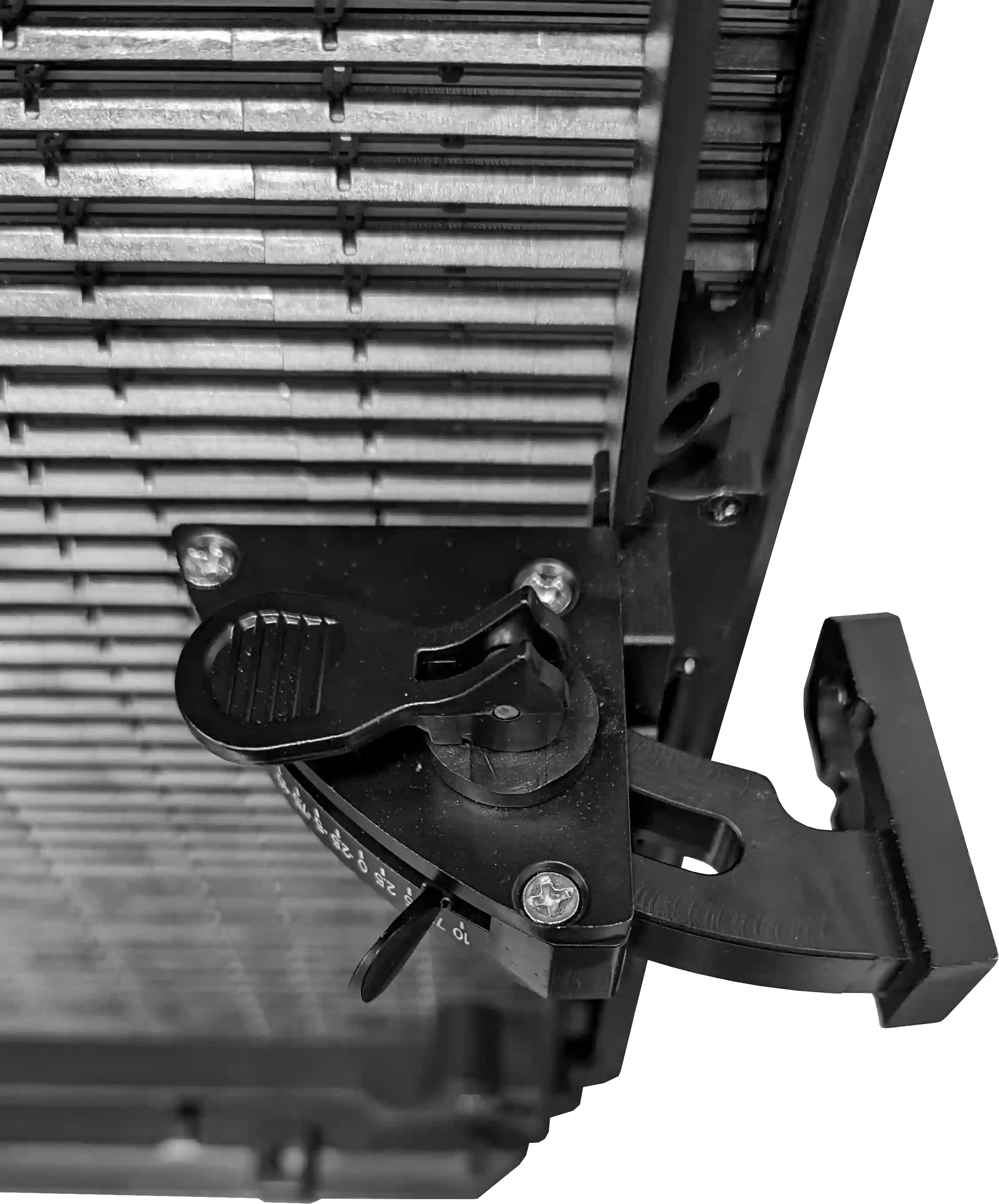

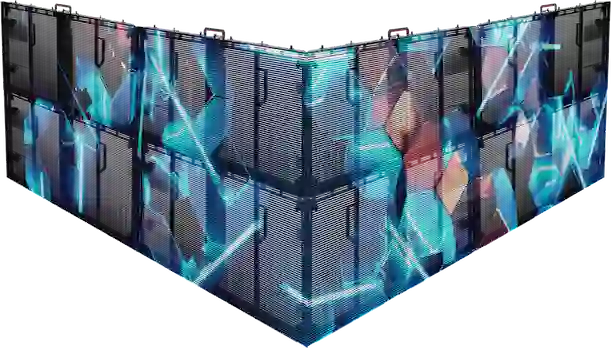

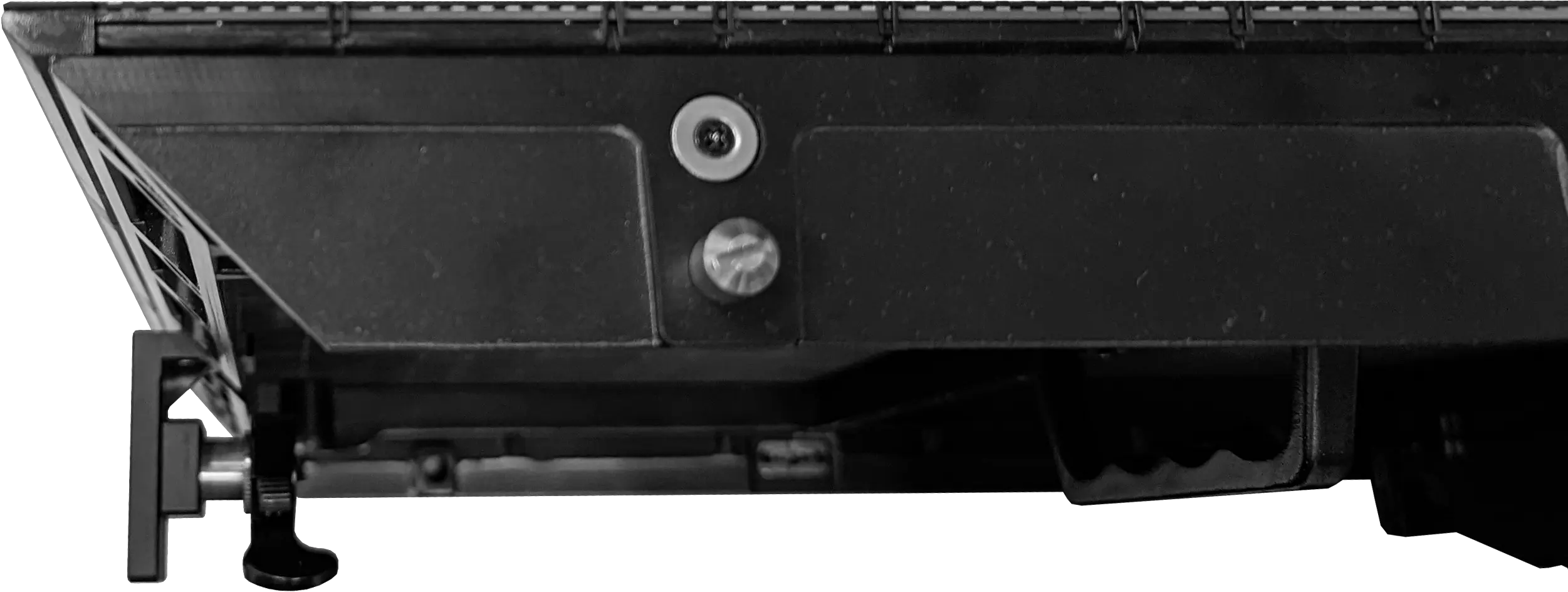

The ORION cabinets are beveled at a 45° angle, and come with curve locking systems on the sides that allow you to choose the inward or outward curvature of your LED application up to 90°. This helps create seamless creative curved screens, combined with a certain amount of aesthetic transparency.

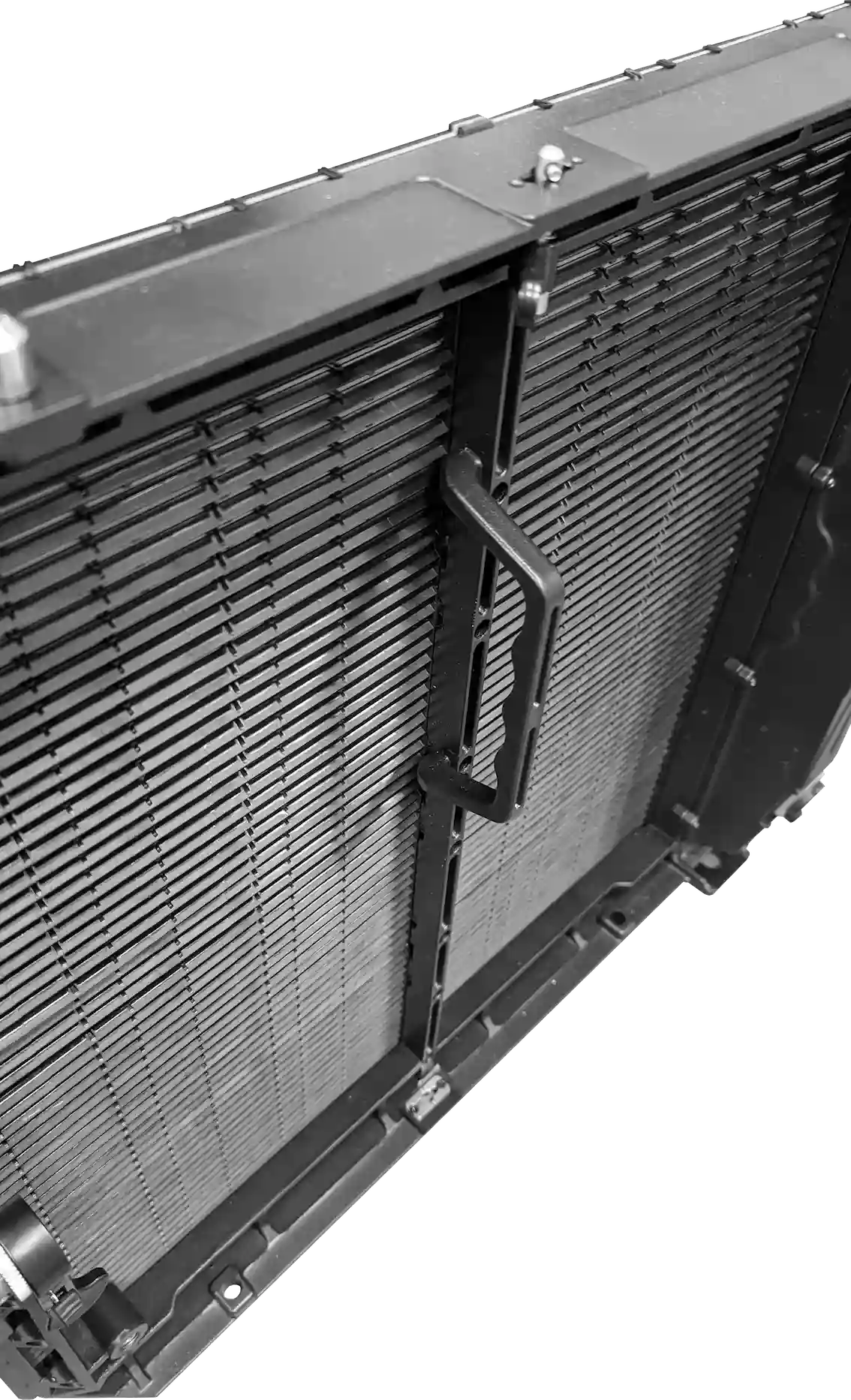

With its light weight, cabinet handes and toolless locking systems, the ORION is very quick and easy to install. A cabinet can be managed by one man, making it very convenient to integrate or move your cabinet fleet to your needs.
As for many touring LED cabinets, the only limitation to what kind of screen you can build is your imagination. This is helped by the many accessories available (hanging bars, trusses, etc.).
EVENTBack MaintenanceRentalIndoor90 DegreesTransparentCurveHigh BrightnessHigh TransparencySemi-indoorCost-effective
| INDOOR | ||
| Product Parameters | Unit | 3.9a7.8 |
| Pixel Pitch | mm | 3,91 x 7,81 |
| LED | SMD1921 | |
| Application | Transparent rental LED cabinet | |
| Ingress Protection | IP | IP40 |
| Brightness | cd/sqm | ≤ 5000 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 160 H / 160 V |
| Cabinet Size (WxHxD) | mm | 1000 x 500 x 100 |
| Display area (WxH) | mm | 1000 x 500 |
| Module Size (WxHxD) | mm | 500 x 125 x 10 |
| Pixel Matrix Per Cabinet (WxH) | px | 256 x 64 |
| Pixel Matrix Per Module (WxH) | px | 128 x 16 |
| Pixel Density | px/sqm | 32768 |
| Weight of cabinet and modules | kg | 7.5 |
| Cabinet Material | Die-casting aluminum | |
| Maintenance Mode | Back | |
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 3840 |
| Operation Power | V | AC85-230V |
| Max. Power Consumption | W/sqm | 800 |
| Average Power Consumption | W/sqm | 400 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-60% | |
| Operating Temperature Range | -40°C / +45°C | |
| Screen Uniformity Correction | - | |
| Certification | CE / ETL / CCC | |
| Options | ||
| Compatibility | No |
