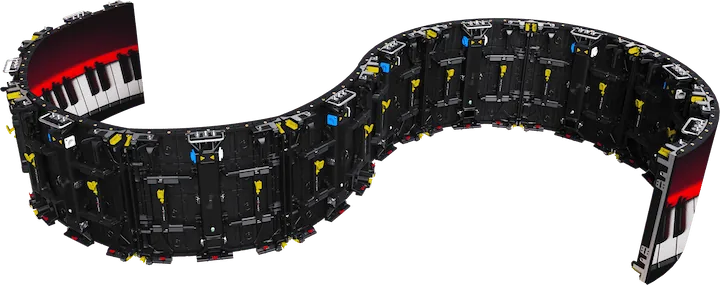

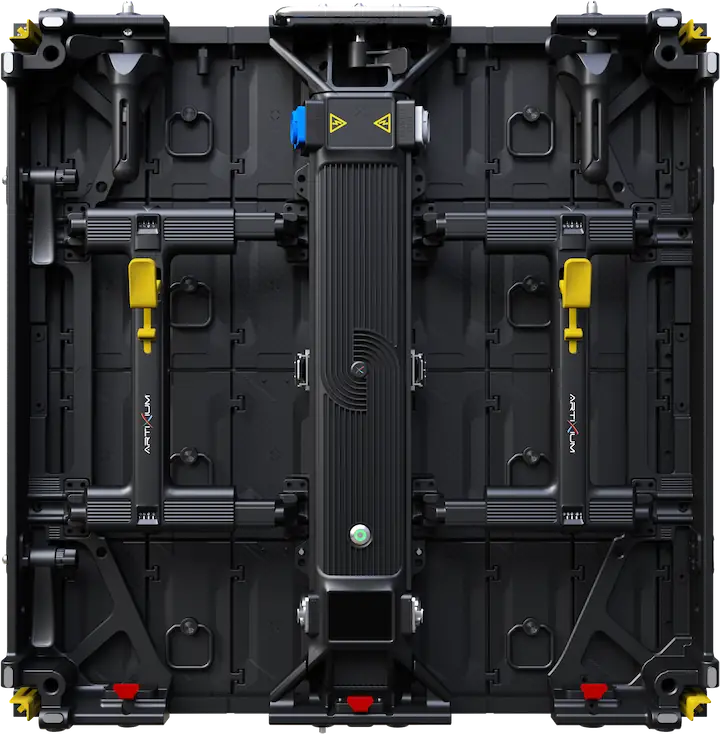

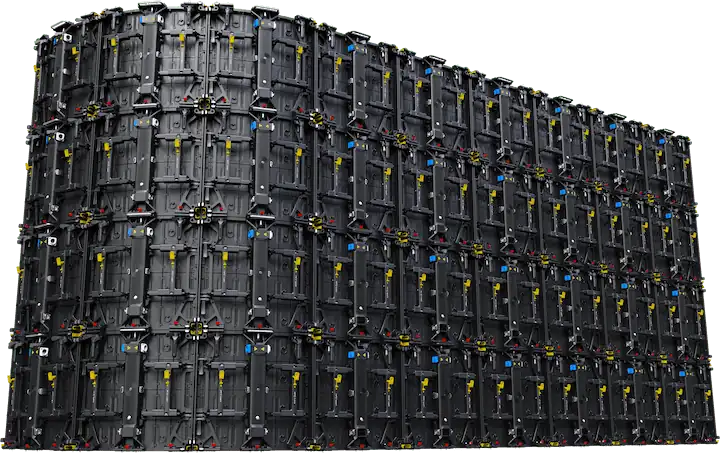

The BORON 2.0 stands as the newest innovation within our esteemed EVENT range. Distinguished by its distinctive design, this product boasts the exceptional capability to curve both inward and outward up to ±45°. This groundbreaking feature, complemented by the LED cabinet’s lightweight construction and tour-centric attributes, positions it as an ideal choice for rental endeavors. Its adaptability makes it a versatile addition to various settings, including exhibitions and scenographic applications. Installation and disassembly are a breeze, and the BORON 2.0 can be effortlessly customized with modular trusses and hanging bars to meet specific requirements.
Application
Indoor
PIXEL PITCH
P1.9 P2.6 P3.9
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP20
Display Area (W X H)
500 x 500 mm
BRIGHTNESS
≤ 1300 Nits @5volts
WEIGHT
7.8 kg/cabinet

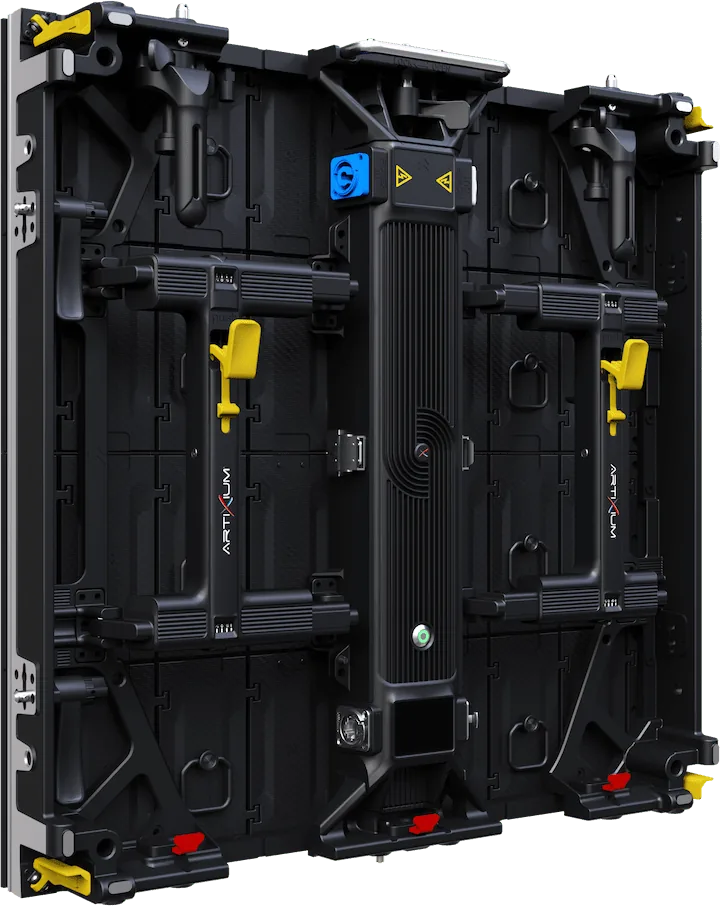

MATERIAL
Die-casting aluminum

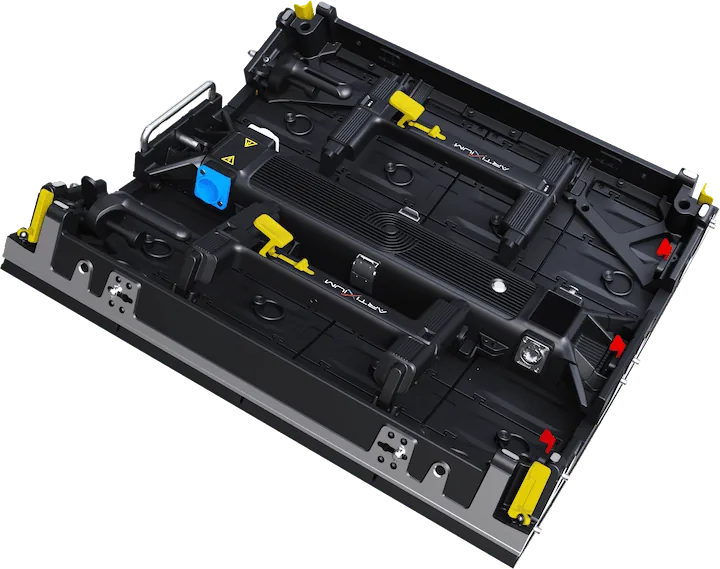

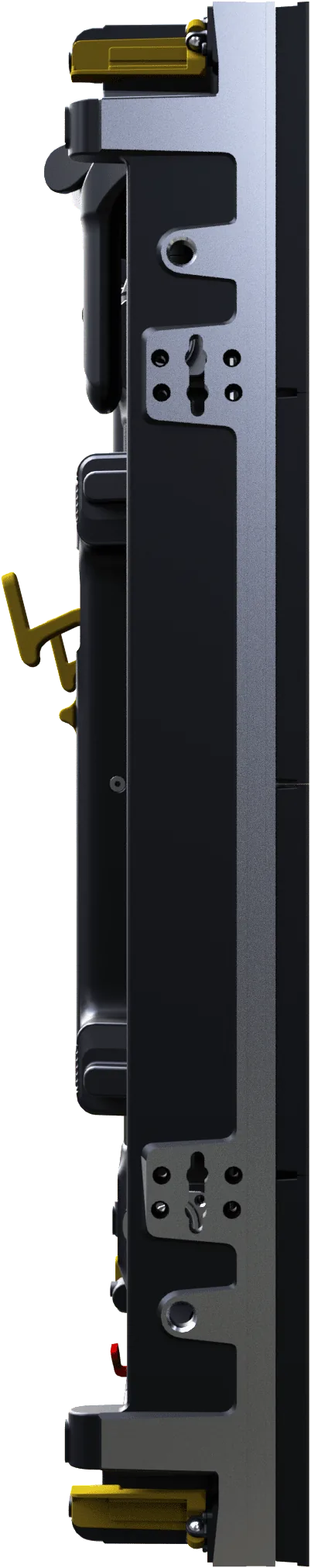

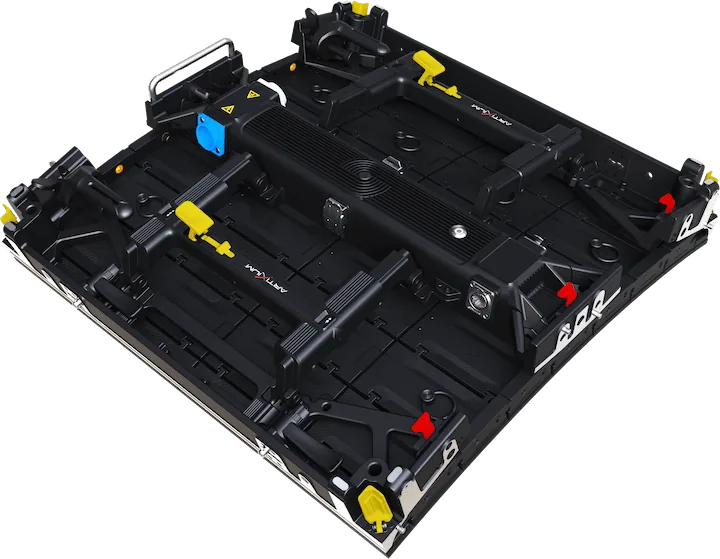

The BORON 2.0 module design stands out as a distinctive feature in the LED industry. It comprises four articulated horizontal modules within each cabinet, offering unparalleled flexibility. This innovative design allows the cabinet to be seamlessly curved in any direction, facilitated by the integrated curving locking system ingeniously incorporated into the cabinet handles.

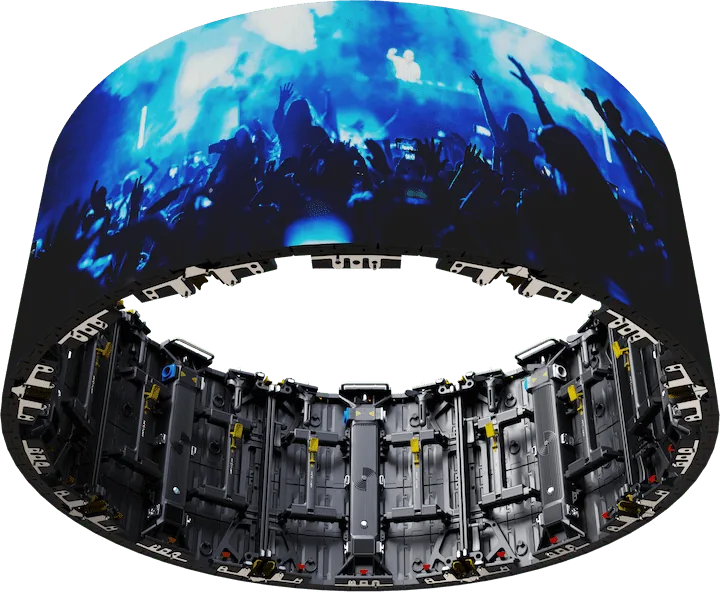

The BORON 2.0 is offered in P1.9 and P2.6 variants, featuring the cutting-edge MiniLED 4in1 technology—a technology that has already enjoyed significant success with our BERYL cabinets. This integration enables users to experience High-definition resolution, coupled with unmatched color vibrancy, elevating the visual impact of the LED display.

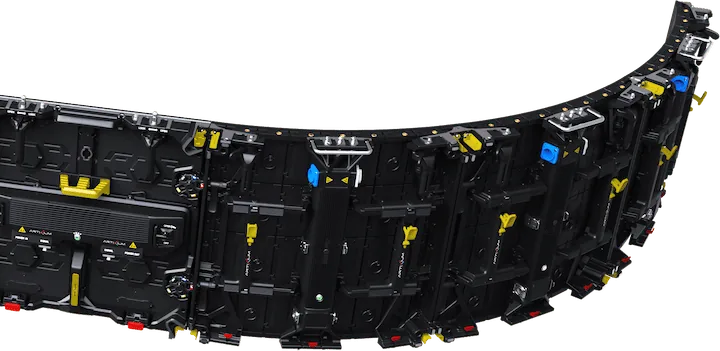

To elevate your touring capabilities, we’ve ensured full compatibility between the BORON 2.0 and our proven BERYL cabinets. The seamless integration of these two products offers a synergistic advantage, allowing you to harness the battle-tested reliability of BERYL alongside the innovative features of the BORON 2.0. The result is a powerhouse combination that maximizes performance and versatility for your LED display needs.

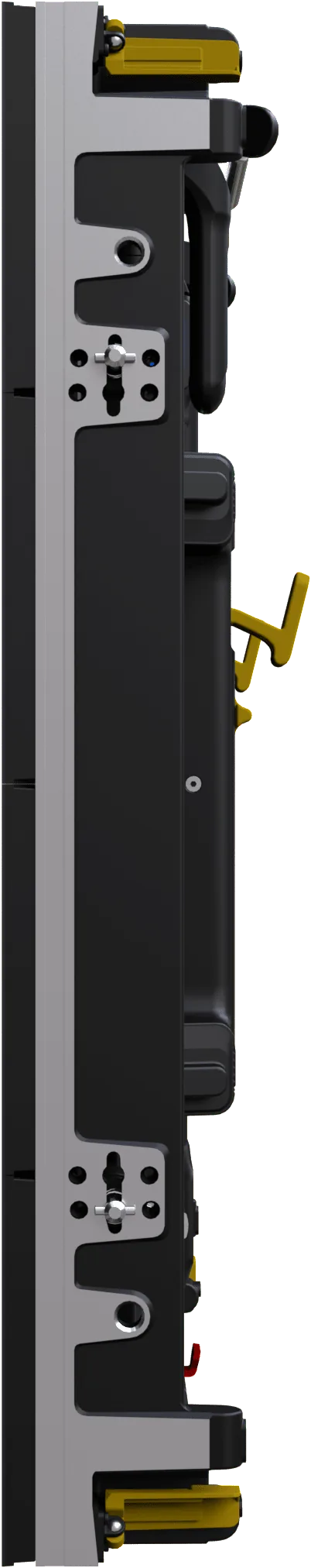

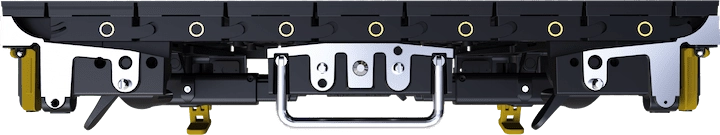

Inspired by the BERYL, the frame of the BORON 2.0 features toolless locking systems combined with handles. This allows quick installation and disassembly processes whether it's from the bottom or the top of your LED screen, depending on if it's hanged or mounted on the floor. Furthermore, these two types of installation are achievable with the same accessory: an articulated hanging bar that can also be used as a floor stacking support.
| INDOOR | ||||
| Product Parameters | Unit | 1.9 | 2.6 | 3.9 |
| Pixel Pitch | mm | 1,95 | 2,60 | 3,91 |
| LED | MiniLED 4in1 | SMD2121 | ||
| Application | Rental flexible LED cabinet | |||
| Ingress Protection | IP | IP20 | ||
| Brightness | cd/m² | ≤ 1300 Nits @5volts | ≤ 800 Nits @5volts | |
| Color Temperature after calib (adjustable) | deg. K | 6500 | ||
| Viewing Angle (50% brightness) | deg. | 160H / 140V | ||
| Cabinet Size (WxHxD) | mm | 500 x 500 x 105 | ||
| Display area (WxH) | mm | 500 x 500 | ||
| Module Size (WxHxD) | mm | 500 x 125 x 12 | ||
| Pixel Matrix Per Cabinet (WxH) | px | 256 x 256 | 192 x 192 | 128 x 128 |
| Pixel Matrix Per Module (WxH) | px | 256 x 64 | 192 x 48 | 128 x 32 |
| Pixel Density | px/m² | 262144 | 147456 | 65536 |
| Weight of cabinet and modules | kg | 7.8 | ||
| Cabinet Material | Die-casting aluminum | |||
| Maintenance Mode | Back | |||
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / No shaders | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 3840 | ||
| Operation Power | V | AC85-230V | ||
| Max. Power Consumption | W/m² | 540 | 440 | |
| Average Power Consumption | W/m² | 162 | 135 | |
| Control Mode | Synchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | DVI / SDI / HDMI | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10-90% | |||
| Operating Temperature Range | -20°C / +50°C | |||
| Screen Uniformity Correction | - | |||
| Certification | CE / ETL / CCC / CB | |||
| Options | Hangin bars / stacking system - High refresh rate | |||
| Compatibility | Compatible with the BERYL | |||
