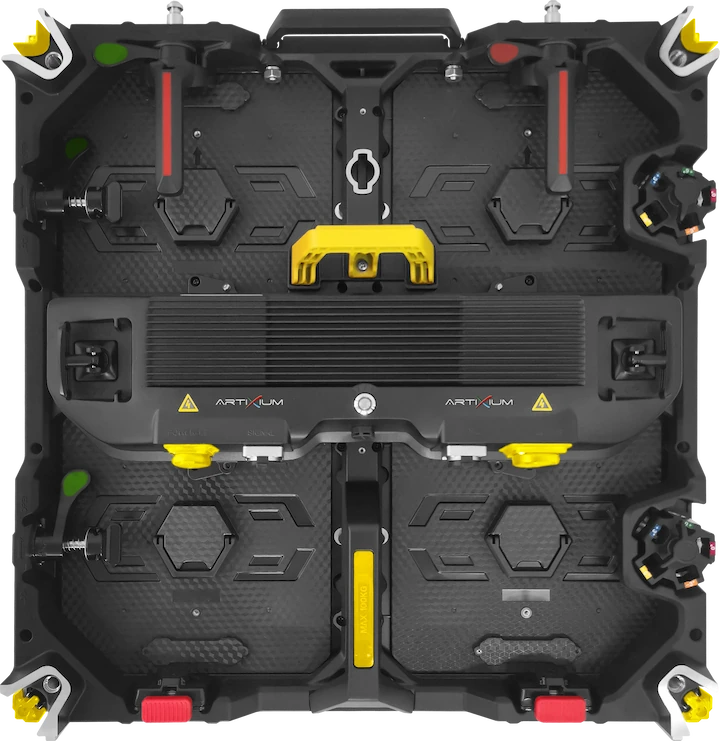

The BERYL is made for rental purposes but can also fit permanent applications. It’s a very user-friendly cabinet with a fine pixel pitch ranging from P1.5 to P4.8. The integration, disassembly, and maintenance process can easily be done by one technician as the BERYL is designed so that every feature facilitates its manipulation. It’s an ideal touring solution for professionals.
Application
INDOOR OUTDOOR
PIXEL PITCH
P1.5 P1.9 P2.6 P2.9 P3.9 P4.8
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP20 (indoor)
IP66 (outdoor)
Display Area (W X H)
500 X 500 mm (Standard)
500 X 1000 mm (Standard)
125 x 500 mm (angle)
125 x 1000 mm (angle)
BRIGHTNESS
≤ 1000 NITS @5 Volts (indoor)
≤ 5500 NITS @5 Volts (outdoor)
WEIGHT
8.5 - 13kg/standard cabinet
2.5 - 5 kg/angle cabinet
MATERIAL
ANODIZED ALUMINUM

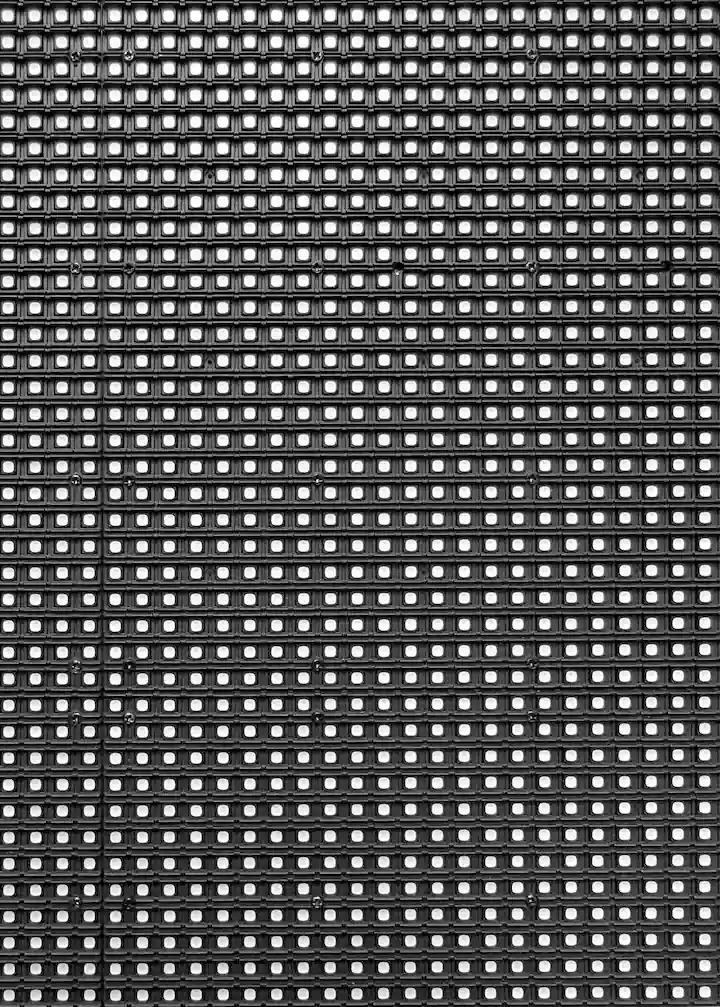

With its fine pixel pitch and Black Face SMD LEDs, the BERYL is one of the highest resolution LED displays for outdoor use. High contrast and high brightness will ensure a sharp image resolution visible from afar, making the BERYL the best choice for scenographic applications.

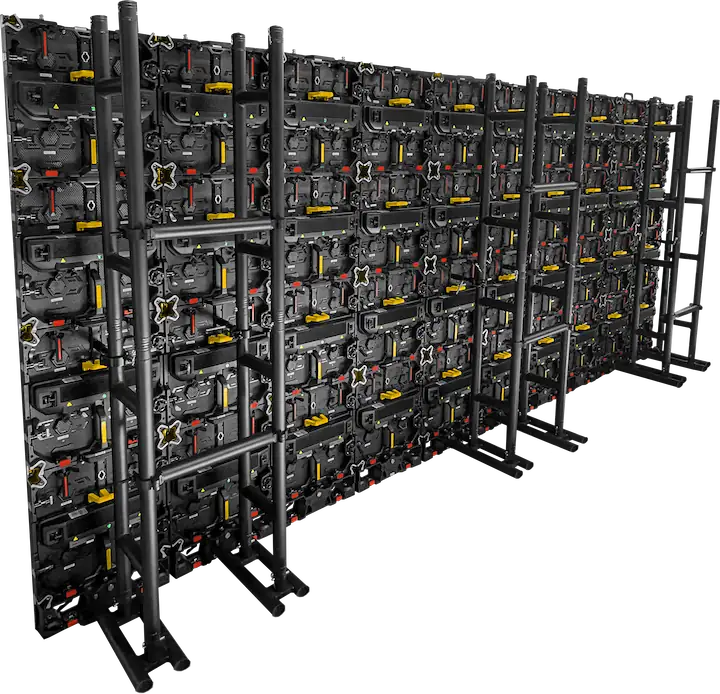

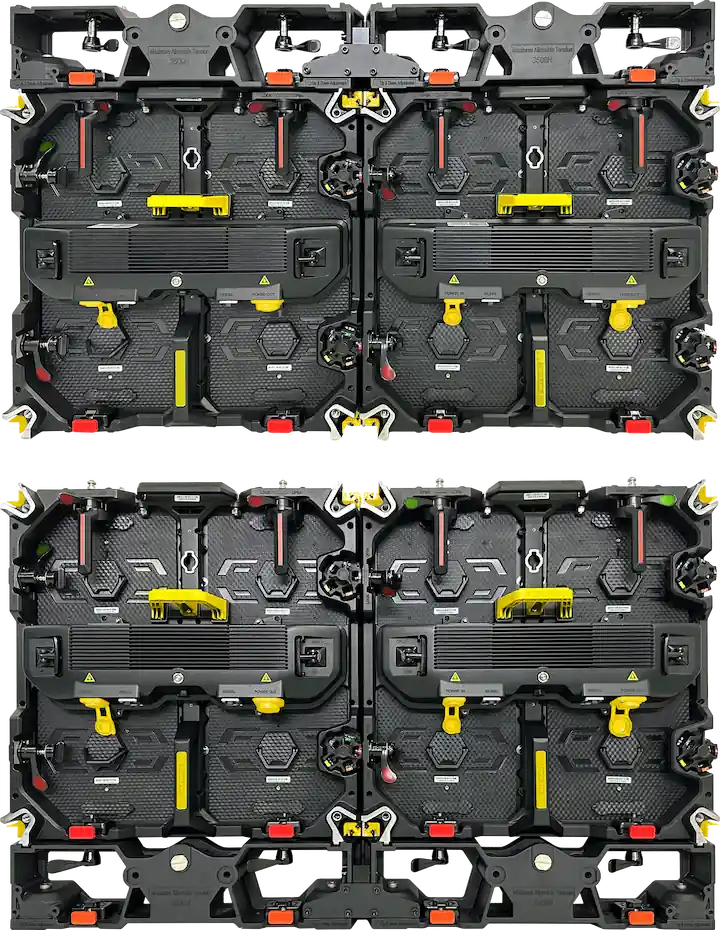

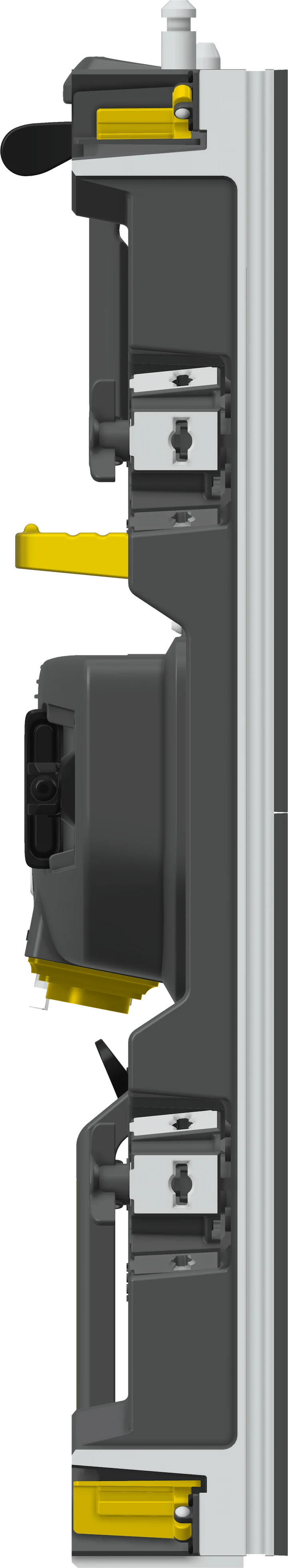

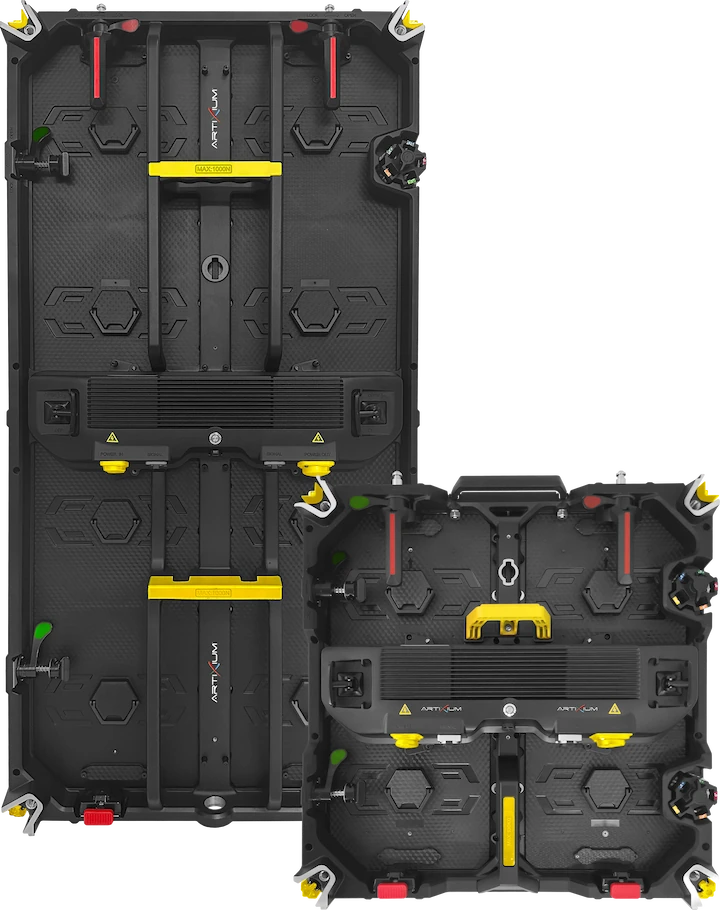

The BERYL supports several types of integration, as it can be hung from a ceiling, stacked on the floor or even affixed to a structure. Artixium can provide any accessory needed for these different types of installation.The two cabinet sizes are compatible with each other and provide a toolless curve locking system to fit tailored installations on the spot. The BERYL can be integrated at 90° concave angles and is both glare-resistant and scratch-resistant. These features make the BERYL easy to integrate and easy to disassemble, the same application can follow you all along your touring process, saving you both time and money.
The wide-gamut RGB color space used by the BERYL was developed by Adobe Systems and offers a large range of vivid colors. Combined with the display quality of the BERYL, this allows you to offer your audience a large range of complex or simple color layouts with sharp contrast and resolution.

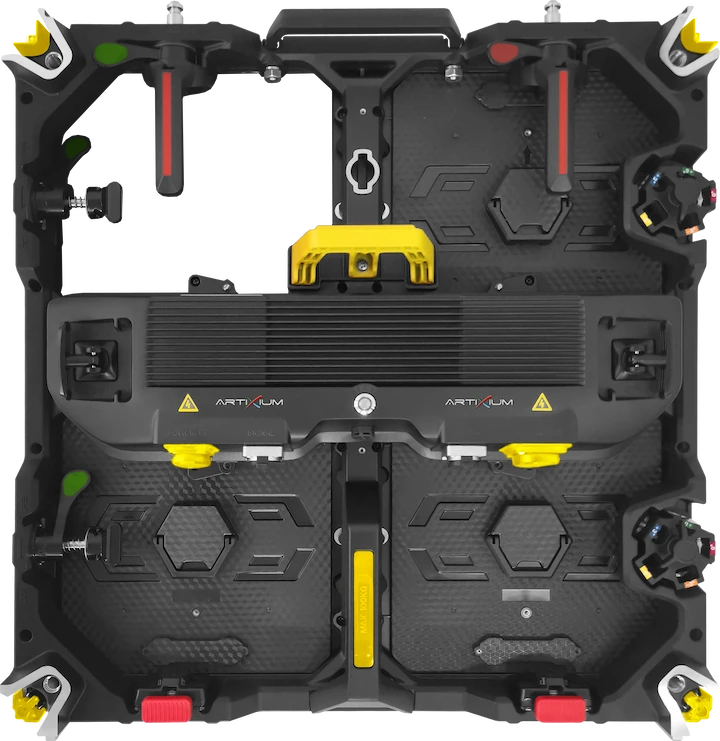

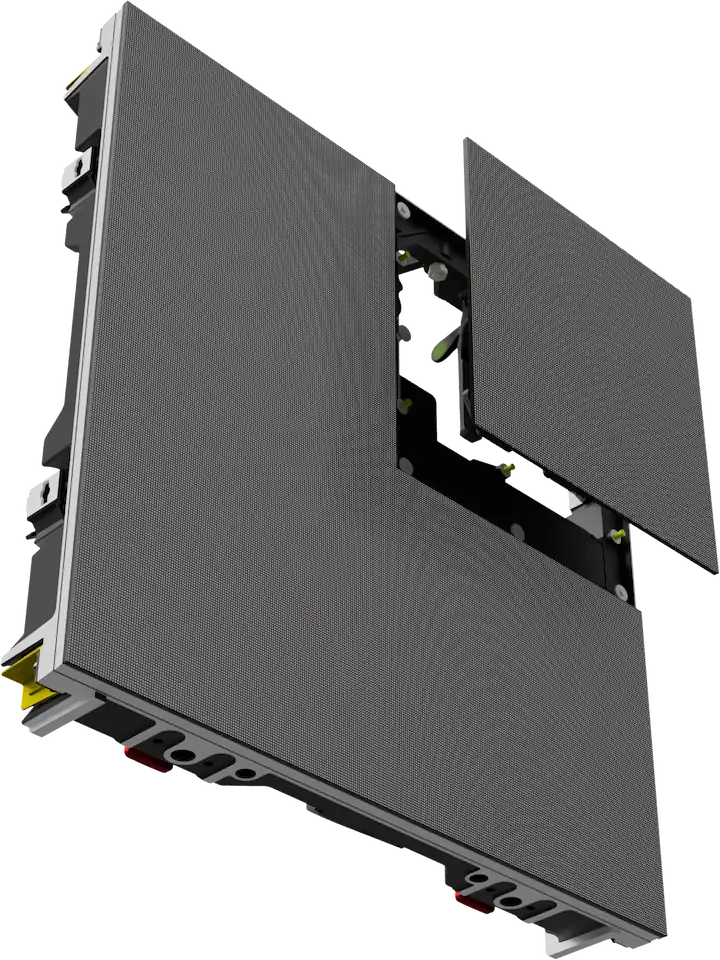

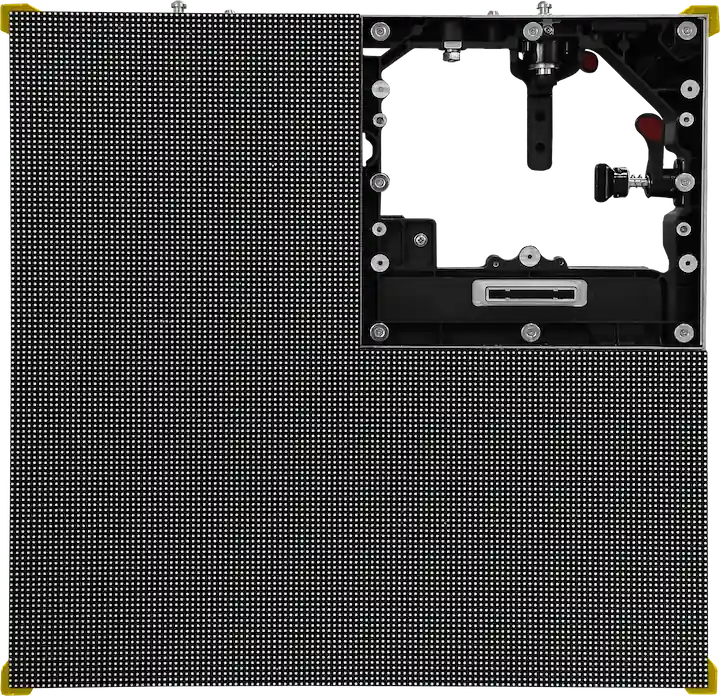

Each of the BERYL’s modules can fit in any part of the cabinet, meaning that your spare parts will always fit your maintenance needs. This feature is very useful when it comes to touring LED screens, which often need to be maintained on the spot in the shortest delays.

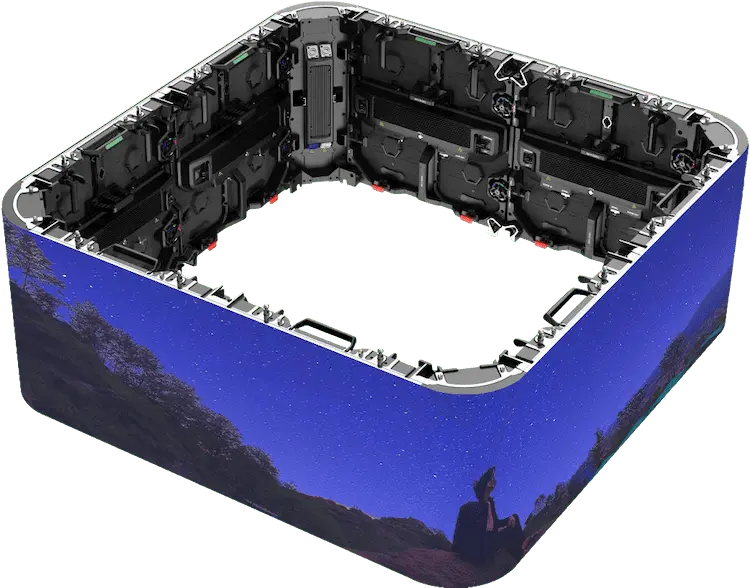

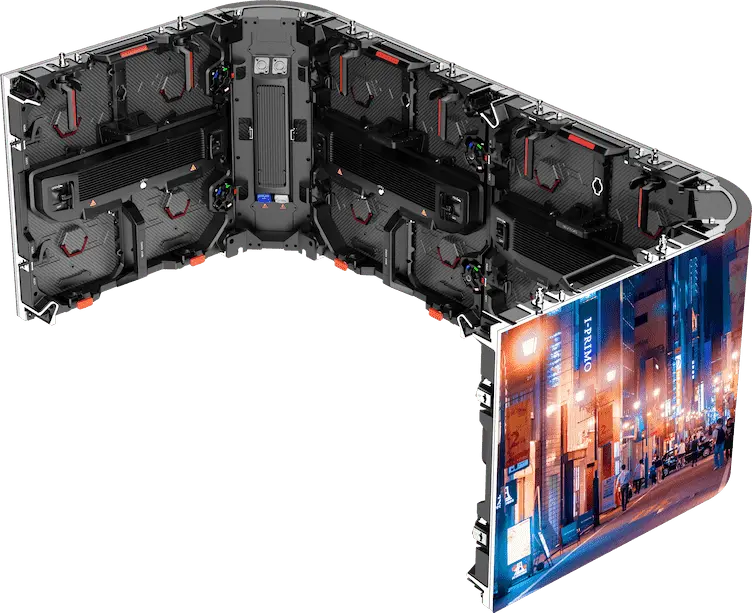

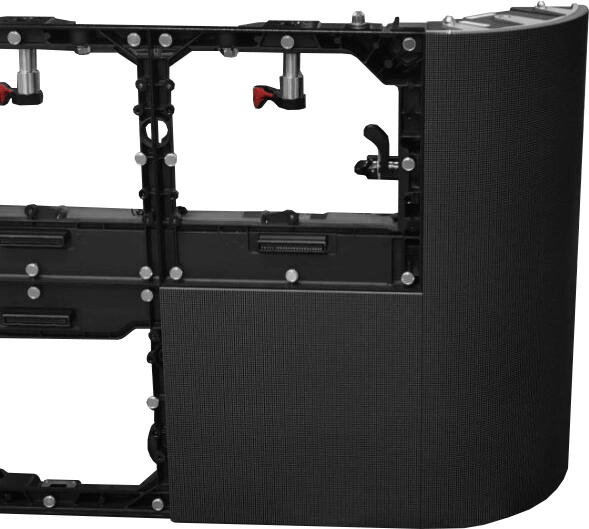

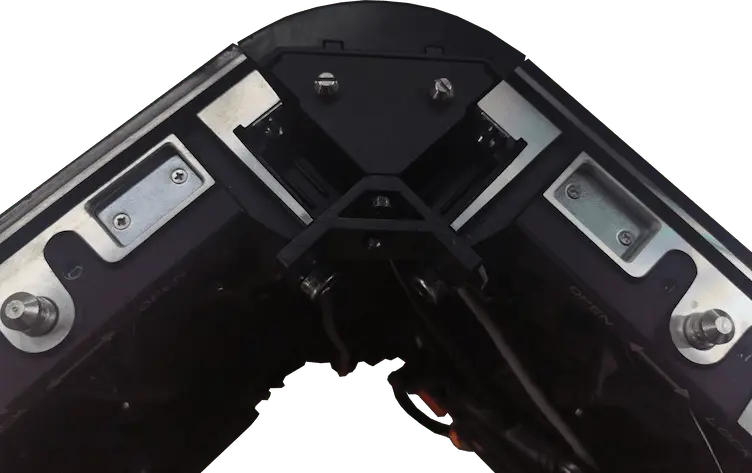

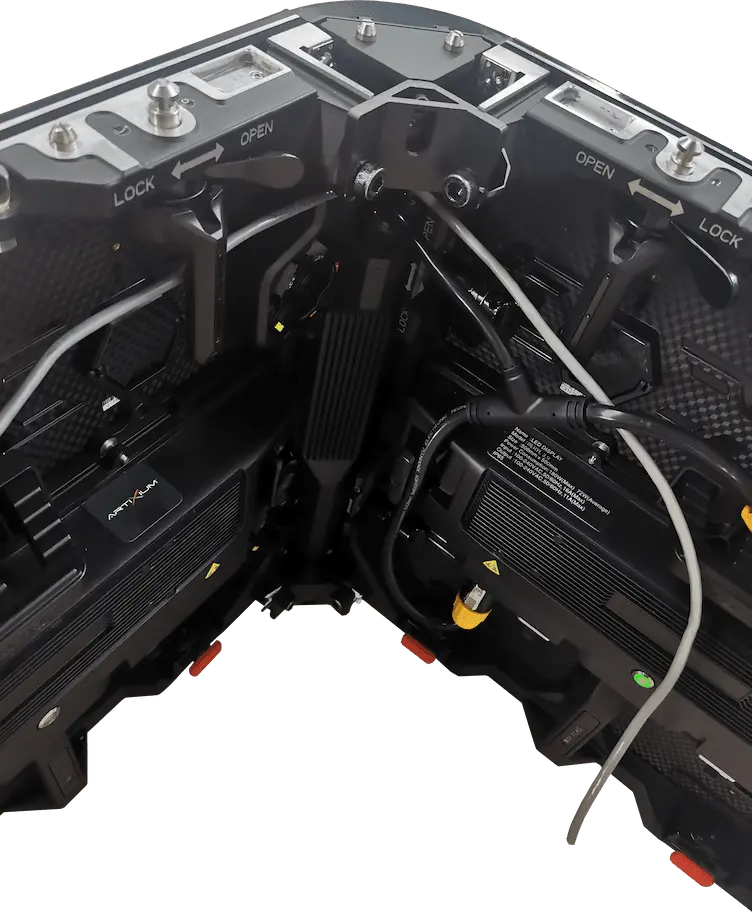

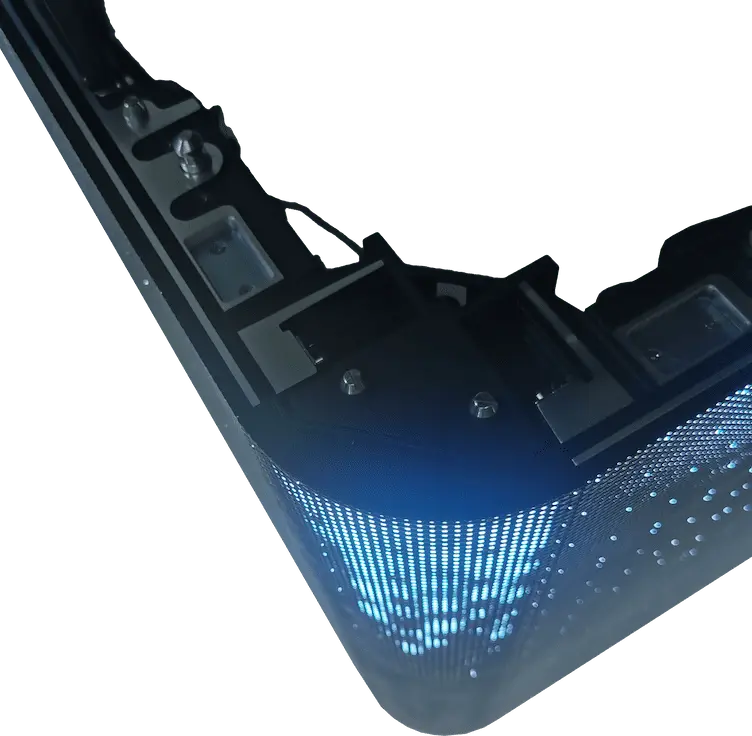

The BERYL P3.9 is one of the few products on the LED display market to offer angle LED cabinets, for seamless 90° applications. Many LED cabinets offer a beveled version, that lets you integrate your giant LED screen at a 90° angle and yet still lets a little space at the junction of the two cabinets. With the BERYL angle cabinets, your LED display does not have that problem, as it allows a regular curve for your angle application to be fully and seamlessly continuous.

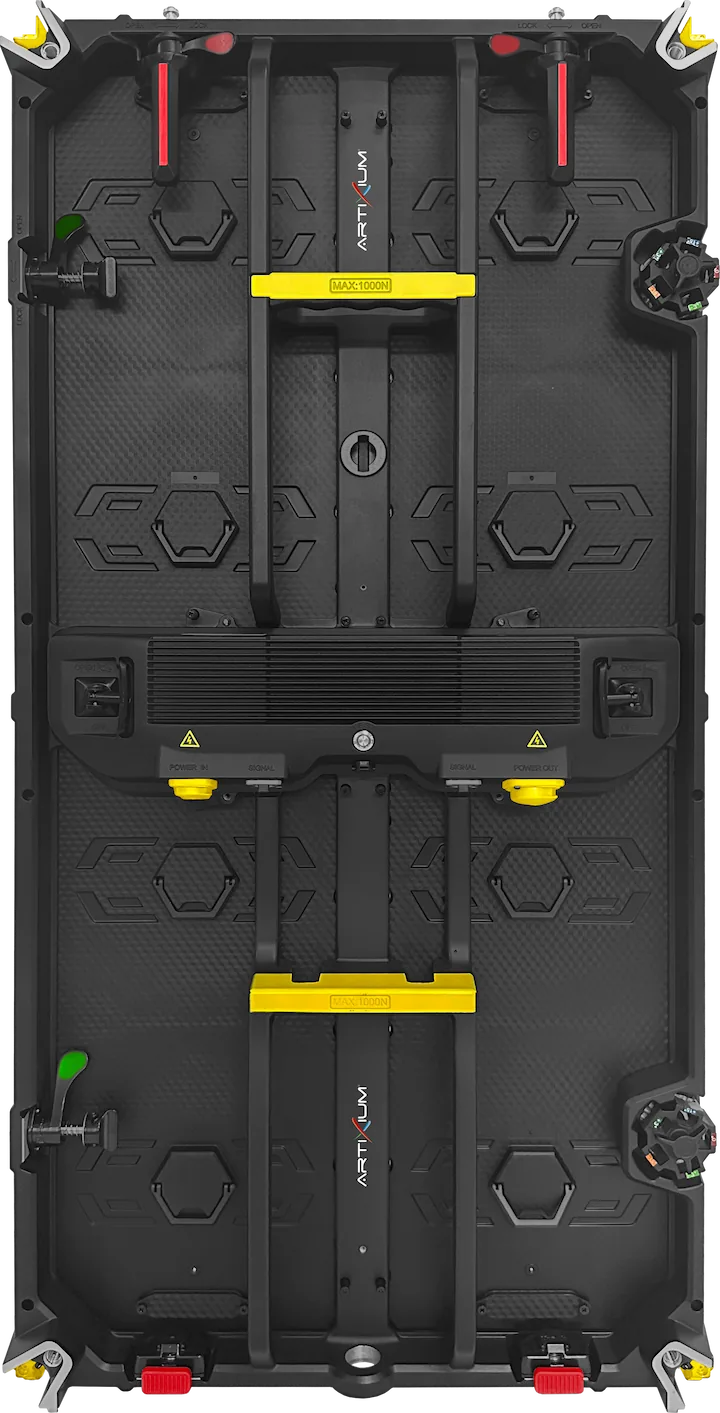

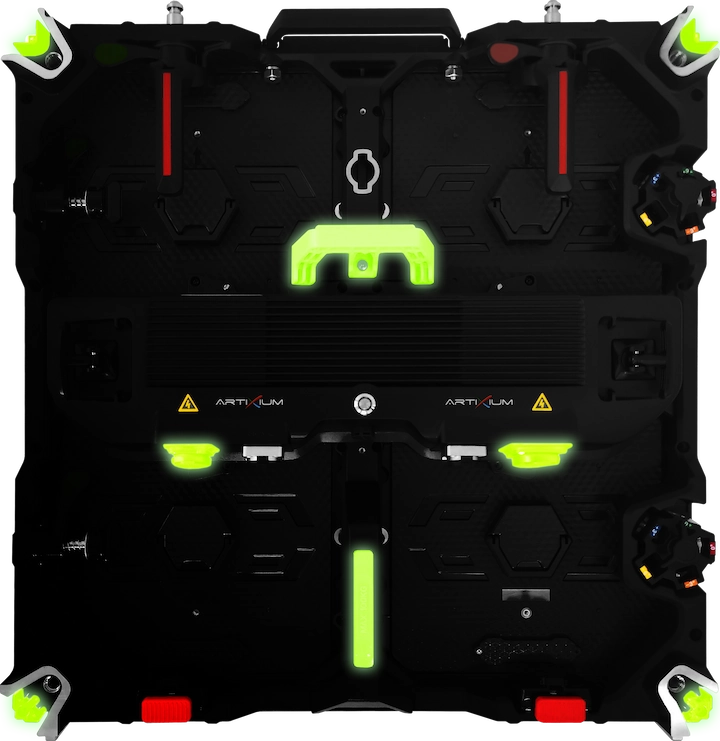

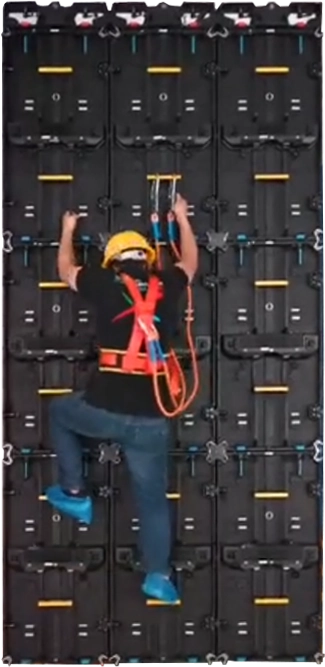

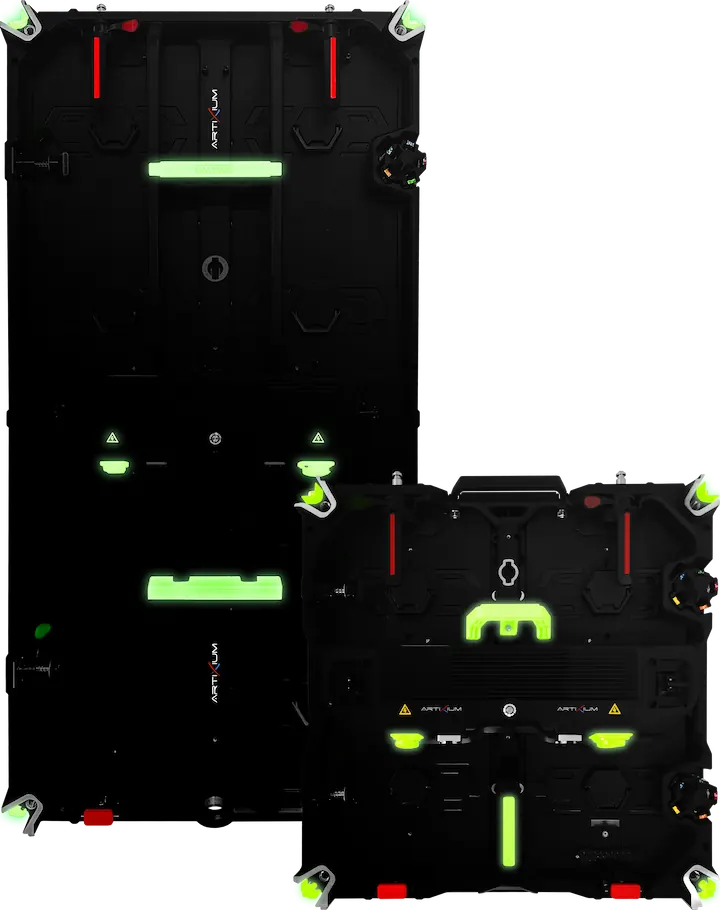

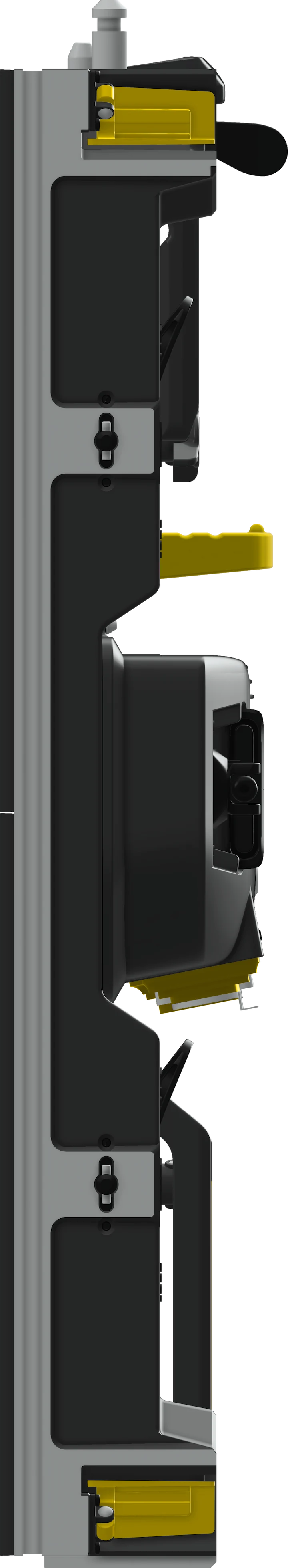

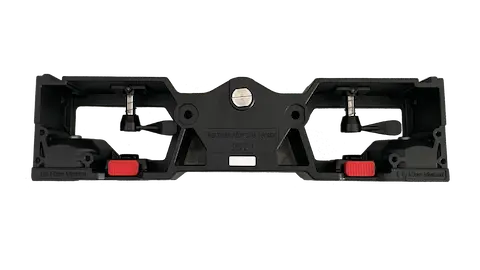

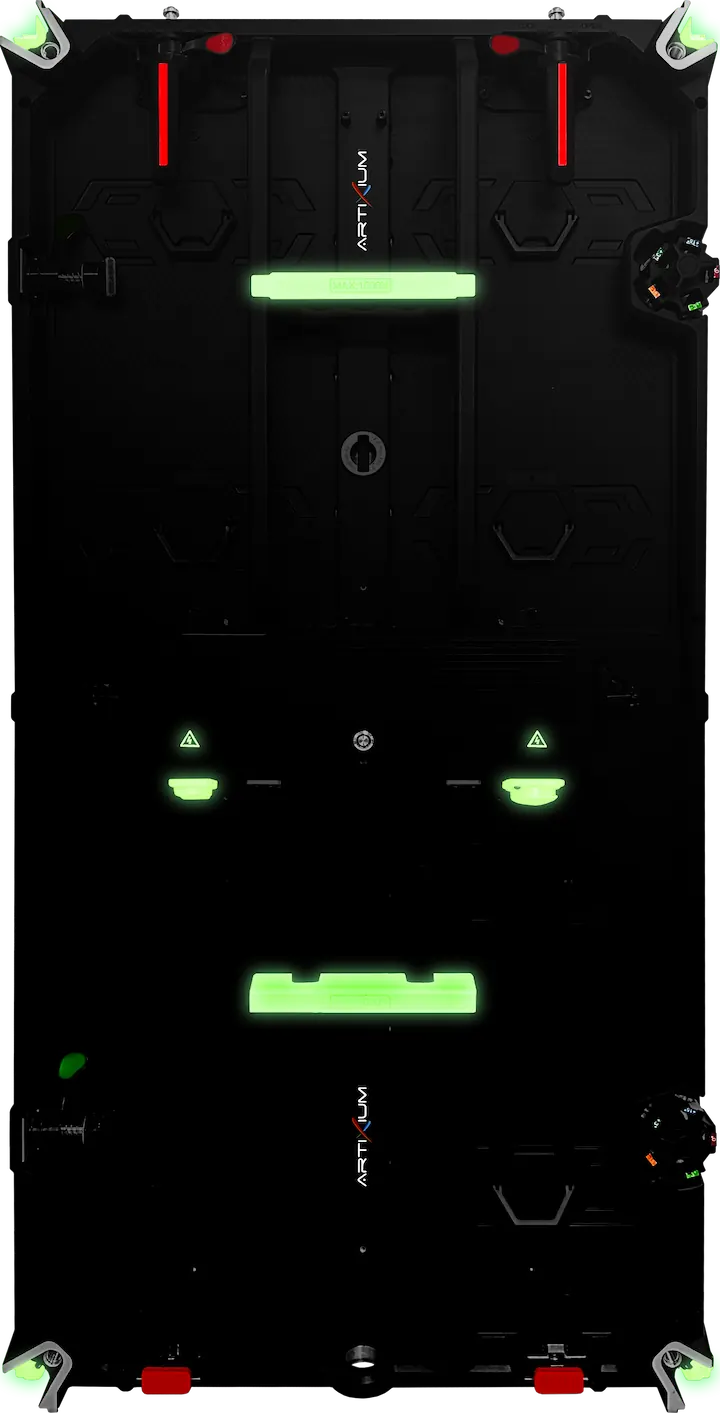

Many aspects of the BERYL were carefully thought to facilitate its touring orientation, such as a lightweight heavy duty frame, climbable handles, and many accessories (hanging bars, floor stacking supports, etc.).

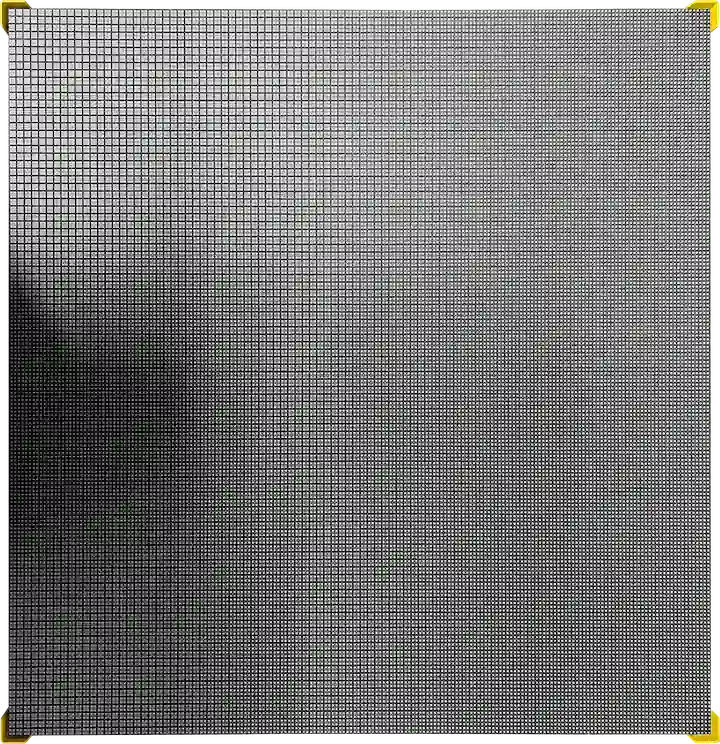

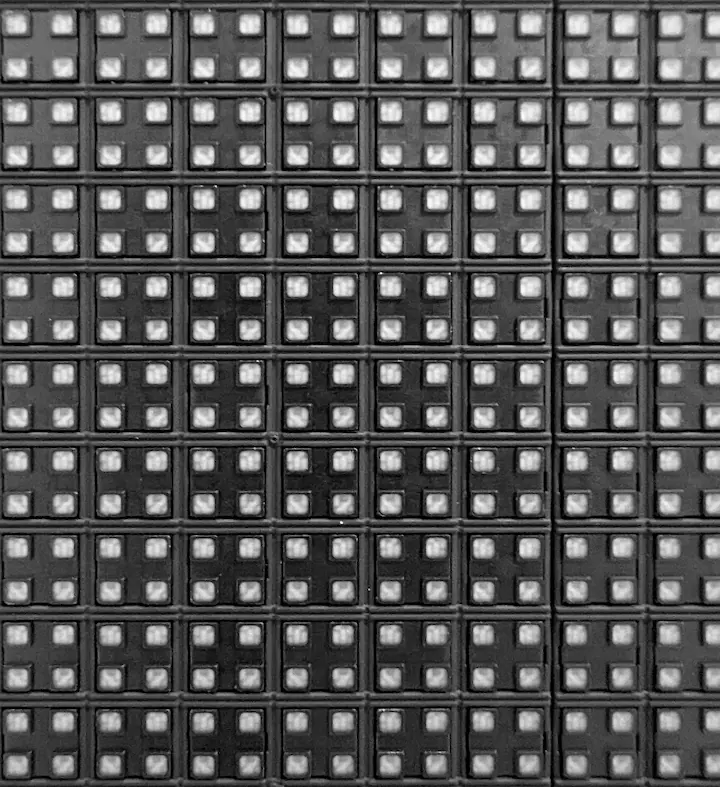

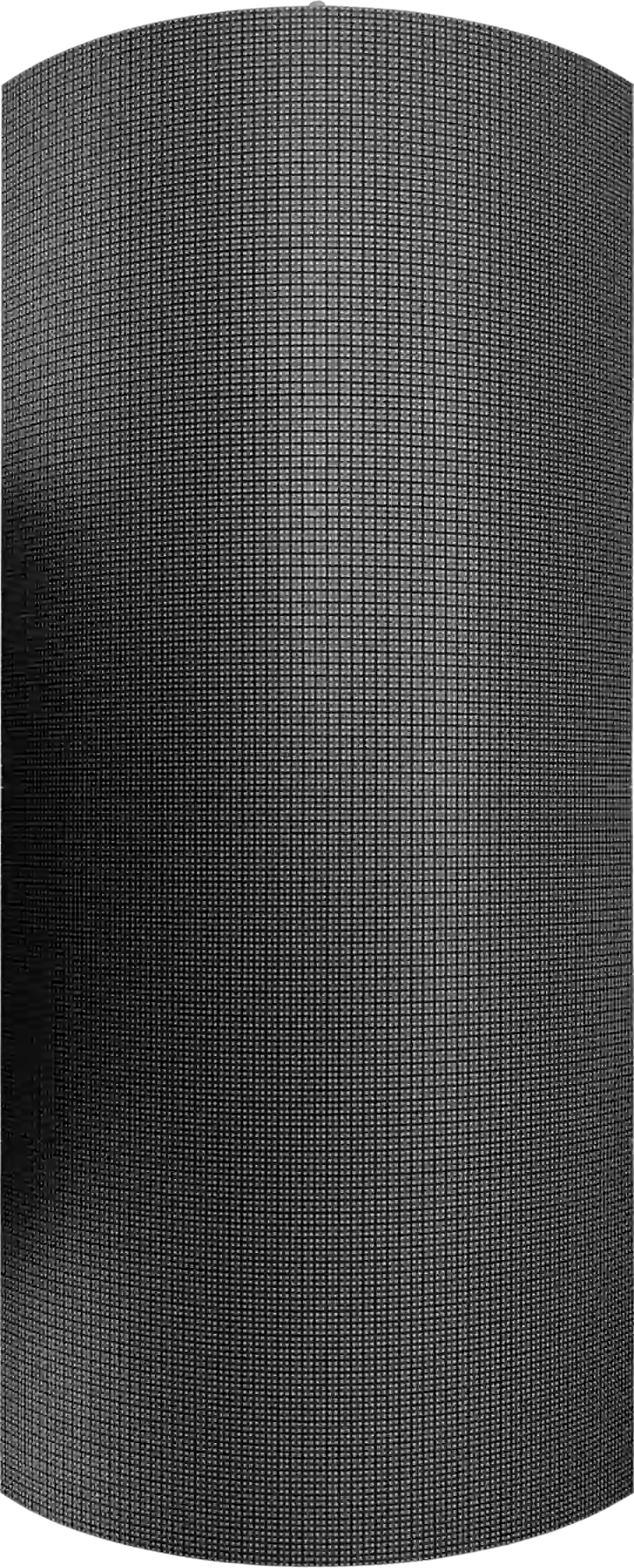

The BERYL P1.5 & P1.9 use MiniLED 4in1 technology. It consists in 4 small LEDs encapsulated in the space that a normal SMD LED represents. This technology offers numerous advantages, but the most noteworthy are the tremendous gains in both image resolution and LED durability. The first one is quite self-explanitory, as you multiply the effective number of LEDs by 4 on your modules. The second one is due to the encapsulation, which works like the GME technology, but on the LED level rather than on the whole module. While adding to the LEDs resistance, it still allows a qualified technician to repair each MiniLED 4in1 individually, while this operation is almost impossible on a GME module.
EVENTBack MaintenanceRentalOutdoorFront Maintenance90 DegreesBeryl
Download Specifications (excel)
| INDOOR | OUTDOOR | ||||||
| Product Parameters | Unit | 1.5 | 1.9 | 2.6 | 2.9 | 3.9 | 4.8 |
| Pixel Pitch | mm | 1,56 | 1,95 | 2,60 | 2,98 | 3,91 | 4,81 |
| LED | MiniLED 4in1 | SMD1515 Black face (full black face option available) |
SMD1921 Black face (full black face option available) |
||||
| Application | Touring System | Touring System | |||||
| Ingress Protection | IP | IP20 | IP66 | ||||
| Brightness | cd/sqm | ≤ 800 Nits @5volts | ≤ 1000 Nits @5volts | ≤ 5000 NITS @5volts | ≤ 5500 NITS @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 6500 | |||||
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | |||||
| Cabinet Size (WxHxD) | mm | 500 x 500 x 93 / 250 x 500 x 98 (angle cabinet) | 500 x 500 x 93 / 500 x 1000 x 90 / 250 x 500 x 98 (angle cabinet) | ||||
| Display area (WxH) | mm | 500 x 500 / 250 x 500 | 500 x 500 / 500 x 1000 / 250 x 500 | ||||
| Module Size (WxHxD) | mm | 250 x 250 x 15 / 250 x 125 x 15 | 250 x 250 x 15 / 250 x 500 x 15 / 250 x 125 x 15 | ||||
| Pixel Matrix Per Cabinet (WxH) | px | 320 x 320 / 160 x 320 | 256 x 256 / 128 x 256 | 192 x 192 / 96 x 192 | 168 x 168 / 84 x 168 | 128 x 128 / 128 x 256 / 64 x 128 | 104 x 104 / 104 x 208 / 52 x 104 |
| Pixel Matrix Per Module (WxH) | px | 160 x 160 / 160 x 80 | 128 x 128 / 128 x 64 | 96 x 96 / 96 x 48 | 84 x 84 / 84 x 42 | 64 x 64 / 64 x 128 / 64 x 32 | 52 x 52 / 52 x 104 / 52 x 26 |
| Pixel Density | px/sqm | 409600 | 262144 | 147456 | 112896 | 65536 | 43264 |
| Weight of cabinet and modules | kg | 8.5 | 8.5 / 13 | ||||
| Cabinet Material | Die-casting aluminum | ||||||
| Maintenance Mode | Front & back (remove cap screws for front maintenance) | ||||||
| Mask specification | 95% Plastic + 5% Fiber / Clip type (no screws) / No shaders |
95% Plastic + 5% Fiber / Clip type (no screws) / Shaders | |||||
| Contrast Ratio | High | ||||||
| Grey scale (linear) | bit | 16 | |||||
| Brightness control | bit | 16 | |||||
| Processing depth | bit | 16 | |||||
| Color | 281 Trillions | ||||||
| Display Refresh Rate | Hz | 3840 | |||||
| Operation Power | V | AC85-230V | |||||
| Max. Power Consumption | W/sqm | 560 | 440 | 540 | 640 | ||
| Average Power Consumption | W/sqm | 220 | 170 | 200 | 256 | ||
| Control Mode | Synchronization | ||||||
| Video Frame Rate | Hz | 50/60Hz | |||||
| Input Types Supported | DVI / SDI / HDMI | ||||||
| 3D ready (optional) | Yes | ||||||
| Calibration | Yes | ||||||
| Lifetime (50% brightness) | h | 50000 | |||||
| Operating Humidity Range | 10-95% | ||||||
| Operating Temperature Range | -10°C / +50°C | ||||||
| Screen Uniformity Correction | Below 0.0001 (Out of Control point) | ||||||
| Certification | CE / ETL / CCC | ||||||
| Features | Corner Protection / Curve (-3°/-1.5°/1.5°/3°) / Angle cabinet / Hanging bars / Support beams | ||||||
| Compatibility | 1000 x 500 & 500 x 500 cabinets are compatible vertically | ||||||
