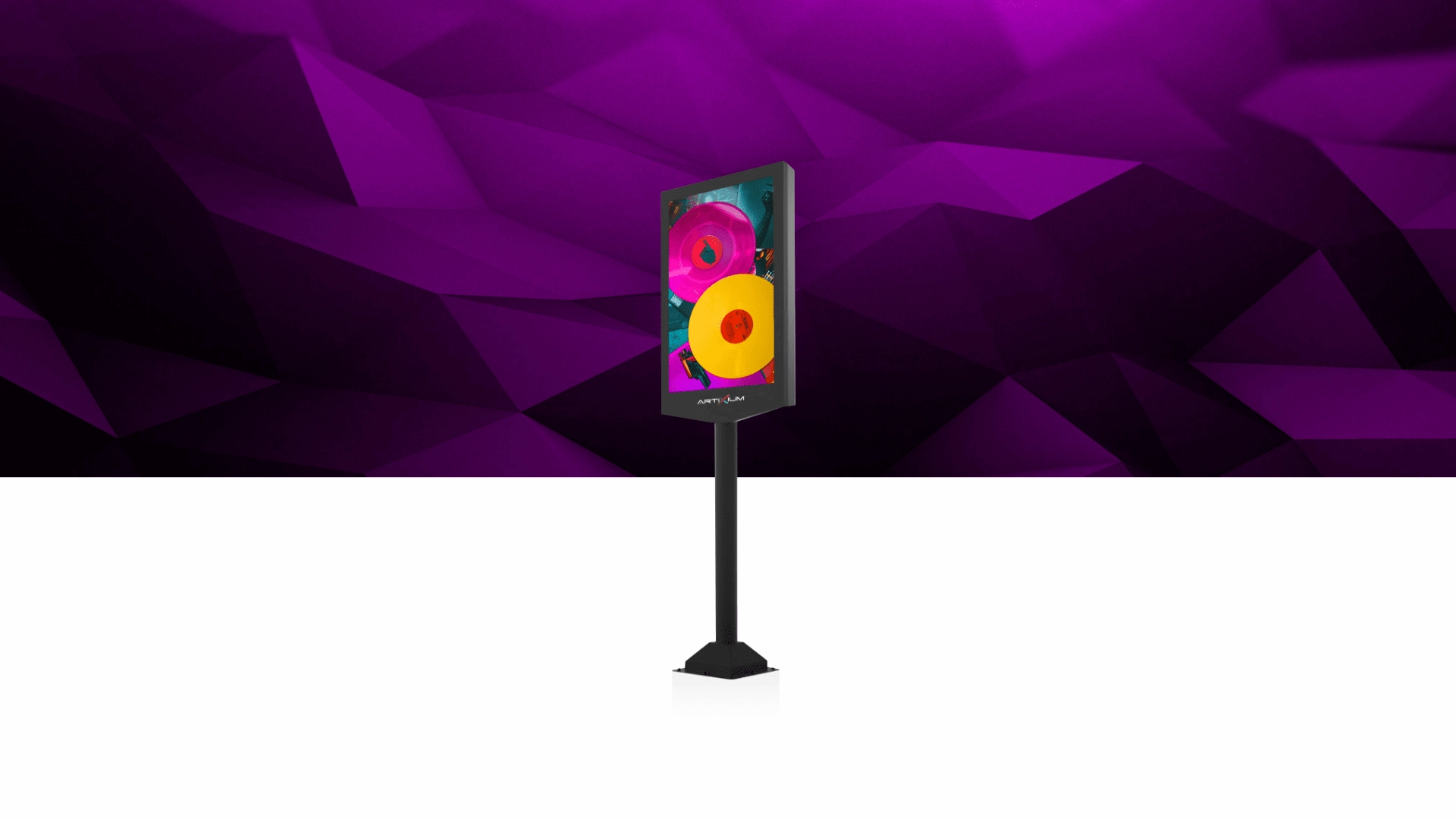

Designed to display clear and visible content in broad daylight, this outdoor LED billboard is the ideal means of visual communication for both public and promotional use. Its display surface uses the standard bus stop format, known amongst advertising professionals because of its omnipresence in public spaces all around the world. The PORTRAIT UNIPOLE, both resistant and visually performant, is a great way to transition from traditional to digital public communication.
Application
OUTDOOR
PIXEL PITCH
P4
MAINTENANCE
Back & Front Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
1024 x 1792 MM
BRIGHTNESS
≤6000 NITS @5 Volts
WEIGHT
82.5 kg (LED Parts)
MATERIAL
Steel with reinforcements

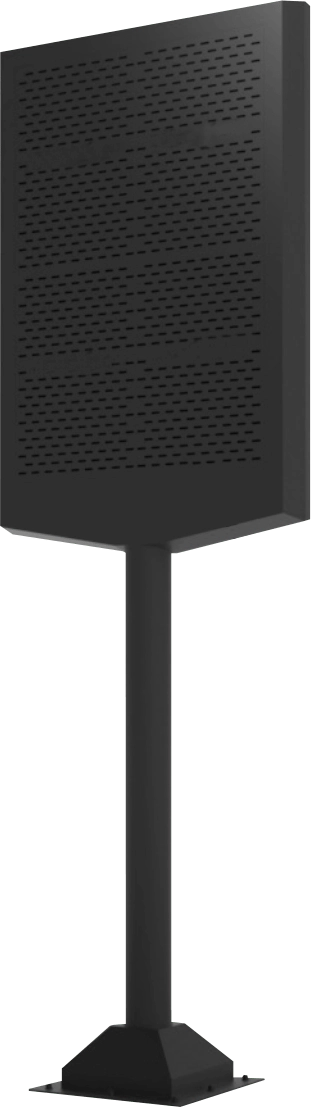

According to your LED billboard's location, we can provide double face PORTRAIT UNIPOLES. It's an ideal solution on streets or roads that allow your display to be seen from both sides, but also for town squares, parks, etc.

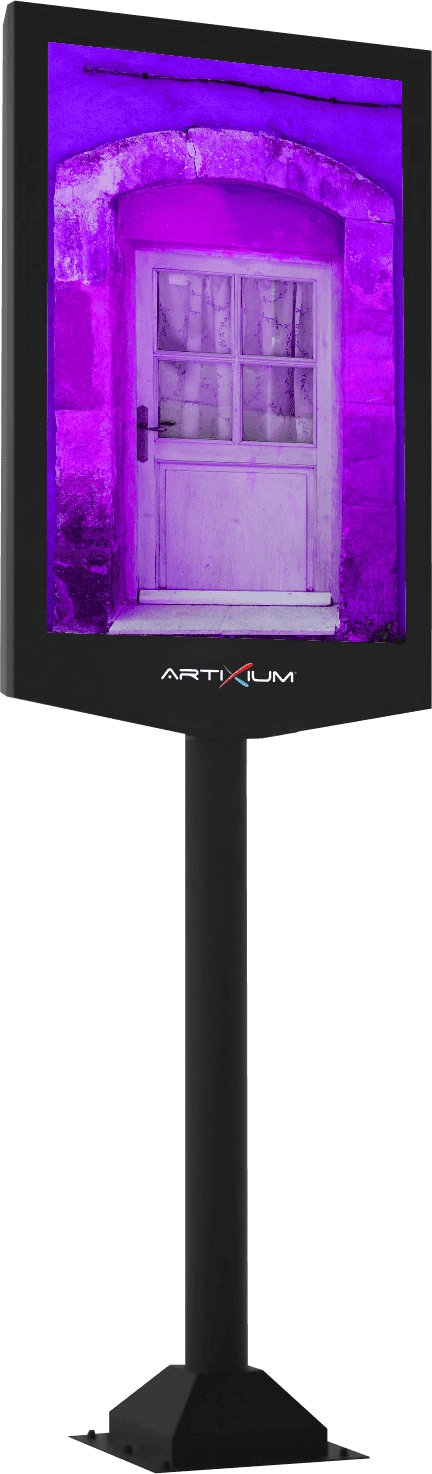

The 4mm pixel pitch of the PORTRAIT UNIPOLE is one of the best options on the market for a permanent outdoor LED display. It's fine enough to display quality videos and animations, whilst attaining a 6000 NITS brightness which makes for a clear display both day and night. Furthermore, its high contrast ratio enhances your visual content's sharpness.

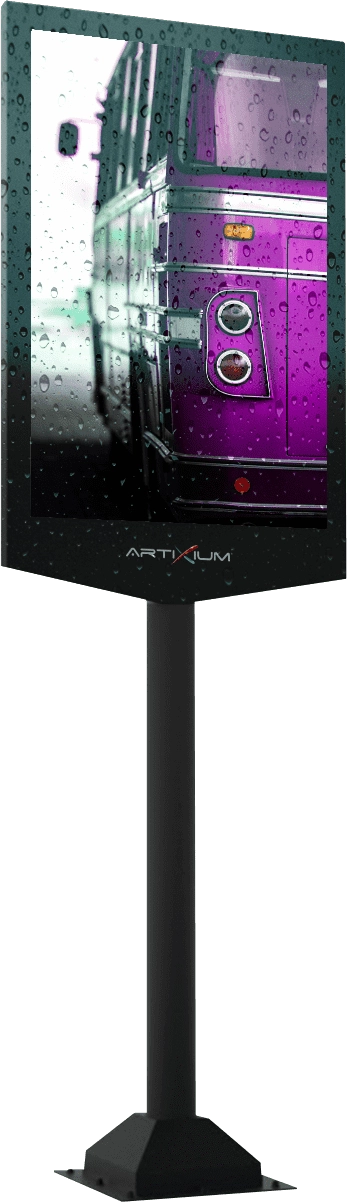

Designed to work in extreme weather conditions, the PORTRAIT UNIPOLE is waterproof and resistant to particle ingress. No matter the weather, this product will function normally and stay true to its original form.
OUTDOORBack MaintenanceFront MaintenanceHigh BrightnessSolutionBillboardUnipoleRobust
| OUTDOOR | ||
| Product Parameters | Unit | P4 |
| Pixel Pitch | mm | 4,00 |
| LED | SMD1921 (Black Face) | |
| Application | Outdoor LED billboard | |
| Ingress Protection | IP | IP65 |
| Brightness | cd/sqm | ≤ 6000 Nits @5volts |
| Color Temperature after calib (adjustable) | deg. K | 6500 |
| Viewing Angle (50% brightness) | deg. | 140 H / 140 V |
| Device size (WxHxD) | mm | 1165 x 4106.98 x 705.44 |
| Display area (WxH) | mm | 1024 x 1792 |
| Cabinet size (WxHxD) | mm | 1024 x 896 x 207 |
| Module size (WxHxD) | mm | 256 x 128 x 15 |
| Device pixel matrix (WxH) | px | 256 x 448 |
| Cabinet pixel matrix (WxH) | px | 256 x 224 |
| Module pixel matrix (WxH) | px | 64 x 32 |
| Pixel Density | px/sqm | 62500 |
| Total Weight (only LED part) | kg | 82.5 |
| Cabinet Material | Steel with reinforcements | |
| Maintenance Mode | Back (Front optionnal) | |
| Mask specification | 95% Plastic + 5% Fiber / SS Screws / Shaders | |
| Contrast Ratio | High | |
| Grey scale (linear) | bit | 16 |
| Brightness control | bit | 16 |
| Processing depth | bit | 16 |
| Color | 281 Trillions | |
| Display Refresh Rate | Hz | 3840 |
| Operation Power | V | AC85-230V |
| Max. Power Consumption | W/sqm | 900 |
| Average Power Consumption | W/sqm | 300 |
| Control Mode | Synchronization | |
| Video Frame Rate | Hz | 50/60Hz |
| Input Types Supported | DVI / SDI / HDMI | |
| 3D ready (optional) | Yes | |
| Calibration | Yes | |
| Lifetime (50% brightness) | h | 50000 |
| Operating Humidity Range | 10-95% | |
| Operating Temperature Range | -20°C / +60°C | |
| Screen Uniformity Correction | - | |
| Certification | CE / ETL / CCC | |
| Available options | Aluminum Cabinets, Neutrik Connectors | |
| Compatibility | - |
