Hicalico

Application
OUTDOOR
PIXEL PITCH
P6.6
OPTION
NO OPTIONS AVAILABLE

Overview

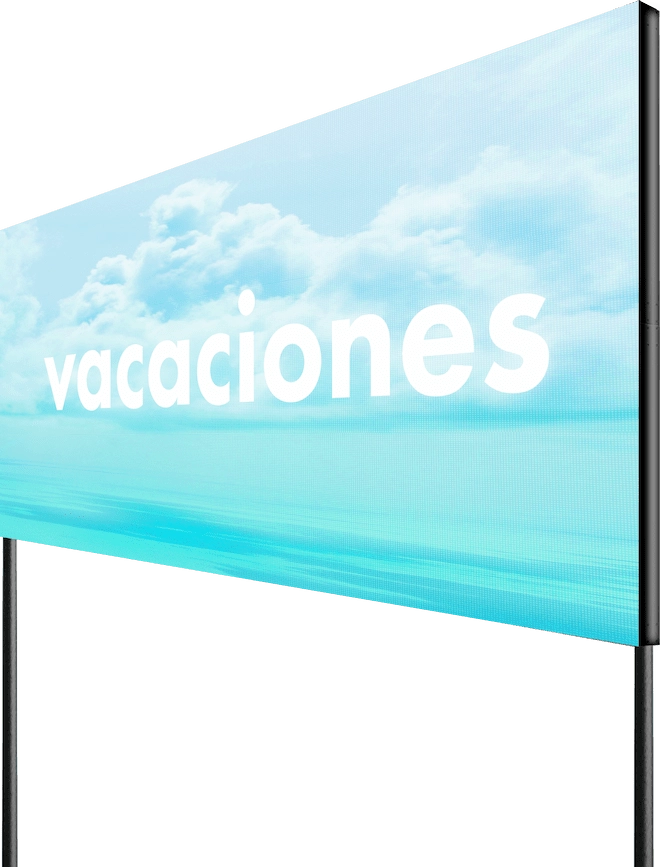

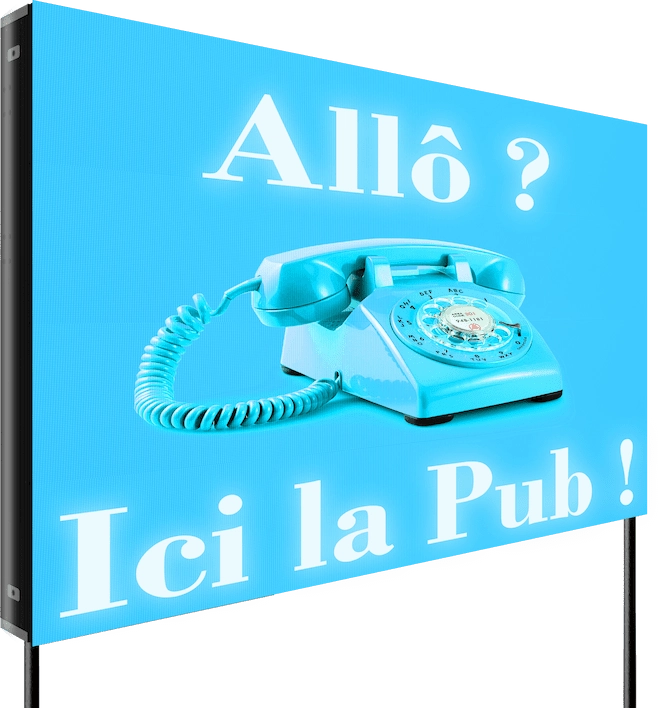

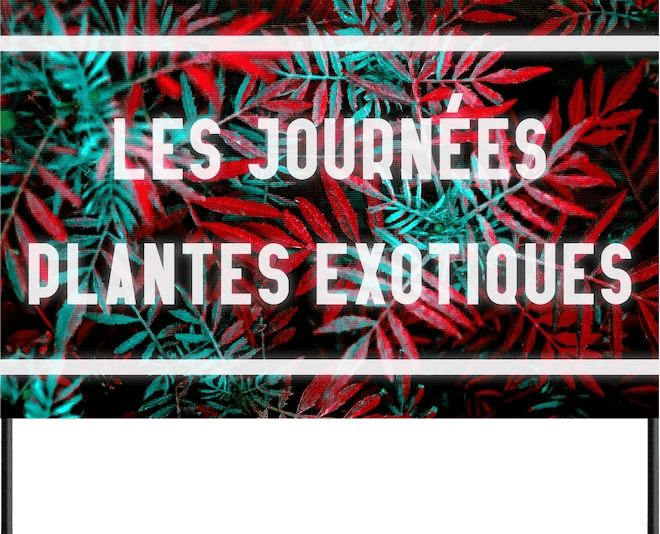

The HICALICO is designed to display visible visual content, even in broad daylight. It's an ideal promotional solution for outdoor advertising applications. Its display surface, superior in height to the CALICOT's, makes this product a good solution for videos, animations, and other advertising messages. We can provide custom sizes for your LED ribbon to better fit your needs.

Application
OUTDOOR
PIXEL PITCH
P6.6
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP65
Display Area (W X H)
2880 x 1920 mm
BRIGHTNESS
≤6000 NITS @5 Volts
WEIGHT
270 kg (LED part)
MATERIAL
Steel with reinforcements

FEATURES

CUSTOM SIZES

Upon request, we can provide a HICALICO tailored to your LED screen project. This is made possible by the use of a highly modulable LED cabinet from our media product range, the HYDROGEN.

P6.6 PIXEL PITCH

The HYDROGEN LED cabinets used for the HICALICO's construction are amongst our best-selling sport and media outdoor products. Its pixel pitch was studied to allow a 6000 NITS brightness, offering clear visibility from afar, both day and night.

OUTDOOR APPLICATION

Designed to work in extreme weather conditions, the HICALICO is waterproof and resistant to particle ingress. No matter the weather, this product will function normally and stay true to its original form. This product is ideal for outdoor applications, from scoreboards to advertising displays.

Certifications

OUTDOORBack Maintenance High Brightness Solution Calico Custom Size Robust Waterproof

Technical Specifications

		OUTDOOR
Product Parameters	Unit	P6.6
Pixel Pitch	mm	6,67
LED		SMD1921 (Black Face)
Application		Outdoor LED ribbon
Ingress Protection	IP	IP65
Brightness	cd/sqm	≤ 6000 Nits @5volts
Color Temperature after calib (adjustable)	deg. K	6500
Viewing Angle (50% brightness)	deg.	140 H / 140 V
Device size (WxHxD)	mm	2880 x 1920 x 300
Display area (WxH)	mm	2880 x 1920
Cabinet size (WxHxD)	mm	960 x 960 x 198
Module size (WxHxD)	mm	320 x 160
Device pixel matrix (WxH)	px	432 x 288
Cabinet pixel matrix (WxH)	px	144 x 144
Module pixel matrix (WxH)	px	48 x 24
Pixel Density	px/sqm	22500
Total Weight (only LED part)	kg	270
Cabinet Material		Steel with reinforcements
Maintenance Mode		Back (Front optional)
Mask specification		95% Plastic + 5% Fiber / SS Screws / Shaders
Contrast Ratio		High
Grey scale (linear)	bit	16
Brightness control	bit	16
Processing depth	bit	16
Color		281 Trillions
Display Refresh Rate	Hz	3840
Operation Power	V	AC85-230V
Max. Power Consumption	W/sqm	900
Average Power Consumption	W/sqm	300
Control Mode		Synchronization
Video Frame Rate	Hz	50/60Hz
Input Types Supported		DVI / SDI / HDMI
3D ready (optional)		Yes
Calibration		Yes
Lifetime (50% brightness)	h	50000
Operating Humidity Range		10-95%
Operating Temperature Range		-20°C / +60°C
Screen Uniformity Correction		-
Certification		CE / ETL / CCC
Available options		Aluminum cabinets, Neutrik connectors
Compatibility		-
