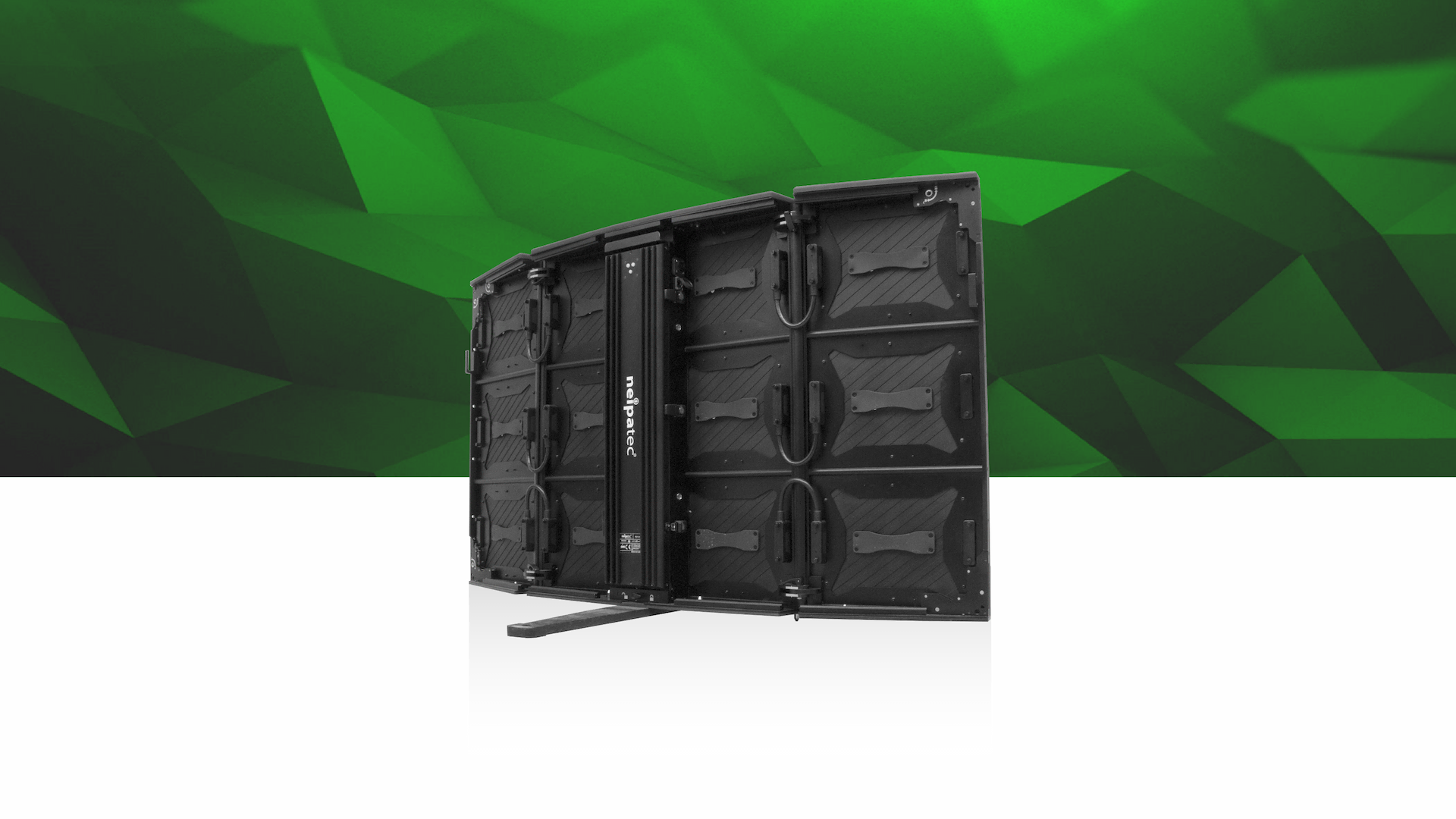

The NEIPATEC® PRO VR is our utmost prestigious product for LED perimeter systems, with an IP65 rating, high brightness, and high definition. This patented LED cabinet is the only solution available with the virtual advertisement technology, developed by Vibotec and Artixium. The NEIPATEC® PRO VR is FIFA and UEFA compliant, it’s also resilient to water, particles ingress, ultraviolet rays, temperature variations, wind force, and even seismic waves. This product is the best the market has to offer for your sponsors’ advertisement messages. It is both reliable and visually performant, and already constitutes the choice made by many High League stadiums, all sports combined.
Application
OUTDOOR
PIXEL PITCH
P6.6 P10 P12.5
MAINTENANCE
Back Maintenance
INGRESS PROTECTION
IP65 (Front & Back)
Display Area (W X H)
1600 x 900 mm
BRIGHTNESS
≤5500 Nits @5 Volts
WEIGHT
45kg/cabinet
MATERIAL
Aluminum CNC cutted frame
The NEIPATEC® PRO VR’s features were designed to ease its integration and to offer a flawless display under any circumstances. Its refresh rate allows the use of slow-motion retranscription with no problem, while its brightness and sharpness make your visual content visible from afar, day or night, under the rain or the sun. The mechanical elements were designed to ensure a long lifespan for your LED perimeter system, a quick installation, and displacement if need be.
SMD LED type 3in1 allows a high brightness, for dynamic visual content with saturated colors, clearly visible from afar even in broad daylight.
The NEIPATEC® PRO VR is referenced by the biggest, most well-known football organizations. The manufacturing and the technology used are compliant with the criteria of the UEFA & FIFA.
With mask shaders and Black Face LEDs, the NEIPATEC® PRO VR offers a high contrast ratio, with deep blacks and bright whites.
With a refresh rate going up to 4800 Hz, the NEIPATEC® PRO VR is perfectly adapted to professional cameras. Retransmitted images, even in slow motion, are sharp and precise.
Virtual advertising is a process used in the field of television broadcasting which makes it possible to sublimate one or several streams of advertisement over the advertisement seen in the stadium by the spectator. The signal emitted by the cameras is demultiplexed in post-production. Each advertisement thus obtained is then sent to the dedicated broadcaster. From then, the advertisement seen on the perimeter system by the TV spectator will be different from the one seen by the stadium spectator, as well as from a spectator that watches the same match on a different channel. Since the stadium advertising rights are often the property of local clubs, TV broadcasters have every interest in replacing said advertisements with their own. This technology is a great tool for targeting different audiences watching the same match.
Advertising software is also part of Artixium’s sports solutions. They allow brands and companies to overlay existing ads on perimeter systems with other content in real-time. They give sports event organizers the ability to generate independent and differentiated advertising messages, giving sponsors the ability to create unique advertising messages for specific audiences around the world.The special process used is called Keying. It consists of isolating a single color or brightness value in an electronic image and using software to make that value transparent, allowing another image to sublimate over it.
Thanks to its components, the NEIPATEC ® PRO VR allows to display visual content adapted to TV retransmissions, using virtual technology in overlay. Virtual advertising is a process used in the field of television broadcasting which makes it possible to sublimate one or several streams of advertisement over the advertisement seen in the stadium by the spectator.
BACK MAINTENANCERentalPro TouringCurveSportLED Perimeter SystemMultisportSoccerRugbySwimmingBasketballKartingIce RinkNeipatecOutdoor
| OUTDOOR | ||||
| Product Parameters | Unit | 6,6 | 10 | 12,5 |
| Pixel Pitch | mm | 6,67 | 10,00 | 12,50 |
| LED | SMD2727 3in1 (Black Face) | SMD3535 3in1 (Black Face) | ||
| Application | Outdoor high league perimeter system, UEFA & FIFA compliant | |||
| Ingress Protection | IP | IP65 | ||
| Brightness | cd/sqm | ≤ 5500 Nits @5volts | ||
| Color Temperature after calib (adjustable) | deg. K | 6500 | 6500 | |
| Viewing Angle (50% brightness) | deg. | 140(+/-70) H / 140 V | ||
| Cabinet Size (WxHxD) | mm | 1600 x 943 x 134.3 | ||
| Display area (WxH) | mm | 1600 x 900 | ||
| Module Size (WxHxD) | mm | 400 x 300 x 15 | ||
| Pixel Matrix Per Cabinet (WxH) | px | 240 x 135 | 160 x 90 | 128 x 72 |
| Pixel Matrix Per Module (WxH) | px | 60 x 45 | 40 x 30 | 32 x 24 |
| Pixel Density | px/sqm | 22500 | 10000 | 6400 |
| Weight | kg/cabinet | 45 | ||
| Cabinet Material | Anodized aluminum + CNC | |||
| Maintenance Mode | Back only | |||
| Mask specification | 95% Plastic + 5% Fiber / SS screws / Shader | |||
| Contrast Ratio | High | |||
| Grey scale (linear) | bit | 16 | ||
| Brightness control | bit | 16 | ||
| Processing depth | bit | 16 | ||
| Color | 281 Trillions | |||
| Display Refresh Rate | Hz | 4800 | ||
| Operation Power | V | AC85-230V | ||
| Max. Power Consumption | W/sqm | 900 | ||
| Average Power Consumption | W/sqm | 300 | ||
| Control Mode | Synchronization | |||
| Video Frame Rate | Hz | 50/60Hz | ||
| Input Types Supported | DVI / SDI / HDMI | |||
| 3D ready (optional) | Yes | |||
| Calibration | Yes | |||
| Lifetime (50% brightness) | h | 50000 | ||
| Operating Humidity Range | 10-95% | |||
| Operating Temperature Range | -30°C / +60°C | |||
| Screen Uniformity Correction | ||||
| Certification | CE / ETL / CCC | |||
| Available options | Curve + Virtual advertisement ready | |||
| Compatibility | No | |||
