  3. Hydrogen Sport Ultra Slim
  • Application

    OUTDOOR

  • PIXEL PITCH

    P10

  • OPTION

    NO OPTIONS AVAILABLE

Overview

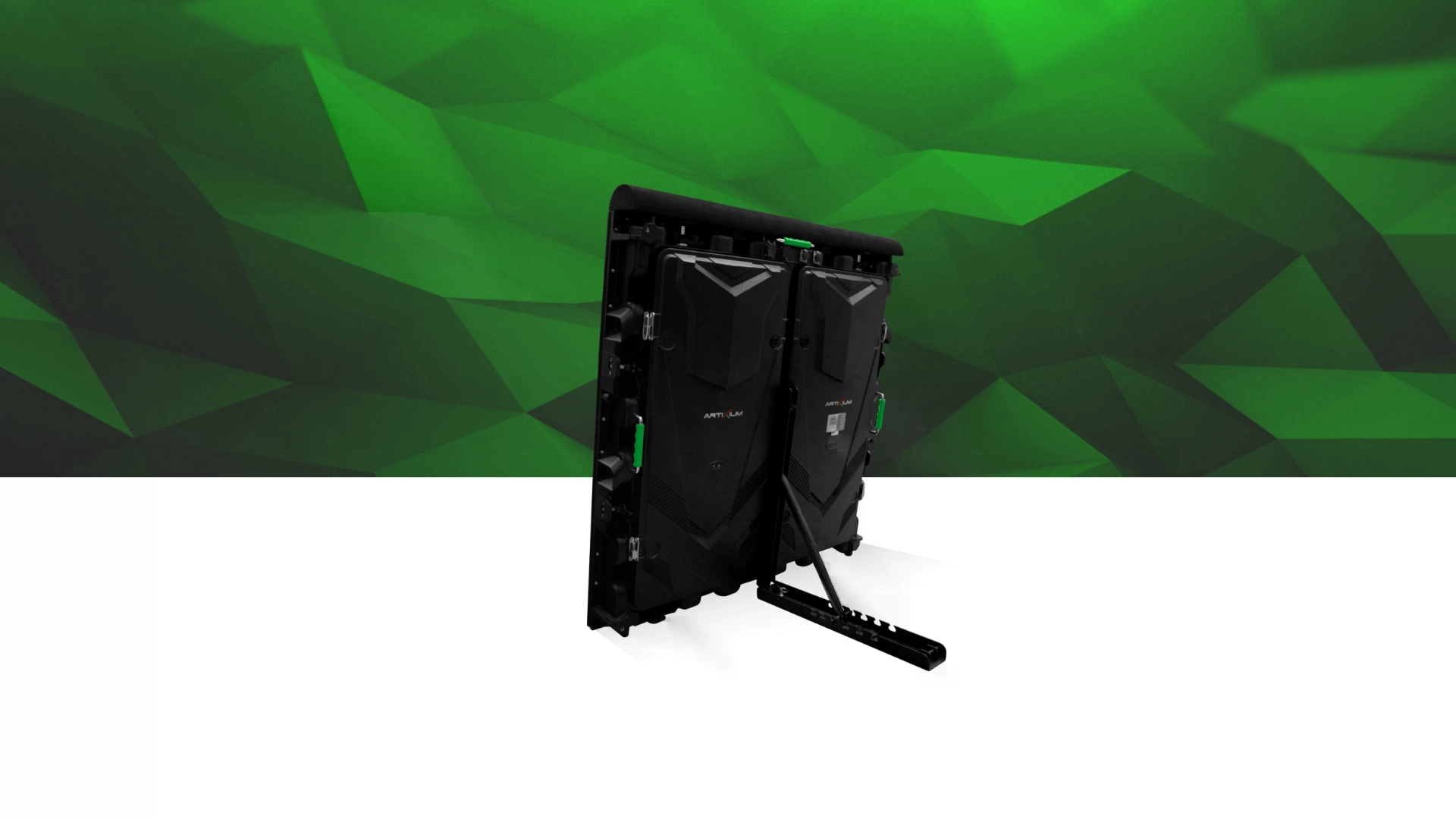

The HYDROGEN SPORT ULTRA SLIM has already proven itself reliable and efficient in numerous LED perimeter projects. It is a lot lighter and thinner than the HYDROGEN SPORT, which makes it a good choice for smaller venues, such as basketball courts, as well as for any stadium that often needs its LED perimeter to be moved regularly. To us, the HYDROGEN SPORT ULTRA SLIM is synonymous with cost efficiency and peace of mind.

  • Application
    OUTDOOR

  • PIXEL PITCH
    P10

  • MAINTENANCE
    Back & Front Maintenance

  • INGRESS PROTECTION
    IP65 (FRONT)
    IP54 (Rear)

  • Display Area (W X H)
    960 X 960 MM

  • BRIGHTNESS
    ≤6000 NITS @5Volts

  • WEIGHT
    33KG / CABINET

  • MATERIAL
    MAGNESIUM ALLOY

FEATURES

high quality features

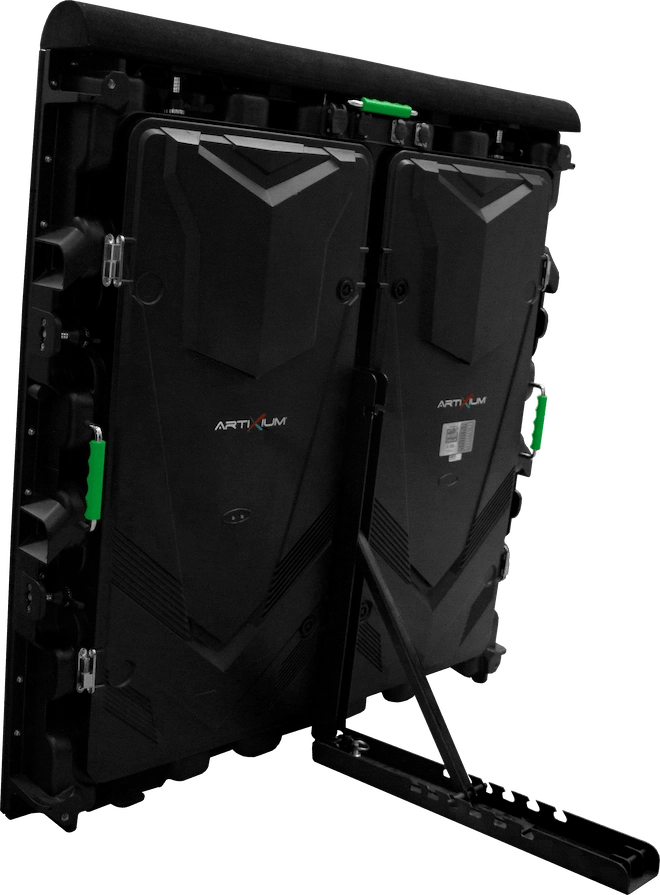

The HYDROGEN SPORT ULTRA SLIM was designed with one particular goal in mind: creating a product that will stay true to its original state in the long run, and that will perform without any issue no matter the environment. It comes with integrated fans, a heavy-duty magnesium frame and die-casting aluminum back cover, and optional Neutrik connectors.

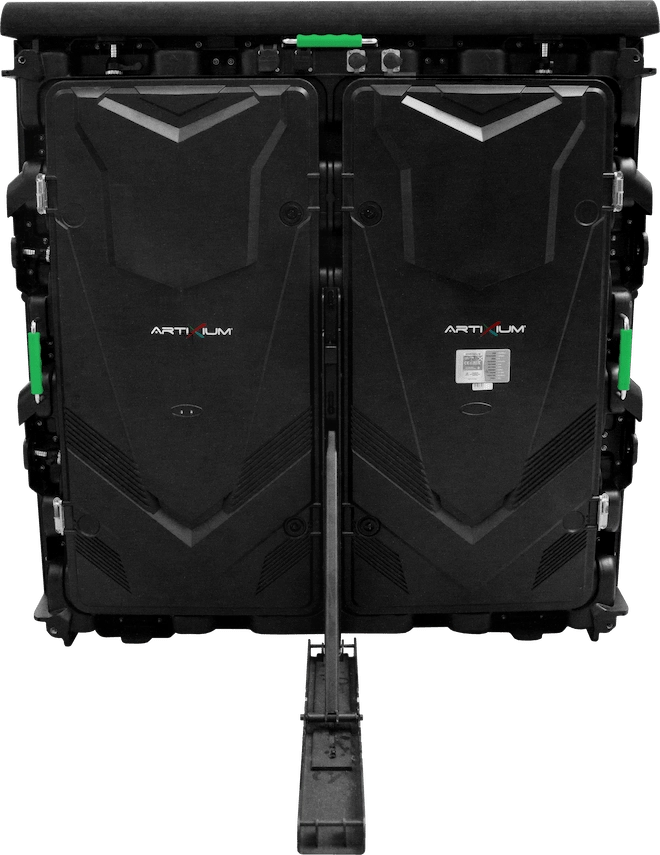

easy maintenance

The maintenance of the HYDROGEN SPORT ULTRA SLIM can be done from the back by opening the back cover or from the optional front access modules. Therefore, your LED perimeter system can fit many different stadiums and still be easy to manage and maintain.

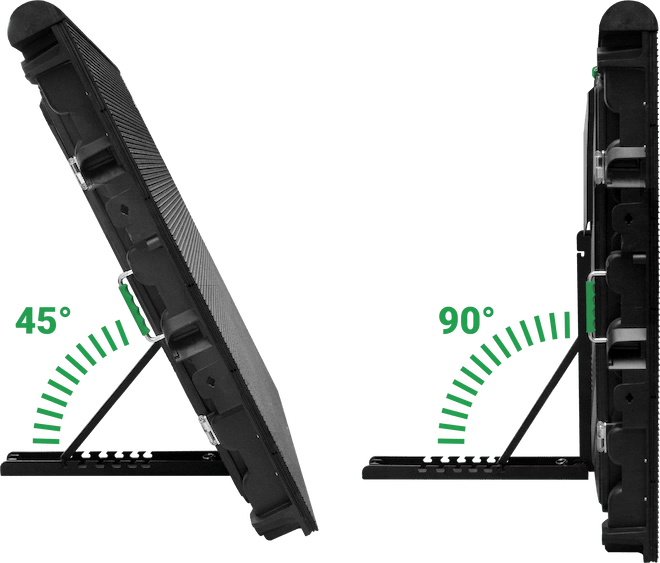

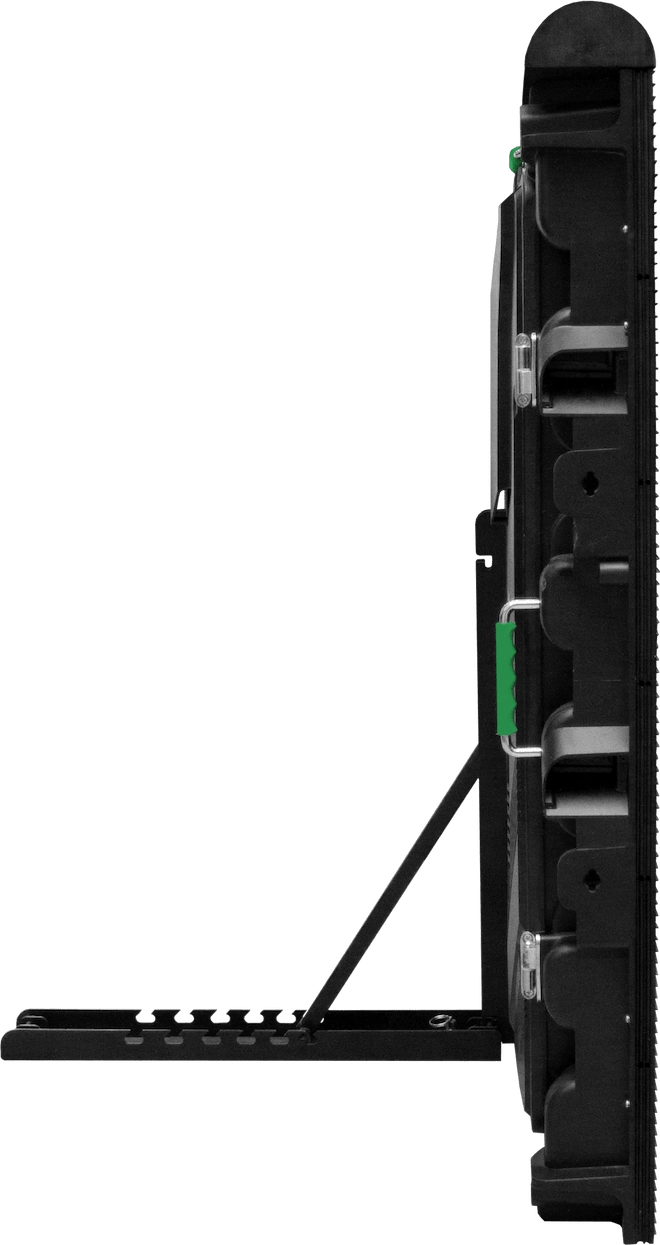

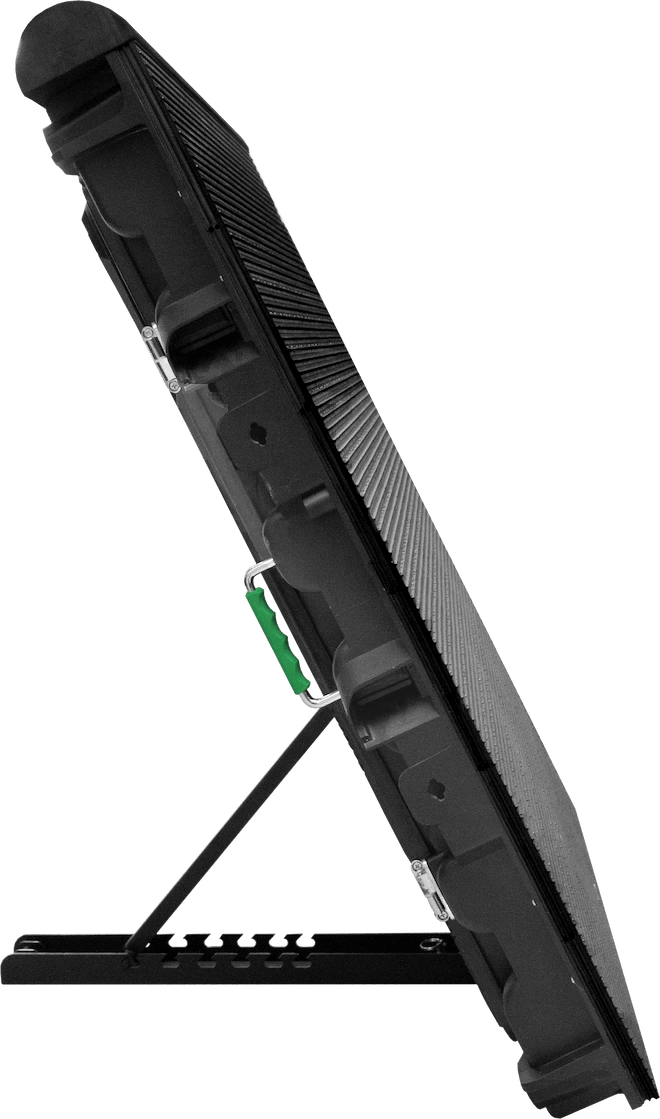

adjustable inclination

With its integrated adjustable leg, the HYDROGEN SPORT ULTRA SLIM can be placed at a 45° to 90° angle. This feature allows you to orient your LED perimeter system to maximize its visibility, depending on the size of your stadium, the height of the bleachers, etc.

visual properties

With a 6000 NITS brightness and a 10mm pixel pitch, you ensure clear visibility from anywhere in your stadium, day or night, to your different sponsors.

Certifications

SPORTLED Perimeter SystemMultisportSoccerRugby

Technical Specifications

    OUTDOOR
Product Parameters Unit 10
Pixel Pitch mm 10,00
LED   SMD2727 3in1 (Black Face)
Application   Perimeter System
Ingress Protection IP IP65 (front) / IP54 (rear)
Brightness cd/sqm ≤ 6000 Nits @5volts
Color Temperature after calib (adjustable) deg. K 6500
Viewing Angle (50% brightness) deg. 140(+/-70) H / 140 V
Cabinet Size (WxHxD) mm 960 x 960 x 112
Display area (WxH) mm 960 x 960
Module Size (WxHxD) mm 320 x 160 x 15
Pixel Matrix Per Cabinet (WxH) px 128 x 96
Pixel Matrix Per Module (WxH) px 32 x 16
Pixel Density px/sqm 10000
Weight kg/cabinet 33
Cabinet Material   Magnesium Alloy
Maintenance Mode   Back (Front optional)
Mask specification   95% Plastic + 5% Fiber / SS Screws / Shaders
Contrast Ratio   High
Grey scale (linear) bit 16
Brightness control bit 16
Processing depth bit 16
Color   281 Trillions
Display Refresh Rate Hz 3840
Operation Power V AC85-230V
Max. Power Consumption W/sqm 900
Average Power Consumption W/sqm 300
Control Mode   Synchronization
Video Frame Rate Hz 50/60Hz
Input Types Supported   DVI / SDI / HDMI
3D ready (optional)   yes
Calibration   yes
Lifetime (50% brightness) h 50000
Operating Humidity Range   10-95%
Operating Temperature Range   -20°C / +60°C
Screen Uniformity Correction   Brightness + chromaticity
Certification   CE / ETL / CCC
Available options   Neutrik connectors, Font access modules
Compatibility    No

Compatible accessories

MSD300-1
Sending Card
MSD600-1
Sending Card
MCTRL300
Sending Box
MCTRL600
Sending Box
MCTRL660
Sending Box
MCTRL700
Sending Box
MCTRL4K
Sending Box
MCTRL R5
Sending Box
MRV328
Receiving card
MRV336
Receiving card
MRV366
Receiving card
MRV412
Receiving card
MRV432
Receiving card
MRV208
Receiving card
MRV266
Receiving card
MRV216
Receiving card
MRV416
Receiving card
MRV300-1
Receiving card
MRV560-1
Receiving card
AT32
Receiving card
A4S
Receiving card
A5S
Receiving card
A5S PLUS
Receiving card
A7S PLUS
Receiving card
A8S
Receiving card
A8S-N
Receiving card
A10S PLUS
Receiving card
A10S PRO
Receiving card
TB30
Media Player
TB50
Media Player
TB60
Media Player
VX4S-N
Video Processor
VX6S
Video Processor
VX600
Video Processor
VX1000
Video Processor
VX16S
Video Processor
HDR MASTER 4K
Video Processor
NOVAPRO UHD
Video Processor
NOVAPRO UHD JR
Video Processor
J6
Video Processor
MON300
Monitor Card
NS060
Light Sensor
MTH310
Temperature sensor
TCB300 LCD PLAYER
Media Player
CVT310
Fiber Converter
CVT4K-S
Fiber Converter
CVT4K-M
Fiber Converter
CVT10
Fiber Converter
CVT10 PRO
Fiber Converter
ACCESSORY FLIGHT CASE
Flight case

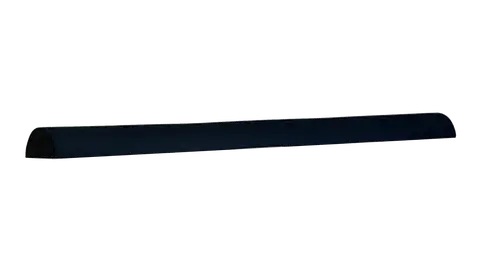

HYDROGEN SPORT ULTRA SLIM - TOP BUMPER
Bumper
